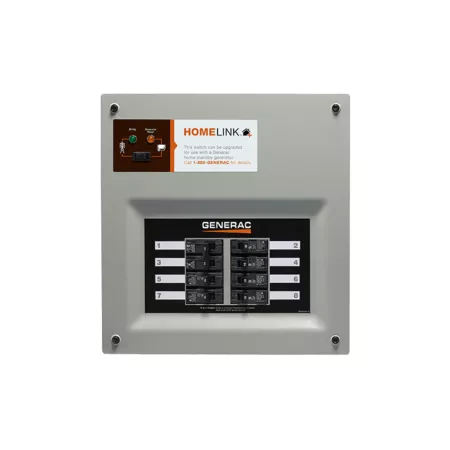

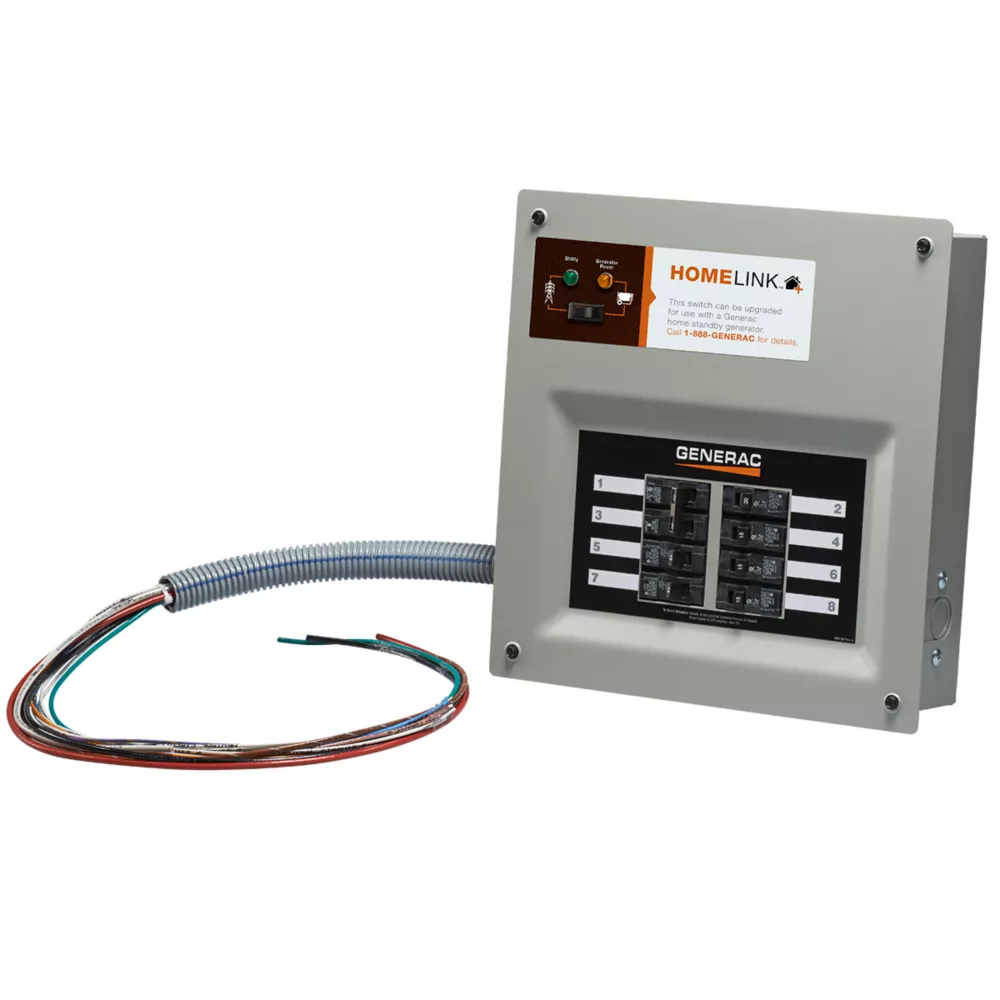

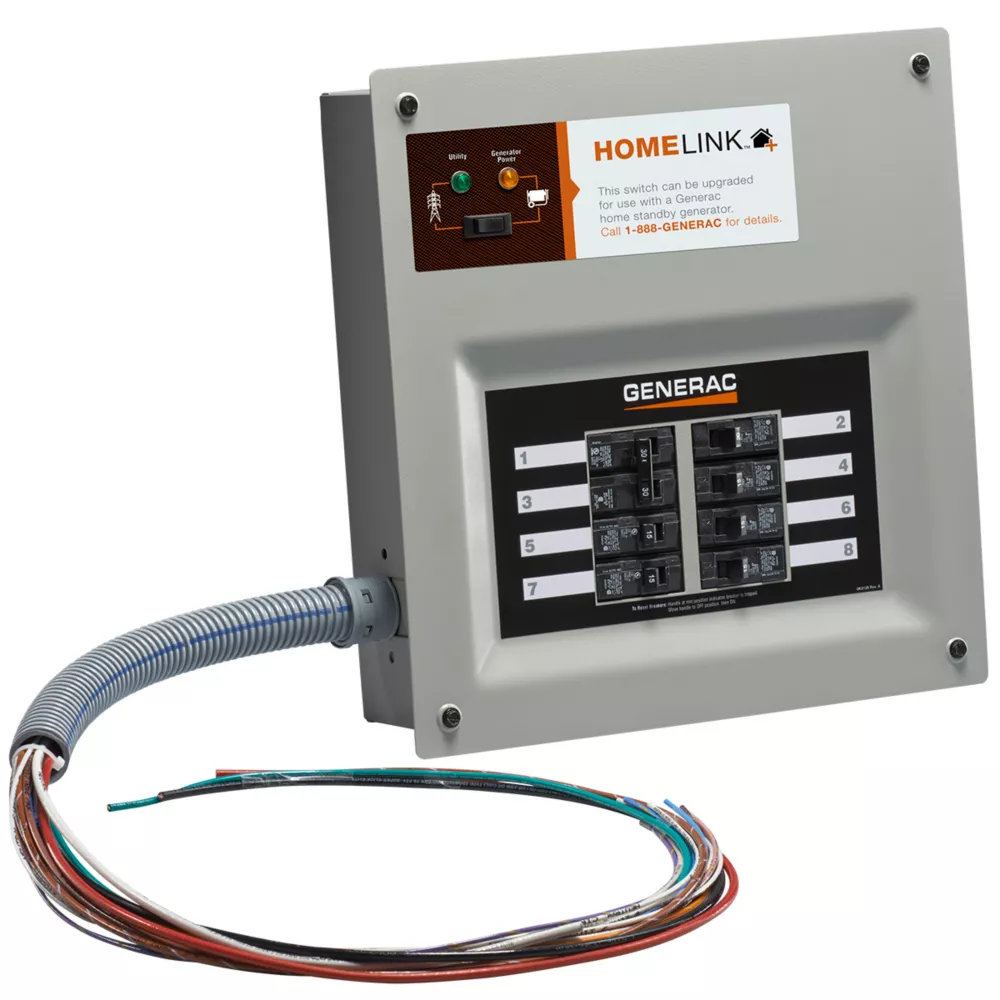

Generac Homelink 30A Manual Transfer Switch Electrical Boxes & Covers Home Improvement

The Generac Homelink 30A Manual Transfer Switch is a pre-wired electrical device that's installed next to your home's circuit panel. During an outage, it delivers power to hard-wired appliances (such as furnace, well pump and lights) with the push of a button, safely and easily - eliminating the need for multiple extension cords. It comes standard with 8 circuits, expandable to 10 circuits. Featuring our innovative OneTouch transfer button, HomeLink allows for quick changes between utility and generator power for ease of use during an outage. OneTouch also features two status lights to indicate whether utility or generator power is in use. This versatile Generac manual transfer switch allows you to directly power hardwired appliances such as a gas furnace, well pump, and electric water heater. These vital appliances cannot be powered with extension cords, meaning HomeLink™ is a necessity when utility power is lost. When you're ready to install an automatic home standby generator, a certified electrician will change out the panel located in the HomeLink with an automatic switch upgrade panel and new faceplate - and it's ready to be connected to a home standby generator (11 kW maximum).

Upgradeable so it can later be converted to an automatic home standby manual transfer switch
Power source indicator lights inform you when you have utility or generator power present
Powers hard-wired appliances such as your furnace, well pump, and lights
8 circuits, expandable to 10 circuits; accepts standard, tandem, GFCI, and arc fault breakers
Works with generators equipped with GFCI outlets (no switch neutral accessory kit required)
Prevents dangerous back-feeding to avoid injuring utility line workers
Generac manual transfer switch is pre-wired for quick and easy installation
Switch from utility to generator power with ease, using the innovative One Touch transfer button, which is a simple-to-use feature that eliminates the intimidating, hard-to-flip breaker of the past, and One Touch is also equipped with indicators lights to remove the guesswork of determining whether utility or generator power is in use
Flexible mounting options include a flush mount for a nice clean look in your finished basement or garage and wall mount in areas you cannot flush mount, such as cinder blocks in your basement
Backed by a 5-year limited warranty

5 Year Limited Warranty

Generac Homelink 30A Manual Transfer Switch Electrical Boxes & Covers Home Improvement> Electrical> Electrical Boxes & Covers

Specification	Description
Brand	Generac
Country of Origin	Made in USA
Compatibility	Generac's HomeLink manual transfer switch is compatible with generators starting at 5kW with a 30-Amp L14-30 receptacle
Generator Accessory Type	Switches
Package Quantity	1
Primary Color	Gray
Primary Material	Aluminum
Product Height	15.8 in.
Product Length	15.4 in.
Product Weight	26 lb.
Product Width	4 in.
Warranty	5 Year Limited
Manufacturer PartNumber	6852

Generac Homelink 30A Manual Transfer Switch Specifications expand/collapse Specification Description Brand Generac Country of origin Made in USA Compatibility The Generac HomeLink manual transfer switch is compatible with generators from 5 kW with a 30 amp L14-30 outlet Accessory type Generator Switches Package Quantity 1 Primary Color Gray Primary Material Aluminum Product Height 15.8 in. Product Length 15.4 in. Product Weight 26 lb. Product Width 4 in. 5 Year Limited Warranty Manufacturer Part Number 6852
