GPI Lever Operated Manual Fluid Transfer Hand Pump Ul Listed 20 Gal./100 Strokes Fuel Transfer Pumps Truck & Automotive

The GPI DP-20 fluid transfer hand pump is a lever-action diaphragm pump that delivers up to 20 gal. per 100 strokes and provides exceptional performance year after year. Its maintenance-free design reduces the number of internal moving parts which greatly reduces wear and binding seen with conventional hand pumps. The DP-20 hand pump is compatible with a wide variety of petroleum products.

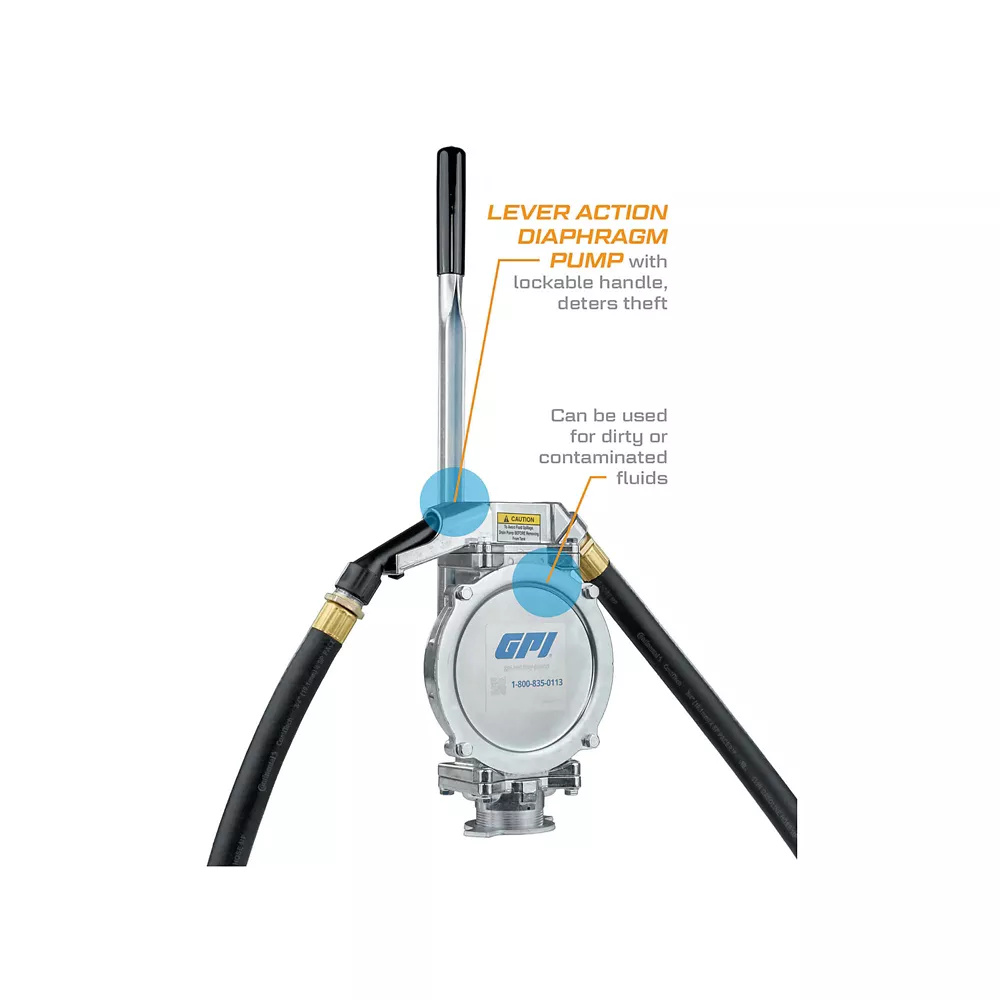

Lever action diaphragm pump with lockable handle, deters theft
Can be used to pump dirty or contaminated fluids
Lightweight, die-cast aluminum housing make the hand pump easy to install
Fluid hand pump is designed to give you maximum reliability and efficiency
Stainless steel piston shaft and Buna-N diaphragm and seals for long pump life
Built-in air valve to prevent leakage at nozzle
UL listed
2-year warranty
Approved for use with gasoline, gasoline/ethanol blends at levels designated as 'gasohol' (E10 maximum), diesel and kerosene
Maintenance-free design
1 in. inlet and 3/4 in. outlet connection
Can be used for dirty or contaminated fluids

GPI Lever Operated Manual Fluid Transfer Hand Pump Ul Listed 20 Gal./100 Strokes Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
Body Materials	Aluminum
Compatible Fluids	Gasoline
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	20 gal. per 100 strokes
Features	Lever action diaphragm pump with lockable handle, deters theft.
Horsepower	4/10 HP
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	20 gal. per 100 strokes
Maximum Head Lift	0 in.
Maximum Operating Pressure	20 gal. per 100 strokes
Maximum Operating Temperature	125 deg. F 52 deg. C
Minimum Operating Pressure	1 gal. per 10 strokes
Minimum Operating Temperature	20 deg. F -29 deg. C
Power Type	Hand Crank
Product Height	18.5 in.
Product Length	8.25 in.
Product Weight	14.8 in.
Product Width	6.5 in.
Warranty	2 Year Limited
Manufacturer PartNumber	138000-02TSC

GPI Manual Lever Action Fluid Transfer Hand Pump Ul Certified, 20 gal./100 Strokes Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA Body Materials Aluminum Compatible Fluids Fuel Discharge Fitting Male Threaded Discharge Diameter 0.75 in. Duty cycle 20 gal. per 100 strokes Features Lever operated diaphragm pump with locking handle, deters theft. Horsepower 4/10 HP Pipe Diameter 0.75 in. Inlet fitting Female threaded Inlet diameter 1 in. Intended Use Residential Grade Maximum Flow 20 gal. per 100 strokes Maximum head lift 0 in. Maximum operating pressure 20 gal. per 100 shots Maximum operating temperature 125 degrees. F 52 degrees. C Minimum operating pressure 1 gal. per 10 shots Minimum operating temperature 20 deg. F -29 degrees. C Power Type Crank Product Height 18.5 in. Product length 8.25 in. Product weight 14.8 in. Product width 6.5 in. 2-year limited warranty Pi numbermanufacturer's ece 138000-02TSC
