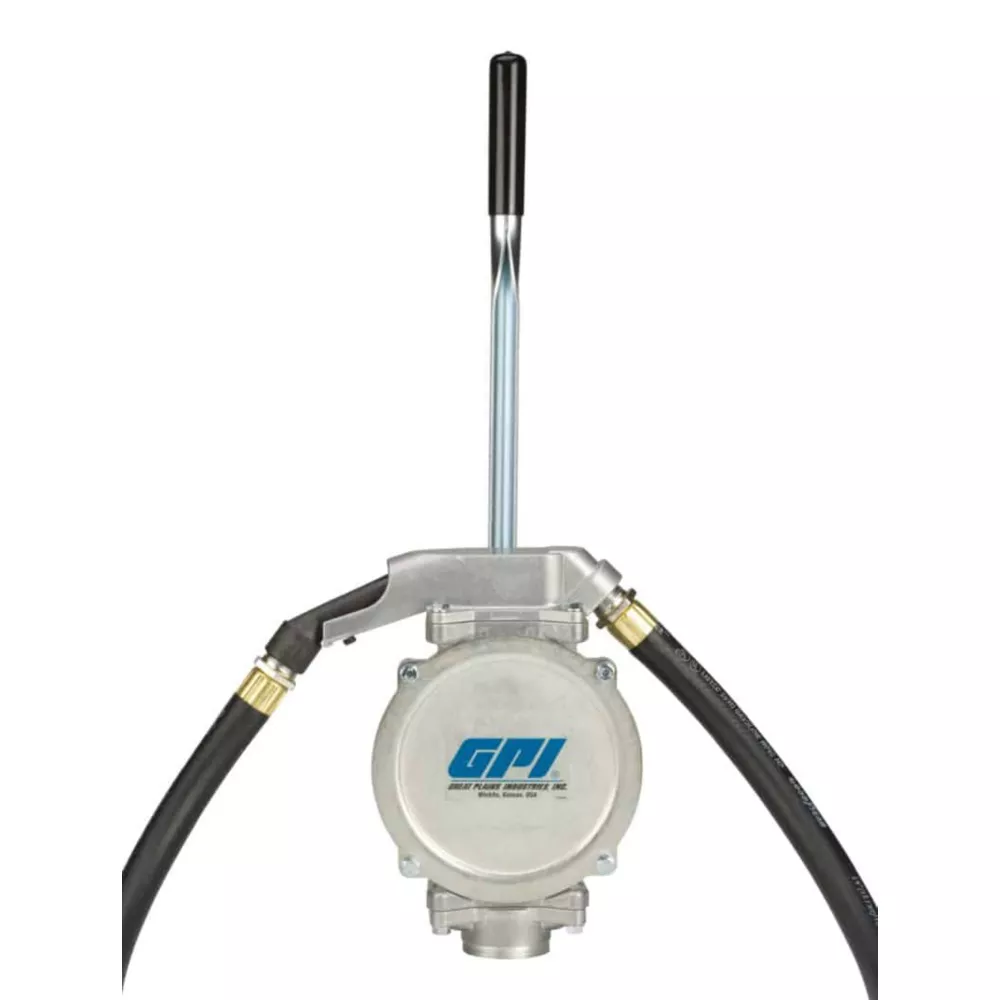

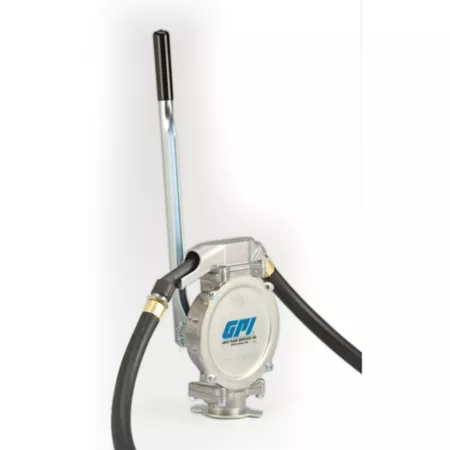

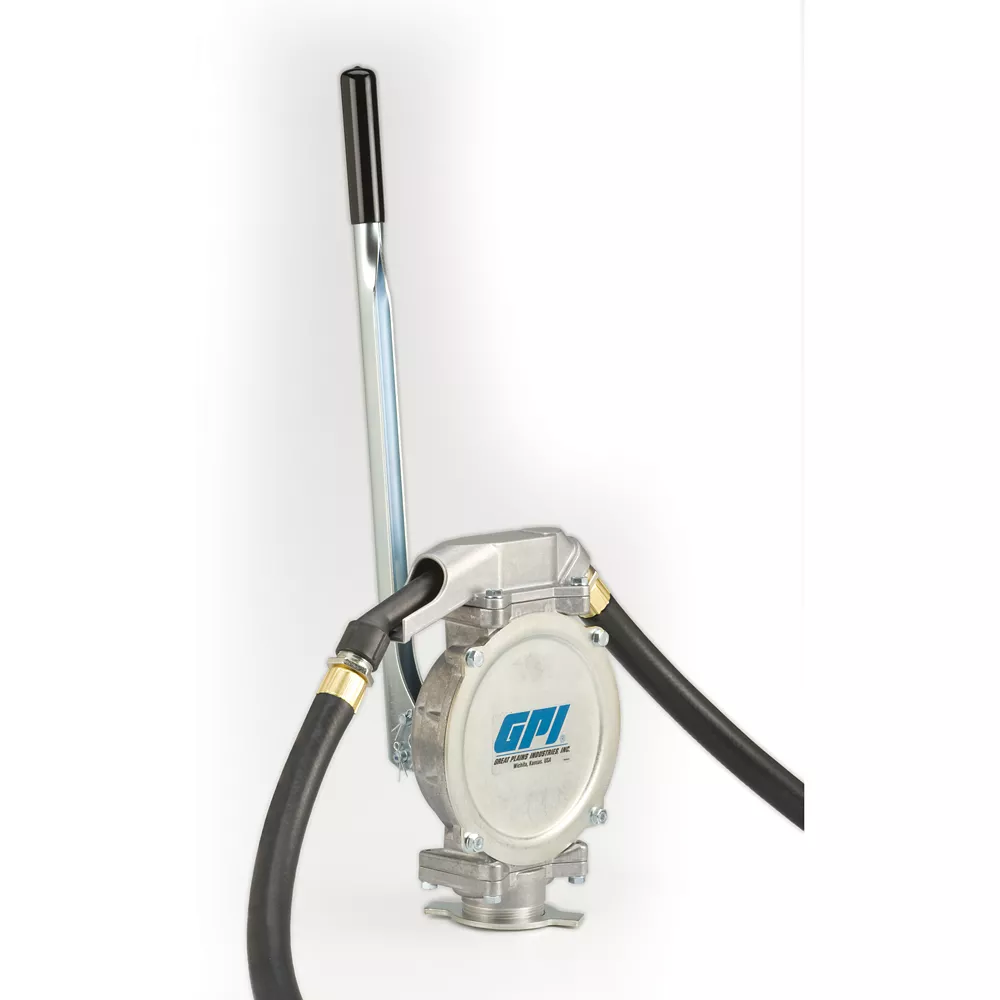

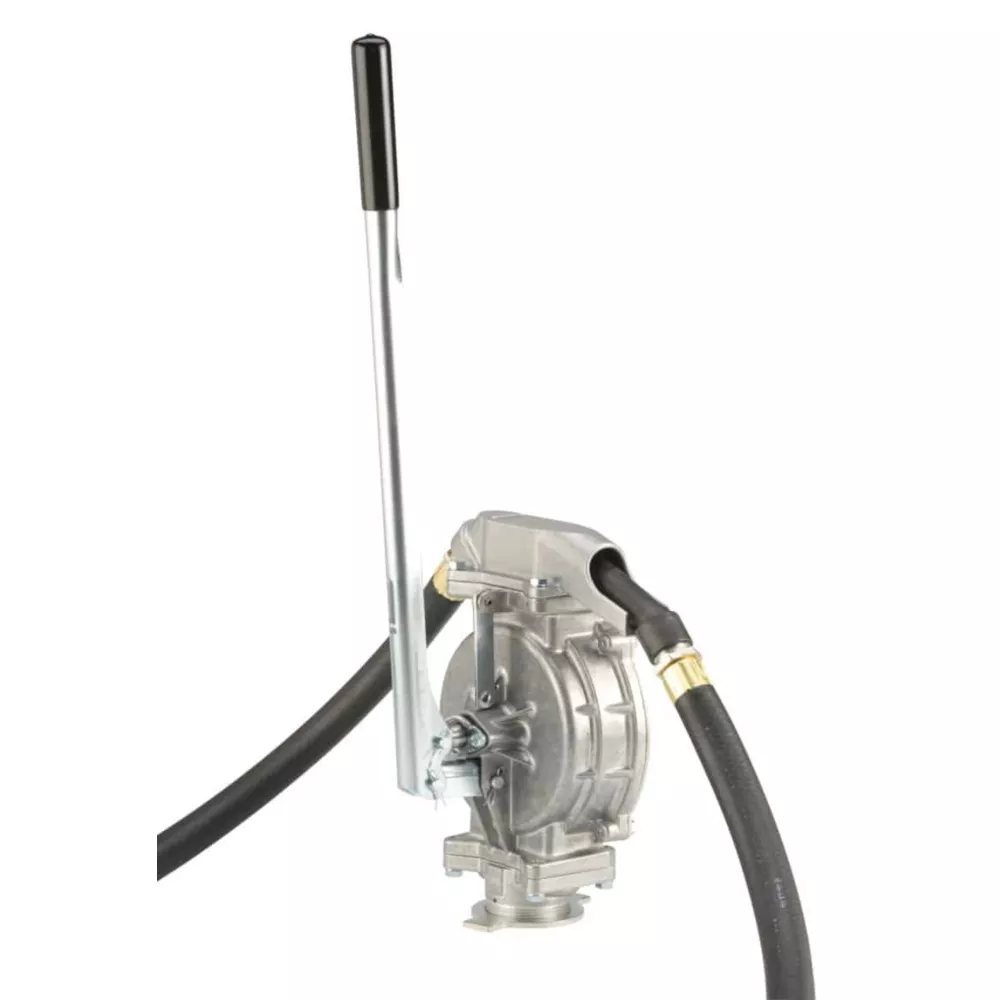

GPI Manual Lever Fluid Transfer Pump 20 gal./100 strokes Fuel Transfer Pumps Truck & Automotive

The GPI DP-20 fluid transfer hand pump is a lever-action diaphragm pump that delivers up to 20 gallons per 100 strokes and provides exceptional performance year after year. Its maintenance-free design reduces the number of internal moving parts which greatly reduces wear and binding seen with conventional hand pumps. The DP-20 hand pump is compatible with a wide variety of petroleum products.

Lever action diaphragm pump with lockable handle, deters theft.
Can be used to pump dirty or contaminated fluids
Lightweight, die-cast aluminum housing for easy installation.
Designed to give you maximum reliability and efficiency.
Stainless steel piston shaft and Buna-N diaphragm and seals for long pump life.
Built-in air valve to prevent leakage at nozzle.
Approved for use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20), kerosene, petroleum products such as medium oil (up to 30 weight), and hydraulic fluid.
2 year limited warranty

GPI Manual Lever Fluid Transfer Pump 20 gal./100 strokes Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
Body Materials	Aluminum
Compatible Fluids	Kerosene
Discharge Connection	Threaded Female
Discharge Diameter	0.75 in.
Duty Cycle	0 N/A
Features	Lever action diaphragm pump with lockable handle, deters theft. Can be used to pump dirty or contaminated fluids Lightweight, die-cast aluminum housing for easy installation.
Hose Diameter	34 in.
Inlet Connection	Threaded Male
Inlet Diameter	1 in.
Intended Use Grade	Standard
Maximum Flow Rate	20 gal. per 100 strokes
Maximum Head Lift	40 in.
Maximum Operating Pressure	100 PSI
Maximum Operating Temperature	-20 deg. F
Minimum Operating Pressure	1 PSI
Minimum Operating Temperature	125 deg. F
Power Type	Manual, None
Product Height	18.13 in.
Product Length	8.38 in.
Product Weight	14.8 lb.
Product Width	15.25 in.
Warranty	2 Year Limited
Manufacturer PartNumber	138000-01TSC

GPI Manual Lever Action Fluid Transfer Hand Pump, 20 gal./100 Strokes Specifications expand/collapse Specification Description Brand GPI Country of Origin Made in USA Body Materials Aluminum Compatible Fluids Kerosene Discharge Connection Female Threaded Discharge Diameter 0.75 in. Duty Cycle 0 N/A Features Lever operated diaphragm pump with locking handle, deters theft. Can be used to pump dirty or contaminated fluids. Lightweight die-cast aluminum housing for easy installation. Pipe diameter 34 in. Inlet fitting Male thread Inlet diameter 1 in. Intended Use Grade Standard Maximum Flow 20 gal. per 100 shots Maximum head lift 40 in. Maximum operating pressure 100 PSI Maximum operating temperature -20 deg. F Minimum operating pressure 1 PSI Minimum operating temperature 125 deg. F Power Type Manual, none Product Height 18.13 in. Product length 8.38 in. Product weight 14.8 lbs. Product width 15.25 in. Ga2 year limited warranty Manufacturer part number 138000-01TSC
