GPI Manual Lever Fluid Transfer Pump 50 gal./100 strokes Fuel Transfer Pumps Truck & Automotive

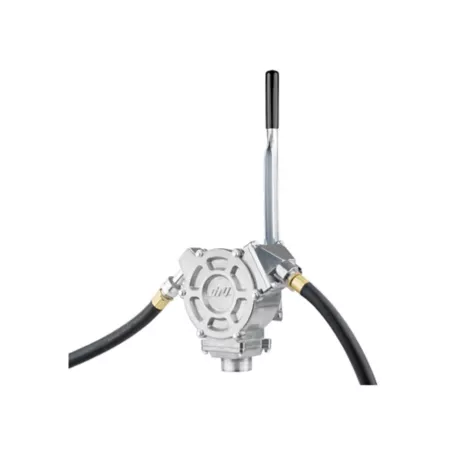

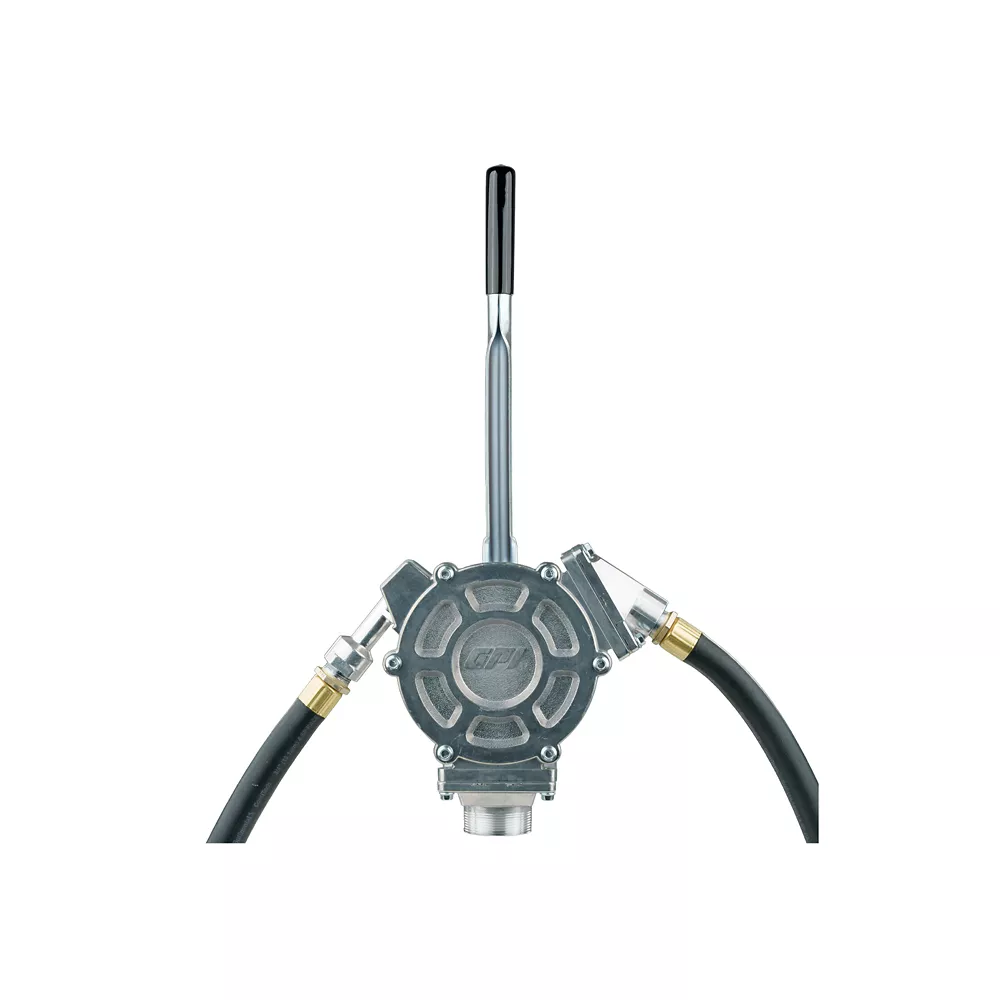

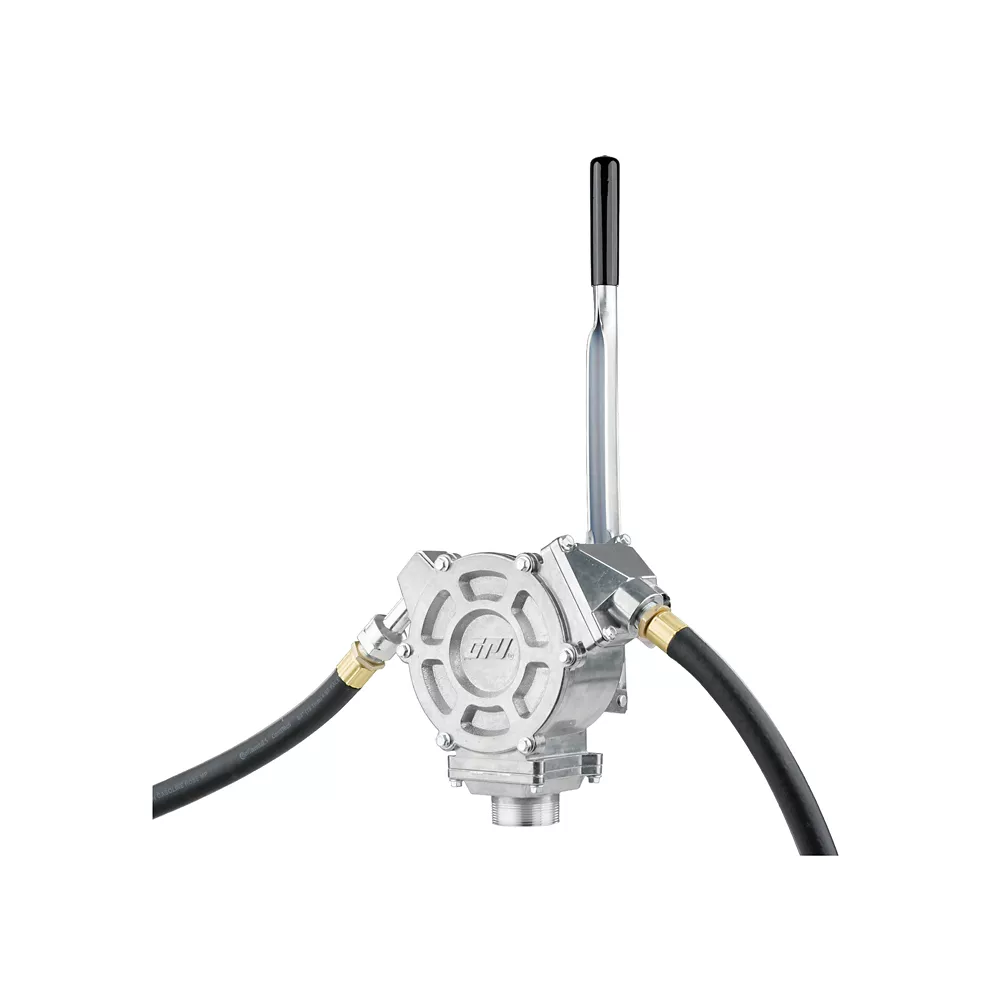

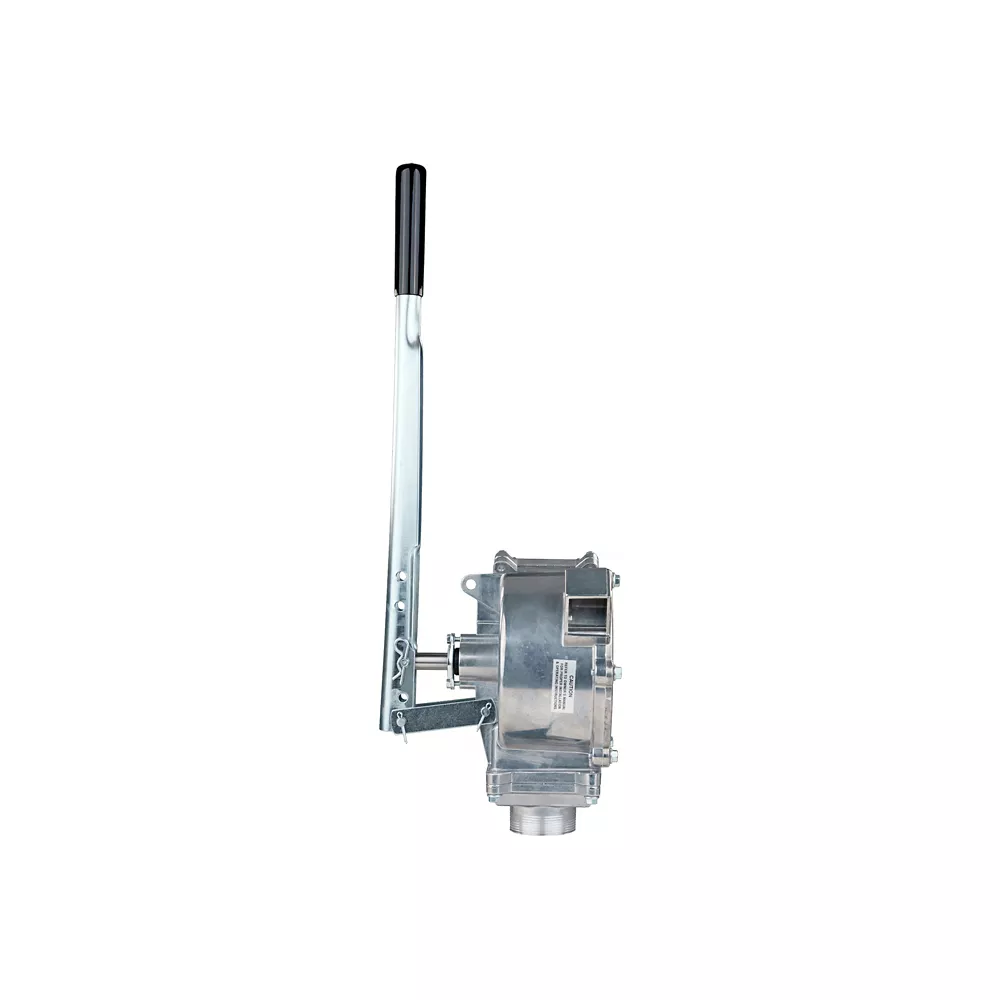

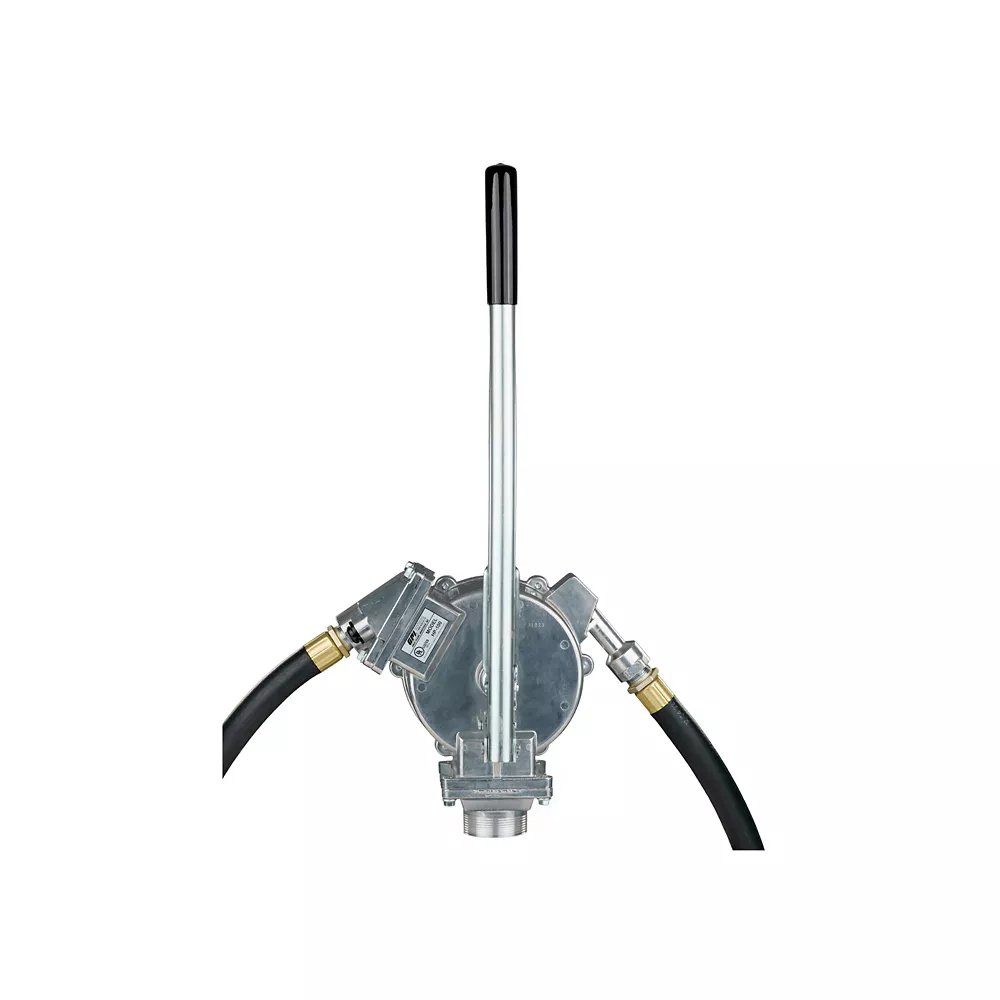

The GPI HP-100 Fluid Transfer pump is a premium fuel piston hand pump that is reliable and versatile, delivering the highest flow rate in the industry year after year. It is a single solution for multiple pumping applications, suitable for pumping fuels and motor oils. The HP-100 features a Dual-Flo handle providing the user with the flexibility of operating the pump at two flow rates. A setting of 1/2-gallon per stroke cycle provides faster high-capacity flow for fuels. A 1/4-gallon setting allows for easier pumping of thicker fluids, such as motor oil, even in cold temperature conditions (-25°F / -32°C).

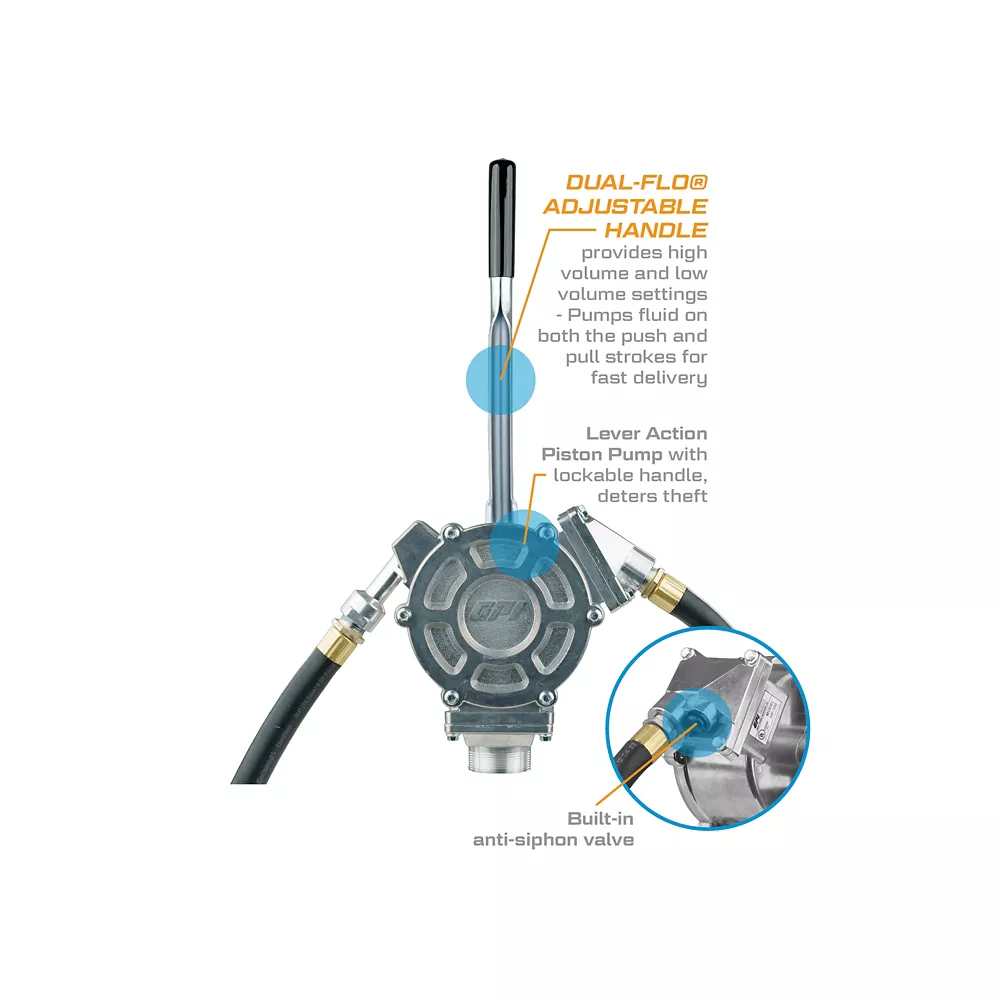

Dual-Flo piston design pumps fluid on both the push and pull stroke, Built -in anti siphon valve.
Includes a low setting for low-volume, low-resistance pumping (1/4 gallon) and a high setting for high volume, high-resistance pumping (1/2 gallon).
Light-weight aluminum body provides corrosion resistance and reduces tank stress.
Lockable handle deters fluid theft. Fits a 2 in. NPT bung.
Includes a 3/4 in. x 8 ft. (2.44 m) Nitrile fuel dispensing hose with static wire and metal nozzle.
For use with diesel (diesel blends to B20), gasoline (alcohol blends up to E15), hydraulic fluid, kerosene and 30W oil.
U.L. listed to U.S. and Canadian standards
2 year warranty

GPI Manual Lever Fluid Transfer Pump 50 gal./100 strokes Fuel Transfer Pumps Truck & Automotive> Fuel Transfer Tanks & Pumps> Fuel Transfer Pumps

Specification	Description
Brand	GPI
Country of Origin	Made in USA
Body Materials	Aluminum
Compatible Fluids	Medium Oils
Discharge Connection	Threaded Male
Discharge Diameter	0.75 in.
Duty Cycle	0 min
Features	Includes a low setting for low-volume, low-resistance pumping (1/4 gallon) and a high setting for high volume, high-resistance pumping (1/2 gal.).
Hose Diameter	0.75 in.
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Intended Use Grade	Residential
Maximum Flow Rate	Up to 50 gal. per 100 stroke cycles
Maximum Head Lift	8 ft.
Maximum Operating Pressure	0.5 gal.
Maximum Operating Temperature	125deg F 52deg C
Minimum Operating Pressure	0.25 gal.
Minimum Operating Temperature	-20deg F -29deg C
Power Cord Length	0 ft.
Power Type	Hand Crank, Manual
Product Height	23 in.
Product Length	8 in.
Product Weight	13.9 in.
Product Width	9.68 in.
Warranty	2 Year Limited
Manufacturer PartNumber	114000-10TSC
