Grape Solar 100 Watt Off-Grid Solar Panel Kit Solar Panels Truck & Automotive

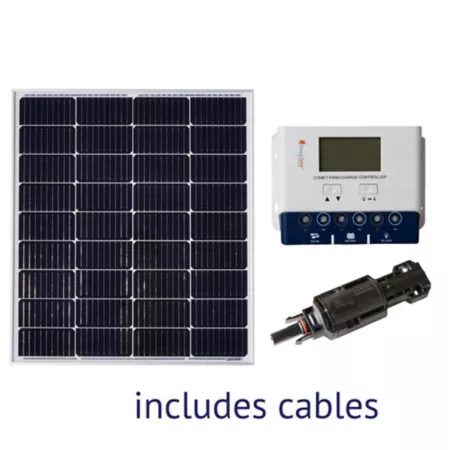

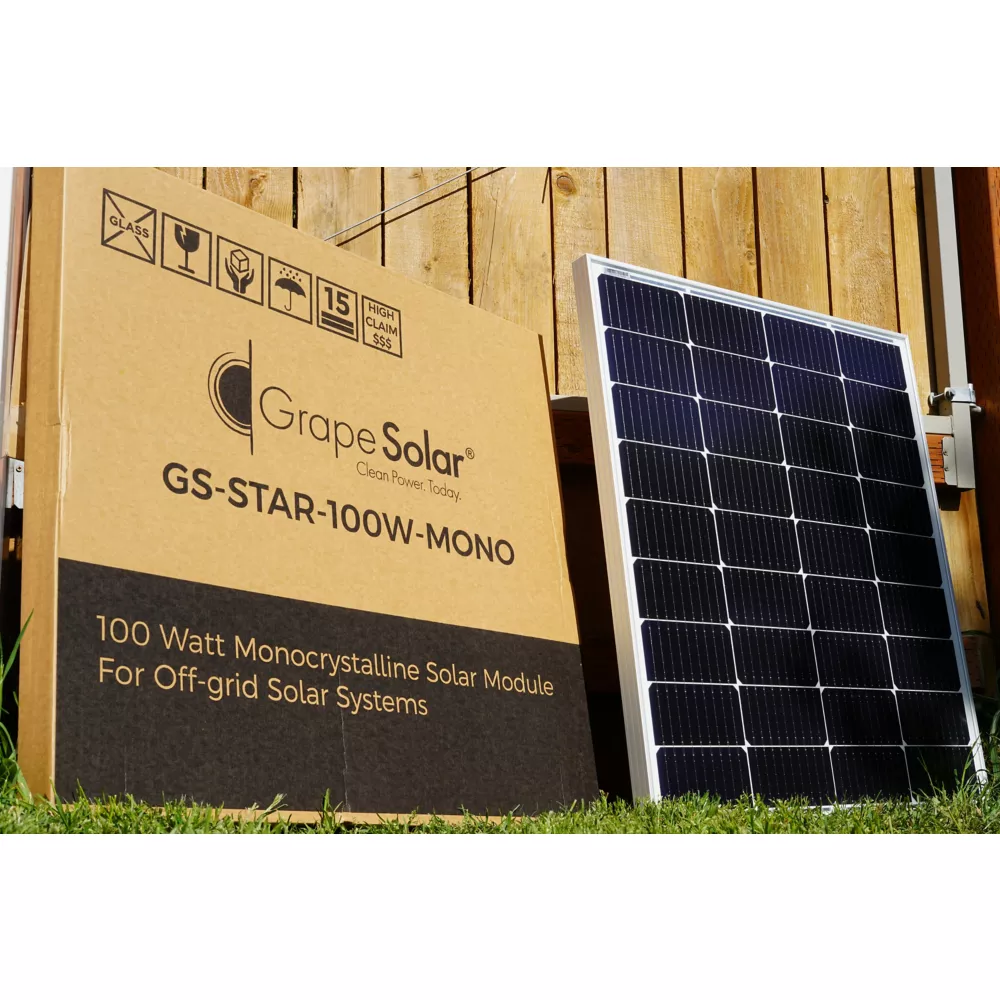

Keep your equipment charged and ready with the Grape Solar 100-Watt Off-Grid Solar Panel Kit. This durable panel is ideal for a variety of DC applications, including RVs, 12-Volt battery charging, boats, small pumps and LED lights. Constructed with high-efficiency mono-crystalline solar cells, this easy-to-install kit lasts for years and is virtually maintenance free. The anodized aluminum frame and sealed junction box make the panel weatherproof for outdoor use. Add up to 4 additional panels for more power. The system provides 300-Watt Hours or 25 Amp Hours of charge per average day. Compatible with deep cycle batteries including lithium-ion. The kit Includes: 1-piece Grape Solar GS-Star-100W 100-Watt mono-crystalline solar panel, a 40 Amp Grape Solar Comet charge controller, cables and manual.

Ideal for DC applications and perfect for RVs, boats, 12-volt battery charging and small pumps
Mono-crystalline panel with anodized aluminum frames and tempered glass for outdoor use and superior performance
Panel's bypass diodes reduce shade losses in series strings
40 amp grape solar comet charge controller allows you to add up to four more panels in parallel, for a total of 500w (use part # GS-100-EXP)
Kit comes with all cables and connectors for quick and easy set-up
Battery not included, a minimum of one 12-volt deep cycle battery (50 Ah minimum size) is necessary to use this kit
Anodized frame and sealed junction box make a weatherproof panel
Provides 300-watt hours or 25 amp hours of charge per average day

Contact Manufacturer

Grape Solar 100 Watt Off-Grid Solar Panel Kit Solar Panels Truck & Automotive> RVs & Campers> RV Power & Electrical> Solar Panels

Specification	Description
Brand	Grape Solar
Country of Origin	Imported
Amperage	40A
Connection Type	Other
Current at Maximum Power	5.23A
Energy Output Per Hour Per 1 Day Charge	300 Wh
Features	None
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40 deg.C
Mounting Location	Other
Mounting Type	None
Number Of Cells	36
Number of Panels	1
Open Circuit Voltage	23.1V
Power Tolerance	600V
Primary Material	Other
Product Height	28.15 in.
Product Length	31.89 in.
Product Weight	15.4 lb.
Product Width	1.38 in.
Short Circuit Current	6.13A
Solar Panel Type	Polycrystalline silicon panel
Wire Size	10 AWG
Voltage	12V
Voltage at Maximum Power	19.12V
Warranty	Panel: 5 year limited product warranty on material/workmanship, 25 year warranty on> 80% power output and 10 year warranty on> 90% power output. Charge Controller: 1 year limited warranty for defects in workmanship and materials
Wattage	100W
Wire Type	Stranded copper
Manufacturer PartNumber	GS-100-KIT

Grape Solar 100-Watt Off-Grid Solar Panel Kit Specifications expand/collapse Specification Description Brand Grape Solar Country of origin Imported amperage 40A Connection type Other Current at maximum power 5.23A Energy output per hour per charging day 300 Wh Features None Maximum operating temperature 85°C Operating temperature minimum operation -40 deg.C Mounting location Other mounting type None Number of cells 36 Number of panels 1 Open circuit voltage 23.1 V Power tolerance 600 V Main material Other product height 28.15 in. Product length 31.89 in. Product weight 15.4 lbs. Product width 1.38 in. Short circuit current 6.13 A Solar panel type Polycrystalline silicon panel Wire size 10 AWG Voltage 12 V Voltage at maximum output 19.12 V Warranty Panel: 5-year limited product warranty on material/workmanship , 25 years warranty on>80% output power and 10 years warranty on>90% output power. Charge controller: 1-year limited warranty against defects in workmanship and materials Power 100 W Wire type Stranded copper Manufacturer part number GS-100-KIT
