Grape Solar 50 Watt Off-Grid Solar Panel Expansion Kit GS-50-EXP Solar Panels Truck & Automotive

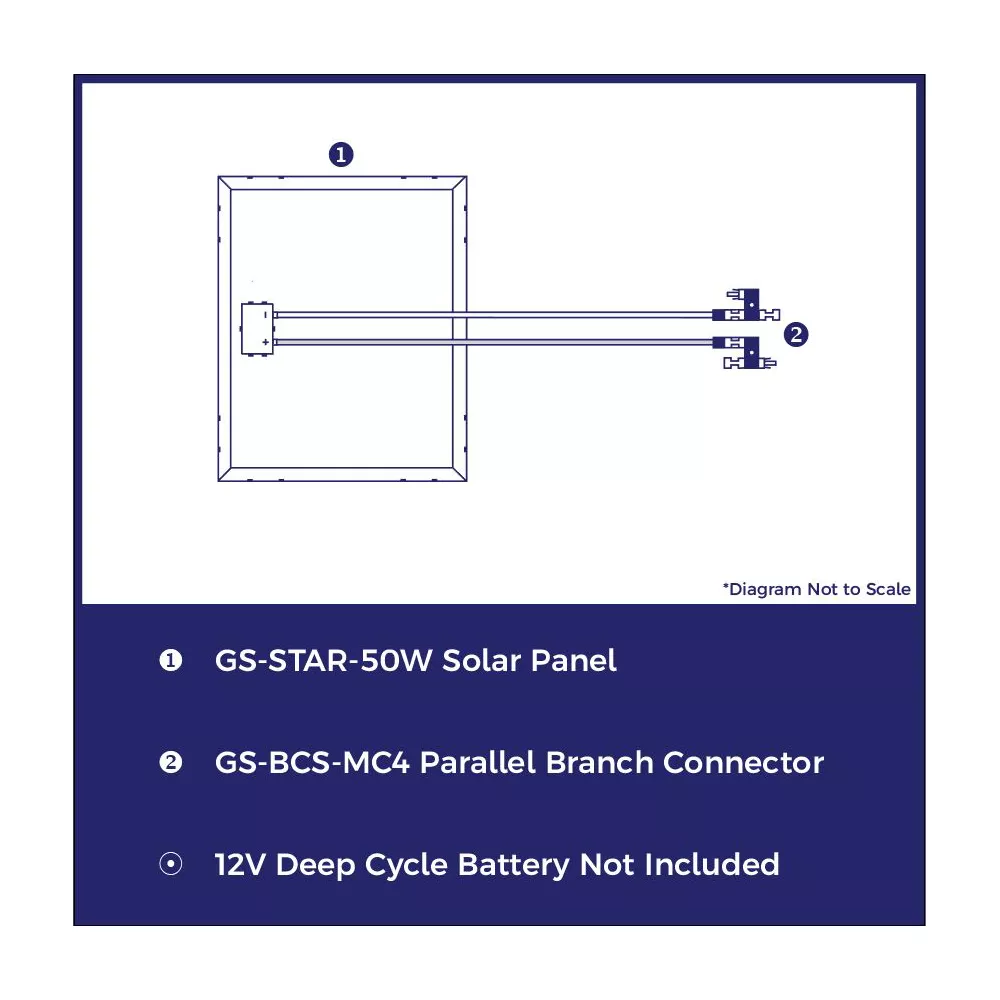

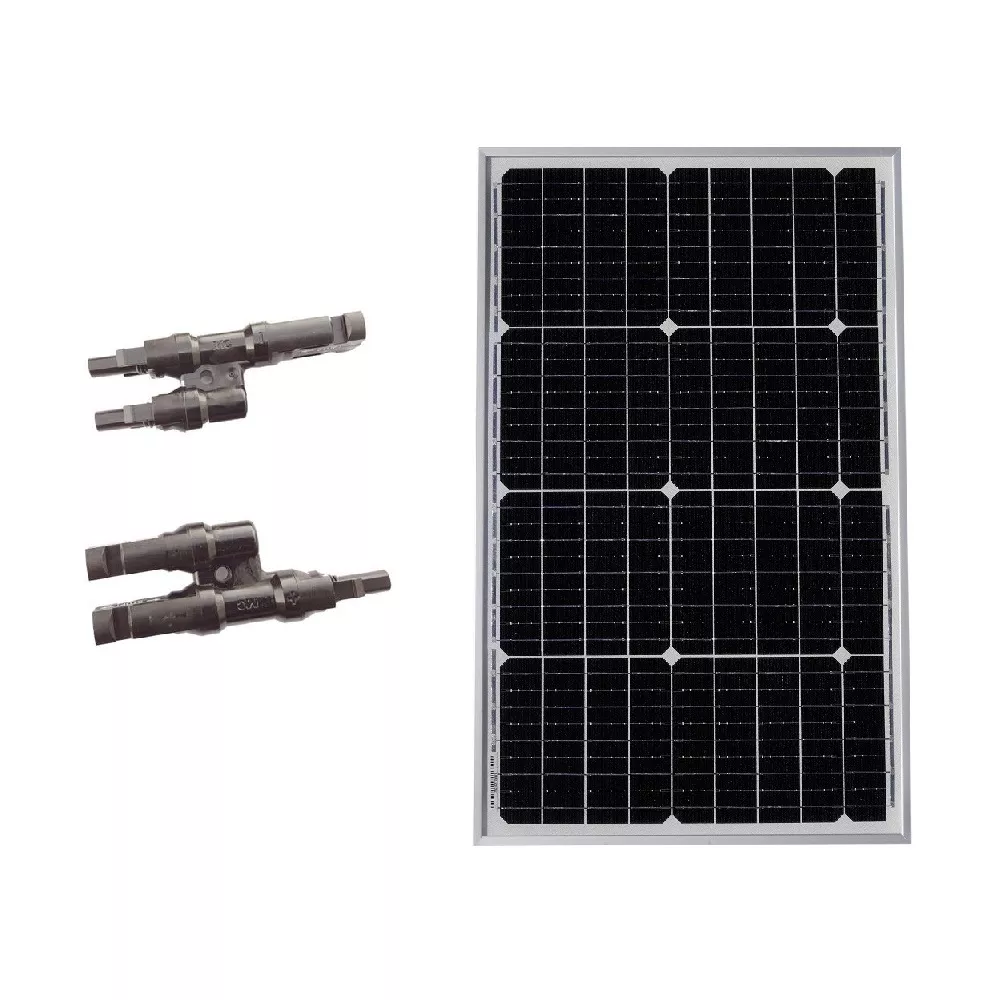

The Grape Solar 50-Watt Off-Grid Solar Panel Expansion Kit is perfect for adding to your GS-50-KIT, or custom kits using 50-Watt panels. Whether you need more power for your existing items, or want to run more items off of solar power, the Expansion Kit is the way to go. Made with high efficiency mono-crystalline solar cells for years of service, this solar kit makes it easy to add panels to your system and is virtually maintenance free. An anodized aluminum frame and a sealed junction box make the panel weatherproof for outdoor use. This kit includes: 1-piece Grape Solar GS-Star-50W 50-Watt mono-crystalline solar panel, a pair of MC4-comparable T-Branch Connectors and a pair of Extension Cables.

Convenient addition to existing off-grid solar arrays
Panel, extension cables, and branch connector included
Plug and play installation
Ideal for adding additional panels to your Grape Solar GS-50-KIT or custom solar kit
Mono-crystalline panel with anodized aluminum frames and tempered glass for outdoor use and superior performance
MC4-comparable T-branch connectors allow for a safe and simple parallel connection of PV-modules
Extension cables feature double-insulated black #10 AWG PV wire, UV and moisture resistant

Contact Manufacturer

Grape Solar 50 Watt Off-Grid Solar Panel Expansion Kit GS-50-EXP Solar Panels Truck & Automotive> RVs & Campers> RV Power & Electrical> Solar Panels

Specification	Description
Brand	Grape Solar
Country of Origin	Imported
Amperage	2.58A
Connection Type	Other
Current at Maximum Power	2.58A
Energy Output Per Hour Per 1 Day Charge	150 Wh
Features	None
Maximum Operating Temperature	85 deg. C
Minimum Operating Temperature	-40 deg. F
Mounting Location	Other
Mounting Type	Bracket
Number Of Cells	36
Number of Panels	1
Open Circuit Voltage	22V
Power Tolerance	600V
Primary Material	Aluminum
Product Height	1.38 in.
Product Length	24.15 in.
Product Weight	8.2 lb.
Product Width	17.32 in.
Short Circuit Current	3.02A
Solar Panel Type	Monocrystalline silicon panel
Wire Size	12 AWG
Voltage	19.38V
Voltage at Maximum Power	19.38V
Warranty	Panel: 5 year limited product warranty on materials and workmanship. 25 year warranty on greater than 80% power output and 10 year warranty on greater than 90% power output.
Wattage	50W
Wire Type	Stranded copper
Manufacturer PartNumber	GS-50-EXP

Grape Solar 50-Watt Off-Grid Solar Panel Expansion Kit, GS-50-EXP Specifications expand/collapse Specification Description Brand Grape Solar Country of origin Imported amperage 2.58 A Connection type Other Current at maximum power 2.58 A Energy output per hour per charging day 150 Wh Features None Maximum operating temperature 85 deg. C Minimum operating temperature -40 degrees. F Mounting location Other mounting type Bracket Number of cells 36 Number of panels 1 Open circuit voltage 22 V Power tolerance 600 V Main material Aluminum Product height 1.38 in. Product length 24.15 in. Product weight 8.2 lbs. Product width 17.32 in. Short Circuit Current 3.02 A Solar Panel Type Monocrystalline Silicon Panel Wire Size 12 AWG Voltage 19.38 V Maximum Output Voltage 19.38 V Warranty Panel: 5-year limited warranty on materials and workmanship. 25-year warranty on power output above 80% and 10-year warranty on power output above 80%output efficiency greater than 90%. Power 50 W Wire type Stranded copper Manufacturer part number GS-50-EXP
