Grizzly 1 HP 8A Dust Collector 2.3 Cu Ft Capacity 500 CFM Dust Collectors Woodworking & Other Power Tools

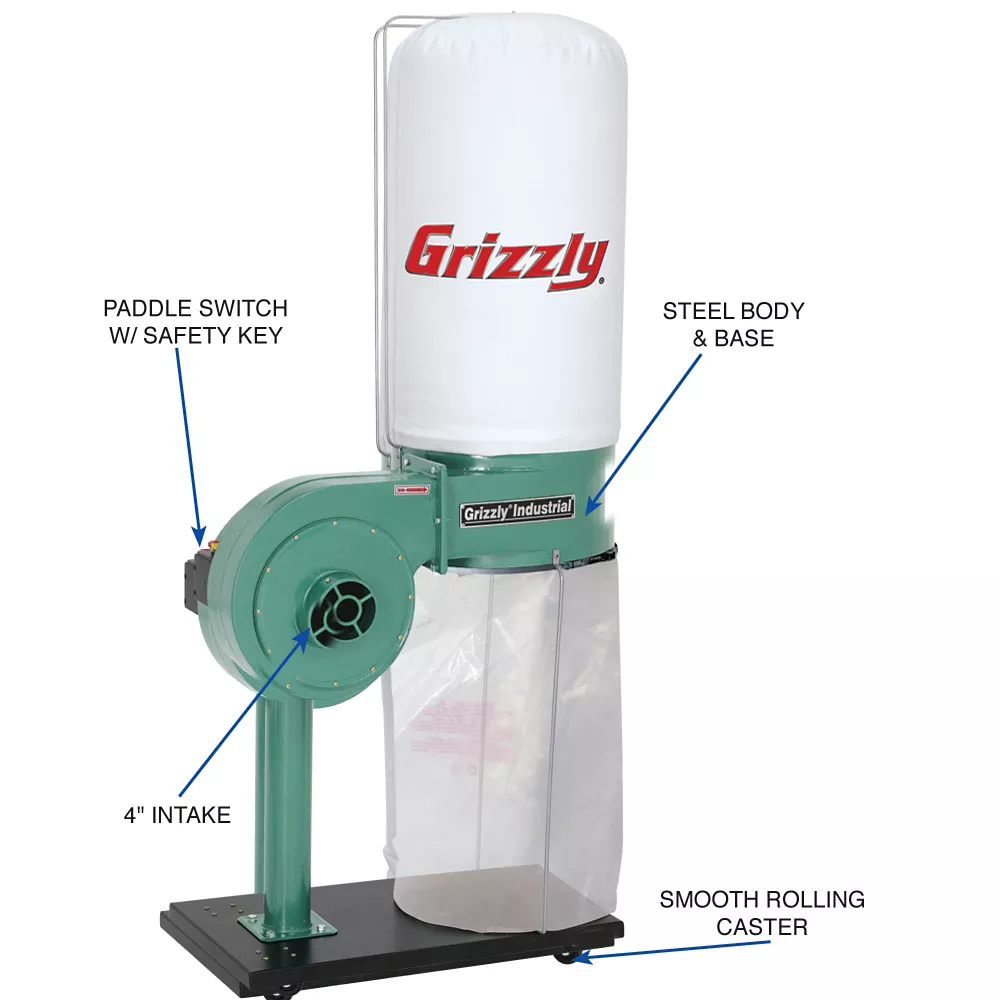

The G8027 1 HP Dust Collector was awarded Best Value by WOOD Magazine. It is a robust, yet portable dust collector with larger collection capacity than any of our other 1 HP models. It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines. This dust collector has air suction capacity of 500 CFM and has a max static pressure of 2.76 inches. Static pressure is produced by the 9" balanced steel, radial fin impeller to move the wood chips into the collector. The filtration rating means it can collect particles down to 2.5-microns. For reference, a human hair is between 50-70 microns in diameter, meaning the G8027 collects particles 30 times smaller! The G8027 excels as a point-of-use dust collector for collecting from a single machine. It is also a very portable dust collector, so you can take it to the job site where it can handle the jobs a regular shop vacuum can't handle. Size is perfect for if you have limited space available. Like all Grizzly dust collectors, the G8027 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.) The G8027 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector. The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the machine may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory

Motor: 1 HP, 110V, single-phase, 8A
Air suction capacity: 500 CFM
Static pressure: 2.76"
Bag filtration: 2.5-micron
Bag capacity: 2.3 cubic feet
Intake hole size: 4"

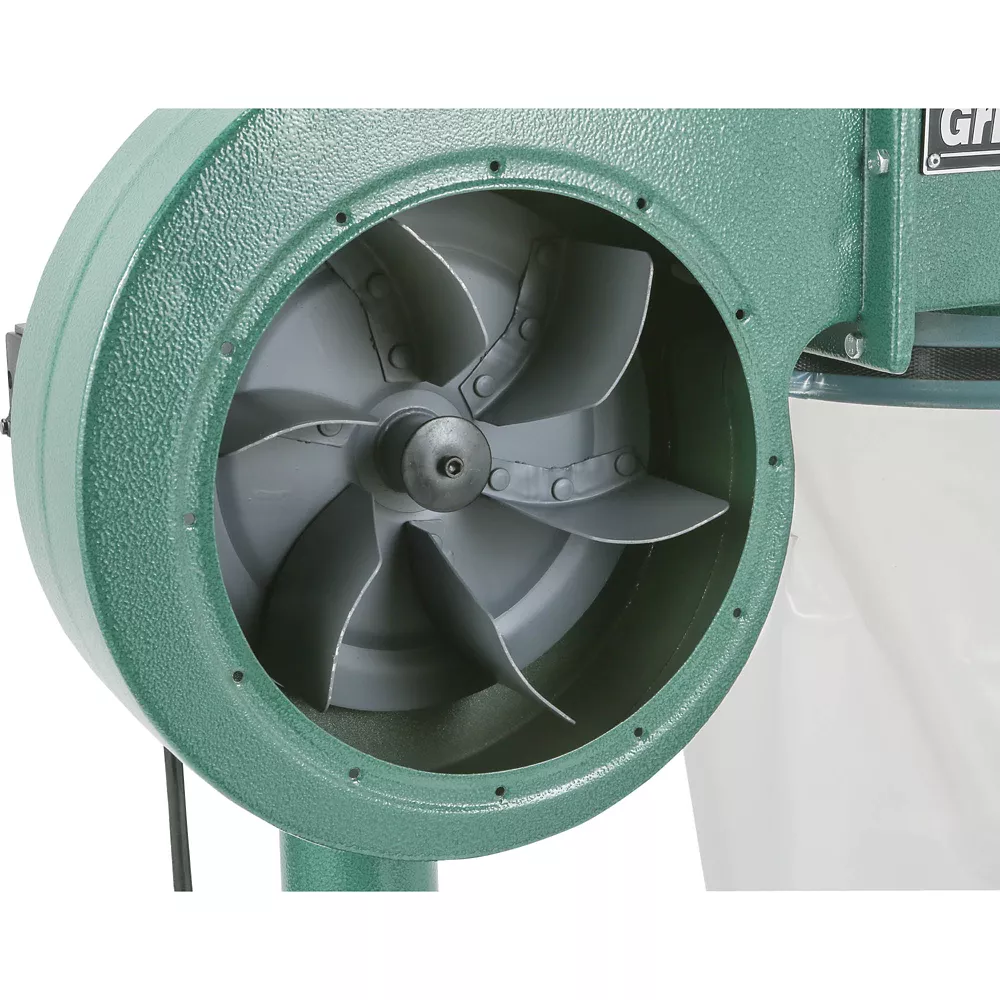

Impeller: 9" balanced steel, radial fin
Upper bag size: 14-1/2" dia. x 24" D
Lower bag size: 14-1/2" dia. x 23" D
Footprint: 15" x 25-1/2"
Overall dimensions: 25-1/2 W x 15" L x 63" H
Approximate shipping weight: 67 lbs.
2.5-Micron upper bag filtration
Powder coated paint
Steel base with casters for mobility

Grizzly 1 HP 8A Dust Collector 2.3 Cu Ft Capacity 500 CFM Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	8 Amps
Compatibility	See manual
Decibel Rating	83 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	1 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	500 CFM
Operating Velocity	500 CFM
Product Height	63 in.
Product Length	25.5 in.
Product Weight	57 lb.
Product Width	15 in.
Warranty	1
Manufacturer PartNumber	G8027

Grizzly 1 HP 8A Dust Collector, 2.3 cu. ft. Capacity, 500 CFM Specifications expand/collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 8 A Compatibility View Manual Decibel Rating 83 dBA Phase Single Phase Features No additional features Filter Efficiency 0 - Not measured Filtration Material Steel Power 1 hp Pipe Diameter 0 in Hose Length 0 in. Maximum Air Flow 500 CFM Operating Speed 500 CFM Product Height 63 in. Product length 25.5 in. Product weight 57 lbs. Product width 15 in. Warranty 1 Manufacturer part number G8027.
