Grizzly 2.5 HP 20 gal Quiet Oil-Free Standing Air Compressor A Series 175 PSI Stationary Air Compressors Air Compressors

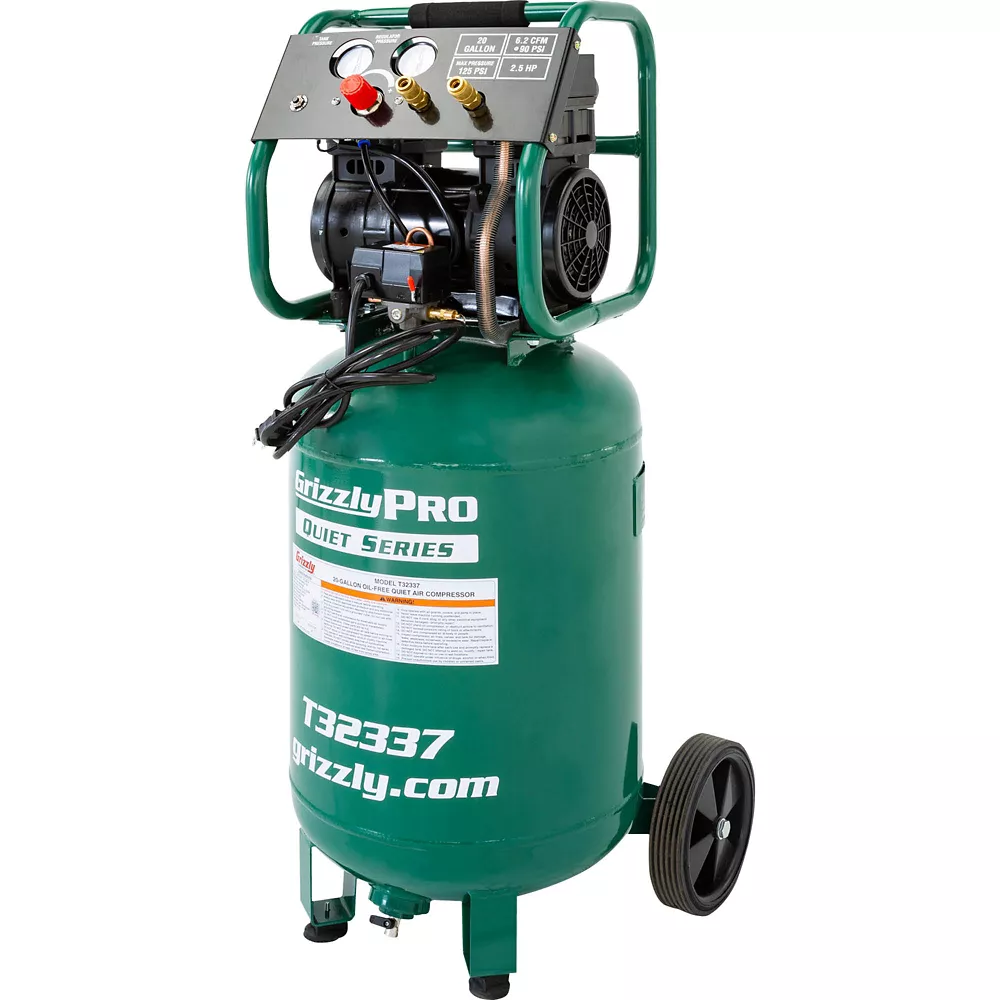

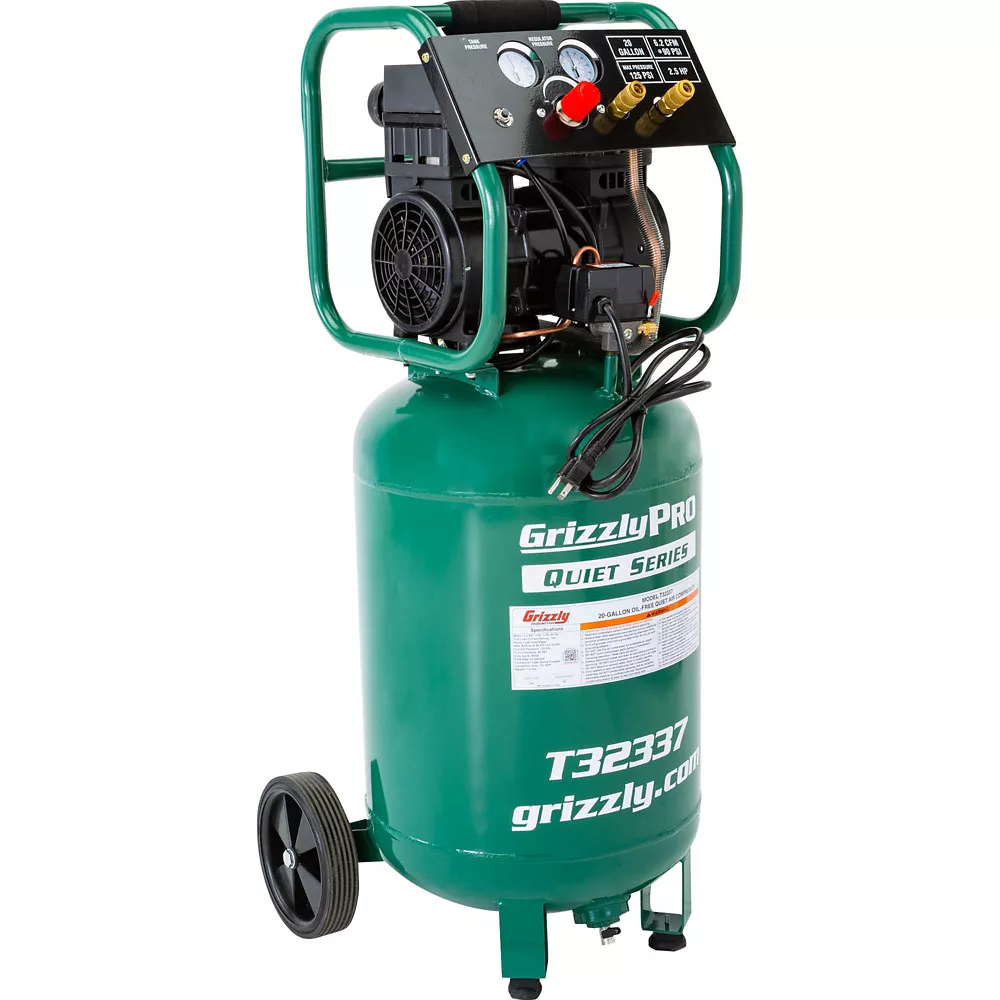

An ultra-quiet and portable 20-gallon standup air compressor. The Grizzly PRO T32337 20-Gallon Oil-Free Quiet Series Air Compressor is the perfect compressor for your shop. It is compact, portable, low maintenance and unbelievably quiet.The 20-gallon compressor can do everything smaller portable can, but with 5-10 times the capacity, is better suited for larger jobs that require more air. Think of this as the large stationary jobsite compressor that can feed multiple framing or roofing nailers at the same time.
The T32337 has an operational sound rating between 60 and 72 dB. You will hardly even notice it is running because it is quieter than normal conversation. 60 dB is only slightly louder than a typical household refrigerator.
Compare this with a normal compressor sound rating of 90 dB, which is about equal to a lawnmower. It's hard to describe just how striking the difference isyou really have to hear it to believe it.
The 2-1/2 HP motor operates with a cut-out pressure of 150 PSI and delivers 5.6 CFM at 90 PSI and 6.2 CFM at 40 PSI.

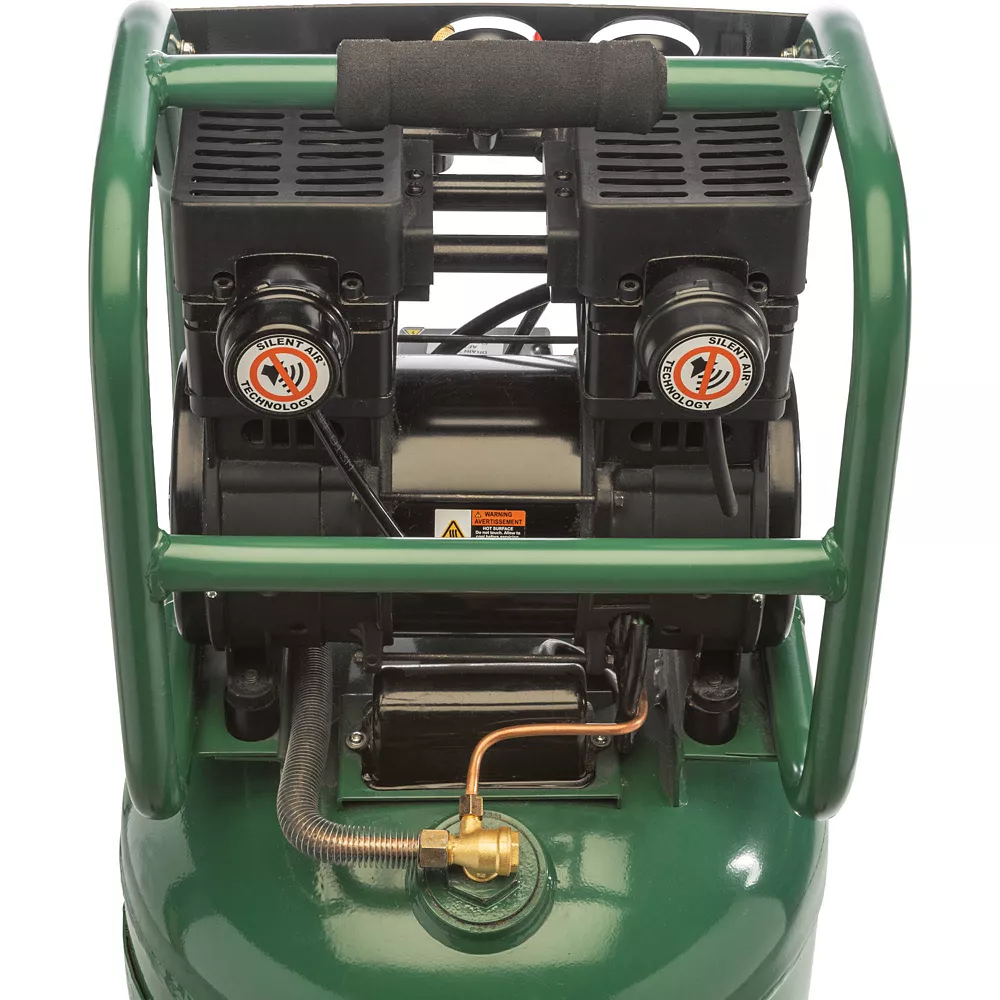

The oil-free double piston pump design provides four times the life of most oil-free compressors, making for cleaner air emissions and lower maintenance costs as well. It also reduces the time taken for the tank to reach maximum pressure vs a single piston.

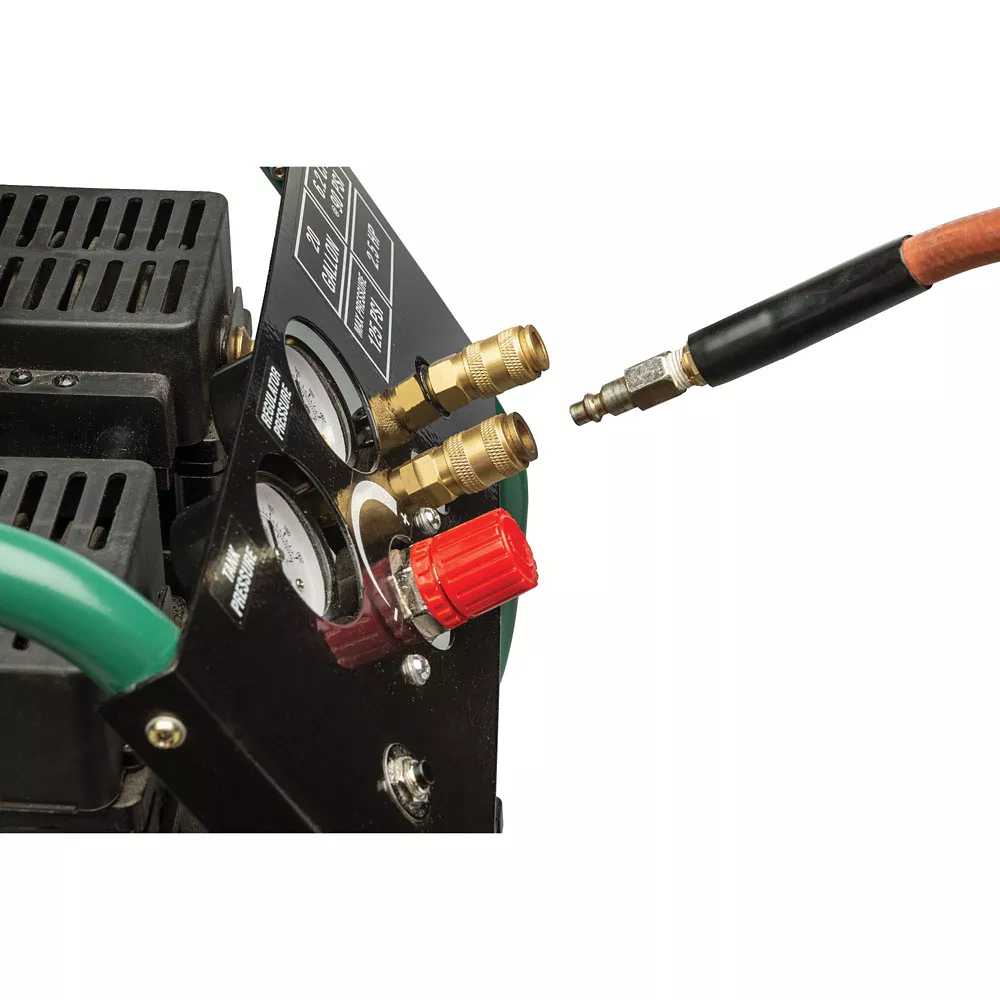

The T32337 features an easy-access and damage-protected control panel that is built into a removeable roll cage that protects the motor. The panel houses the dual quick connects, tank pressure gauge, output pressure gauge and regulator adjustment. The compressor comes with airless tires for mobility and peace of mind.
- Motor: 2-1/2 HP, 120V, single-phase, 13.5A
- Airflow capacity: 5.6 CFM @ 90 PSI, 6.2 CFM @ 40 PSI
- Maximum air pressure: 175 PSI
- Cut-out pressure: 150 PSI
- Cut-in pressure: 120 PSI
- Duty cycle: 50/50
- Tank size: 20-Gallon
- Sound rating: 60-73 dB
- Overall size: 20" W x 17" D x 43-1/2" H
- Approximate shipping weight: 158 lbs.
- Oil-free double piston pump design
- Quiet operating
- Heavy-duty dual wheel portable design
- Easy access drain valve
- Quick coupler
Grizzly 2.5 HP 20 gal Quiet Oil-Free Standing Air Compressor A Series 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | Grizzly |
| Country of Origin | Imported |
| Air Delivery SCFM At 40 PSI | 6.2 SCFM |
| Air Delivery SCFM At 90 PSI | 5.6 SCFM |
| Airflow Volume | 20 gal. |
| Air Outlet Size | 14 In NPT |
| Amperage | 15 A |
| Compressor Horsepower | 2.5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 20 gal |
| Compressor Type | Vertical |
| Compressor Voltage | 120V |
| Cord Length | 6 ft. |
| Decibel Rating | 73 dB |
| Drain System | Ball Valve |
| Drive Type | Induction Motor |
| Features | Durable Roll Cage with Wheels & Feet for Protected Portability |
| Phase | Single |
| Nozzle Fitting Size | 14 in NPT |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Corded/Plug-in, Corded |
| Primary Color | Green |
| Primary Material | Steel |
| Product Height | 43.5 in. |
| Product Length | 17 in. |
| Product Weight | 136 lb. |
| Product Width | 20 in. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Orientation | Vertical |
| Warranty | 1 Year |
| Manufacturer PartNumber | T32337 |
