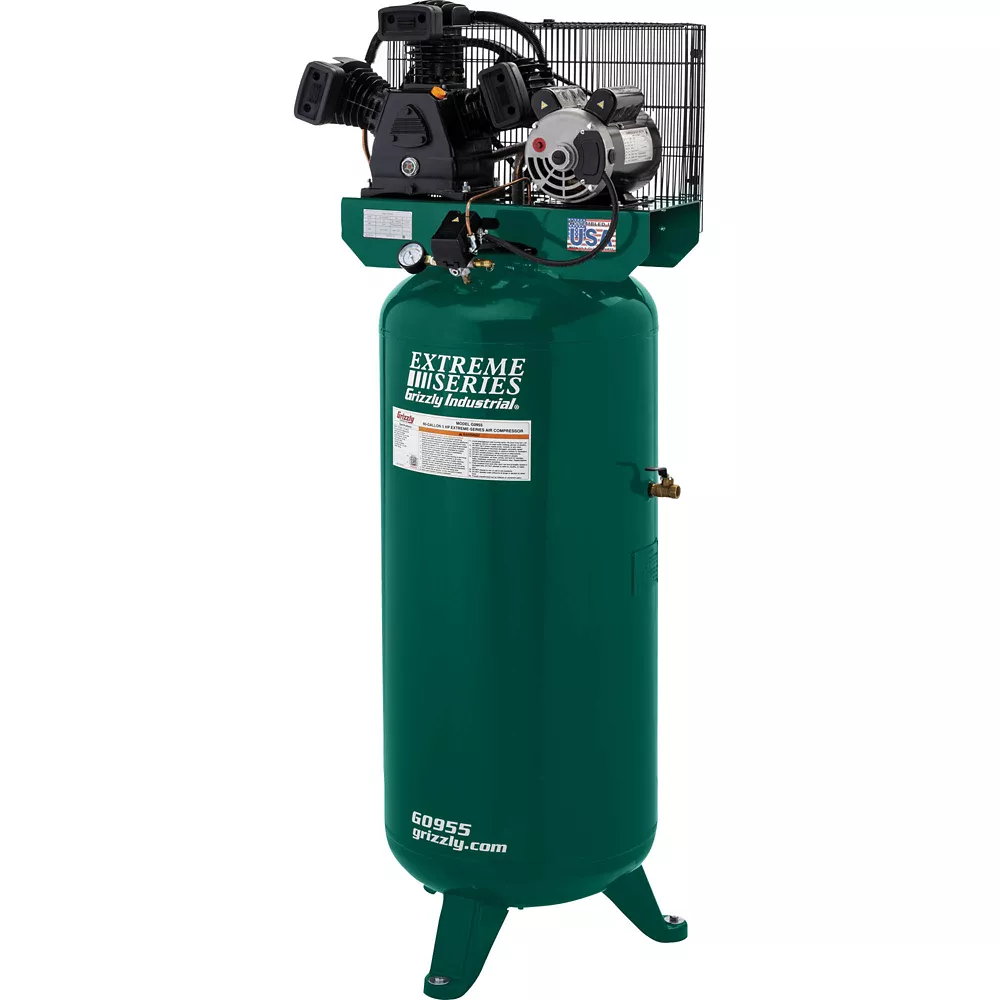

Grizzly 5 HP 60 gal Extreme Series 1-Stage Air Compressor 150 PSI Stationary Air Compressors Air Compressors

Extreme Series means high-output performance for maximum air requirements. The Grizzly G0955 60-Gallon 5 HP Extreme Series Compressor operates at low RPMs for extended life and low maintenance. The 5 HP 230V motor operates with a maximum pressure of 125 PSI. This compressor delivers 18 CFM at 90 PSI and 20 CFM at 40 PSI.

Providing more complete motor overload protection than a magnetic starter that only senses current, the motor senses both temperature and current. A wired-formed belt guard provides more efficient cooling to keep the unit from overheating.

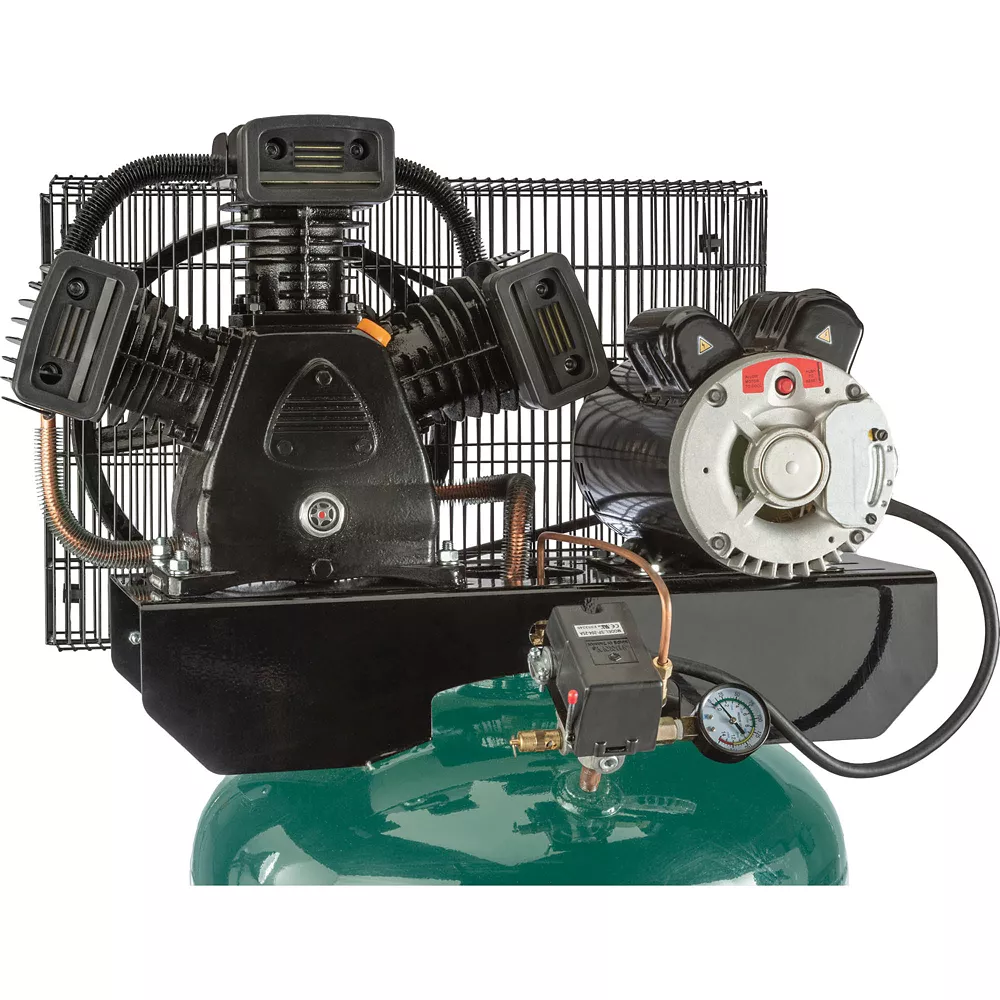

The 60-gallon vertical air tank has been ASME certified to meet safety and quality standards. The one-stage cast-iron oil-lubricated pump operates at high pressure providing increased volume when you need it.

Additional features include a tank pressure gauge, on/off switch, 1/2" NPT threaded fitting, easily accessible oil level sight glass, and oil drain with 4" extension.

Like all Grizzly air compressors, the G0955 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. To order parts, or other services and inquiries, contact Mega Compressor at (832) 415-6995.

SPECIFICATIONS:

Motor: 5 HP, 230V, single-phase, 22.5A
Airflow capacity: 18 CFM at 90 PSI and 20 CFM at 40 PSI
Maximum air pressure: 125 PSI
Overall size: 30" W x 22" D x 68" H
Approximate shipping weight: 345 lbs.

FEATURES:

Large oil level sight glass
Ball-valve drain and output control
Wired-formed belt guard for more efficient cooling
Fan pulley and cooling fin design to keep compressor cool
W-cylinder cast-iron air compressor pump
Made and assembled in the USA with global parts
ASME certified 60-gallon tank

Grizzly 5 HP 60 gal Extreme Series 1-Stage Air Compressor 150 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	20 SCFM
Airflow Volume	18 CFM
Air Outlet Size	1/2 in
Amperage	22.5 A
Compressor Horsepower	5 HP
Compressor Maximum PSI	150 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Vertical
Compressor Voltage	230V
Decibel Rating	81 dBA
Drain System	Ball-Valve Drain Control
Drive Type	ODP Capacitor-Start Induction Motor
Features	60-Gallon Tank with Maximum Airflow of 18 CFM at 90 PSI
Fuel Tank Capacity	60 gal.
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Green
Primary Material	Steel
Product Height	68 in.
Product Length	22 in.
Product Weight	345 lb.
Product Width	30 in.
Pump Material	Steel
Stage Type	Single-Stage
Tank Orientation	Vertical
Warranty	1
Manufacturer PartNumber	G0955

Grizzly 5 HP 60 gal. 1-Stage Extreme Series Air Compressor, 150 PSI Specifications Expand/Collapse Specification Description Brand Grizzly Country of Origin Imported Air Flow SCFM at 90 PSI 20 SCFM Air Flow Volume 18 CFM Air Outlet Size 1/2 in. Amperage 22.5 Amp Compressor Horsepower 5 HP Maximum Compressor PSI 150 PSI Compressor Tank Capacity 60 gal Compressor Type Vertical Compressor Voltage 230 V Decibel Rating 81 dBA Drain System Ball Valve Drain Control Drive Type ODP Capacitor Start Induction Motor Features 60 gallon tank with maximum airflow of 18 CFM at 90 PSI Fuel tank capacity 60 gal. Phase Single Number of Power Speeds Single Power Type Electric Primary Color Green Primary Material Steel Product Height 68 in. Product length 22 in. Product weight 345 lbs. Product width 30 in. Pump Material Steel Stage Type Single Stage Tank Orientation Vertical Orientation Warranty 1 Manufacturecant Part Number G0955
