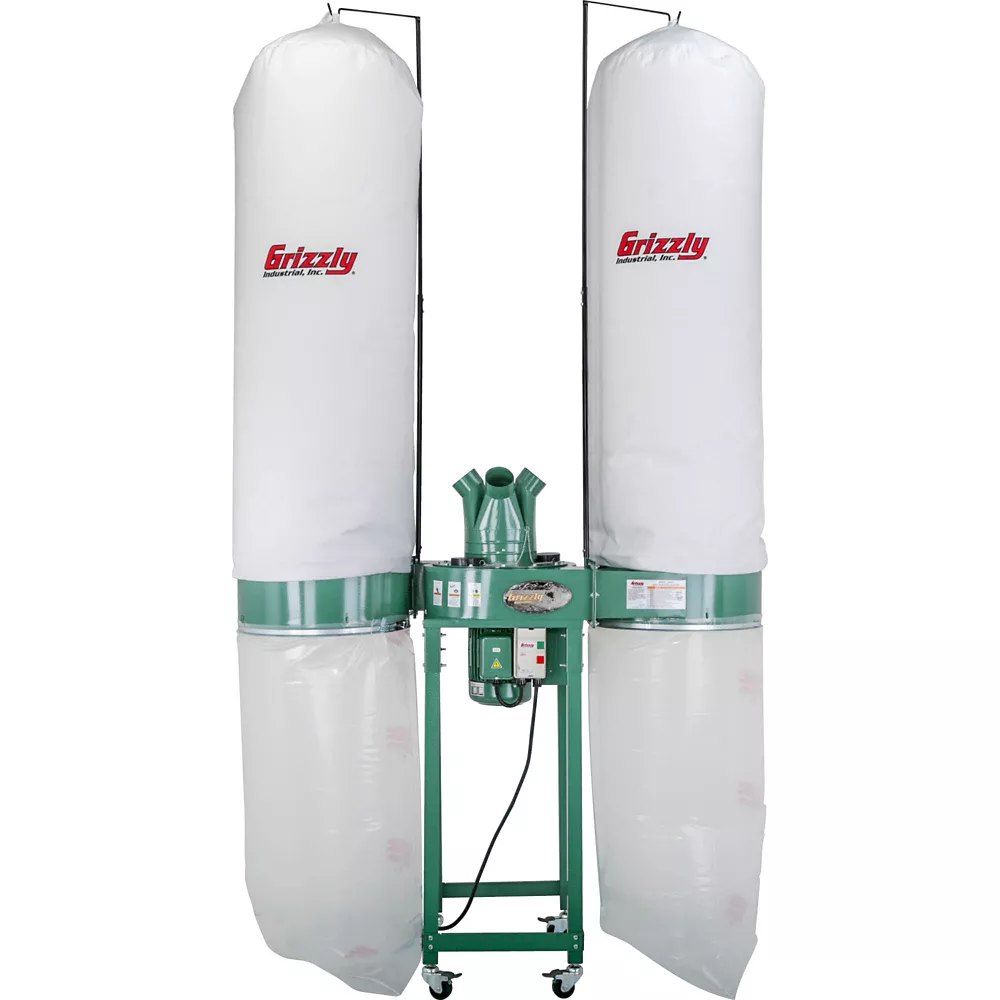

Grizzly G0672-5 HP Industrial Dust Collector Dust Collectors Woodworking & Other Power Tools

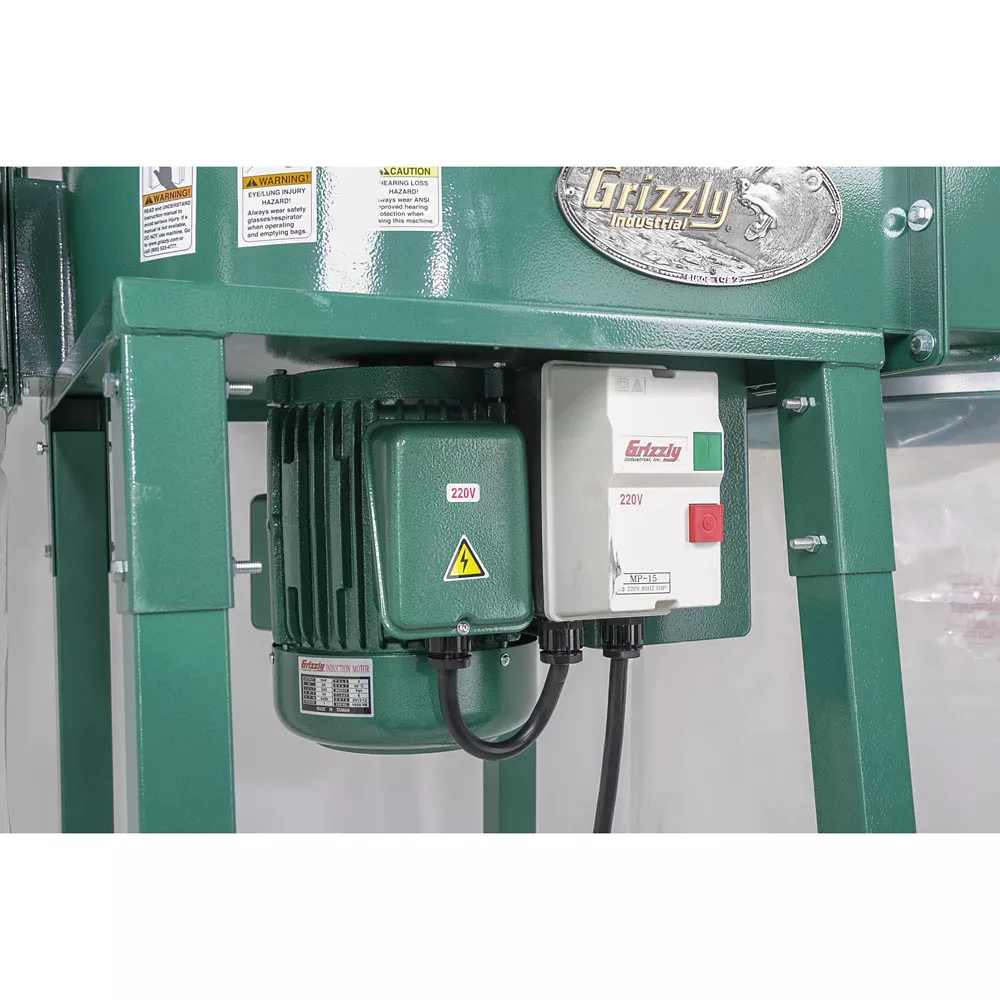

A large horsepower, mobile dust collector for industrial settings. From its gutsy 5 HP motor to its huge 15" impeller, this powerhouse will tackle any dust collection task you throw at itday in and day out. With four connection ports, the G0672 5 HP Industrial Dust can easily handle four simultaneously running woodworking machines in a large-sized shop. The G0672 has an air suction capacity of 3961 CFM and has a max static pressure of 14.6" at 0 CFM. Static pressure is produced by the 15" steel impeller to move the wood chips into the collector. The G0672 features a 2.5-micron upper filter top bag to capture the fine dust particles that normally end up all over your shop. The steel base has been fitted with casters for mobility in your garage or shop. Like all Grizzly dust collectors, the G0672 comes with a one-year warranty which covers parts and assures the unit is free from factory defects. The G0672 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector. The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the dust collector may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory SPECIFICATIONS: Motor: 5 HP, 220-Volt, single-phase, 34AAirflow capacity: 3961 CFMMaximum static pressure: 14.6 in. Impeller: 15 in. balanced steel, radial finFiltration rating: 2.5 micronIntake port with manifold: four 4 in. ports Intake port without manifold: 10 in. Simultaneous machine collection capacity: 4Collection bag capacity: 179-1/2 gal. Bottom bag material: plastic Bottom bag size: 23-5/8 in. x 54 in. Overall dimensions: 74 in. W x 29 in. D x 134 in. HApproximate shipping weight: 326 lbs.

2.5 Micron upper bag filtration
15" Balanced steel, radial fin impeller
Heavy-duty steel stand with 3" casters and brakes

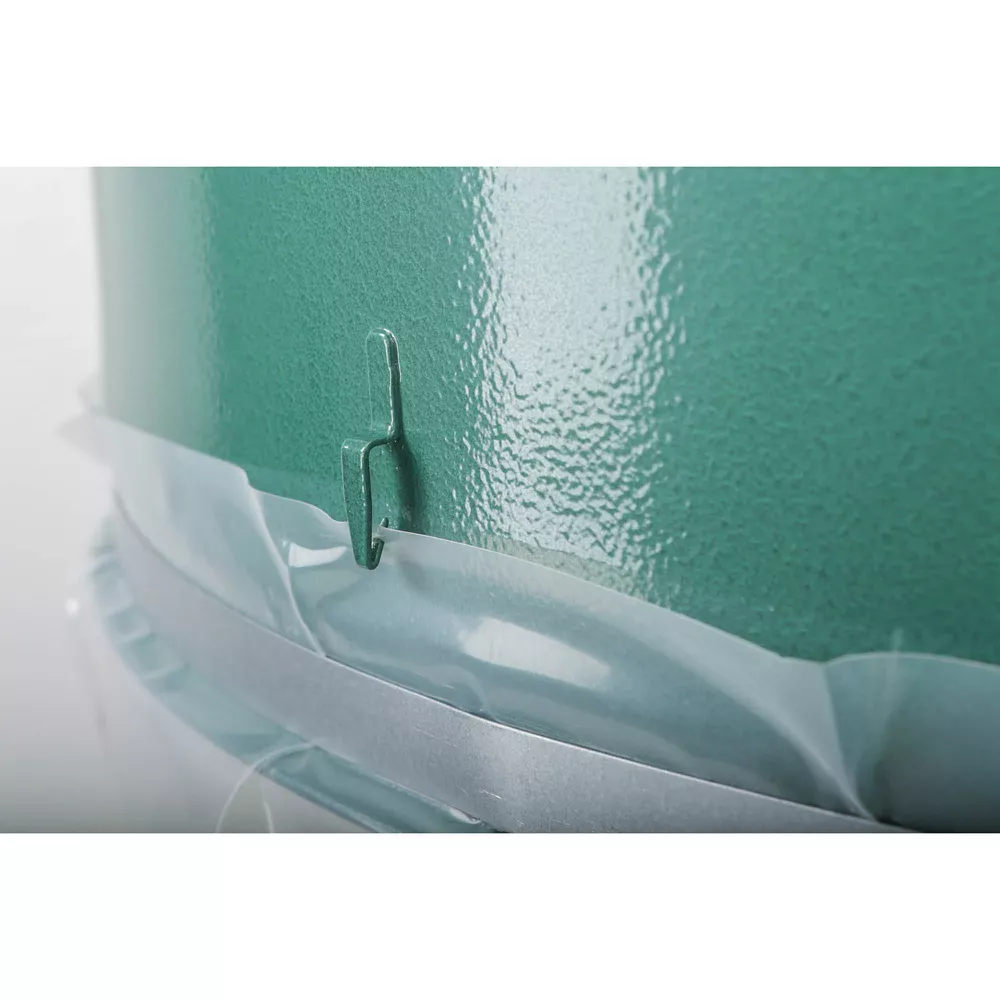

Sturdy collection bags with 24 cu. ft. total capacity

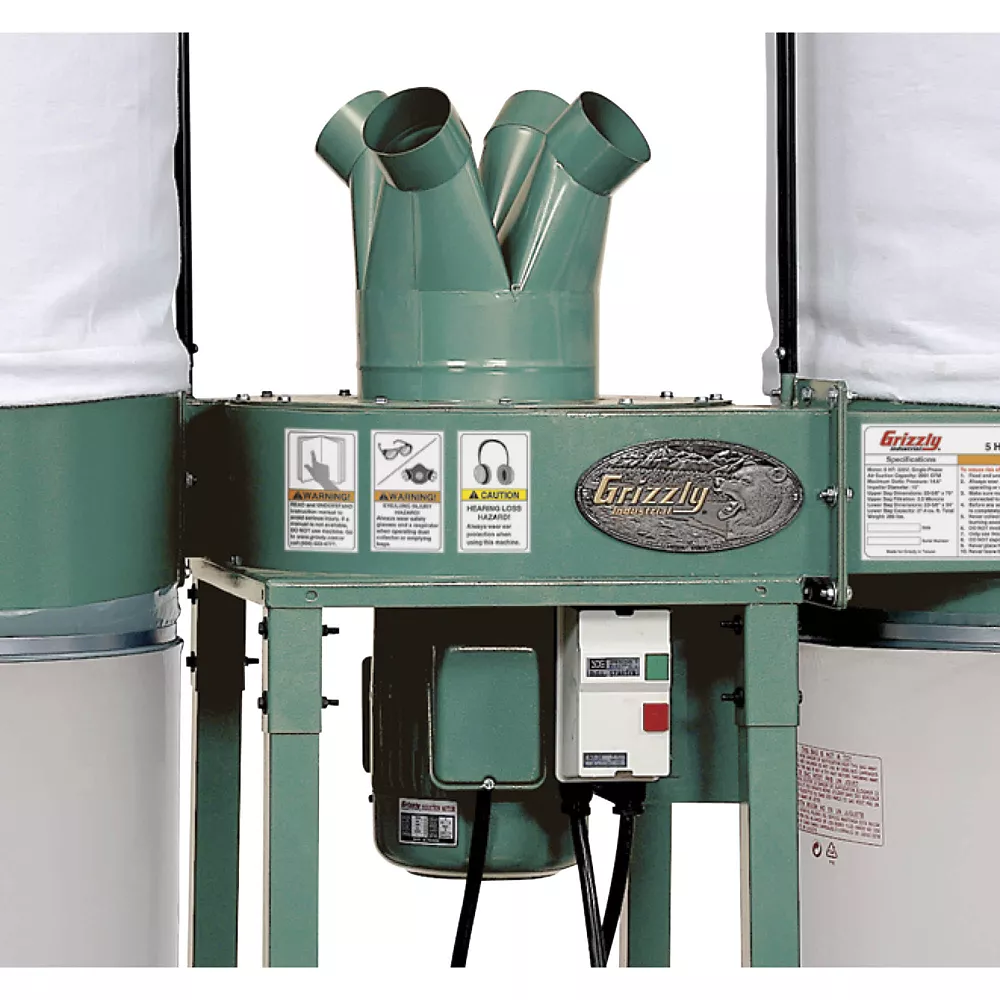

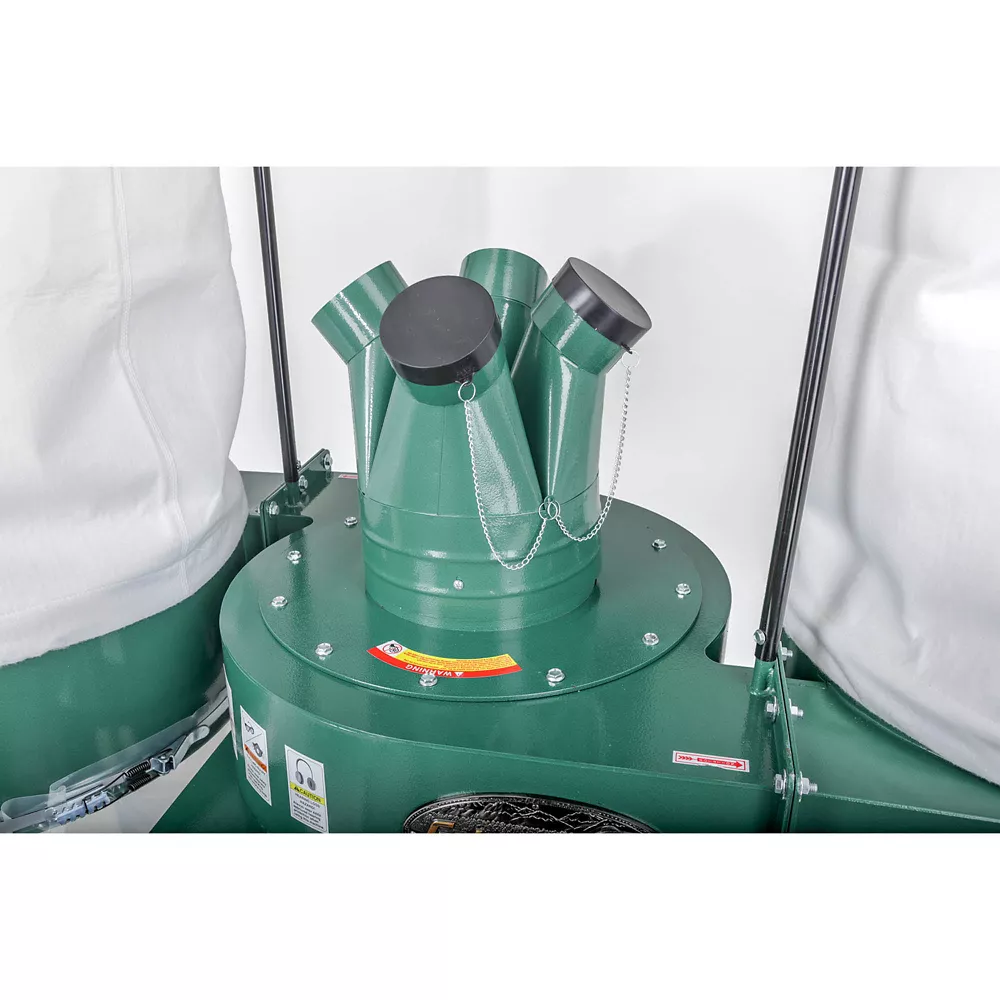

Four port intake manifold for even distribution to collection bags

Grizzly G0672-5 HP Industrial Dust Collector Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	34 A
Compatibility	See manual
Decibel Rating	92 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	5 hp
Hose Diameter	10 in.
Hose Length	0 in.
Maximum Airflow Rate	3961 CFM
Operating Velocity	3961 CFM
Product Height	134 in.
Product Length	74 in.
Product Weight	286 lb.
Product Width	29 in.
Warranty	1
Manufacturer PartNumber	G0672

Grizzly G0672-5 HP Industrial Dust Collector Specifications Expand/Collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 34 A Compatibility View Manual Decibel Rating 92 dBA Phase Single Phase Features No Additional Features Filter Efficiency 0 - Not Measured Filtration Material Steel Power 5 hp Hose Diameter 10 in Hose Length 0 in. Maximum Air Flow 3961 CFM Operating Speed 3961 CFM Product Height 134 in. Product length 74 in. Product weight 286 lbs. Product width 29 in. Warranty 1 Manufacturer part number G0672.
