Grizzly G0738-3 Speed Hanging Air Filter Vacuum Filters Automotive Tools & Shop Equipment

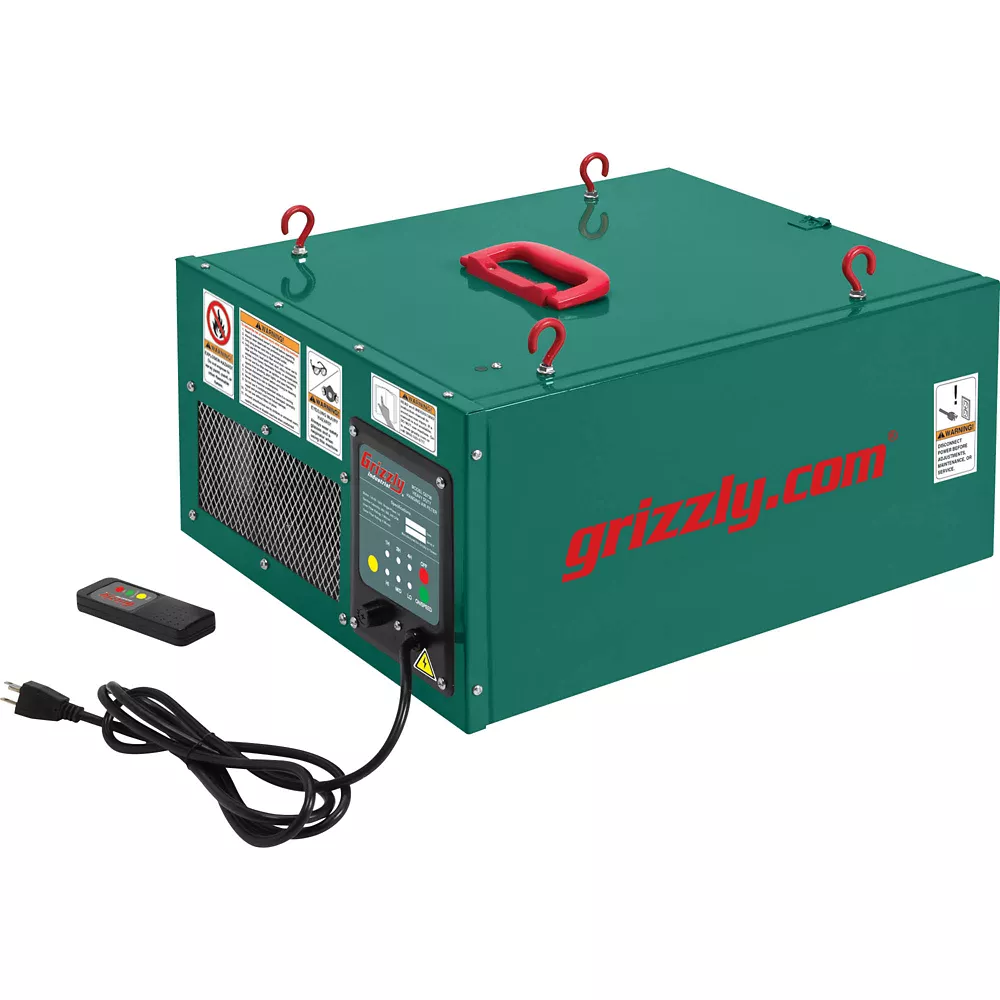

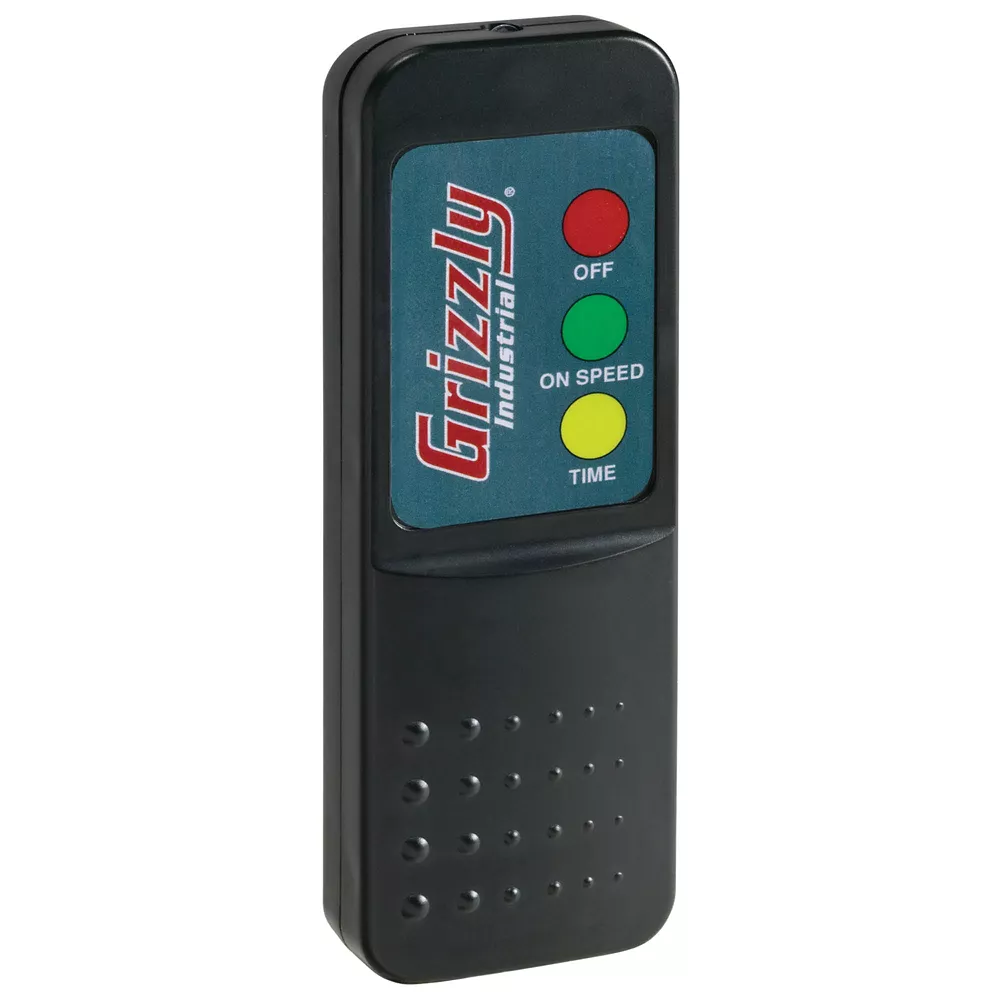

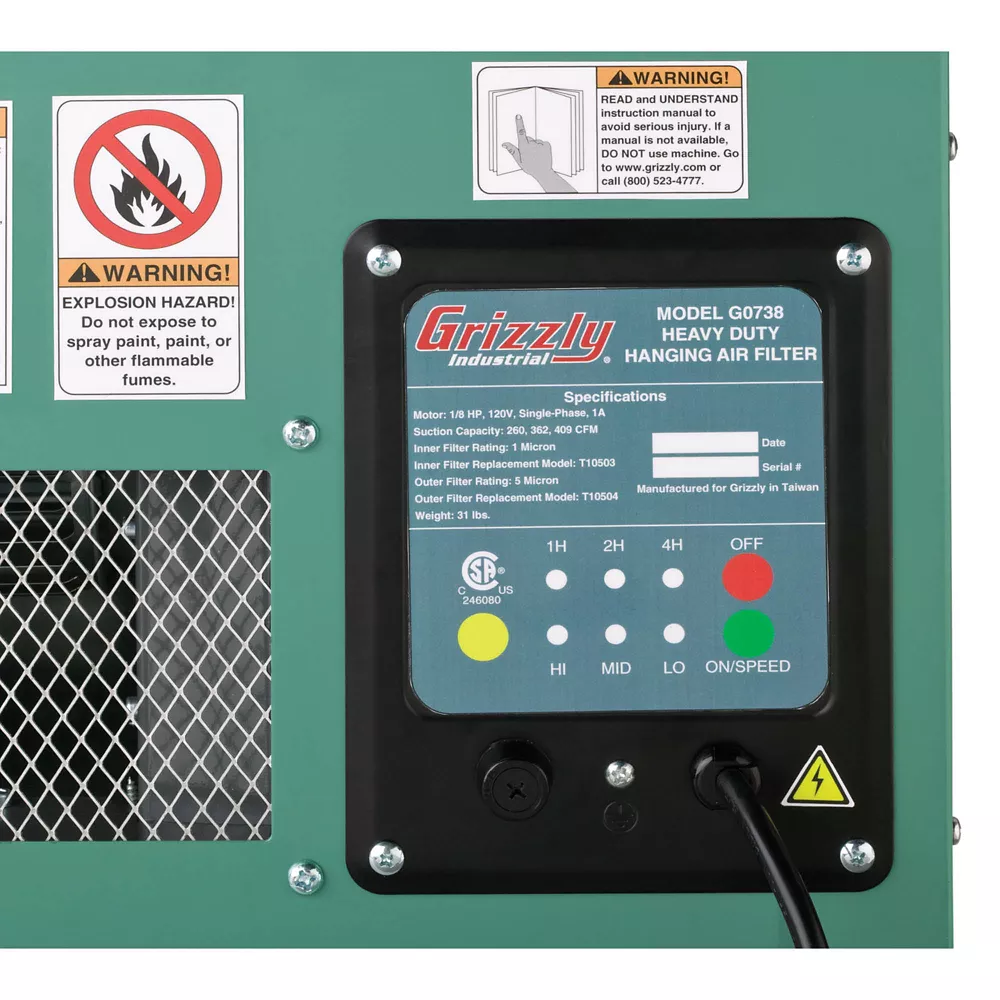

Wood dust can leave your shop a mess and potentially cause nasty respiratory issues. Turn the G0738 Hanging Air Filter on while you work and set the timer to run after you leave the shop. It will continue to clean the air of the fine particles that might otherwise find a home where you don't want them. When used in conjunction with an efficient dust collector, the G0738 Hanging Air Filter removes most fine wood particles down to 1-micron from the air. The remote control allows operation of the machine from any angle in your shop, even if the line of sight is obstructed. The air filter can be set to operate in three air flow speeds-260 (LO), 362 (MED), and 409 (HI) CFM. To cycle through the available speeds, press the ON SPEED button on the control panel or remote control repeatedly. This will illuminate the corresponding lights on the control panel. This air filter is capable of recirculating the air in a room measuring 20' x 20' x 8' approximately 7.7 times in one hour. We recommend that the volume of air in your room be recirculated 6-9 times an hour for the best filtering effect. The air filter can be set for a timed performance of 1, 2, or 4 hours. At the end of this time, the air filter will automatically turn OFF.

Motor: 1/8 HP, 120V, single-phase, 1A
Air flow: 260, 362, 409 CFM
Timer settings: 1, 2, 4 hours

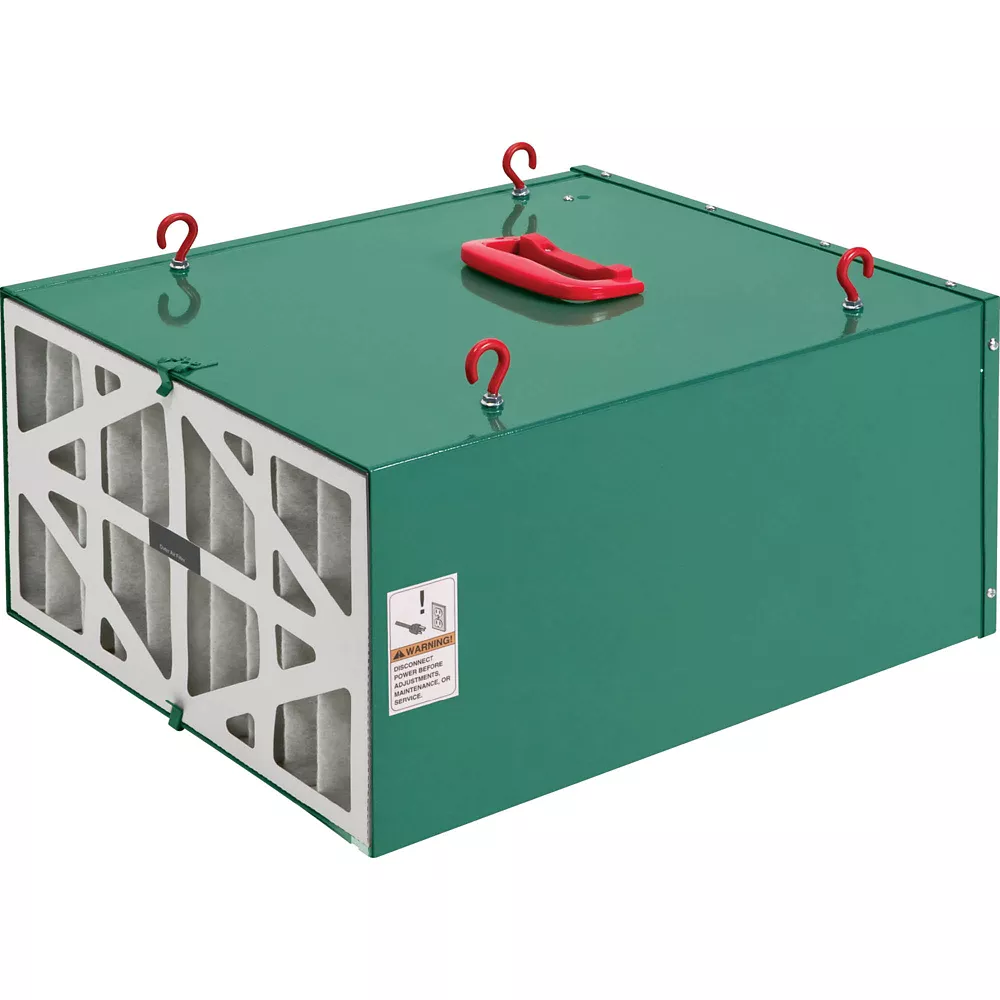

Outer filter: 5-Micron
Inner filter: 1-Micron
Overall size is 20" W x 17" D x 10" H
Approximate shipping weight: 34 lbs.

Grizzly G0738-3 Speed Hanging Air Filter Vacuum Filters Truck & Automotive> Garage & Shop Equipment> Automotive Tools & Shop Equipment> Shop Vacuums & Sweepers> Vacuum Accessories & Parts> Vacuum Filters

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	1 Amp
Compatibility	See manual
Decibel Rating	62 dBA
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	0.125 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	260 CFM
Operating Velocity	260 CFM
Product Height	10 in.
Product Length	17 in.
Product Weight	31 lb.
Product Width	20 in.
Warranty	1
Manufacturer PartNumber	G0738

Grizzly G0738-Hanging Air Filter 3-Speed Specifications Expand/Collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 1 Amp Compatibility View Manual Decibel Rating 62 dBA Phase Single Phase Features No Additional Features Filter Efficiency 0 - Not Measured Filtration Material Steel Power 0.125 hp Pipe Diameter 0 in. Hose Length 0 in. Maximum Air Flow 260 CFM Operating Speed 260 CFM Product Height 10 in. Product length 17 in. Product weight 31 lbs. Product width 20 in. Warranty 1 Manufacturer part number G0738.
