Grizzly G0942-80-Gallon 7.5 HP Extreme Series Ai Stationary Air Compressors Air Compressors

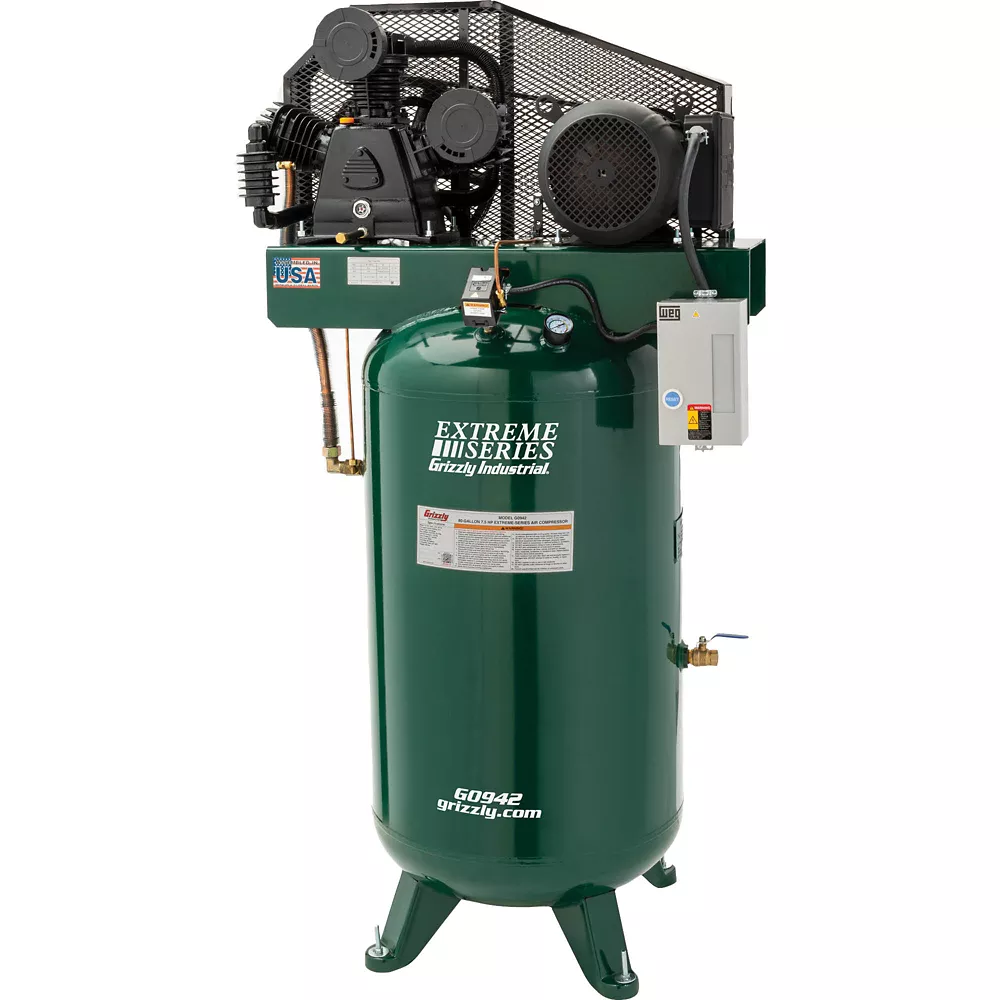

A high-power, two-stage 80-gallon compressor for optimal output. The Grizzly PRO G0942 80-Gallon 7.5 HP Extreme Series Air Compressor is for commercial and industrial use and operates with a maximum pressure of 175 PSI. This compressor delivers 28 CFM at 40 PSI and 23 CFM at 90 PSI.

The 80-gallon vertical air tank has been ASME certified to meet safety and quality standards. The three-cylinder cast-iron oil-lubricated pump operates at low RPM operation for extended life and low maintenance. A petcock on the bottom of the tank allows moisture to drain when opened.

The magnetic starter provides a safe method for starting an electric motor with a large load. It also provides under-voltage and overload protection as well as an automatic cutoff in the event of a power failure.

Like all Grizzly air compressors, the G0942 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. To order parts, or other services and inquiries, contact Mega Compressor at (832) 415-6995.

SPECIFICATIONS:

Motor: 7.5 HP, 230V, single-phase, 31A
Airflow capacity: 28 CFM at 40 PSI and 23 CFM at 90 PSI
Maximum air pressure: 175 PSI
Connection type: Female threaded valve
Connection size: 3/4" NPT
Sound rating: 79dB
Overall size: 40" W x 32" D x 73" H
Approximate shipping weight: 620 lbs.

FEATURES:

Three-cylinder cast-iron oil-lubricated pump
Wired-formed belt guard for more efficient cooling
Made and assembled in the USA with global parts
ASME certified 80-gallon tank

Grizzly G0942-80-Gallon 7.5 HP Extreme Series Ai Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Air Delivery SCFM At 40 PSI	28 SCFM
Air Delivery SCFM At 90 PSI	23 SCFM
Airflow Volume	23 CFM
Air Outlet Size	3/4 in
Amperage	31 A
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	230V
Decibel Rating	79 dB
Drain System	Ball-Valve Drain Control
Drive Type	TEFC Capacitor Start Induction Motor
Features	Oil Sigh Glass
Fuel Tank Capacity	80 gal.
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Green
Primary Material	Steel
Product Height	73 in.
Product Length	32 in.
Product Weight	565 lb.
Product Width	40 in.
Pump Material	Steel
Stage Type	Two-Stage
Tank Orientation	Vertical
Warranty	1
Manufacturer PartNumber	G0942

Grizzly G0942-80-Gallon 7.5 HP Extreme Series Ai Specifications expand/collapse Specification Description Brand Grizzly Country of Origin Imported Air Flow SCFM at 40 PSI 28 SCFM Air Flow SCFM at 90 PSI 23 SCFM Air Flow Volume 23 CFM Air Outlet Size 3/ 4 in. Amperage 31 A Compressor Power 7.5 HP Maximum Compressor PSI 175 PSI Compressor Tank Capacity 80 gal Compressor Type Vertical Compressor Voltage 230 V Decibel Rating 79 dB Drain System Ball Valve Drain Control Type d TEFC Drive Capacitor Start Induction Motor Features Oil Sigh Glass Fuel Tank Capacity 80 gal. Phase Single Number of Power Speeds Single Power Type Electric Primary Color Green Primary Material Steel Product Height 73 in. Product length 32 in. Product weight 565 lbs. Product width 40 in. Pump Material Steel Stage Type Two-Stage Tank Orientation Vertical Warranty 1 Manufacturer Part Numberpiece G0942
