Grizzly G0943-120-Gallon 10 HP Extreme Series Ai Stationary Air Compressors Air Compressors

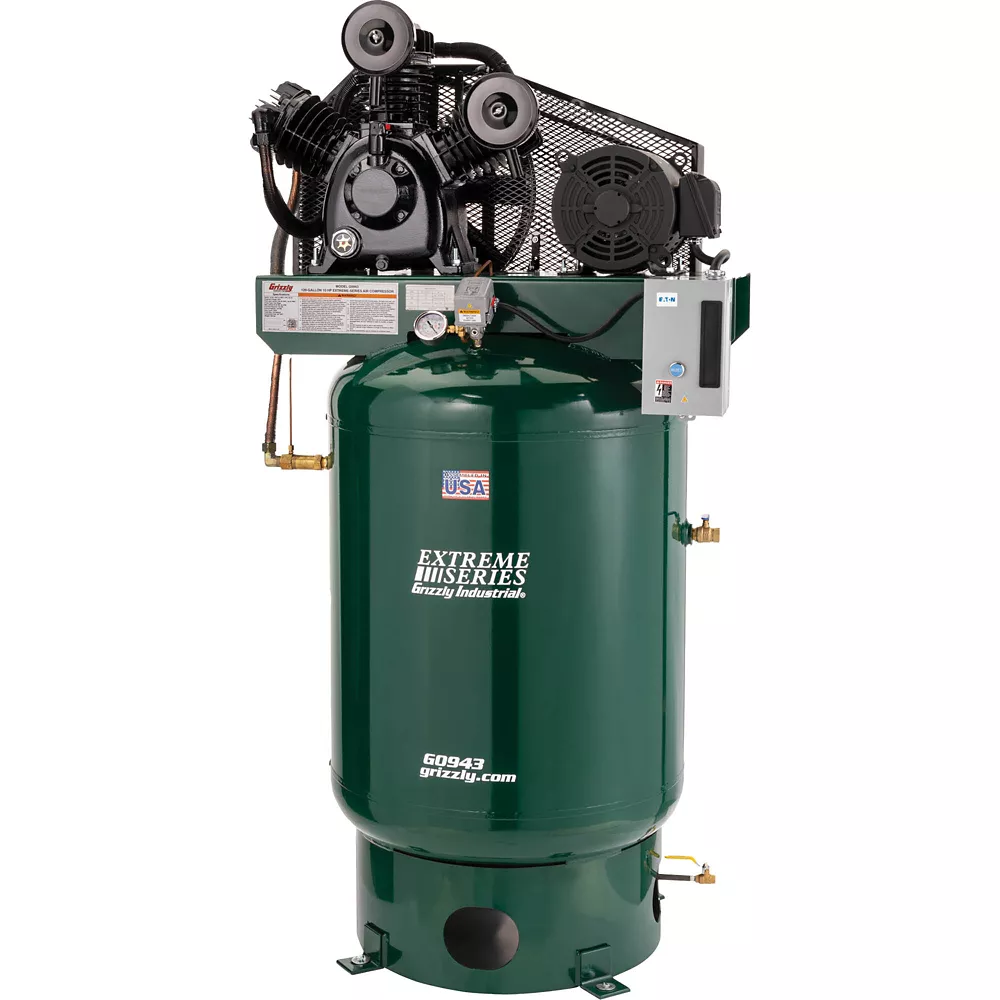

A high-power, two-stage 120-gallon compressor for optimal output. The Grizzly PRO G0943 120-Gallon 10 HP Extreme Series Air Compressor designed for commercial shops where large air volume is needed with a maximum pressure of 175 PSI.

This high output compressor delivers 45 CFM at 40 PSI and 40 CFM at 90 PSI; perfect foe tire shops, finishing shops and most factories.

The 120-gallon vertical air tank has been ASME certified to meet safety and quality standards and delivers continuous air volume when needed.

The vertical layout of the tank was intentional and allow you to save space over having a horizontal tank takin gup precious floor space.

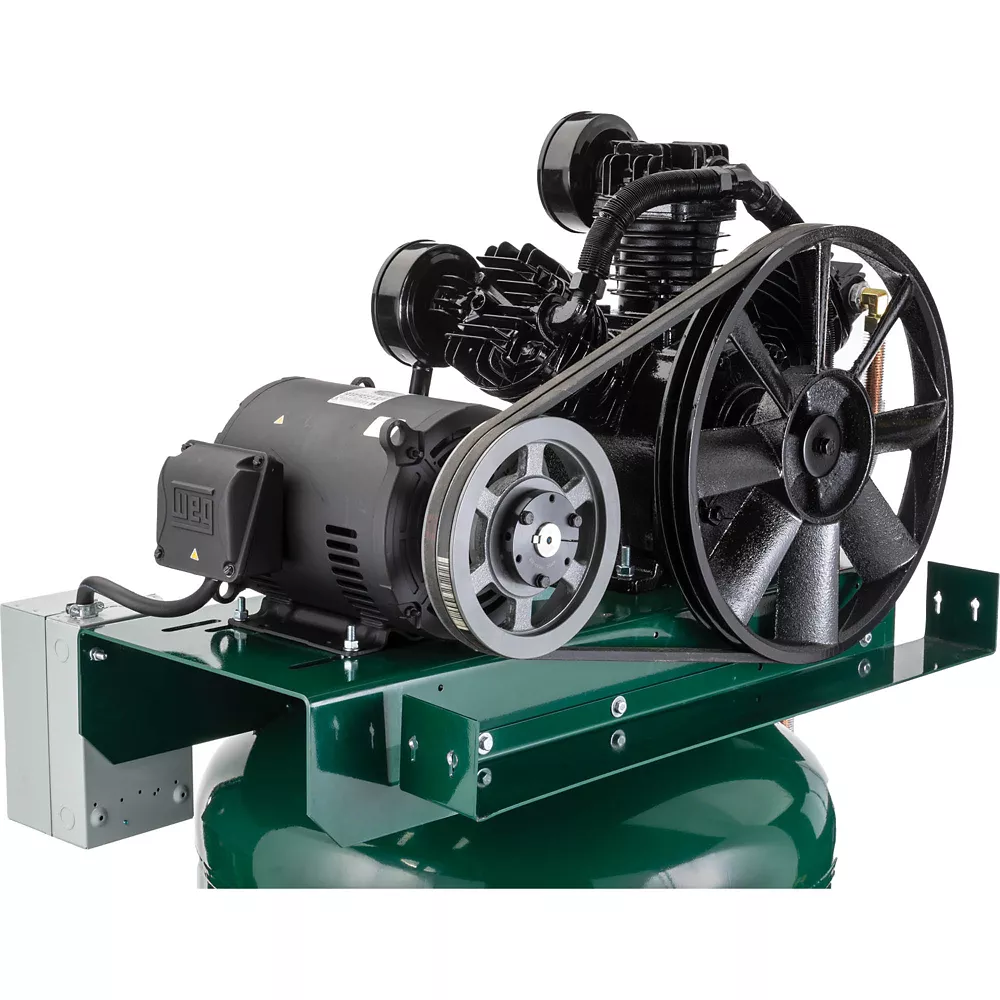

The two-stage, three-cylinder cast-iron oil-lubricated pump operates for optimal output.

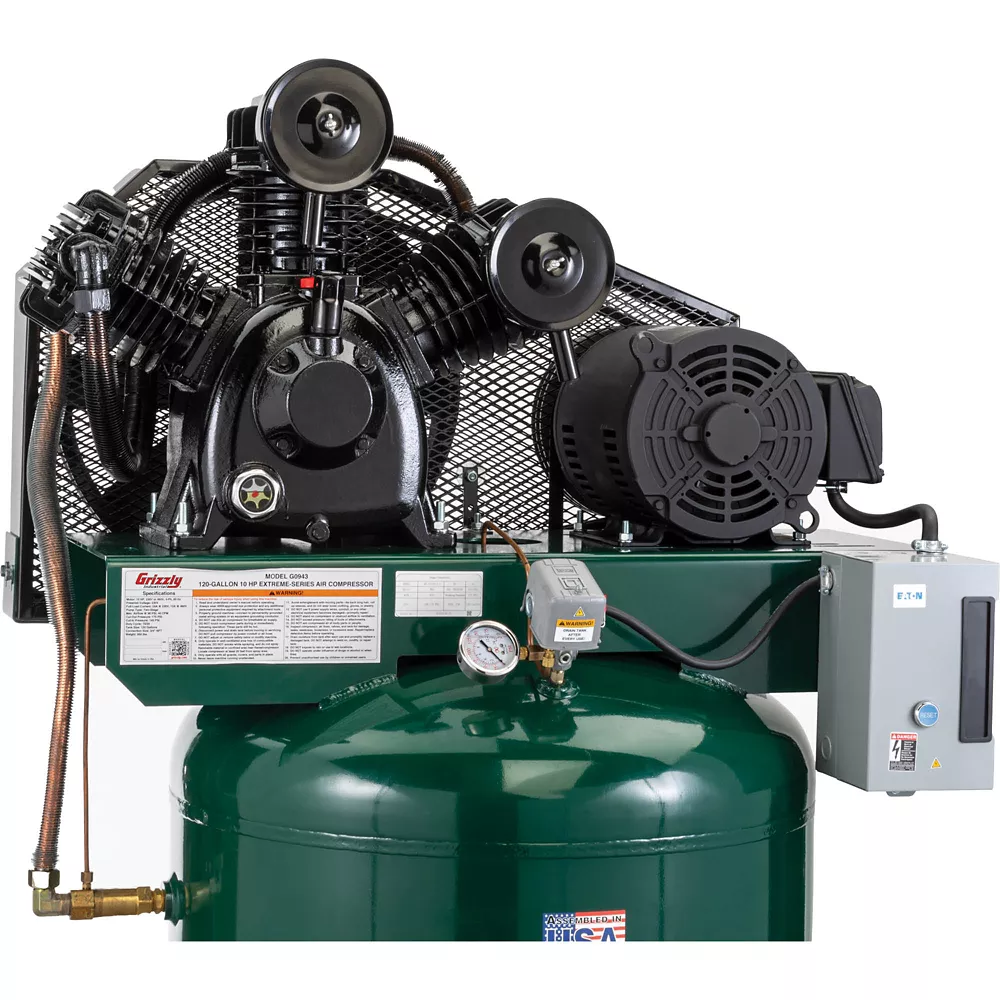

The Eaton magnetic starter provides a safe method for starting an electric motor with a large load.

It also provides under-voltage and overload protection as well as an automatic cutoff in the event of a power failure.

A petcock on the bottom of the tank allows moisture to drain when opened.

Like all Grizzly air compressors, the G0943 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

The Grizzly Customer Service and Technical Support Teams are U.S. based. To order parts, or other services and inquiries, contact Mega Compressor at (832) 415-6995.

SPECIFICATIONS:

Motor: 10 HP, 230V/460V* (prewired for 230V), 3-phase, 24A/12A
Airflow capacity: 45 CFM at 40 PSI and 40 CFM at 90 PSI
Maximum air pressure: 175 PSI
Connection type: Female threaded valve
Connection size: 3/4" NPT
Sound rating: 79dB
Overall size: 42" W x 31" D x 83" H
Approximate shipping weight: 980 lbs.

FEATURES:

Two-stage, three-cylinder cast-iron oil-lubricated pump
Uses synthetic air compressor oil for reduced maintenance
Wired-formed belt guard for more efficient cooling
Made and assembled in the USA with global parts
ASME certified 80-gallon tank

*460V conversion must be performed by a certified electrician.

Grizzly G0943-120-Gallon 10 HP Extreme Series Ai Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	23 SCFM
Airflow Volume	23 CFM
Air Outlet Size	3/4 in
Amperage	24 A
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	120 gal
Compressor Type	Vertical
Compressor Voltage	230V
Decibel Rating	79 dB
Drain System	Ball-Valve Drain Control
Drive Type	TEFC Induction motor
Features	Two-stage, three-cylinder cast-iron oil-lubricated pump
Fuel Tank Capacity	120 gal.
Phase	Single
Number Of Power Speeds	Single
Power Type	Electric
Primary Color	Green
Primary Material	Steel
Product Height	75 IN
Product Length	31 IN
Product Weight	950 LB
Product Width	42 IN
Pump Material	Steel
Stage Type	Two-Stage
Tank Orientation	Vertical
Warranty	1
Manufacturer PartNumber	G0943
