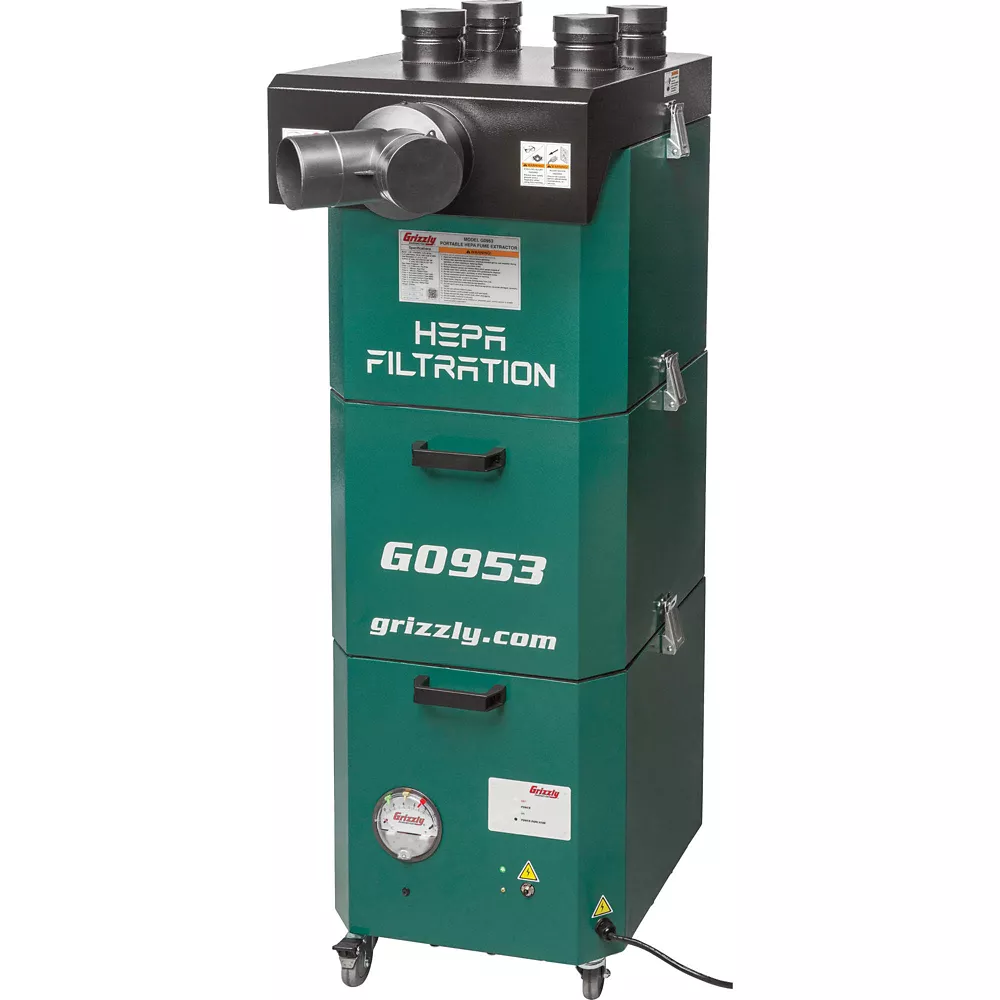

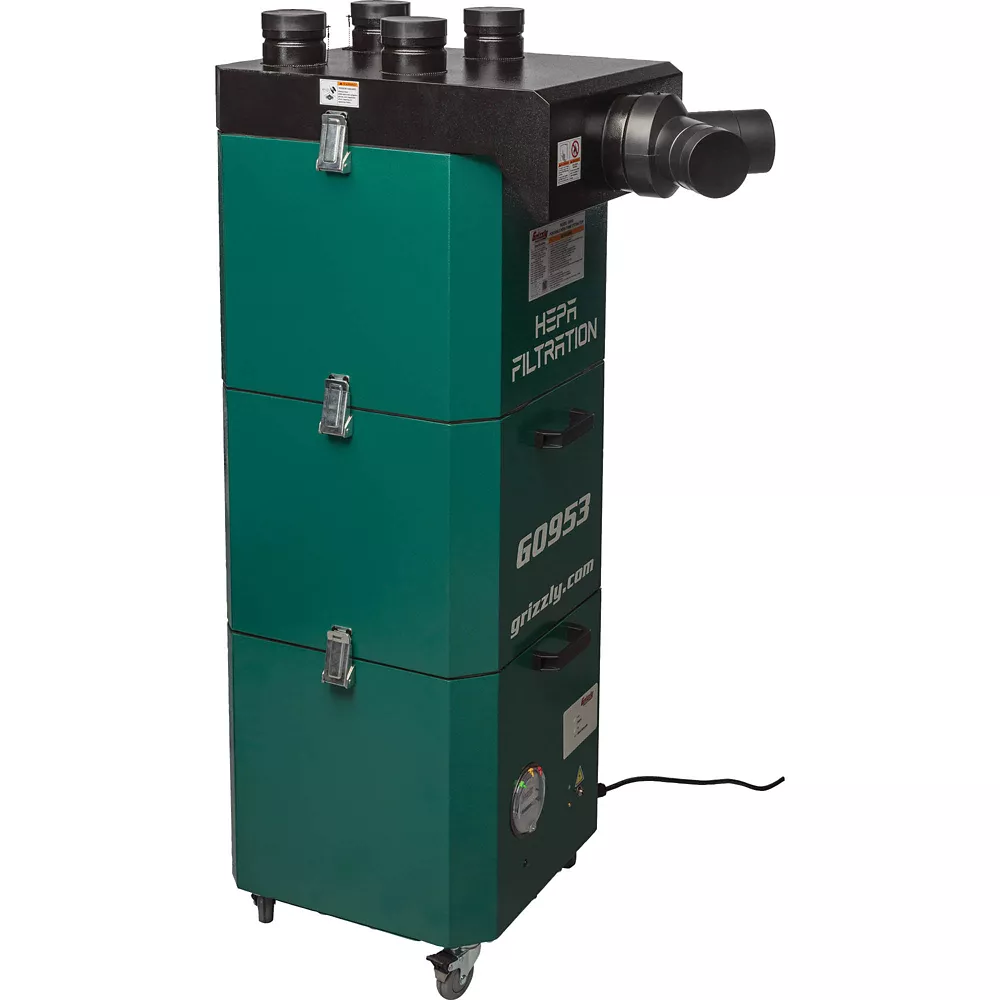

G0953 Portable HEPA Fume Extractor A dual-purpose dedicated machine fume extractor and general air purifier. The G0953 Portable HEPA Fume Extractor pulls smoke, fumes, and fine dust through eight types of filters within three chambers.

Whether you are using a 3D printer, CO2 laser, or fiber laser on wood, plastic, steel, or aluminum projects, the eight filters carry harmful smoke away for a healthy work area.

It can also be used to filter harmful odors from welding booths and chemical hoods.

Opening the upper ports will purify your entire work area.

Filtering laser fumes through an extractor allows the user to retain a heated or cooled environment. This is unlike using dust collectors or blowers that blow valuable heated or cooled air out of a vent.

The HEPA filter in the G0953 collects down to 0.3 microns with a MERV-17 rating at 99.97%.

For reference, a human hair is between 50-70 microns in diameter, meaning the G0953 collects particles 230 times smaller!

The upright design makes for a small footprint along with casters making this machine mobile.

Motor: 1 HP, 110V/220V (prewired for 110V), single-phase, 9A/4.5A
Airflow capacity (6" inlet): 423 CFM @ 0.38" SP
Airflow capacity (4" inlet): 335 CFM @ 0.91" SP
Maximum static pressure: 7.84" at 0 CFM

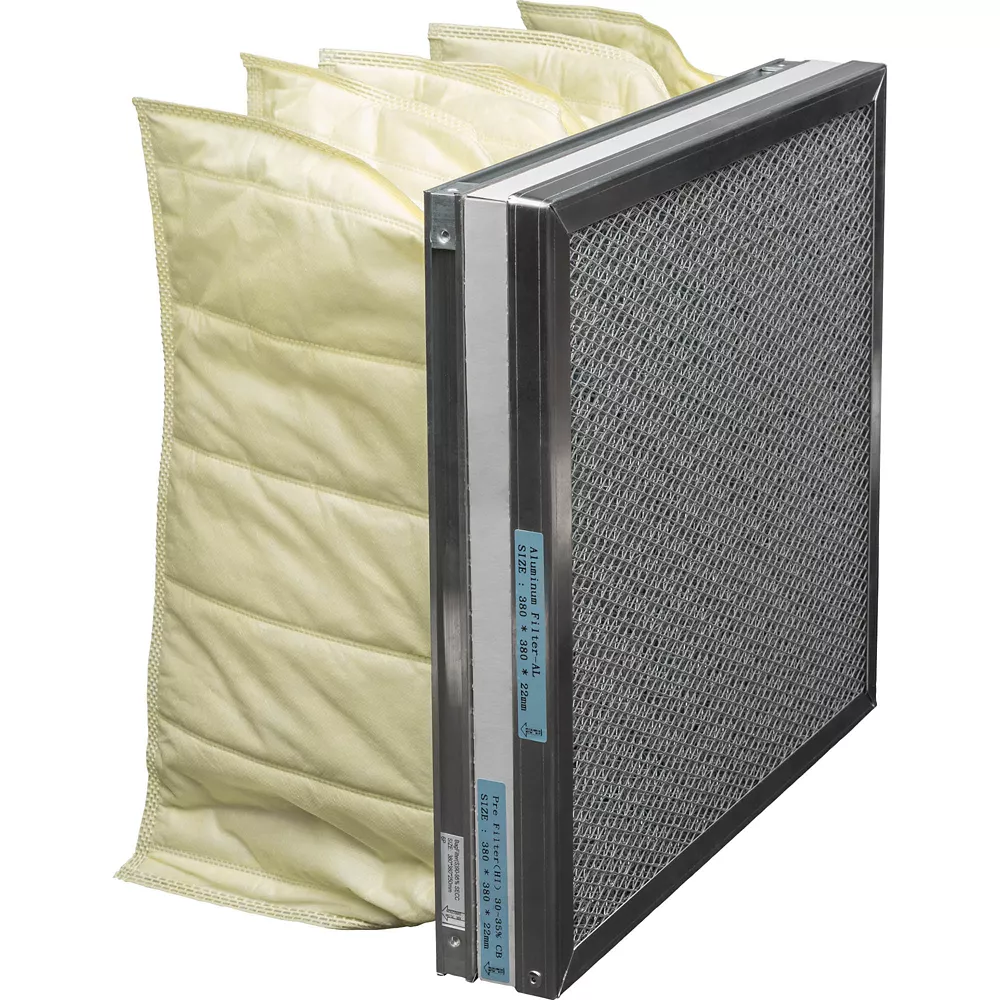

First-stage filter: Pleated pre-filter, 2-10 microns
Second-stage filter: Bag, 1-micron
Third-stage filter: Pleated polyester, 1-micron
Fourth-stage filter: Activated carbon bag, Type 1000
Fifth-stage filter: Activated carbon bag, Type 3000
Sixth-stage filter: Activated carbon bag, Type 9000
Seventh-stage filter: Pleated prefilter, 2-10 micron
Eighth-stage filter: HEPA, 0.3 microns
Impeller: 12" Aluminum
Overall dimensions: 21-1/2" W x 29" D x 61-1/2" H
Approximate shipping weight: 252 lbs.

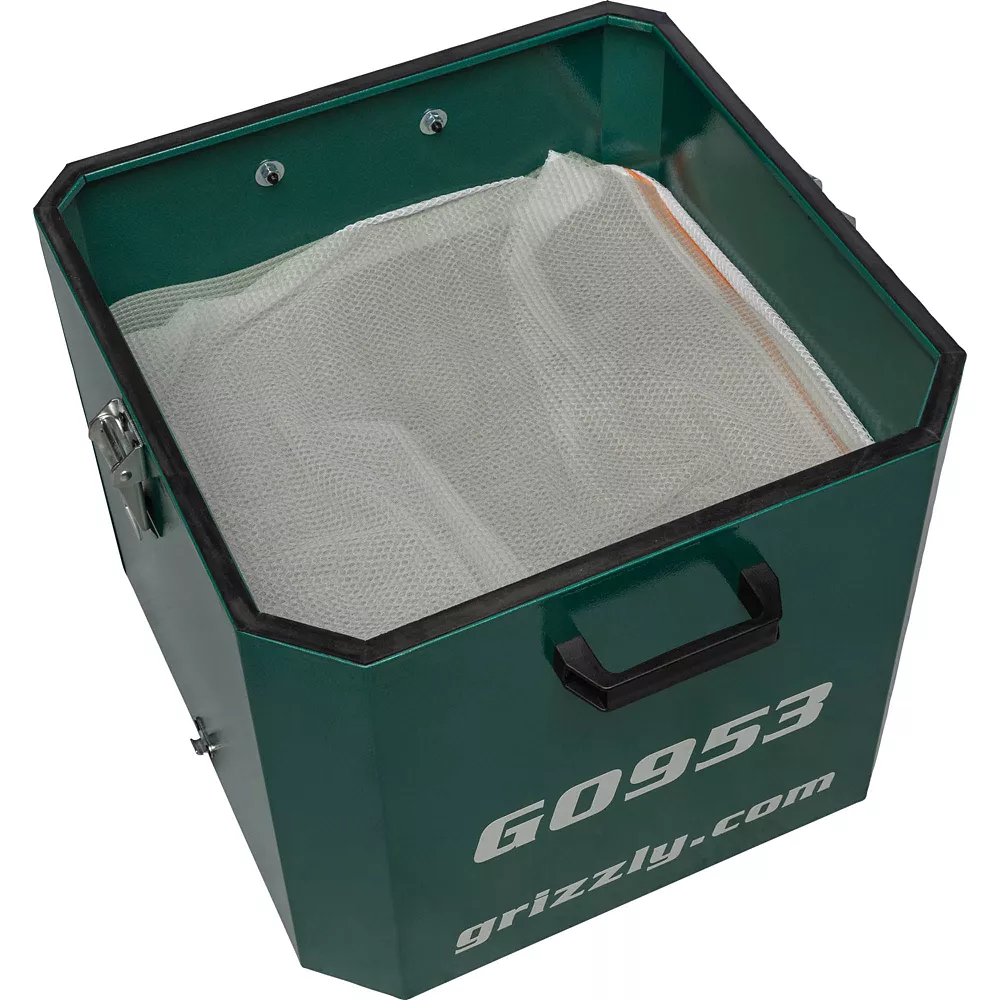

Three-piece modular design offers easy access to filter chambers
6" Front inlet for fume extraction
Four 4" top inlets for room filtration
Aluminum mesh spark arrestor
Three activated carbon bags filter harmful chemicals and gas

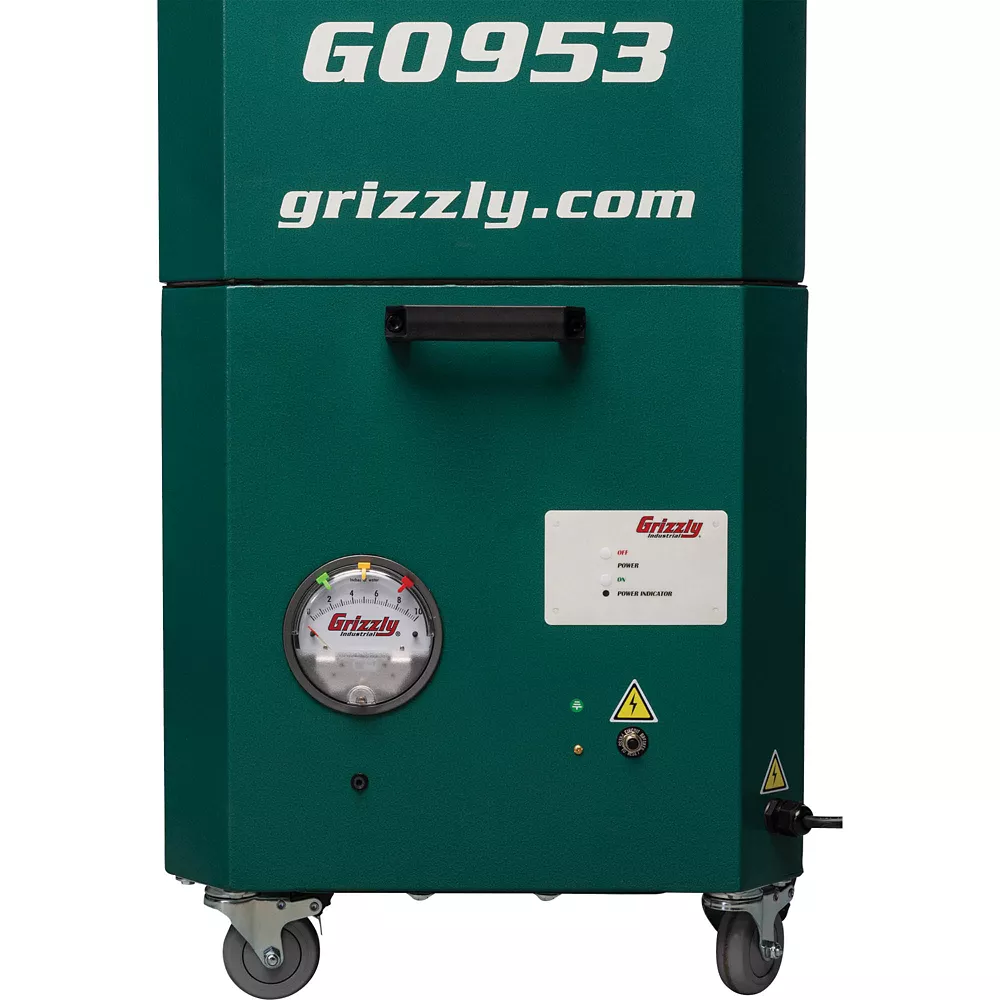

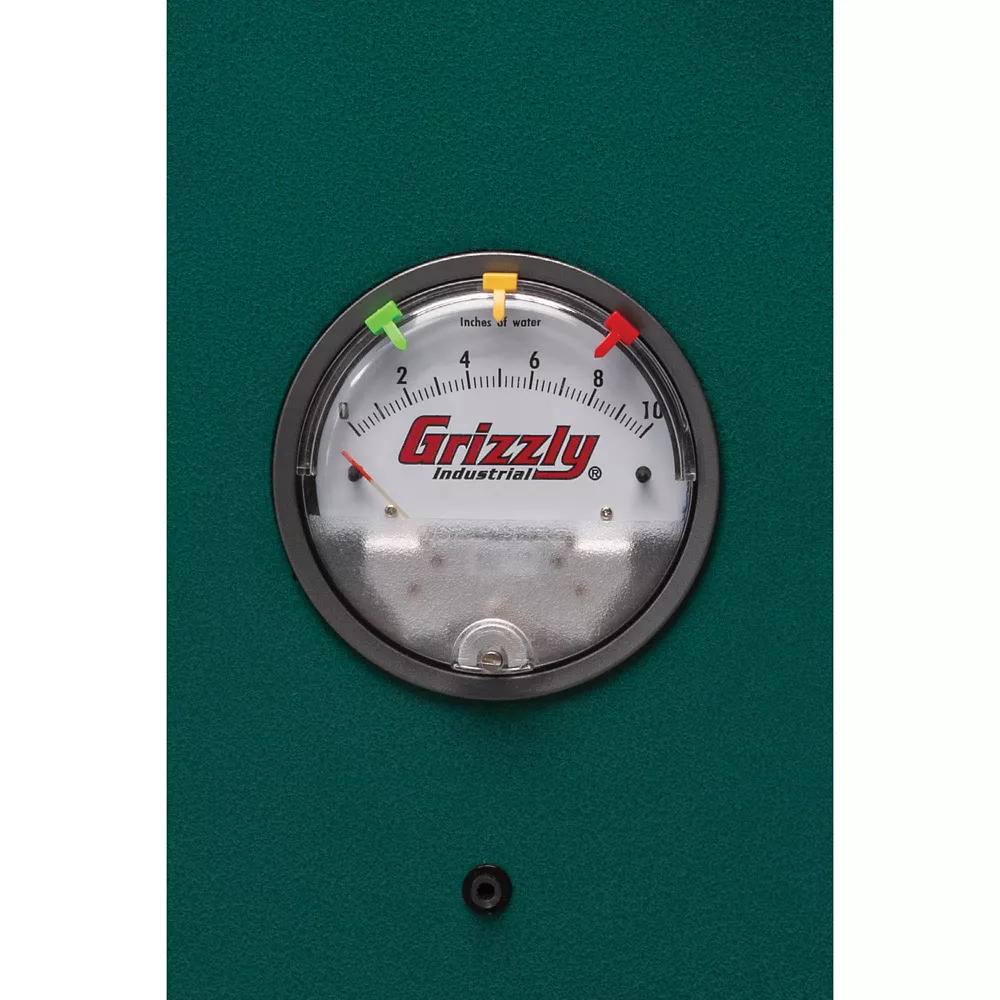

Built-in pressure gauge indicates when to clean/replace filters
Locking caster wheels allows for quick changes in your shop layout

Grizzly G0953-Portable Hepa Fume Extractor Dust Collectors Tools> Woodworking> Woodworking & Other Power Tools> Dust Collectors

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	900 AM
Compatibility	Variety
Cord Length	9.5 ft.
Decibel Rating	0 - Unknown dB
Phase	Single Phase
Features	Three-piece modular design offers easy access to filter chambers. 6 in. Front inlet for fume extraction. Four 4 in. top inlets for room filtration Aluminum mesh spark arrestor Built-in pressure gauge indicates when to clean/replace filters
Filter Efficiency	0Pct.
Filtration Material	Carbon
Horsepower	1 HP
Hose Diameter	6 in and 4 in
Hose Length	0 in.
Maximum Airflow Rate	423 CFM
Operating Velocity	3450 RPM
Product Height	61.5 in.
Product Length	29 in.
Product Weight	220 lb.
Product Width	21.5 in.
Warranty	1
Manufacturer PartNumber	G0953
