Grizzly G9956-Dual Heavy Duty Air Filter with Vacuum Filters Automotive Tools & Shop Equipment

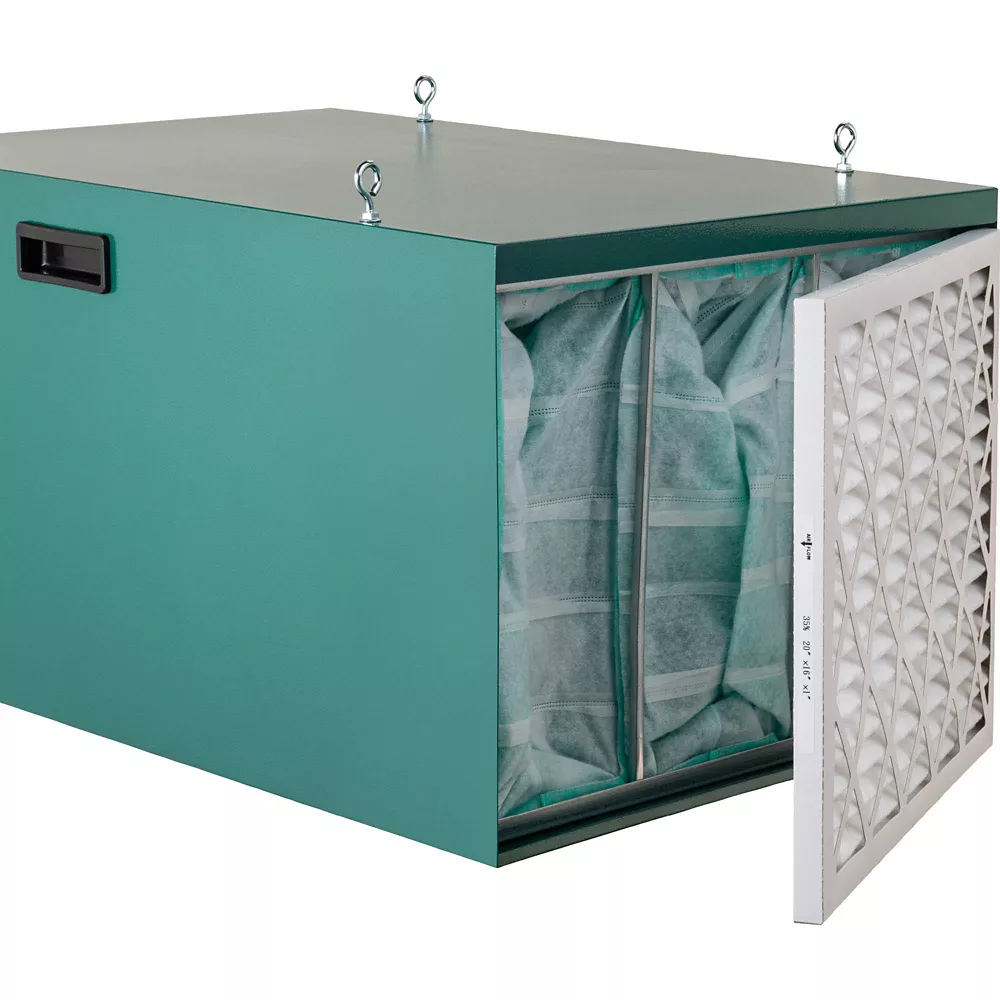

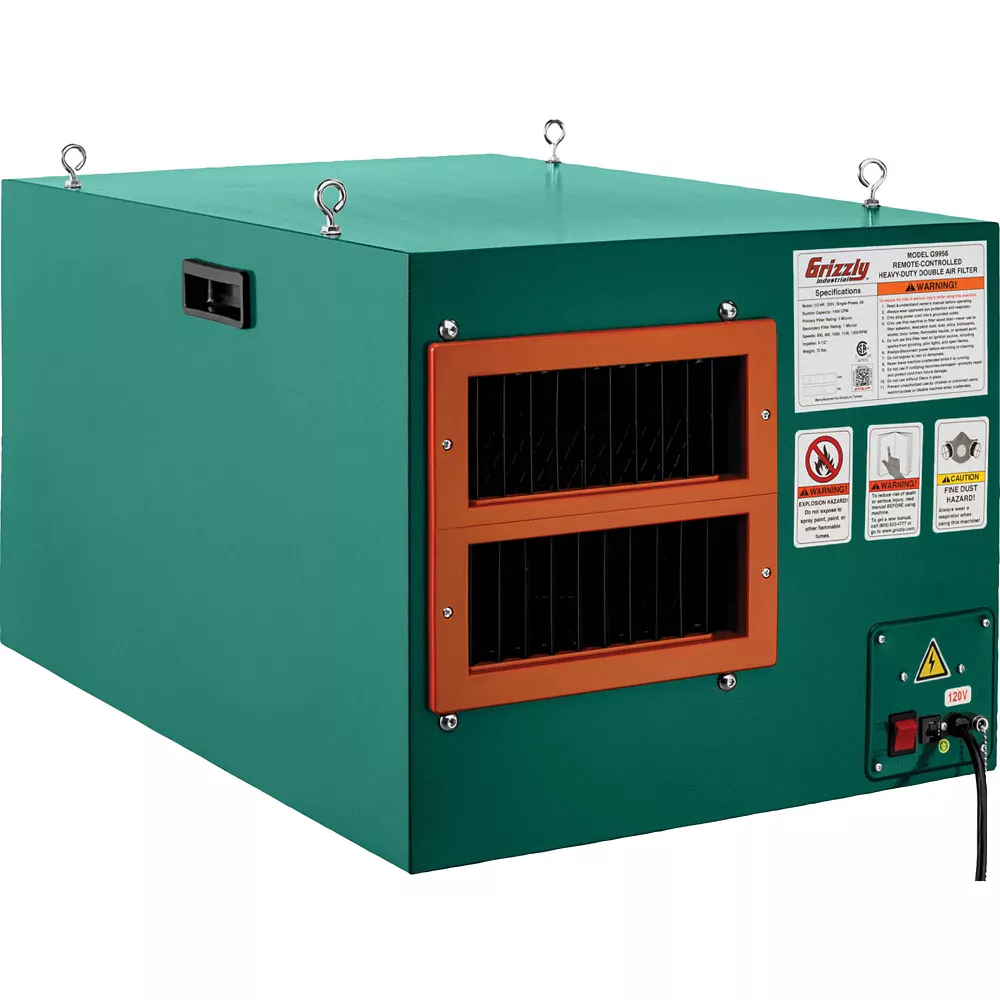

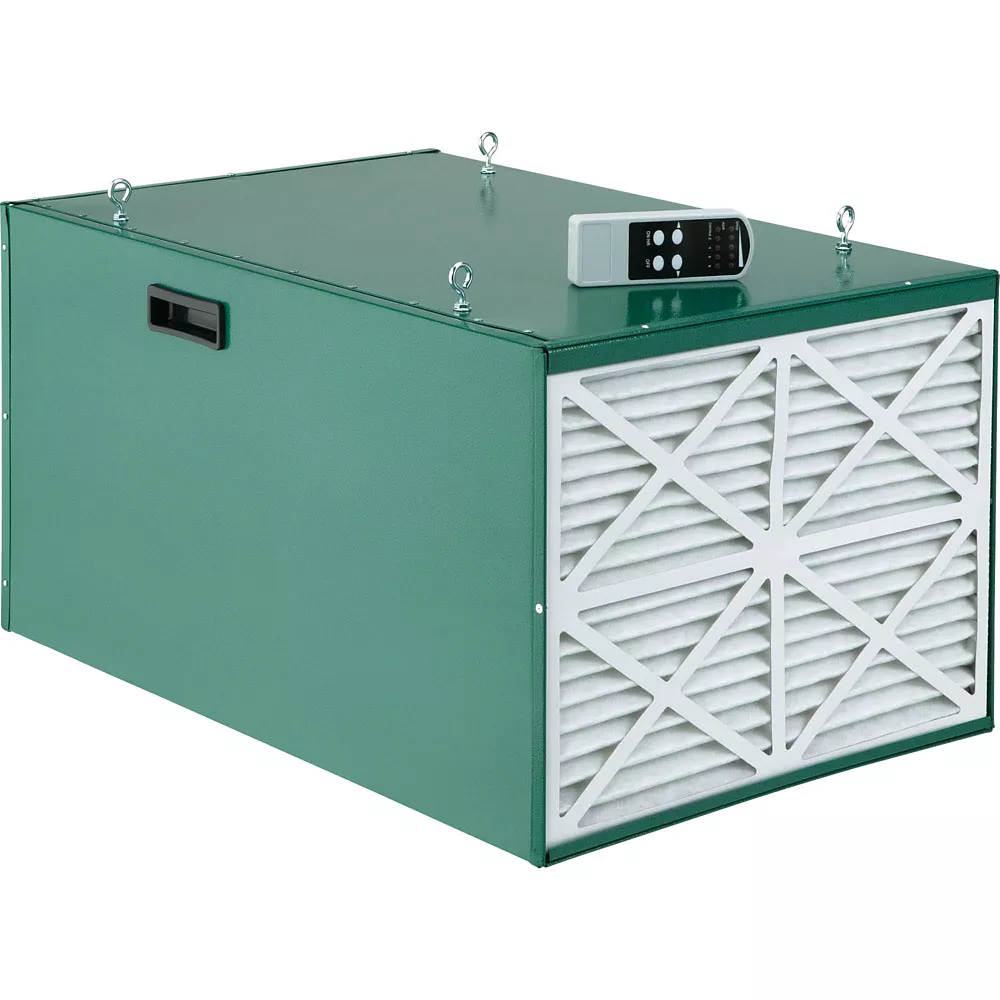

Capture the dust from the air in your shop. The G9956 Heavy-Duty Double Air Filter is designed to capture dust from ambient air in a woodworking shop for a short time after cutting or sanding operations. Set the duration and speed with the remote control from as far away as 45 feet, then hold on as the fan spools up to draw a massive 1400 CFM through the 5-micron primary filter and then through the 1-micron secondary filter. The air is drawn in through the filter by a 9-1/2" centrifugal fan or "squirrel cage" impeller and filtered before it returns to the workspace. The five fan speed options are 800, 900, 1000, 1100, or 1200 RPM. The G9956 will recirculate the volume of air in a 20' x 20' x 8' room approximately 26 times in one hour. We recommend that the volume of air in your room be recirculated 6-8 times an hour for the best filtering effect. The G9956 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your filter. G9956 parts may be available online and shipped from the Grizzly parts warehouse in Springfield, MO. Made in an ISO 9001 factory CSA certified

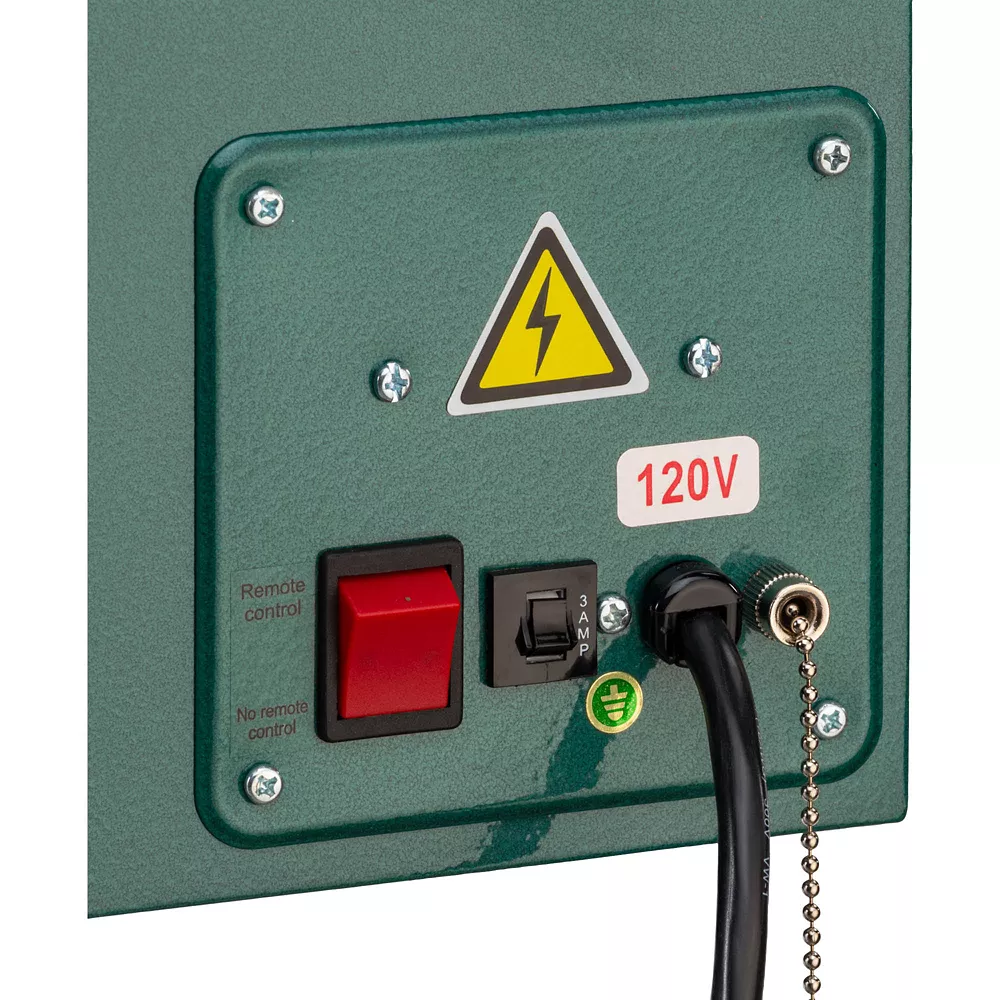

Motor: 1/3 HP, 120V, single-phase, 3A
Maximum airflow performance: 1400 CFM 1200 RPM = 1400 CFM 1100 RPM = 1283 CFM 1000 RPM = 1167 CFM 900 RPM = 1050 CFM 800 RPM = 800 CFM

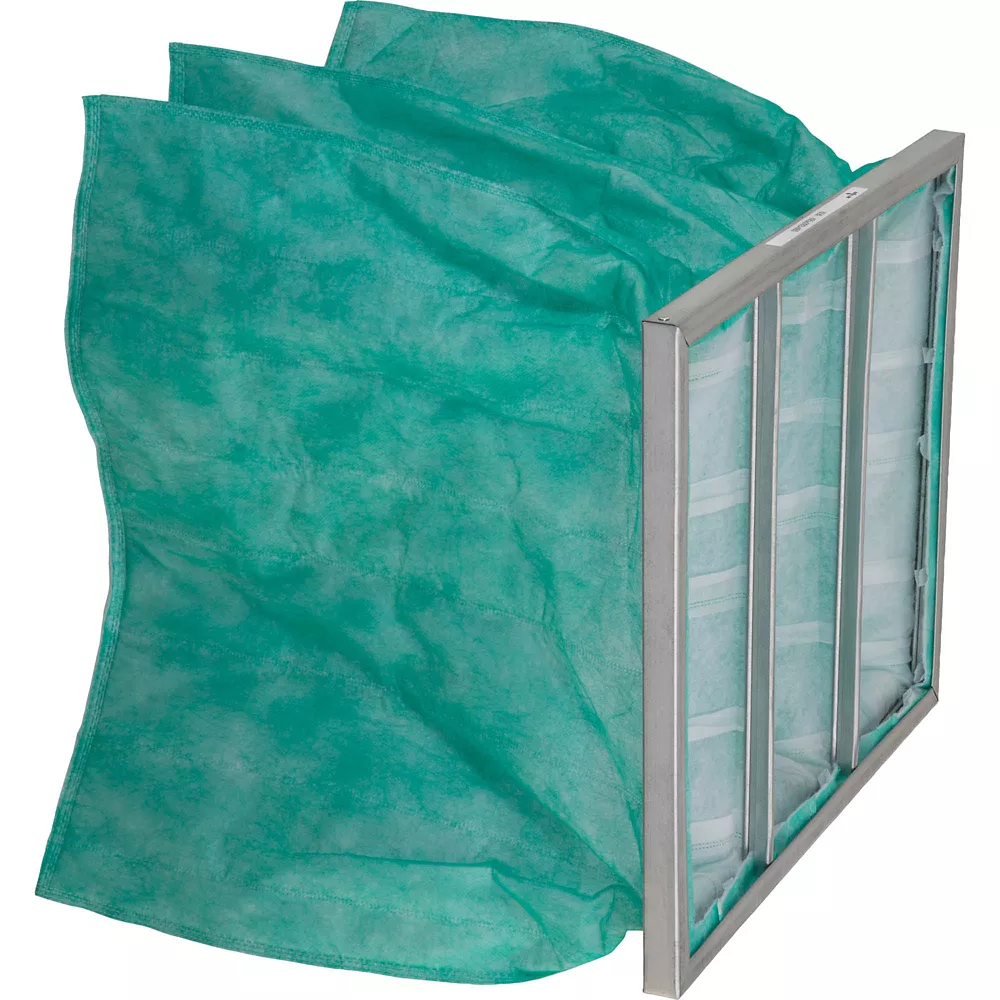

Primary filter rating: 5-micron
Secondary filter rating: 1-micron
Overall size is 30-1/8" W x 19-7/8" D x 16-3/8" H
Approximate shipping weight 74 lbs.

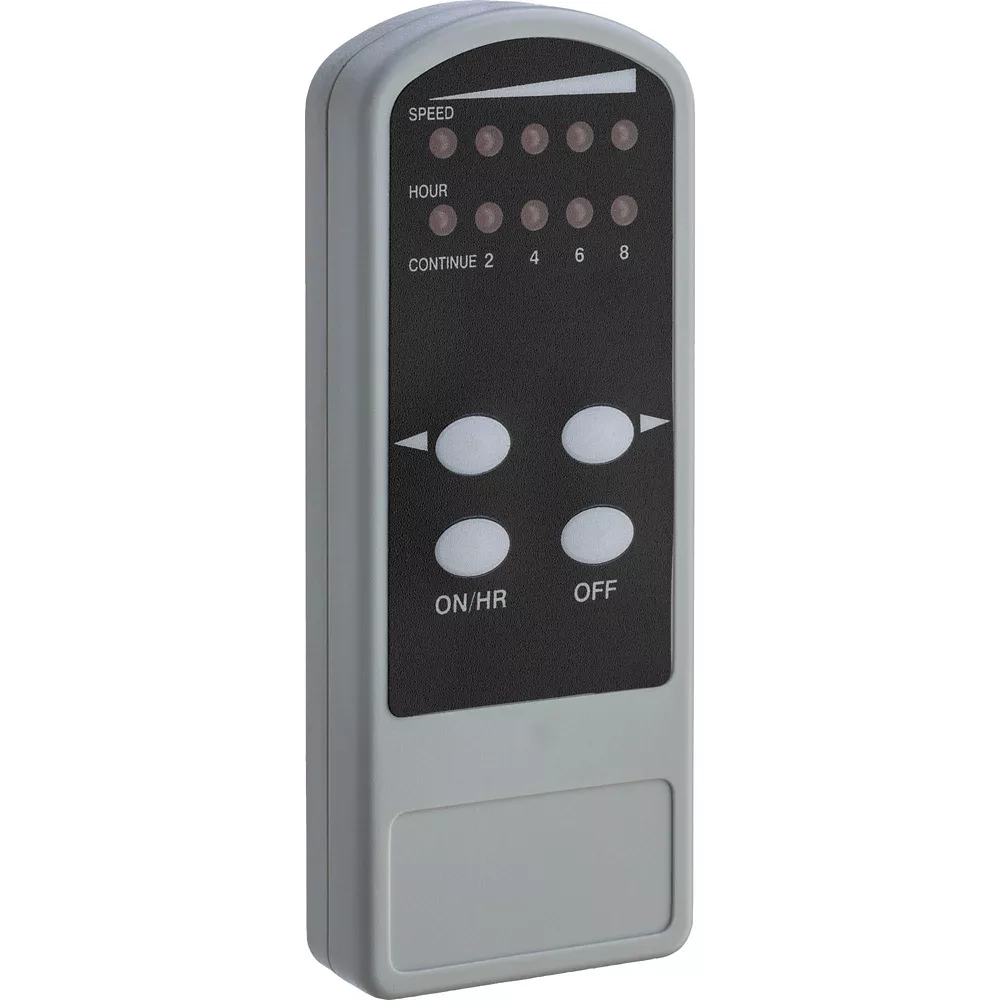

Programmable remote control
2-Stage filtration

Grizzly G9956-Dual Heavy Duty Air Filter with Vacuum Filters Truck & Automotive> Garage & Shop Equipment> Automotive Tools & Shop Equipment> Shop Vacuums & Sweepers> Vacuum Accessories & Parts> Vacuum Filters

Specification	Description
Brand	Grizzly
Country of Origin	Imported
Amperage	3 Amps
Compatibility	See manual
Cord Length	6 ft.
Decibel Rating	0 N/A
Phase	Single Phase
Features	No Additional Features
Filter Efficiency	0 - Not Measured
Filtration Material	Steel
Horsepower	0.33 hp
Hose Diameter	0 in.
Hose Length	0 in.
Maximum Airflow Rate	1400 CFM
Operating Velocity	1400 CFM
Product Height	16 in.
Product Length	19 in.
Product Weight	73 lb.
Product Width	30 in.
Warranty	1
Manufacturer PartNumber	G9956

Grizzly G9956-Heavy-Duty Double Air Filter With Specifications expand/collapse Specification Description Brand Grizzly Country of Origin Imported Amperage 3 A Compatibility See Manual Cord Length 6 ft. Decibel Rating 0 N/A Phase Single Phase Features No additional features Filter Efficiency 0 - Not measured Filtration Material Steel Power 0.33 hp Pipe Diameter 0 in. Hose length 0 in. Maximum Air Flow 1,400 CFM Operating Speed 1,400 CFM Product Height 16 in. Product length 19 in. Product weight 73 lbs. Product width 30 in. Warranty 1 Manufacturer Part Number G9956
