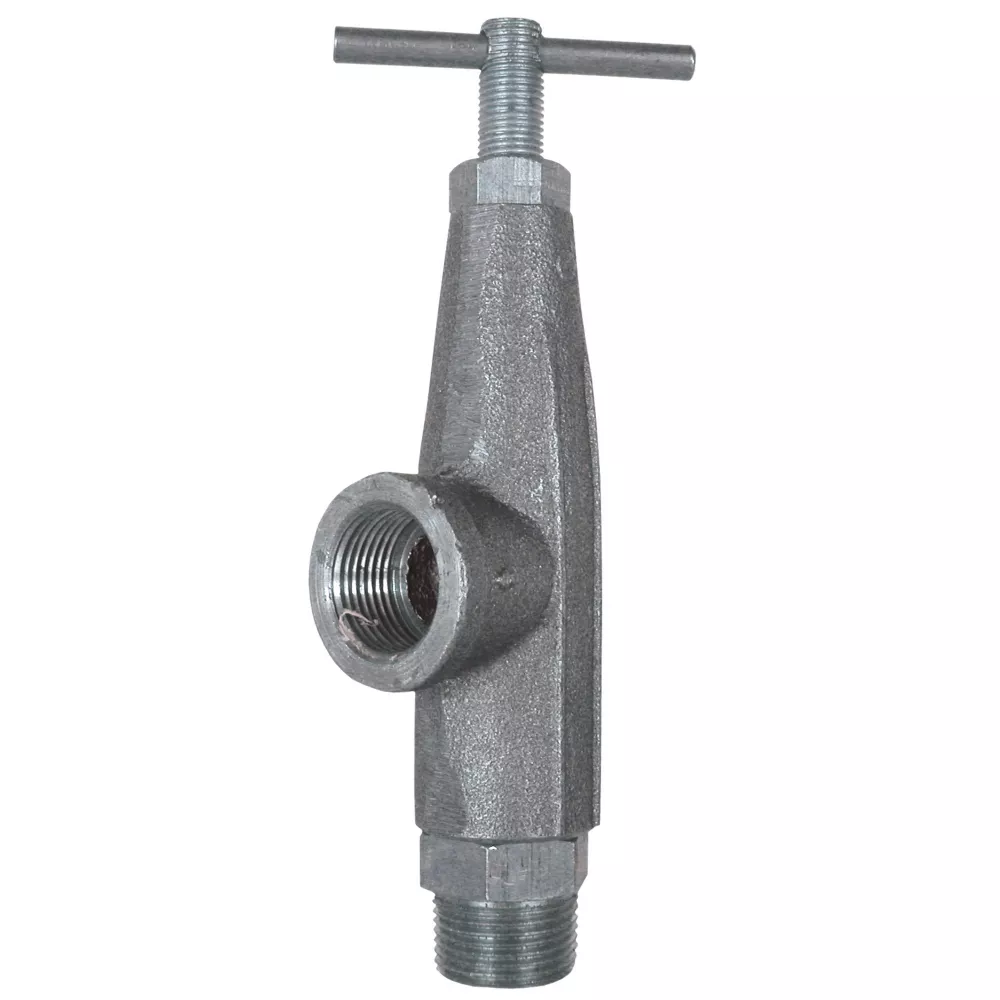

Hamilton 15 GPM Pressure Regulating Diverter Valve 3/4" MNPT Inlet x 3/4" FNPT Aluminum Ag Sprayers Pumps & Repair Farm & Ranch

The Hamilton 15 GPM Pressure Regulating Bypass Valve controls the pressure for your agricultural sprayer. Made of aluminum construction for increased durability, this regulating bypass valve is designed to hold up for a variety of agricultural applications. Use the bypass valve fitting with water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications.

Pressure regulating valve controls pressure for agricultural sprayer
Ideal as a universal replacement pressure regulating valve
3/4 in. MNPT inlet; 3/4 in. FNPT outlet
Backed by a 1 year warranty against manufacturer's defects
300 PSI maximum pressure rating and 15 GPM for powerful use
Pressure regulating bypass valve has aluminum construction for increased durability
Backed by a 12 month warranty on the bypass valve fitting
Made for herbicides, insecticides and pesticides
Imported
Ideal for bypassing excess liquid while maintaining control of fluid flow
Use with water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications
Positive Viton seals for smooth operation and sealed connections
T-handle adjustment screw on the bypass valve fitting
Operating temperature of up to 120 deg. F
Made with polypropylene and brass for durability

Hamilton 15 GPM Pressure Regulating Diverter Valve 3/4" MNPT Inlet x 3/4" FNPT Aluminum Ag Sprayers Pumps & Repair Farm & Ranch> Ag Sprayers> Ag Sprayer Parts & Accessories> Ag Sprayers Pumps & Repair

Specification	Description
Brand	Hamilton
Country of Origin	Imported
Compatibility	Master Manufacturing, Master MFG, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton
Inlet Diameter	3/8 in.
Maximum Flow Rate	15 GPM
Maximum Operating Pressure	300 PSI
Maximum Operating Temperature	120 deg. F
Package Quantity	1
Primary Color	Gray
Primary Material	Aluminum
Product Height	3 in.
Product Length	3 in.
Product Weight	0.6 lb.
Product Width	6.5 in.
Pump/Repair Product Type	Valves
Warranty	12 Month
Manufacturer PartNumber	RV34-300A
