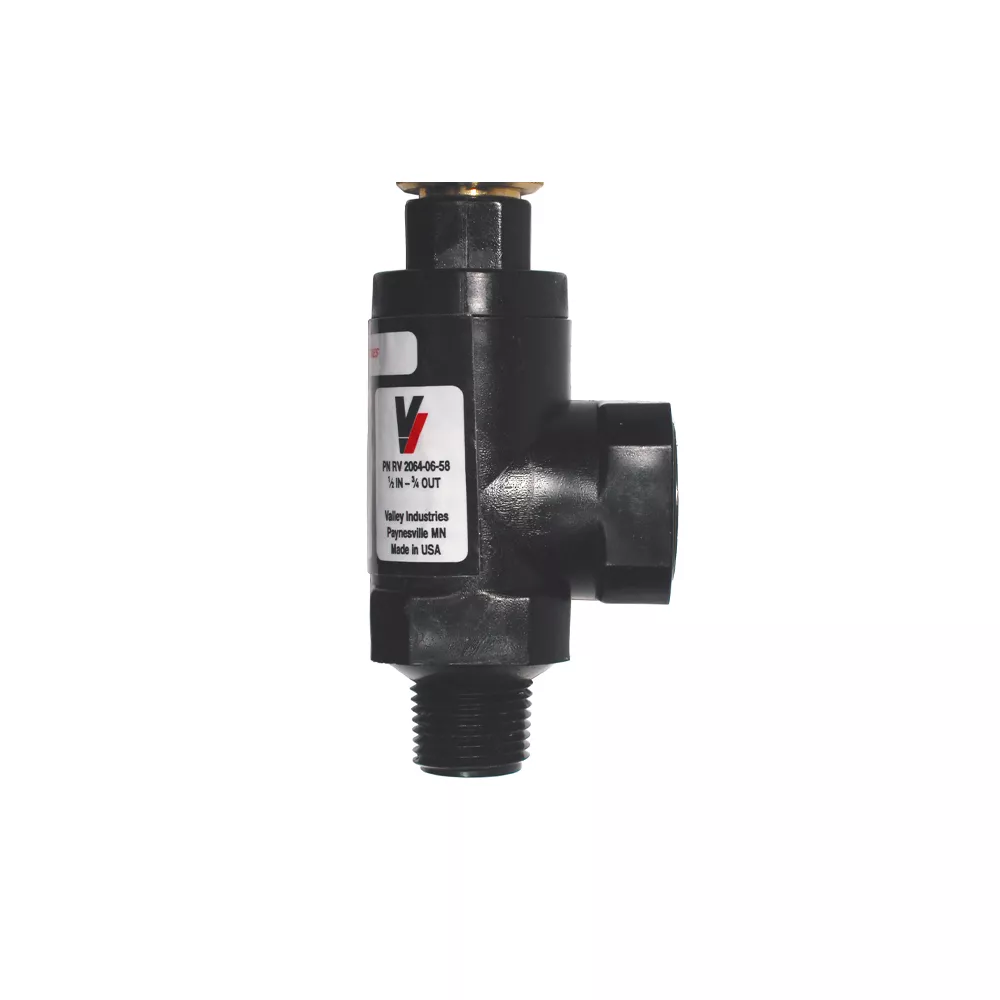

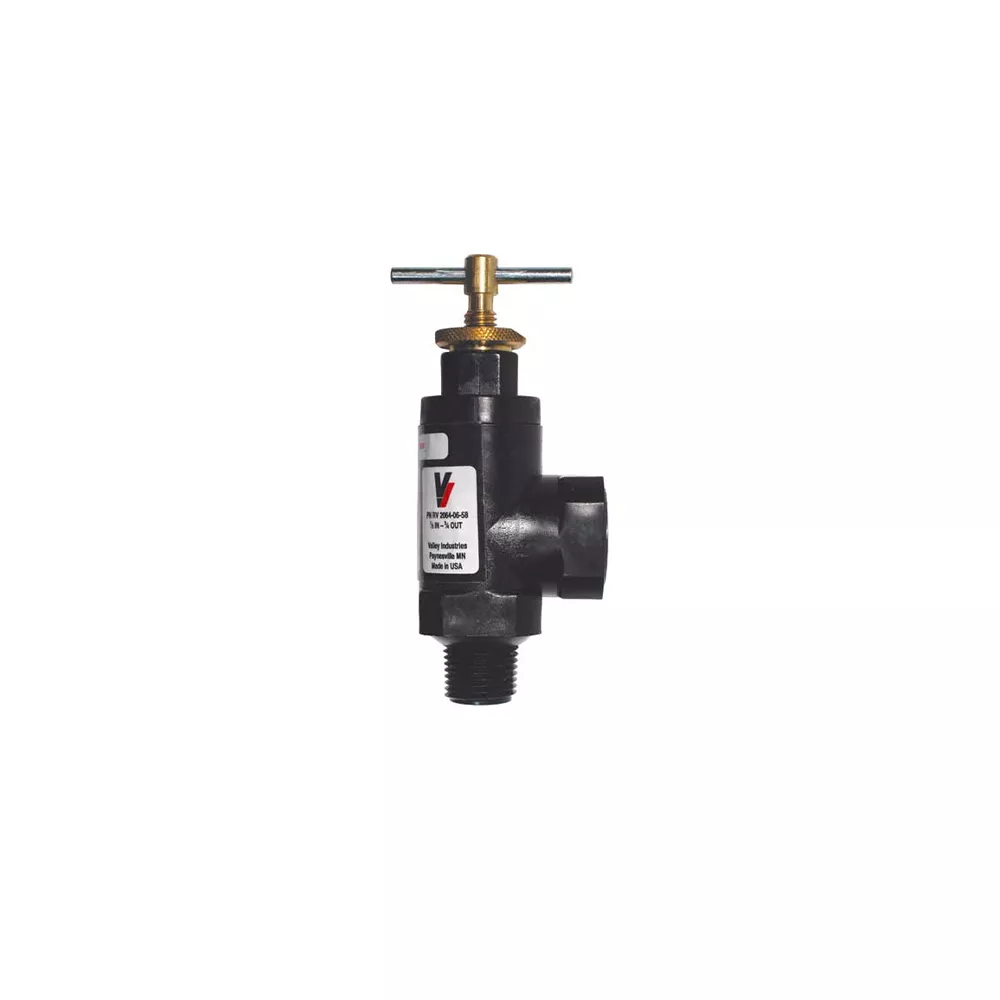

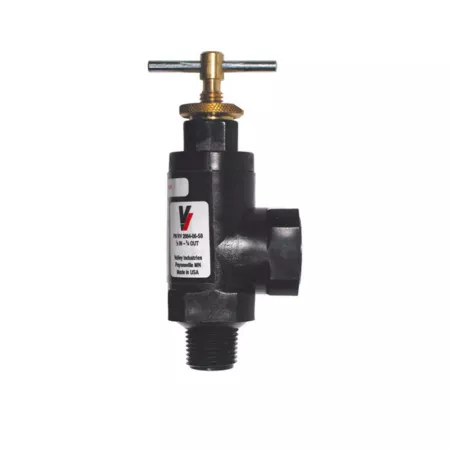

Hamilton Pressure Regulating Diverter Valve 1/2" MNPT Inlet x 3/4" FNPT Outlet Nylon Ag Sprayers Pumps & Repair Farm & Ranch

The Hamilton Pressure Regulating Bypass Valve controls the pressure to agricultural sprayers. Designed as a universal replacement, this bypass valve features polypropylene and brass construction for durability. Use the regulating bypass valve with sprayers, pumps and hoses among agricultural fluid applications.

Controls pressure to agricultural sprayers
Universal replacement pressure regulating valve
400 PSI maximum pressure rating; maximum of 15 GPM
1/2 in. MNPT inlet; 3/4 in. FNPT outlet
Imported bypass valve
Made of polypropylene and brass for durability
Backed by a 12 month warranty
Made for use with herbicides, insecticides and pesticides
Ideal bypass valve for bypassing excess liquid while maintaining control of fluid flow
For use with water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications
Positive Viton seals for smooth operation and sealed connections
T-handle adjustment screw for convenience
Operating temperature of up to 120 deg. F

Hamilton Pressure Regulating Diverter Valve 1/2" MNPT Inlet x 3/4" FNPT Outlet Nylon Ag Sprayers Pumps & Repair Farm & Ranch> Ag Sprayers> Ag Sprayer Parts & Accessories> Ag Sprayers Pumps & Repair

Specification	Description
Brand	Hamilton
Country of Origin	Imported
Compatibility	Master Manufacturing, Master MFG, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton
Discharge Connection	Threaded Female
Discharge Port Diameter	0.75 in.
Inlet Connection	Threaded Male
Inlet Diameter	1/2 in.
Maximum Flow Rate	15 GPM
Maximum Operating Pressure	250 PSI
Maximum Operating Temperature	120 deg. F
Package Quantity	1
Primary Color	Black
Primary Material	Polypropylene
Product Height	2.25 in.
Product Length	6.75 in.
Product Weight	0.34 lb.
Product Width	4.5 in.
Pump/Repair Product Type	Valves
Warranty	12 Month
Manufacturer PartNumber	RV2064-06-58-CSK

Hamilton Pressure Regulating Bypass Valve, 1/2 in. MNPT Inlet x 3/4 in. FNPT Outlet, Nylon Specifications expand/collapse Specification Description Brand Hamilton Country of Origin Import Compatibility Master Manufacturing, Master MFG, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton Discharge Connection Threaded Female Discharge Port Diameter 0.75 in. Inlet Connection 1/2 in. threaded male inlet diameter. Maximum flow 15 GPM Maximum operating pressure 250 PSI Maximum operating temperature 120 degrees. F Package Quantity 1 Main Color Black Main Material Polypropylene Product Height 2.25 in. Product length 6.75 in. Product weight 0.34 lbs. Product width 4.5 in. Pump/Repair Product Type Valves 12 Month Warranty Manufacturer Part Number RV2064-06-58-CSK
