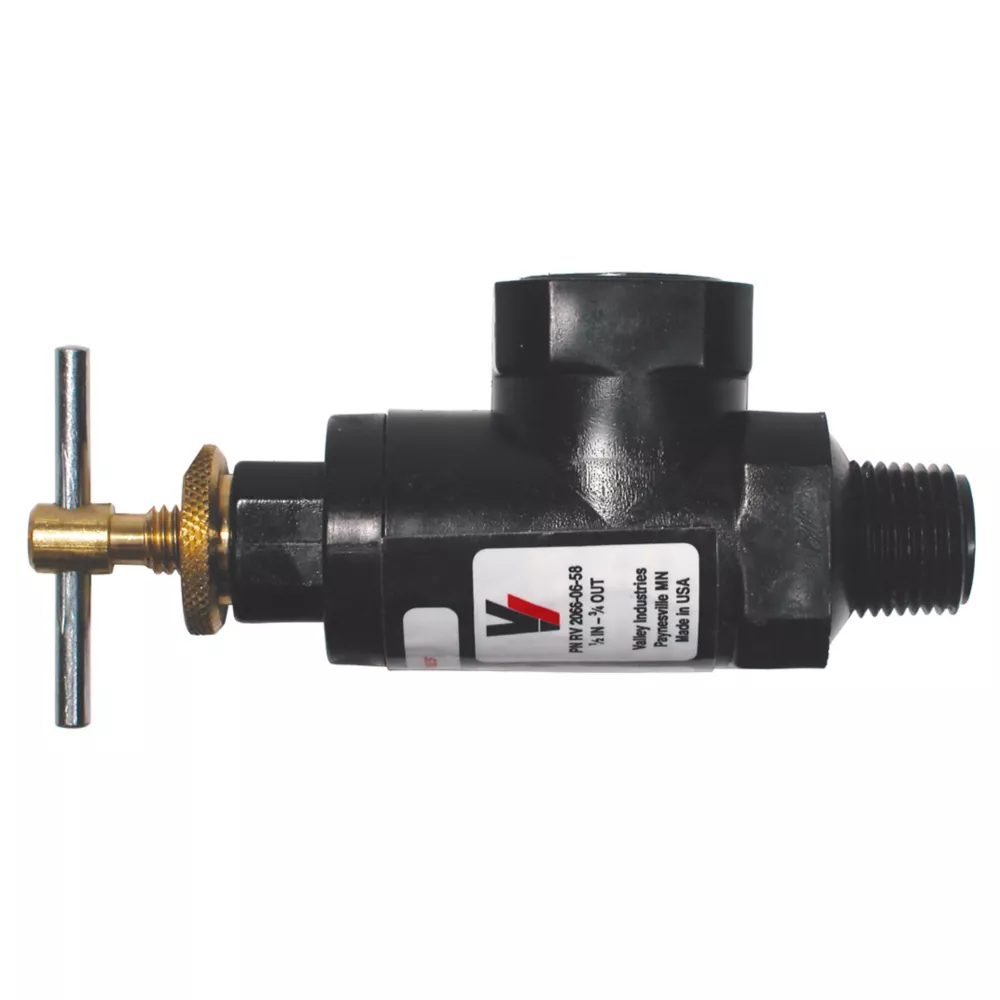

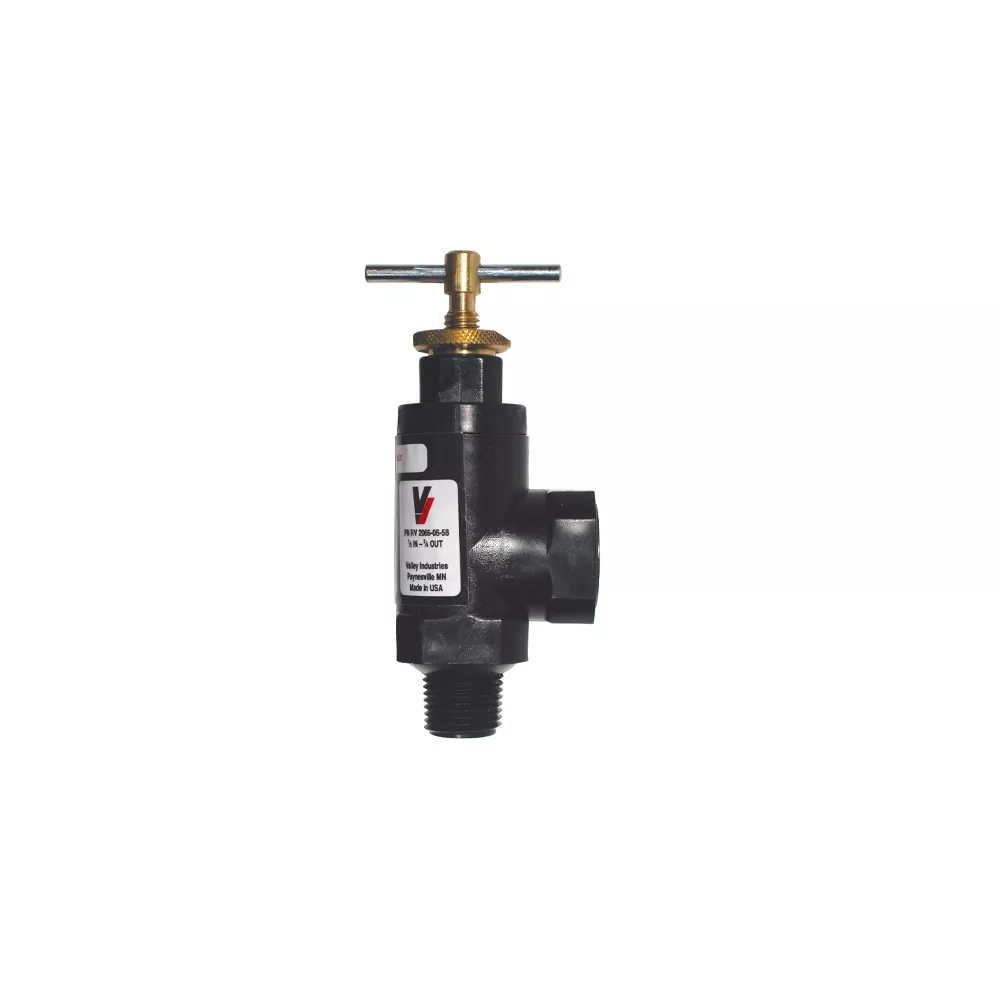

Hamilton Pressure Regulating Diverter Valve 3/4 in MNPT x 3/4 in FNPT Inlet Nylon Ag Sprayers Pumps & Repair Farm & Ranch
The Hamilton Pressure Regulating Bypass Valve controls the pressure for agricultural sprayers. Designed as a universal replacement, this regulating bypass valve is made of polypropylene and brass for durability. Use the bypass valve for water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications.- Controls pressure for agricultural sprayers
- Universal replacement pressure regulating bypass valve
- 400 PSI maximum pressure rating; maximum of 15 GPM
- 3/4 in. MNPT inlet; 3/4 in. FNPT bypass valve outlet
- Backed by a 1 year warranty against manufacturer's defects
- Made of polypropylene and brass for durability
- Operating temperature of up to 120 deg. F
- Ideal bypass valve for herbicides, insecticides and pesticides
- Bypasses excess liquid while maintaining control of fluid flow
- Use for water fluid transfers with sprayers, pumps and hoses among agricultural fluid applications
- Positive Viton seals for smooth operation and sealed connections

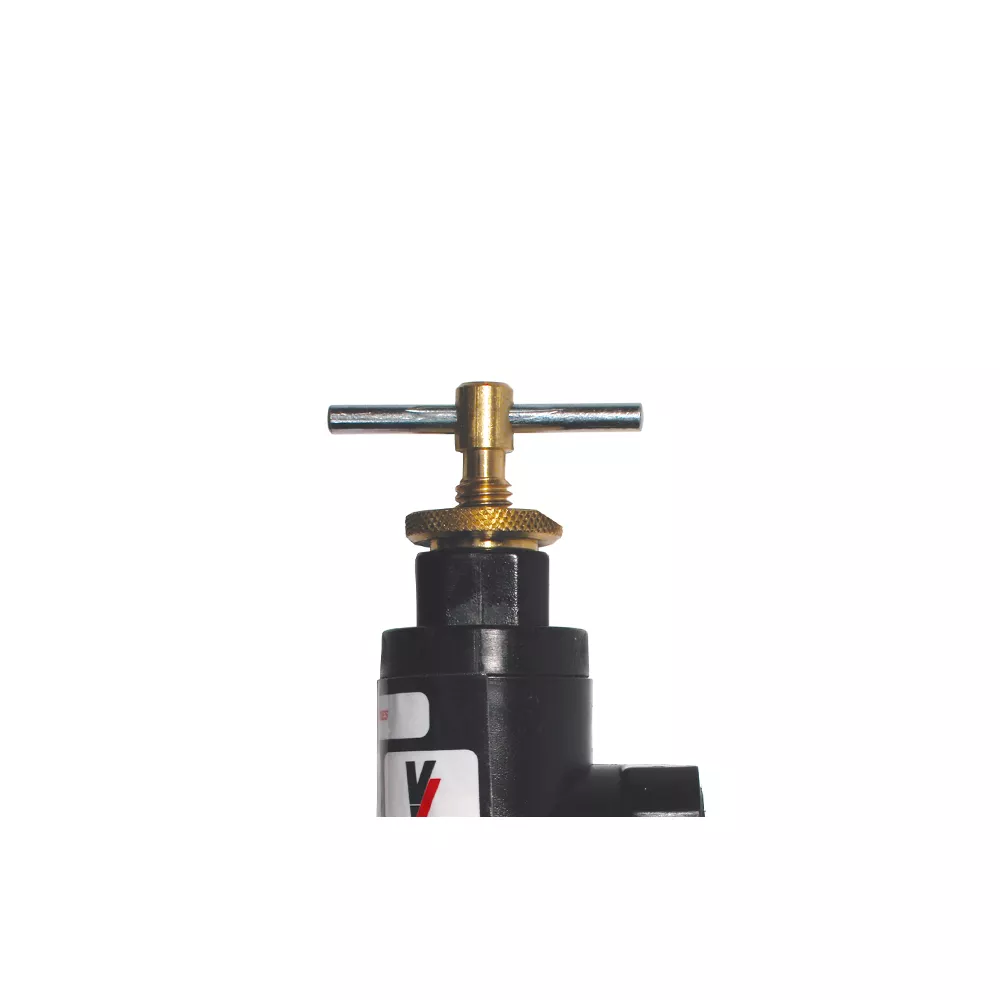

- T-handle adjustment screw for convenience
Hamilton Pressure Regulating Diverter Valve 3/4 in MNPT x 3/4 in FNPT Inlet Nylon Ag Sprayers Pumps & Repair Farm & Ranch> Ag Sprayers> Ag Sprayer Parts & Accessories> Ag Sprayers Pumps & Repair
| Specification | Description |
|---|---|
| Brand | Hamilton |
| Country of Origin | Imported |
| Compatibility | Master Manufacturing, Valley Industries, Fimco, Countyline, Workhorse, Greenleaf and Hamilton |
| Discharge Connection | Threaded Female |
| Discharge Port Diameter | 0.75 in. |
| Inlet Connection | Threaded Male |
| Inlet Diameter | 3/4 in. |
| Maximum Flow Rate | 15 GPM |
| Maximum Operating Pressure | 250 PSI |
| Maximum Operating Temperature | 120 deg. F |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Polypropylene |
| Product Height | 2.25 in. |
| Product Length | 6.75 in. |
| Product Weight | 0.34 lb. |
| Product Width | 5 in. |
| Pump/Repair Product Type | Valves |
| Warranty | 12 Month |
| Manufacturer PartNumber | RV2066-05-58-CSK |
