Hi-Lux Optics M1000-PRO 2-10X42 Auto Riflescope Red HR1 MOA Reticle Gun Scopes Optics & Sights

For the 50th anniversary of Jim Leatherwood's legendary Automatic Ranging Trajectory (ART) scope, Hi-Lux introduces the redesigned ART M1000-PRO. The original Auto-Ranging Telescope (ARTel) was issued to US Army and Marine Corp servicemen over 40 years ago. Since then, Hi-Lux has refined and improved the ART system's general cam to compensate the bullet drop of virtually any caliber.

The ART scope's integrated mount provides external adjustment through the Trajectory cam. Selecting the proper cam setting will effectively match your rifle's trajectory curve to the curve of the trajectory cam.

There are two ways to automatically compensate for trajectory when using the ART scope:

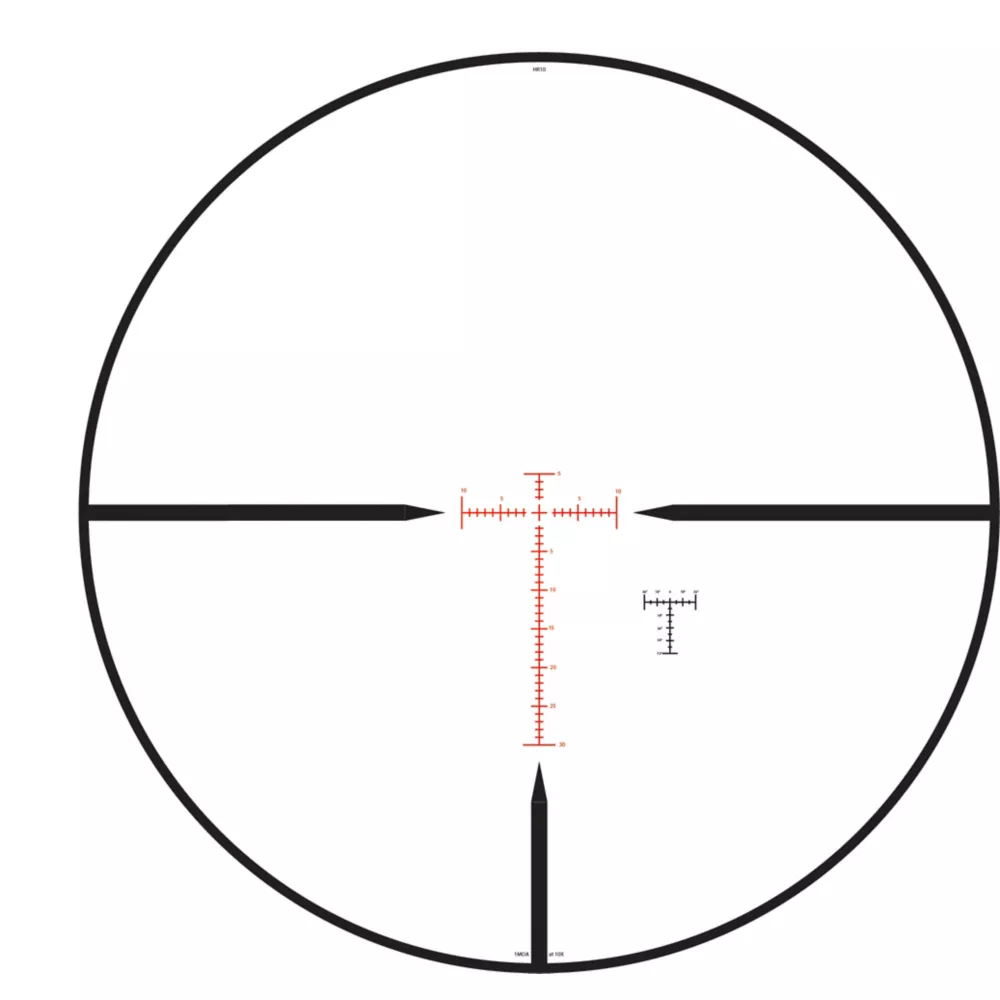

1) Framing known sized targets within the HR1 reticle

2) Dialing the Cam to a known distance

Once the known size target is framed, the ART scope will automatically compensate for bullet trajectory from 200 out to 1000 yards. This means no holdover or guesswork.

The M1000-PRO Trajectory cam has been designed to be modular and interchangeable. Caliber specific cams will be introduced in the future.

Automatic ranging trajectory from 200 - 1000 yards
Compatible with modern rifle calibers
Built-in optical rangefinder
External windage adjustment in base of the rifle scope
1/4 MOA clicks
Red illuminated HR1 MOA Reticle
Integrated mount of the ART scope provides bullet drop compensation through the trajectory cam

DiamondTuff Lifetime Guarantee

Hi-Lux Optics M1000-PRO 2-10X42 Auto Riflescope Red HR1 MOA Reticle Gun Scopes Sporting Goods> Shooting> Optics & Sights> Gun Scopes

Specification	Description
Brand	Hi-Lux Optics
Country of Origin	Imported
Barrel Length	0 N/A
Battery Size	CR2032
Exit Pupil	21 - 4.2mm
Eye Relief	3.5 in.
Features	Automatic Ranging Trajectory from 200-1000 yards, Waterproof
Field of View	53 - 11ft.
Number of Batteries Required	1
Objective Lens Diameter	42 mm
Power Type	Battery
Primary Material	Aluminum
Product Height	2.5 in.
Product Length	12 in.
Product Weight	30 oz.
Product Width	2.5 in.
Range	200 - 1,000yd.
Recommended Gun Types	Rifles
Reticule	HR1 MOA Reticle
Eye Piece Type	Fast Focus
Magnification	2-10x
Tube Diameter	30mm
Tube Length	12 in.
Tube Width	30mm
Warranty	DiamondTuff Guarantee on Materials and Workmanship
Manufacturer PartNumber	M1000PRO-R

Hi-Lux Optics Automatic Ranging Trajectory M1000-PRO 2-10X42 Rifle Scope, Red, HR1 MOA Reticle Specifications Expand/Collapse Specification Description Brand Hi-Lux Optics Country of Origin Imported Barrel Length 0 N/A Battery Size CR2032 Exit Pupil 21 - 4.2 mm Eye Relief 3.5 inches Features Auto Range Trajectory 200 to 1,000 yards, waterproof field of view 53 - 11 feet. Number of Batteries Required 1 Lens Diameter 42 mm Power Type Main Battery Material Aluminum Product Height 2.5 in. Product length 12 in. Product weight 30 oz. Product width 2.5 in. Range of 200 to 1,000 yards. Recommended Firearm Types Rifles HR1 MOA Reticle Reticle Eyepiece Type Fast Focus Magnification 2-10x Tube Diameter 30mm Tube Length 12in. Tube Width 30mm DiamondTuff Warranty Warranty on Materials and Workmanship Manufacturer Part Number M1000PRO-R
