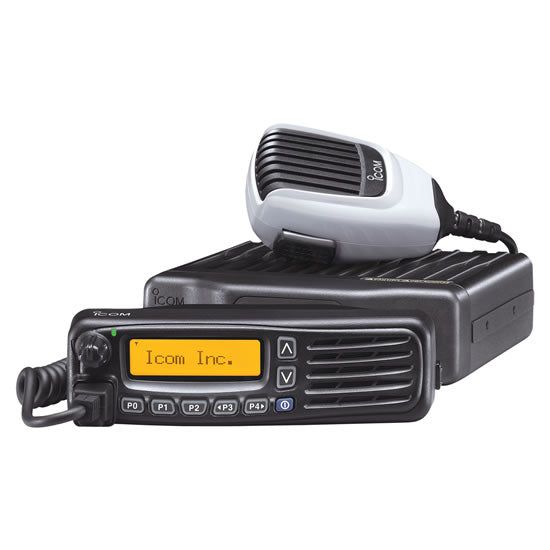

Icom F5061D51 VHF radio Communication

Icom F5061 VHF Land Mobile Fixed Radio - IDAS Digital VersionSuitable for mobile or base station operationThe IC-F5061 is ideal for users in public safety, transportation and delivery services. It offers advanced multi-mode operations, enhanced scanning and flexible installation. Group, selective and telephone calls are all available in LTR mode. The beep on reception function informs you with a beep when an individual call is received. Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to create your own talk groups and let your radio go to sleep silently when other groups are talking. Built-in 2-tone and 5-tone capabilities allow you to send one tone code with your call and decode multiple tone codes on one channel. 40 pairs of CTCSS/DTCS memory channels are available. Advanced identification featuresAutomatic numbering (ANI), selective call (Selcall) and emergency call are available with integrated MDC signaling. The PTT ID function sends your unit's ID number when you press (or release) the PTT button. The received ID number can be decoded into a username using the alias table. Selcall allows you to call individual or group users as you wish. The emergency call feature allows you to send and repeat an emergency message to the dispatcher until the dispatcher responds. In such a situation, the radio can transmit whatever the microphone hears and the dispatcher can monitor the background noise. Radio check, status, messages, radio stun, wake-up and call log are also available. With a high-contrast dot-matrix display, uppercase and lowercase characters can be easily distinguished. You canChange the display setting to display one line and 12 characters, or two lines and 24 characters via programming. LCD backlighting is standard. IDAS 6.25 kHz digital mode is available via the pre-installed UT-126H digital card. IDAS is Icom's digital land mobile radio system using 6.25 kHz narrow-band FDMA technology.

Icom F5061D51 Attributes

Type: Fixed mount
Power output (W): 50 watts
GPS capable: Yes
PA system: No PA system
With key lock: No
Screen Type: LCD
Color: Black

Icom F5061D51 Features and Benefits

Removable front panel for flexible installation
IP54 dust and splash resistant controller
Advanced scanning features including Tx channel, talkback and noise suppression
8 auto-dial memoriesEU DTMF and ANI function with DTMF
Radio stun and kill functions disable a lost or stolen unit over the air, busy repeater lockout function and line detection power on
Monitoring function temporarily turns off LED backlight and beep sound
li>
Programmable microphone suspend action, power-on password
li>
Frequency stability +/-1 ppm, Built-in ESN and Flash processor for future upgrade
Built-in inversion type voice jammer and optional UT-109R/UT-110R available; D-Sub Accessory Connector, Ignition Sense Line and More
3 Year Limited Warranty

Icom F5061D51 Technical Bulletins

F5061D-F6061D 2015- brochure.pdf
IDAS -Brochure-03-19-2018.pdf

PRODUCT ID: 2002092
SKU: NVN-2002092
CSKU: CWR-2002092
REWRITE: 2013203-icom-f5061d51-vhf-radio
MPN: F5061D 51
UPC: 731797031532
ASIN:
WSKU:
SSKU:
KSKU: ICMF5061D51
GSKU:
MSKU:
LSKU:
NAME: Icom F5061D51 VHF Radio
EX_NAME:
PTITLE: Icom F5061D51 VHF Radio
TYPE: Communication | CB radios
SELLER: Icom

Gtags:

GSpecs :

Icom F5061D51 VHF Radio Product Description

Icom F5061 VHF Land Mobile Fixed Mount Radio - IDAS Digital VersionSuitable for mobile or base station operationThe IC-F5061 is ideal for public safety service users , transport and delivery. It offers advanced multi-mode operations, enhanced scanning and flexible installation. Group, selective and telephone calls are all available in LTR mode. The beep on reception function informs you with a beep when an individual call is received. Use the built-in CTCSS, DTCS, 2-Tone 5-Tone or MDC 1200 capability to create your own talk groups and let your radio go to sleep silently when other groups are talking. Built-in 2-tone and 5-tone capabilities allow you to send one tone code with your call and decode multiple tone codes on one channel. 40 pairs of CTCSS/DTCS memory channels areavailable. Advanced Automatic Number Identification (ANI), Selective Call (Selcall) and Emergency Call features are available with integrated MDC signaling. The PTT ID function sends your unit's ID number when you press (or release) the PTT button. The received ID number can be decoded into a username using the alias table. Selcall allows you to call individual or group users as you wish. The emergency call feature allows you to send and repeat an emergency message to the dispatcher until the dispatcher responds. In such a situation, the radio can transmit whatever the microphone hears and the dispatcher can monitor the background noise. Radio check, status, messages, radio stun, wake-up and call log are also available. With a high-contrast dot-matrix display, upper and lower case charactersscules can be easily distinguished. You can change the display setting to display one line and 12 characters, or two lines and 24 characters via programming. LCD backlighting is standard. IDAS 6.25 kHz digital mode is available via the pre-installed UT-126H digital card. IDAS is Icom's digital land mobile radio system using 6.25 kHz narrow-band FDMA technology.

Attributes Icom F5061D51

Type: Fixed mounting
Output power (W): 50 watts
GPS Capable: Yes
Public Address System: No PA System
With key lock: No
Screen type: LCD
Color: Black

Icom F5061D51 Features and benefits

Removable front panelfor flexible installation
IP54 dust and splash resistant controller
Advanced scanning features including Tx channel, talkback and nuisance suppression
8 DTMF auto dial memories and ANI function with DTMF
Radio stun and kill functions disable a lost or stolen unit over the air, busy repeater lockout function and ignition detection line
Monitoring function temporarily disables LED backlight and beep sound
MicrophoProgrammable suspend action, power-on password
Frequency stability +/-1 ppm, built-in ESN and Flash processor for future upgrade
Built-in inversion type voice jammer and optional UT-109R /UT-110R available; D-Sub Accessory Connector, Ignition Sense Line and More
3-Year Limited Warranty

Icom F5061D51 Technical Bulletins

F5061D-F6061D 2015-brochure.pdf
IDAS-Brochure-03-19-2018.pdf

Frequently asked questions (FAQ) about the Icom F5061D51 VHF radio Who is the Icom?
What is the product type?
What is the color of the Icom F5061D51 VHF radio?
What is the display type of the product?
Who is the Icom? ? Icom's equipment includes long-range, ship-to-shore, sideband transceivers for global communications from shipboard operations, as well as short-range VHF communications equipment. Additionally, Icom has produced a series of highly advanced and very compact portable transceivers intended for use in communication on ships as well as between ships and land-sea applications . What is the product type? Fixed Bracket What is the color of the Icom F5061D51 VHF radio? BlackWhat is the type of affproduct display? LCD

Save $530 when you purchase the Icom F5061D51 VHF Radio for only $284 at NVN Marine! Same day dispatch before 3 p.m. Icom F5061D51 VHF Radio Technical Specifications

Type:	Communication \| CB radios
Seller:	Icom
Weight:	6.0 lbs

Icom F5061D51 VHF Radio User ReviewsIcom F5061D51 VHF Radio Shipping and return

Shipping weight:	6.0 lbs
Box sizes:	5.30 (h) x 8.50 (w) x 9.25 (w)
Cubic feet:	416.7125
Returnable:	Yes
