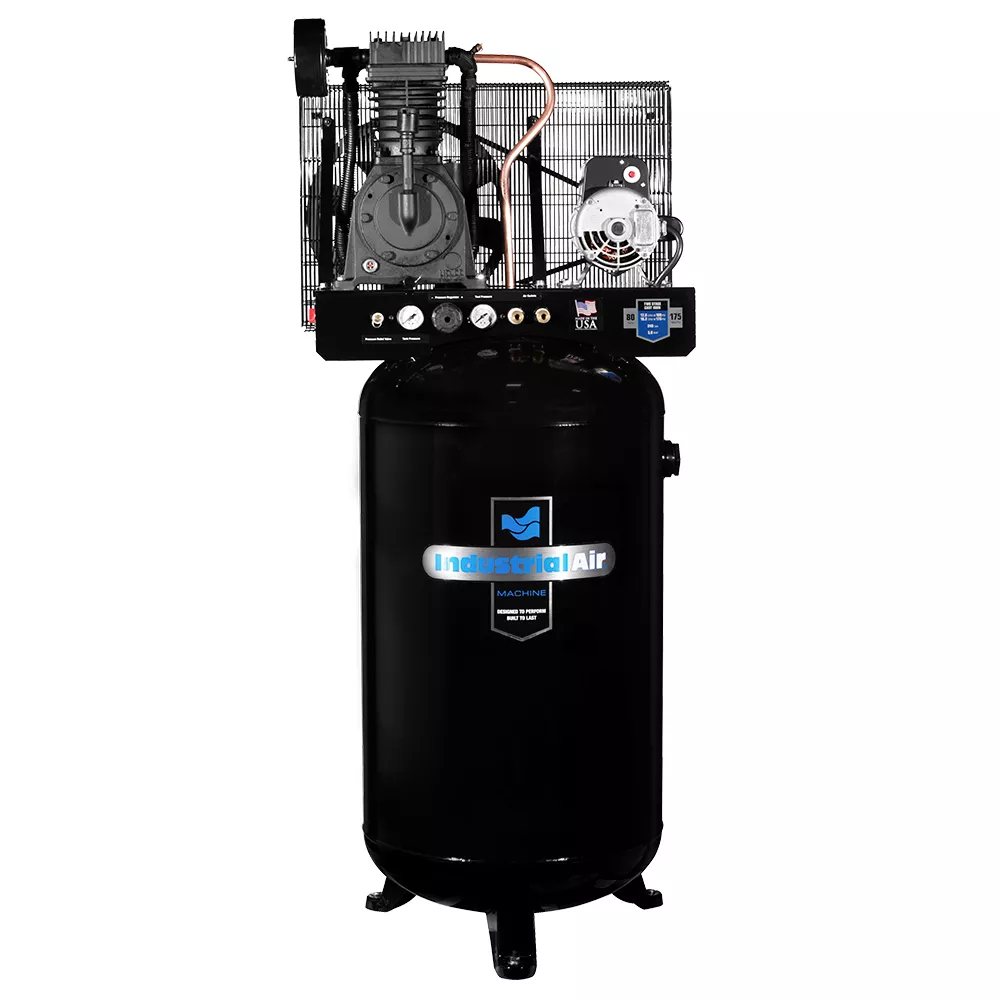

Industrial Air Contractor 5 HP 80 gal 2-Stage Air Compressor with Control Panel 175 PSI 240 V Single Phase Stationary Air Compressors Air Compressors

The Industrial Air 80 Gal. Compressor, delivering up to 17.0 CFM at 175 psi, can power multiple air tools or devices at a time. No magnetic starter is needed thanks to a Thermal Overload Protection System (TOPS) motor which helps protect the motor from voltage fluctuations. The patented cast iron pump provides improved compression efficiency and low pump RPM.

Heavy-duty, 5.0 HP motor operates on 230-Volt
175 max PSI to operate multiple devices at once
Delivers 17.9 CFM at 100 psi and 17.0 CFM at 175 psi
Large capacity, 80 Gal. ASME air receiver
Cast-iron, 2-stage compressor pump
Equipped with integrated control panel for added control and convenience

Industrial Air Contractor 5 HP 80 gal 2-Stage Air Compressor with Control Panel 175 PSI 240 V Single Phase Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Air Contractor
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	18 SCFM
Airflow Volume	18 CFM
Air Outlet Size	0.75 in.
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	240V
Drain System	Drain Valve
Drive Type	Belt Drive
Features	Heavy-duty, 5.0 HP motor operates on 230-Volt 175 max PSI to operate multiple devices at once Delivers 17.9 CFM at 100 psi and 17.0 CFM at 175 psi Large capacity, 80 Gal. ASME air receiver
Number Of Power Speeds	Variable
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	80 in.
Product Length	31.5 in.
Product Weight	475 lb.
Product Width	34.75 in.
Pump Material	Cast iron
Tank Orientation	Vertical
Warranty	2 Year Limited
Manufacturer PartNumber	IV5048055

Industrial Air Contractor 5 HP 80 gal. 2-Stage Air Compressor with Control Panel, 175 PSI, 240V, 1-Phase Specifications expand/collapse Specification Description Brand Industrial Air Contractor Country of Origin Made in USA Air Flow SCFM at 90 PSI 18 SCFM Air Flow Volume 18 CFM Air Outlet Size 0.75 in. Compressor Power 5 HP Maximum Compressor PSI 175 PSI Compressor Tank Capacity 80 gal Compressor Type Vertical Compressor Voltage 240 V Drain System Drain Valve Drive Type Belt Drive Features Heavy-duty 5.0 HP motor running on 230 volts, 175 PSI max. to operate multiple appliances at once Delivers 17.9 CFM at 100 psi and 17.0 CFM at 175 psi Large capacity, 80 Girl. ASME Air Receiver Number of Power Speeds Variable Power Type Electric Primary Color Black Primary Material Steel Product Height 80 in. Product length 31.5 in. Product weight 475 lbs. Product width 34.75 in. Pump Material Cast Iron Tank Orientation WarrantyVertical 2 Year Limited Warranty Manufacturer Part Number IV5048055
