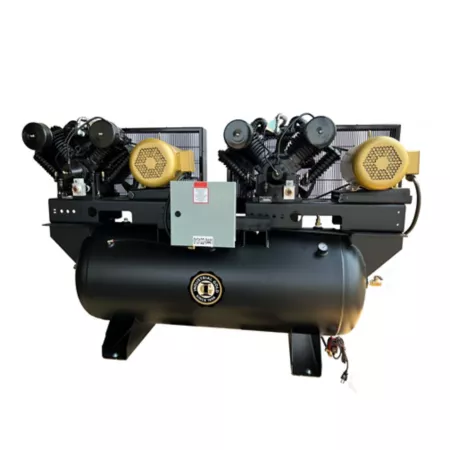

Industrial Gold 10 HP 120 gal Duplex Air Compressor 208 to 230 V 3 Phase 60 Hz 35 CFM to 175 PSI DCI1023E120H-P-480 Stationary Air Compressors Air Compressors

This Industrial Gold 10 HP 120 gal. Duplex Air Compressor sets the standard for airflow performance. These air compressor solutions can keep your facility online and your equipment in shape because we combined best-in-class airflow performance with the flexibility to work in any environment. The duplex air compressor features a self-tensioning belt system and a belt guard aftercooler. The tank holds 120 gal. and has a rating of 200 PSI. This duplex air compressor also features full saddle mounting feet to make installation a breeze! Made in the USA, this air compressor comes backed by a 1-year warranty.

35 CFM at 175 PSI per side and 70 CFM at 175 PSI total
120 gal. tank 200 PSI ASME/CRN

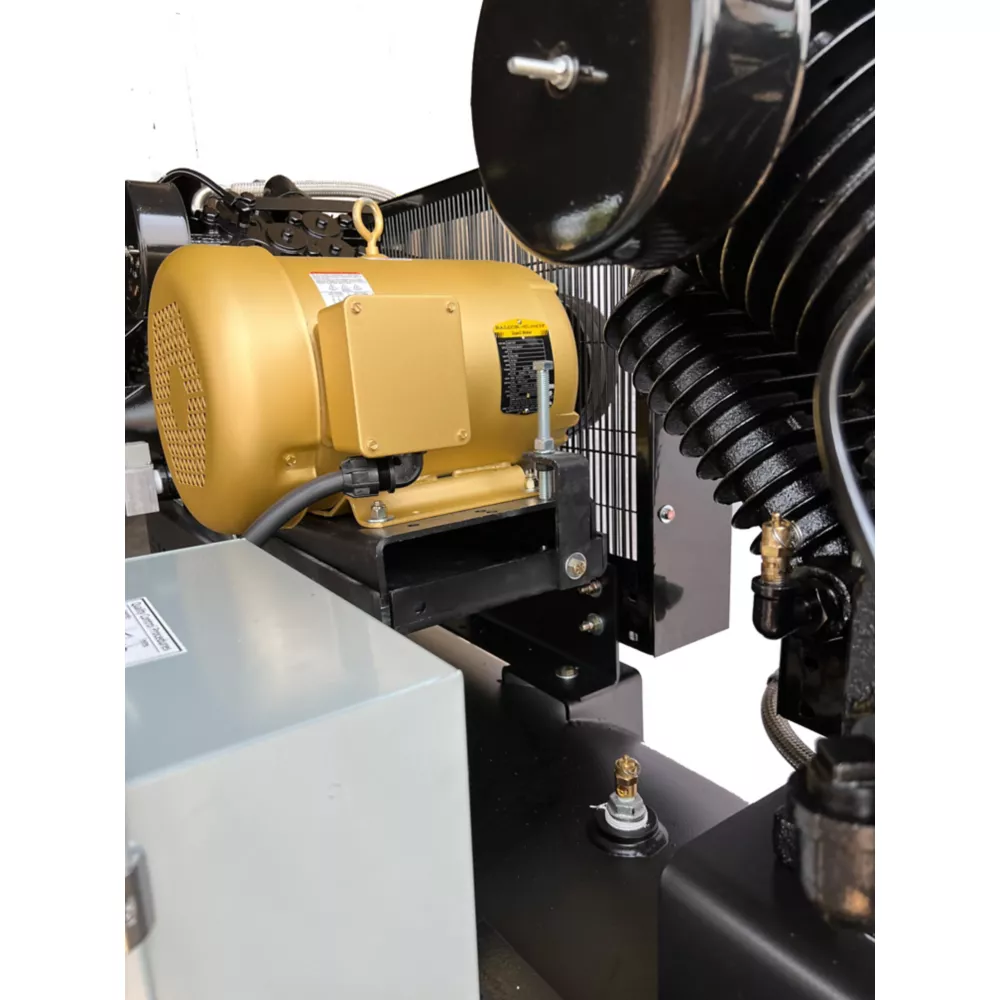

Equipped with a TEFC drive motor
Duplex air compressor features a 2-piece tank and top plate
Air compressor solutions with a self tensioning belt system

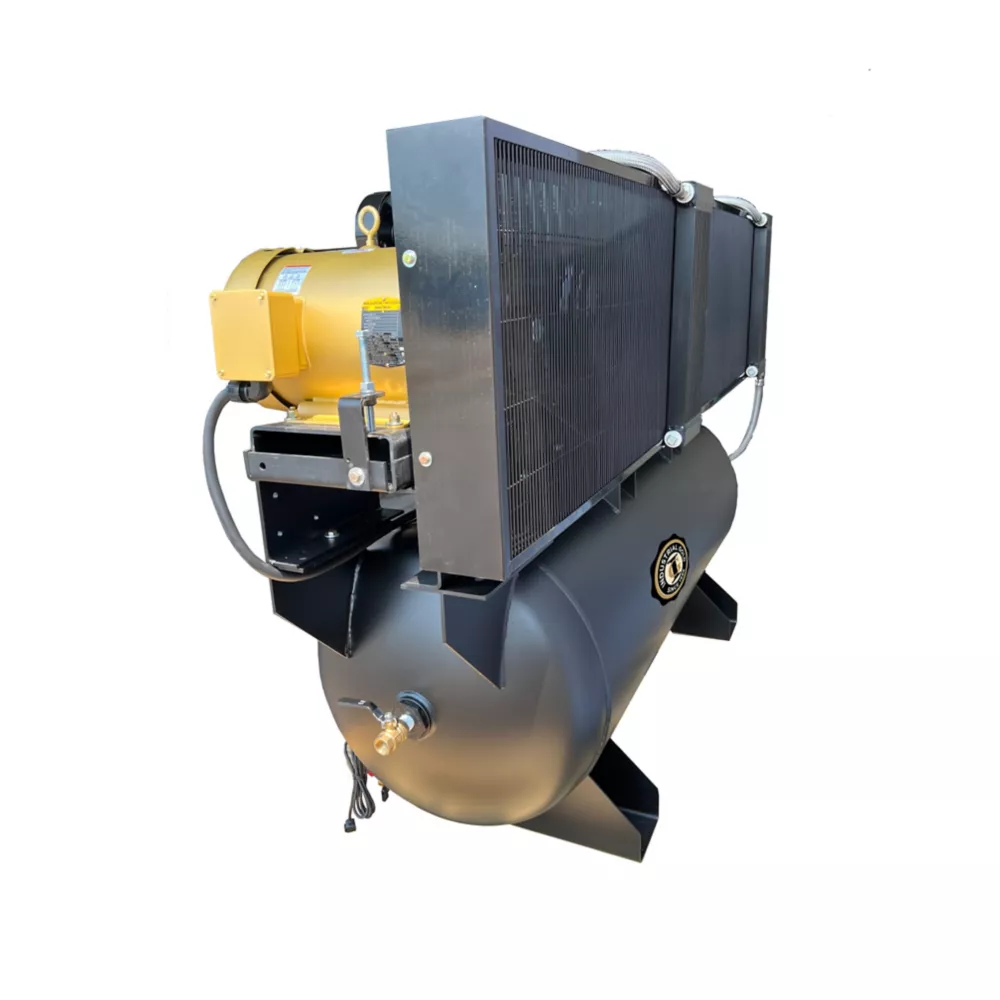

Contains a belt guard aftercooler
Full saddle mounting feet allow for easier installation
208-230V 3-phase

Industrial Gold 10 HP 120 gal Duplex Air Compressor 208 to 230 V 3 Phase 60 Hz 35 CFM to 175 PSI DCI1023E120H-P-480 Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Gold
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	35 CFM at 175 PSI per side and 70 CFM at 175 PSI total
Air Delivery SCFM At 90 PSI	75CFM
Airflow Volume	35 CFM @ 175 PSI per side, 70 CFM @ 175 PSI total
Air Outlet Size	3/4 in.
Compressor Horsepower	10 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	120 gal
Compressor Type	Horizontal
Compressor Voltage	208V/230V
Drain System	Manual
Drive Type	Electric
Features	Cast Iron
Fuel Tank Capacity	120 gal.
Phase	Triple
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	54 in.
Product Length	84 in.
Product Weight	1,100 lb.
Product Width	36 in.
Pump Material	Cast iron
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	DCI1023E120H-P-480

Industrial Gold 10 HP 120 gal. Duplex Air Compressor, 208 to 230V, 3 Phase, 60 Hz, 35 CFM at 175 PSI, DCI1023E120H-P-480 Specifications expand/collapse Specification Description Brand Industrial Gold Country of origin Made in USA Airflow SCFM at 40 PSI 35 CFM at 175 PSI per side and 70 CFM at 175 PSI total Airflow SCFM at 90 PSI 75CFM Volume of air flow 35 CFM at 175 PSI per side, 70 CFM at 175 PSI total Air outlet size 3/4 in. Compressor Power 10 HP Maximum Compressor PSI 175 PSI Compressor Tank Capacity 120 gal Compressor Type Horizontal Compressor Voltage 208 V/230 V Drain System Manual Drive Type Electrical Specifications Cast Iron Fuel Tank Capacity 120 gallons. Phase Triple Number of Power Speeds Single Number of Wheels 0 Power Type Electric Main Color Black Main Material Steel Product Height 54 in. Product length 84 in. Product weight 1,100 lbs. Product width 36 in. Pump Material Cast Iron Tank Orientation Horizontal Warranty 1 Year Manufacturer Part Numberant DCI1023E120H-P-480
