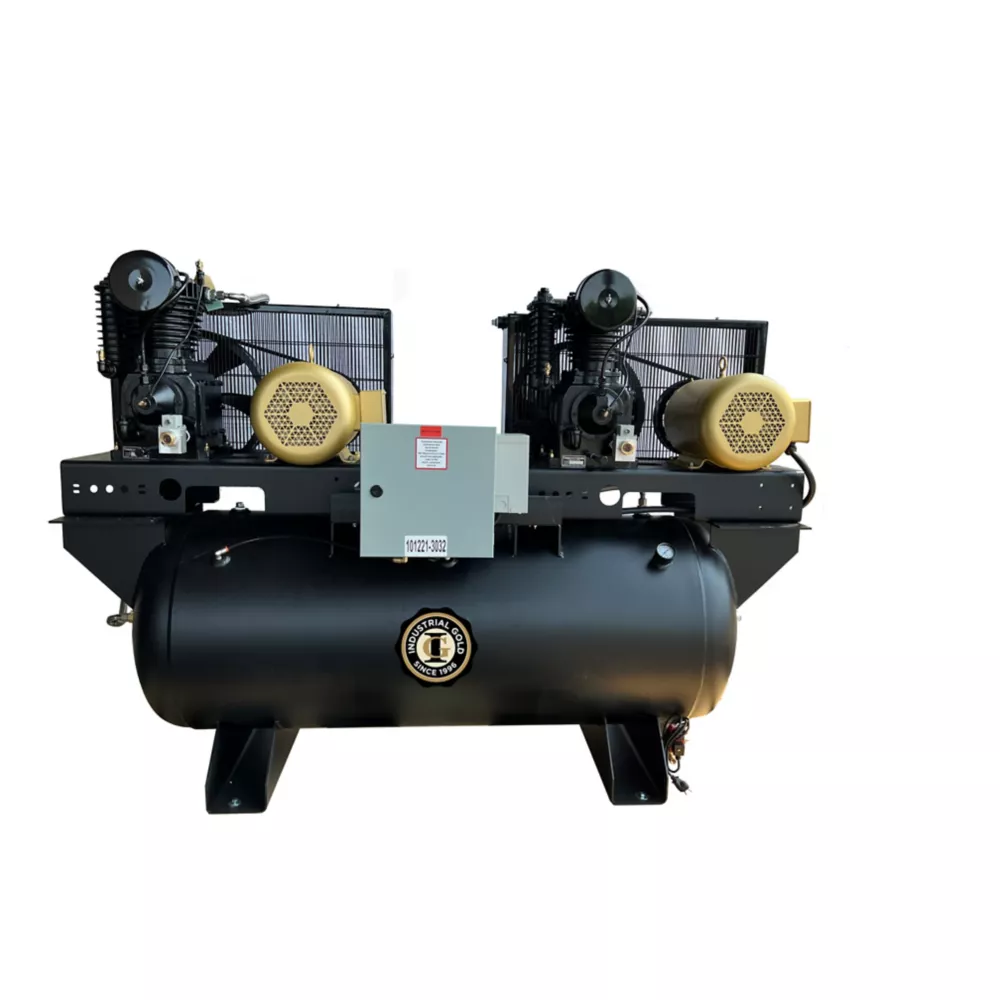

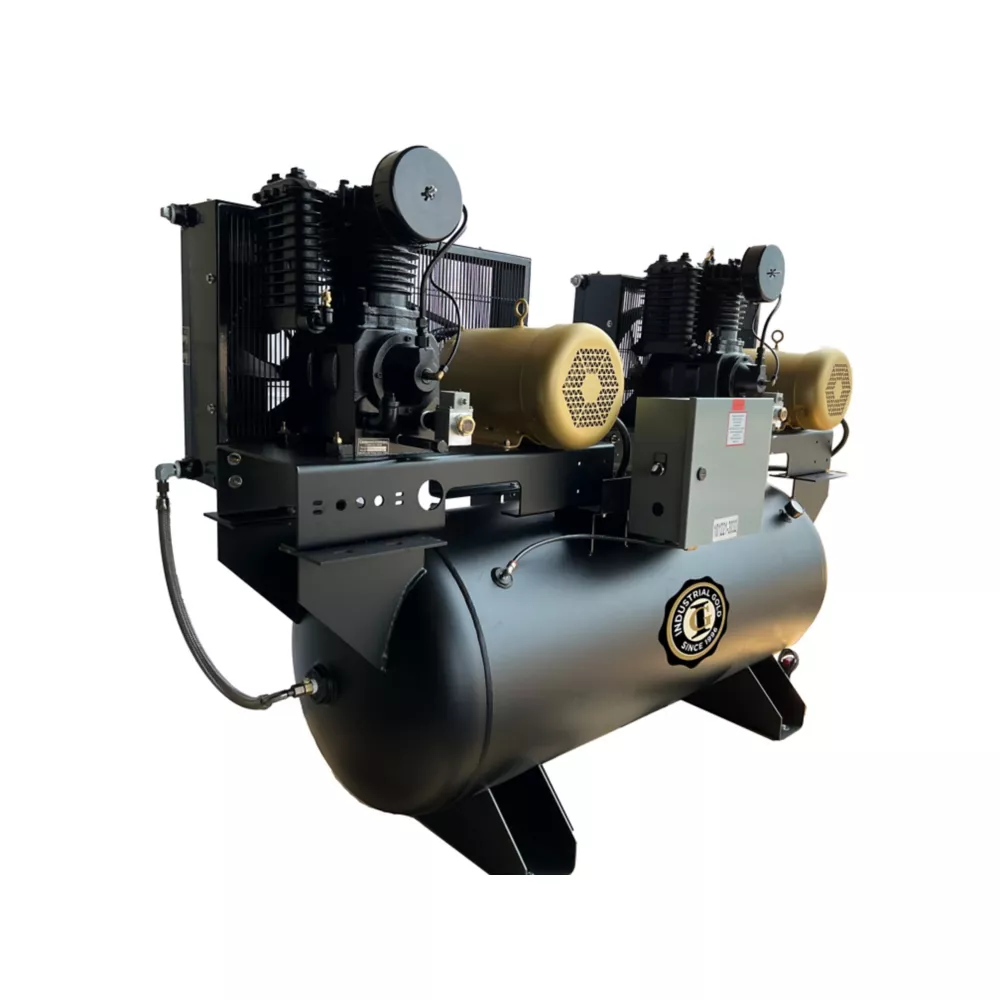

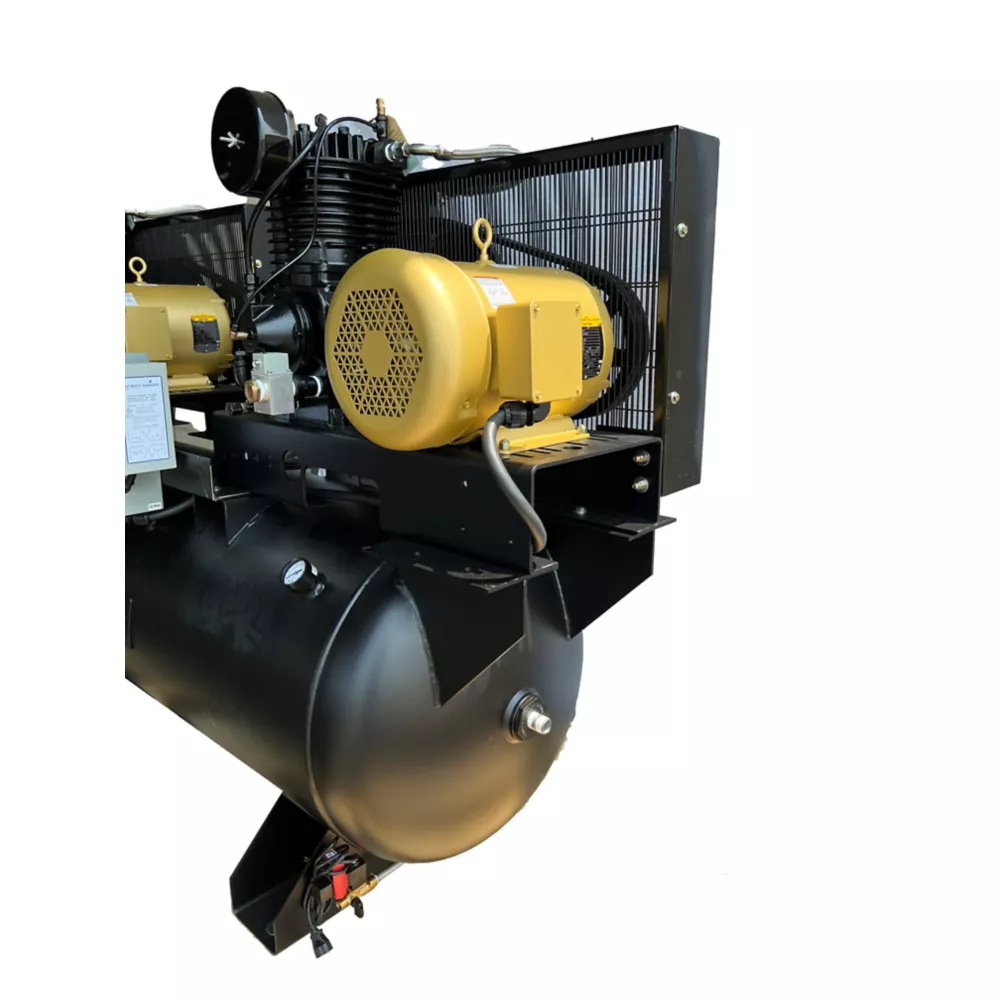

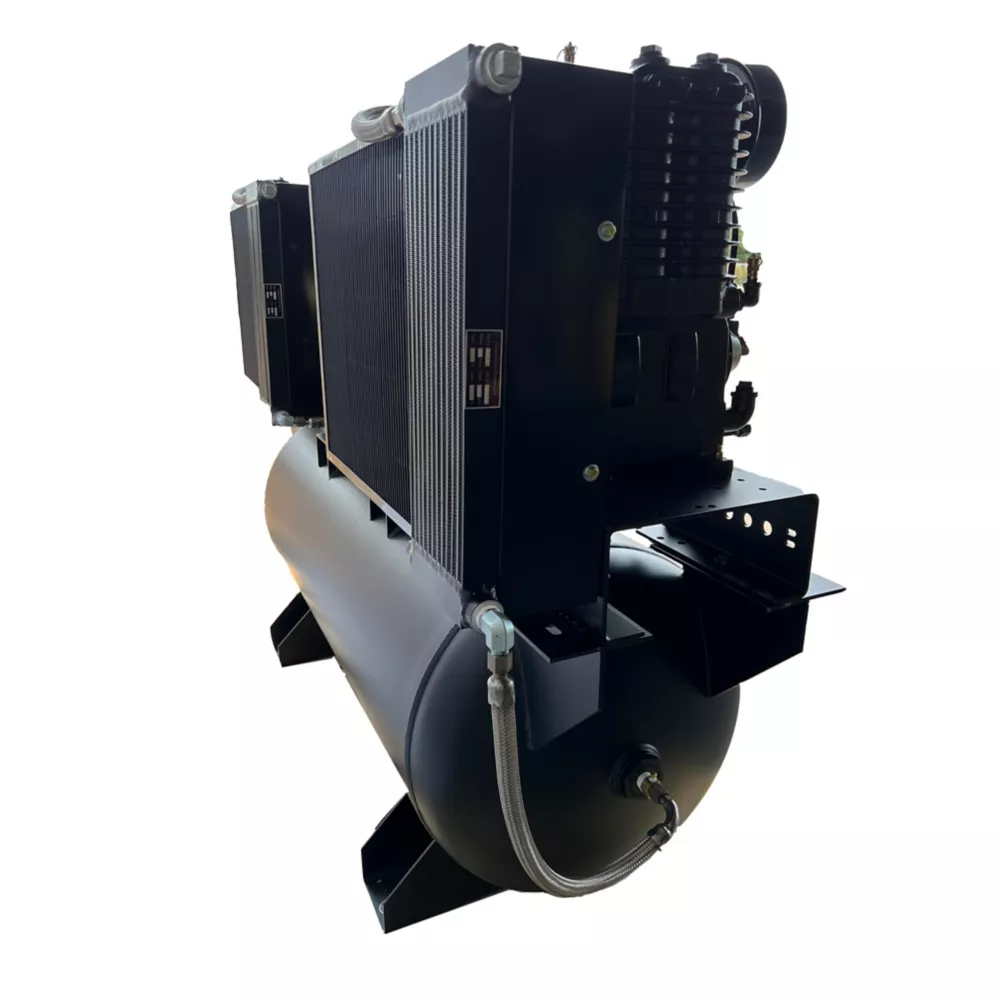

Industrial Gold 5 HP 120 gal Horizontal Duplex Air Compressor 208 to 230 V 3 Phase 60 Hz Stationary Air Compressors Air Compressors
The Industrial Gold 5 HP Duplex Air Compressor is the perfect addition to your tools and accessories. Equipped with a TEFC 208 to 230V 3-phase drive motor, this duplex air compressor is sure to hold up for long-lasting use. The air compressor also features a compressor silencing system for quiet operation.- 18 CFM at 175 PSI per side; 36 CFM at 175 PSI total
- Compressor silencing system for quiet operation
- Equipped with a TEFC 208 to 230V 3-phase drive motor
- ASME/CRN rated air compressor tank
- Includes a 2-piece tank and top plate
- Air compressor has a belt guard after cooler for safe use
- Full saddle mounting feet for stability
- Self-tensioning belt system for convenience
- Redundancy control system for easy use
Industrial Gold 5 HP 120 gal Horizontal Duplex Air Compressor 208 to 230 V 3 Phase 60 Hz Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | Industrial Gold |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 90 PSI | 40CFM |
| Airflow Volume | 18 CFM @ 175 PSI Per side, 36 CFM @ 175 PSI total |
| Air Outlet Size | 3/4 in. |
| Compressor Horsepower | 5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 120 gal |
| Compressor Type | Horizontal |
| Compressor Voltage | 208V/230V |
| Drain System | Automatic |
| Drive Type | Electric |
| Features | Cast Iron |
| Fuel Tank Capacity | 120 gal. |
| Phase | Triple |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 54 in. |
| Product Length | 84 in. |
| Product Weight | 1,000 lb. |
| Product Width | 36 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 120 gal. |
| Tank Orientation | Horizontal |
| Warranty | 1 Year |
| Manufacturer PartNumber | DCI523E120H-P |
