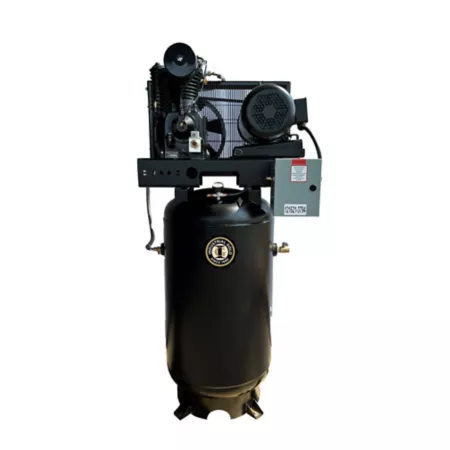

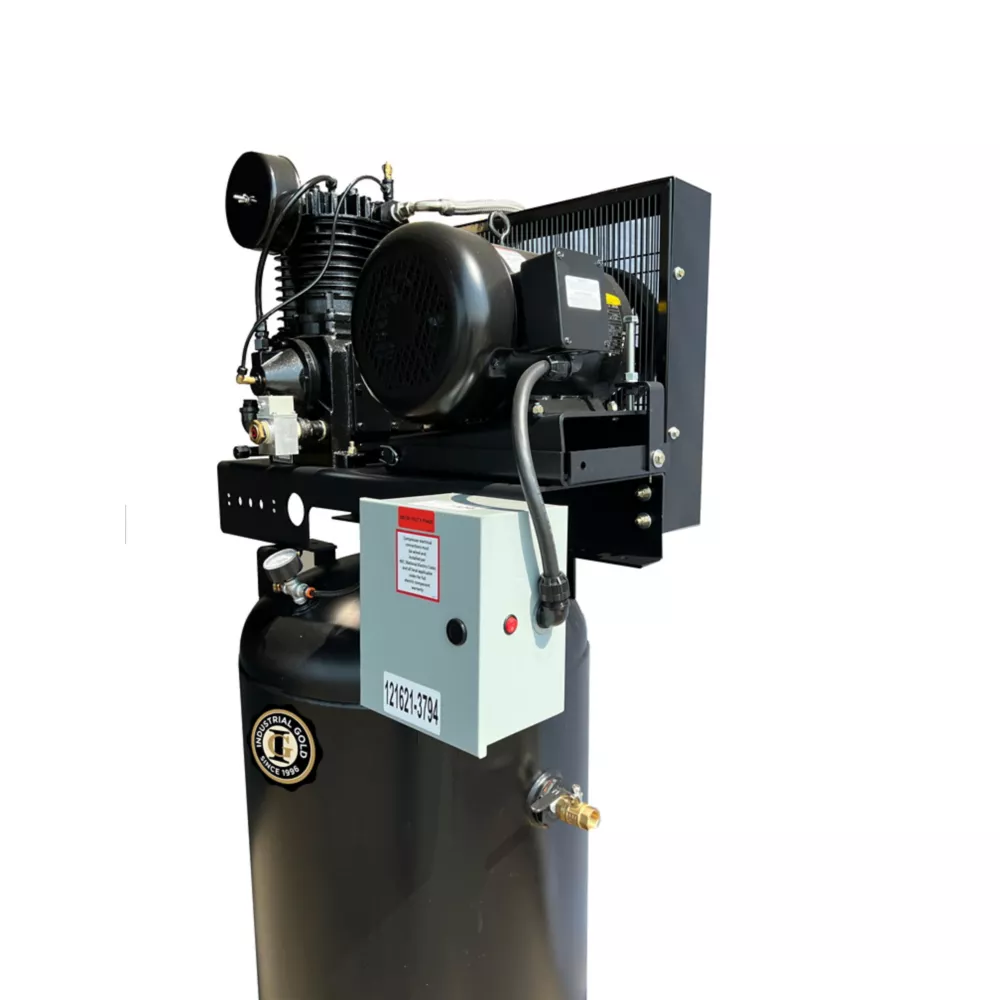

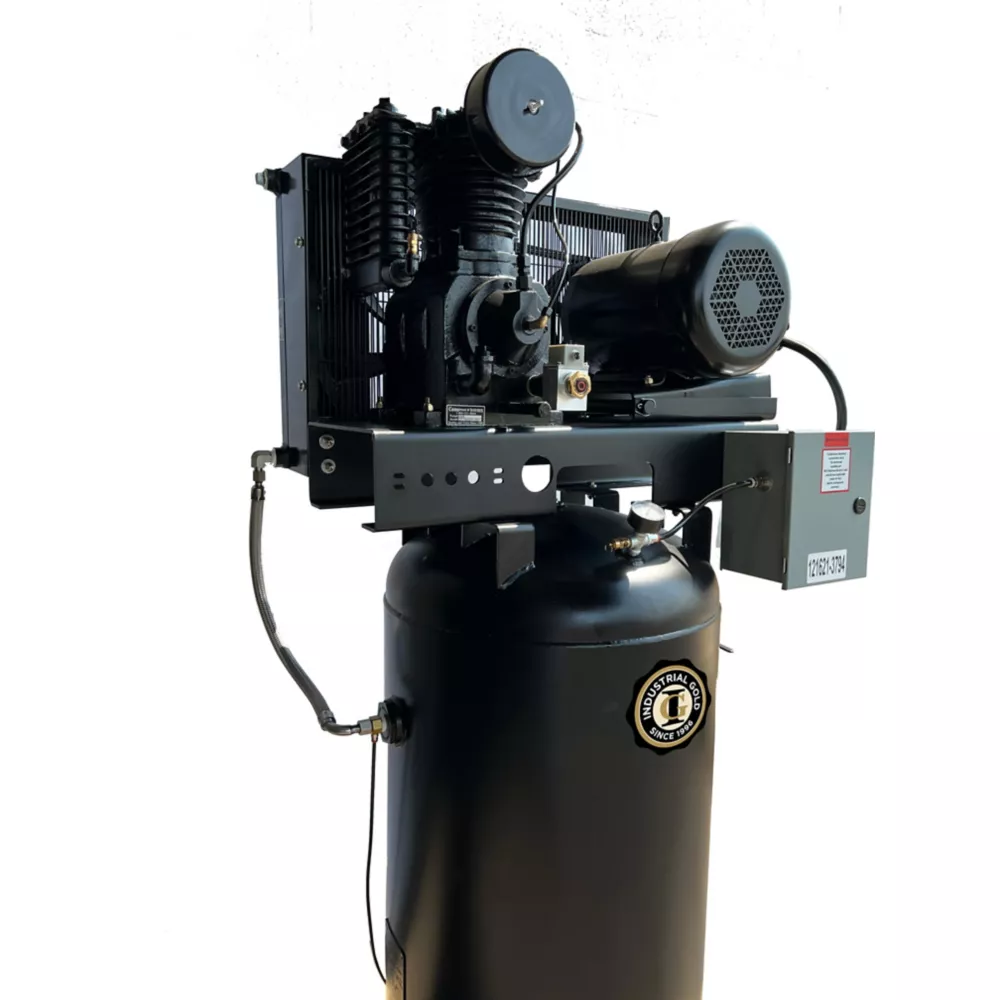

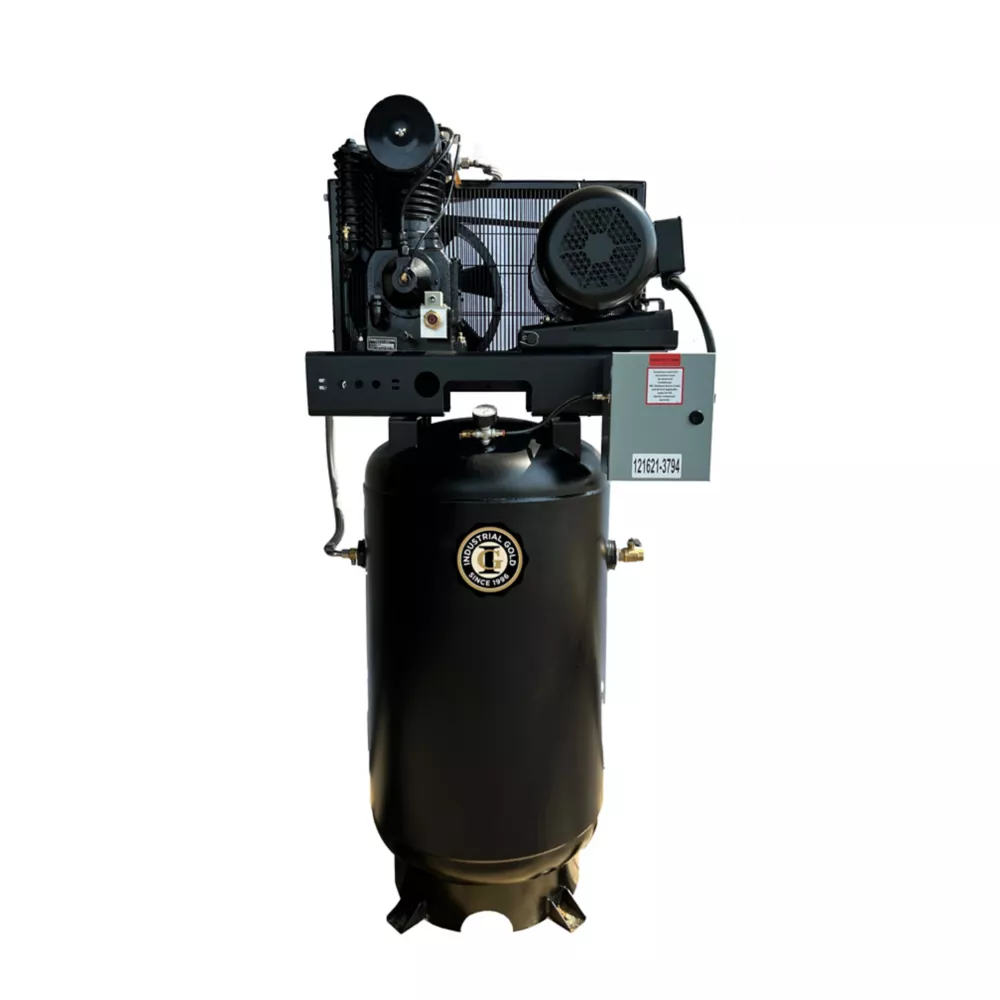

Industrial Gold 5 HP 80 gal Vertical Air Compressor 208 to 230 V Single Phase 60 Hz 18 CFM to 175 PSI Stationary Air Compressors Air Compressors

The Industrial Gold 5 HP Vertical Air Compressor is the perfect addition to your tools and accessories. With a motor that delivers 18 CFM at 175 PSI for maximum usage, this vertical air compressor is sure to hold up for long-lasting use. The air compressor also features a self-tensioning belt system for convenience.

Motor delivers 18 CFM at 175 PSI for maximum usage
80 gal. vertical 200 PSI ASME/CRN air receiver
Equipped with a 208 to 230V 1 phase motor
Self-tensioning belt system for convenience
Includes a 2-piece tank and top plate

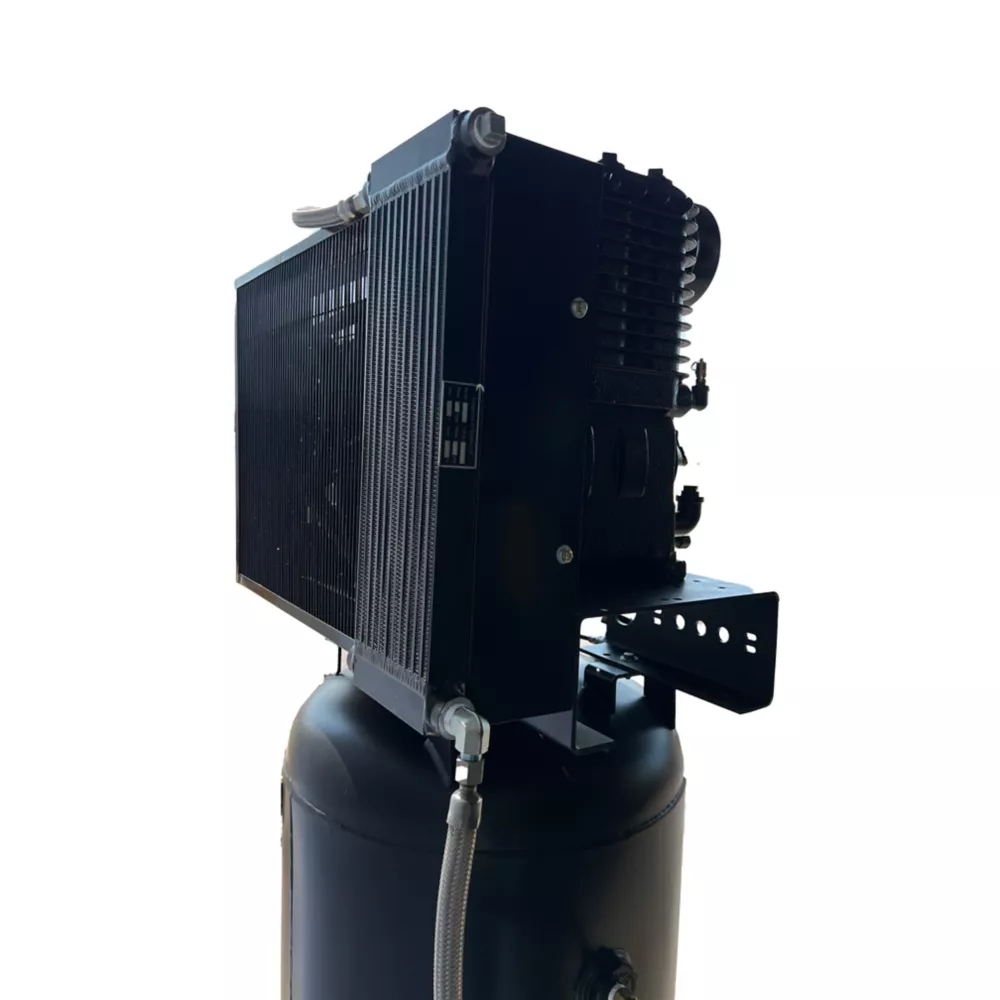

Air compressor has a belt guard after cooler for safe use
Full ring base platform tank for stability
Air compressor comes with vibration isolation mounts

Industrial Gold 5 HP 80 gal Vertical Air Compressor 208 to 230 V Single Phase 60 Hz 18 CFM to 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Gold
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	20CFM
Airflow Volume	18 CFM @ 175 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V
Drain System	Automatic
Drive Type	Electric
Features	Cast Iron
Fuel Tank Capacity	80 gal.
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	78 in.
Product Length	36 in.
Product Weight	650 lb.
Product Width	24 in.
Pump Material	Cast iron
Pump Oil Capacity	80 gal.
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	CI521E80V-P
