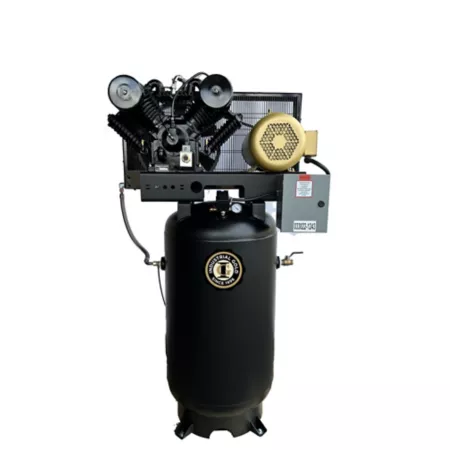

Industrial Gold 7.5 HP 80 gal 2-Stage Vertical Air Compressor 175 PSI 460V/480V 3 Phase 60 Hz 28 CFM Stationary Air Compressors Air Compressors

The Industrial Gold 7.5 HP Air Compressor is designed for heavy commercial and industrial applications. The low RPM pump provides reliable air for your applications and is manufactured for durability and long life. All of our units feature some of the most heavy duty components found in piston compressors today.

Air compressor with 28 CFM at 175 PSI
80 gal. vertical 200 PSI ASME/CRN air receiver
Features a TEFC drive motor
2 pc. tank and top plate
Low RPM two-stage solid cast iron pump
Belt guard after cooler
Full ring base platform tank
460-480V 3 phase
Silent air compressor silencing system
2-grove B width motor pulley
All UL electrical controls
ASME tested powder coated steel tank
Auto start stop
Automatic tank drain
Bearings on both ends of the crank shaft
Centrifugal unloader
Disk and spring valves
Fully enclosed belt guard
Heavy-duty air filter
Industrial grade electric motor
Low oil monitor
Magnetic starter mounted and wired
Needle bearings, and inserts on rods
Stainless steel flex air lines
Swedish steel valves
Tank discharge ball valve
Torrington needle bearings
Vibration pads

Industrial Gold 7.5 HP 80 gal 2-Stage Vertical Air Compressor 175 PSI 460V/480V 3 Phase 60 Hz 28 CFM Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Gold
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	28 CFM at 175 PSI
Air Delivery SCFM At 90 PSI	32CFM
Airflow Volume	28 CFM @ 175 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	460V/480V
Drain System	Manual
Drive Type	Electric
Features	Cast Iron
Fuel Tank Capacity	80 gal.
Phase	Triple
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	78 in.
Product Length	36 in.
Product Weight	750 lb.
Product Width	24 in.
Pump Material	Cast iron
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	CI7523E80V-CI10-480-P
