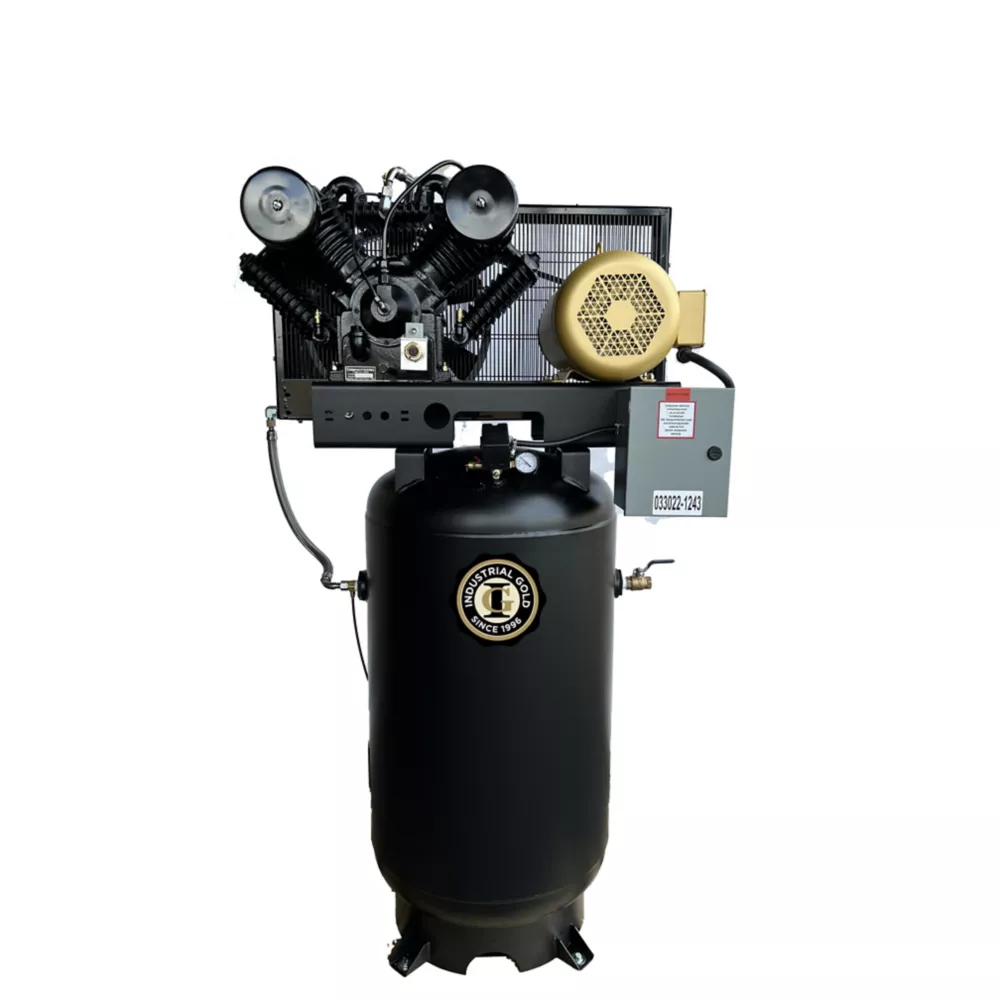

Industrial Gold 7.5 HP 80 Gal Vertical Air Compressor 208 to 230 V 3 Phase 60 Hz 28 CFM to 175 PSI Stationary Air Compressors Air Compressors

The Industrial Gold 7.5 HP 80 Gal. Vertical Air Compressor is an air compressor silencing system. The air compressor accessory features a 2-piece tank and top plate. The air compressor silencing system is vertical with 200 PSI and holds 80 gal. Additionally, the air compressor silencing system has a TEFC drive motor. Made in the USA, this air compressor comes backed by a 1-year warranty.

Air compressor accessory with 28 CFM at 175 PSI
Silent air compressor silencing system
Complete with a TEFC drive motor
Features a 2-piece tank and top plate
208-230V 3-phase

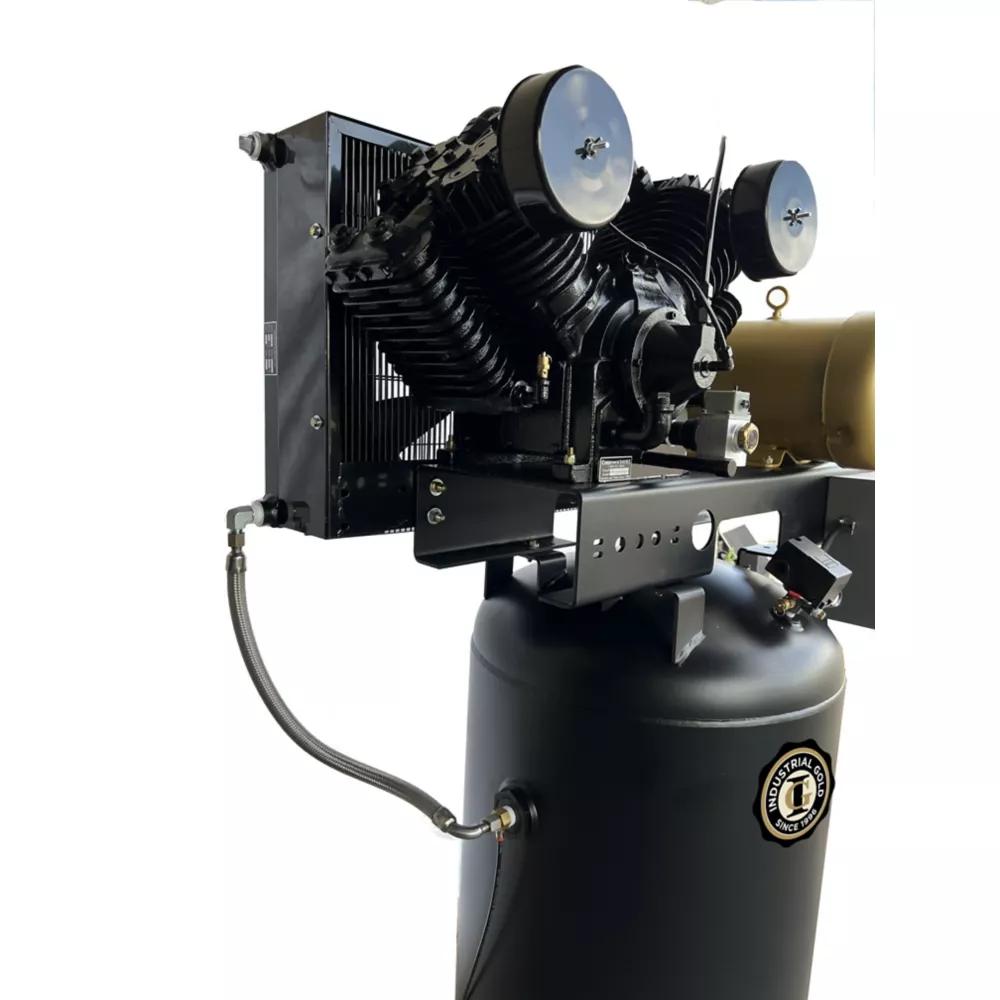

Cast iron low RPM compressor pump

Industrial Gold 7.5 HP 80 Gal Vertical Air Compressor 208 to 230 V 3 Phase 60 Hz 28 CFM to 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Gold
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	28 CFM at 175 PSI
Air Delivery SCFM At 90 PSI	32CFM
Airflow Volume	28 CFM @ 175 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V
Drain System	Manual
Drive Type	Electric
Features	Cast Iron
Fuel Tank Capacity	80 gal.
Phase	Triple
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	78 in.
Product Length	36 in.
Product Weight	700 lb.
Product Width	24 in.
Pump Material	Cast iron
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	CI7523E80V-CI10
