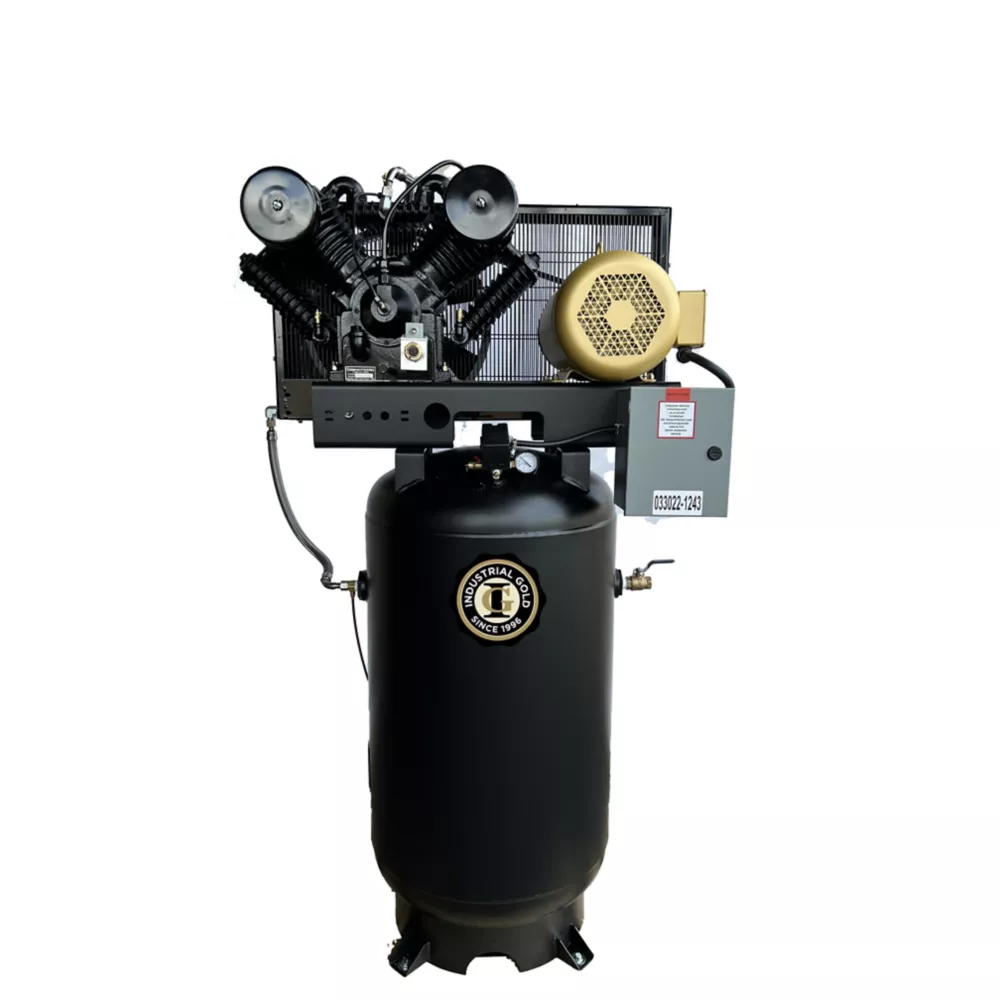

Industrial Gold 7.5 HP 80 Gal Vertical Air Compressor 208 to 230 V Single Phase 60 Hz 28 CFM to 175 PSI Stationary Air Compressors Air Compressors

The Industrial Gold 7.5 HP 80 Gal. Vertical Air Compressor is an air compressor silencing system. The air compressor accessory features a 2-piece tank and top plate. The air compressor silencing system is vertical with 200 PSI and holds 80 gal. Additionally, the air compressor silencing system has a TEFC drive motor. Made in the USA, this air compressor comes backed by a 1-year warranty.

Air compressor accessory with 28 CFM at 175 PSI
Silent air compressor silencing system
208-230V 1 phase
Features a 2-piece tank and top plate
Cast iron low RPM pump
Complete with a belt guard after cooler
Full ring base platform tank
80 gal. 200 PSI ASME/CRN air receiver

Industrial Gold 7.5 HP 80 Gal Vertical Air Compressor 208 to 230 V Single Phase 60 Hz 28 CFM to 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Industrial Gold
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	28 CFM at 175 PSI
Air Delivery SCFM At 90 PSI	32CFM
Airflow Volume	28 CFM @ 175 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	7.5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	80 gal
Compressor Type	Vertical
Compressor Voltage	208V/230V
Drain System	Manual
Drive Type	Electric
Features	Cast Iron
Fuel Tank Capacity	80 gal.
Phase	Single
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Black
Primary Material	Steel
Product Height	78 in.
Product Length	36 in.
Product Weight	750 lb.
Product Width	24 in.
Pump Material	Cast iron
Tank Orientation	Vertical
Warranty	1 year
Manufacturer PartNumber	CI7521E80V-CI10-P

Industrial Gold 7.5 HP 80 Gal. Vertical Air Compressor, 208 to 230V, 1 Phase, 60 Hz, 28 CFM at 175 PSI Specifications Expand/Collapse Specification Description Brand Industrial Gold Country of Origin Made in USA Air Flow SCFM at 40 PSI 28 CFM at 175 PSI Air Flow SCFM at 90 PSI 32CFM Air Flow Volume 28 CFM at 175 PSI Air outlet size 3/4 in. Compressor Power 7.5 HP Compressor Maximum PSI 175 PSI Compressor Tank Capacity 80 gal Compressor Type Vertical Compressor Voltage 208V/230V Drain System Manual Drive Type Electrical Specifications Cast Iron Fuel Tank Capacity 80 gal . Single Phase Number of Power Speeds Single Number of Wheels 0 Power Type Electric Main Color Black Main Material Steel Product Height 78 in. Product length 36 in. Product weight 750 lbs. Product width 24 in. Pump Material Cast Iron Tank Orientation Vertical 1 Year Warranty Manufacturer Part Number CI7521E80V-CI10-P
