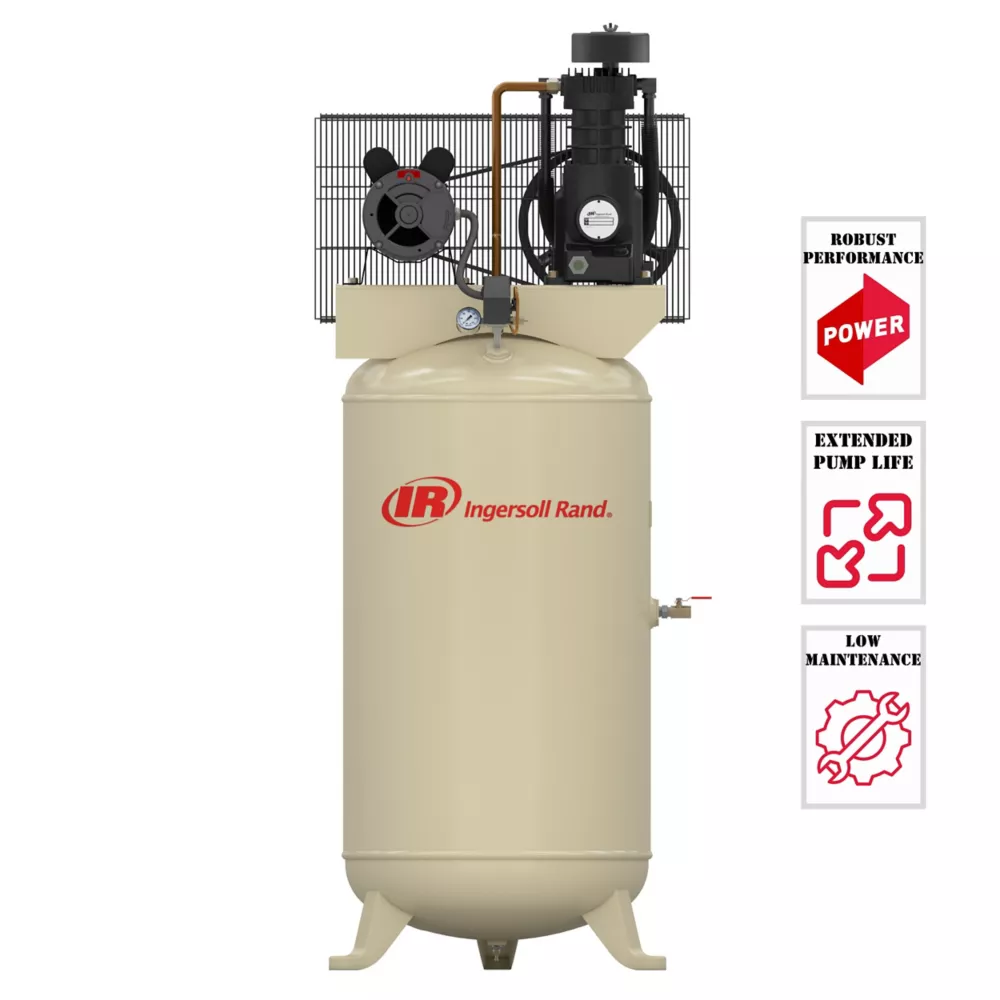

Ingersoll Rand 5 HP 80 gal TS4N5 reciprocating air compressor Stationary Air Compressors Air Compressors
The Ingersoll Rand TS4N5 Reciprocating Air Compressor provides reliability and performance for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. The air compressor has a cast iron pump construction that provides trouble-free use for over 15,000 hours. The individually cast cylinders, overhung crankshaft and one pc. connecting rod allow for easy maintenance of the reciprocating air compressor. Use of All Season Select synthetic lubricant in the air compressor allows for 2,000 hours of service between changeouts.- 5 HP electric-driven 230V two-stage reciprocating air compressor
- 80 gal. ASME receiver tank
- 15.8 CFM @ 90 PSI

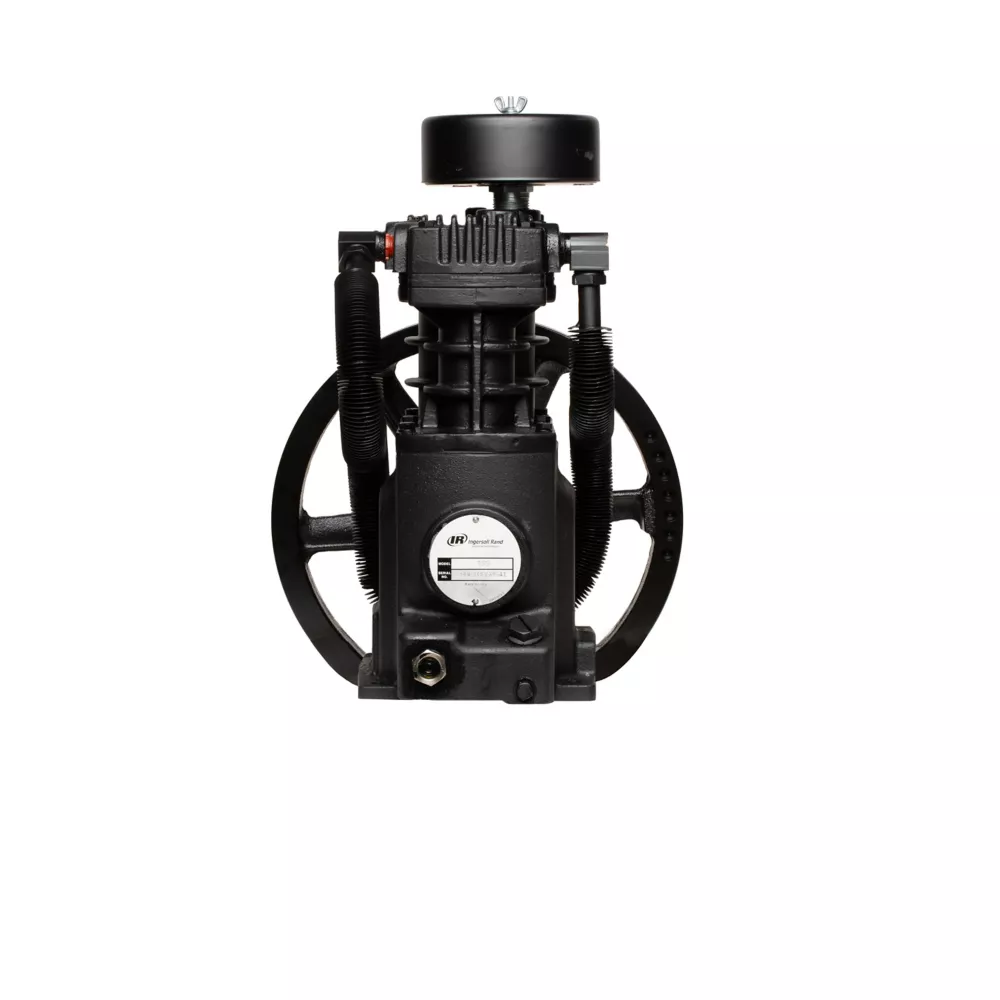

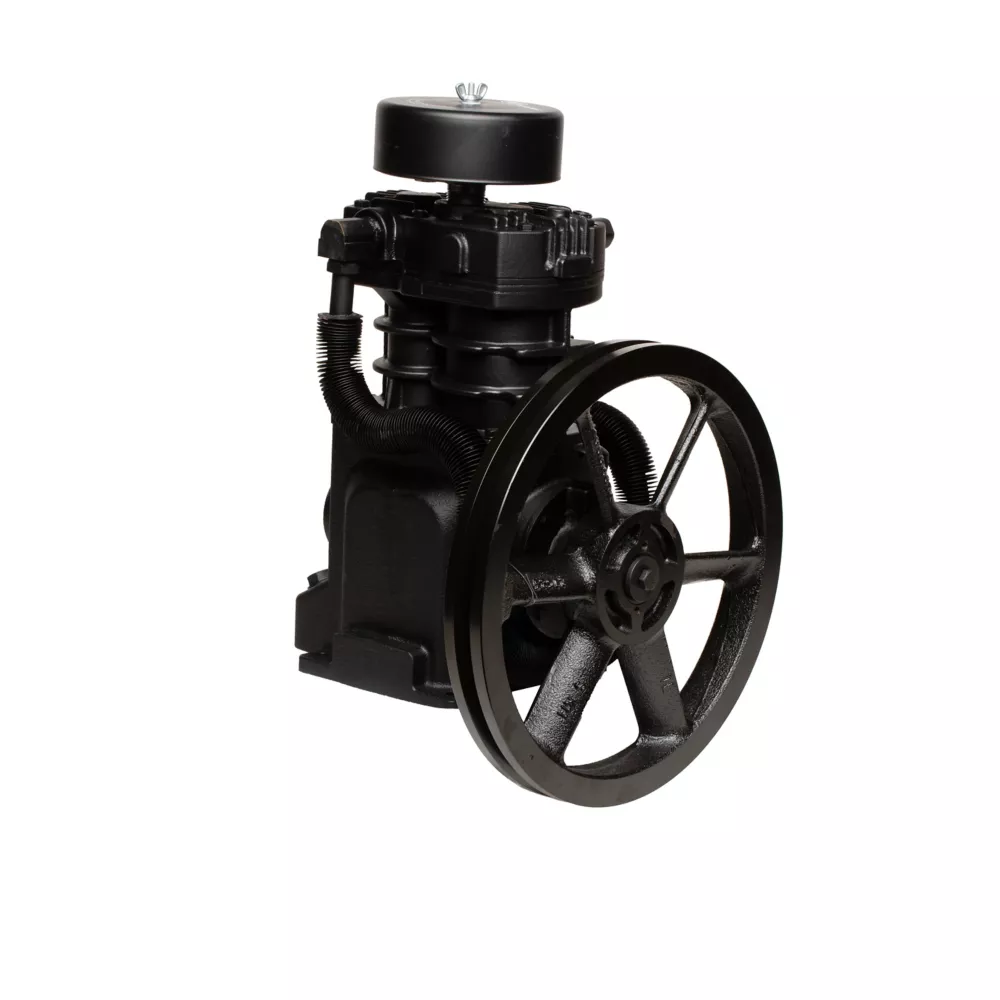

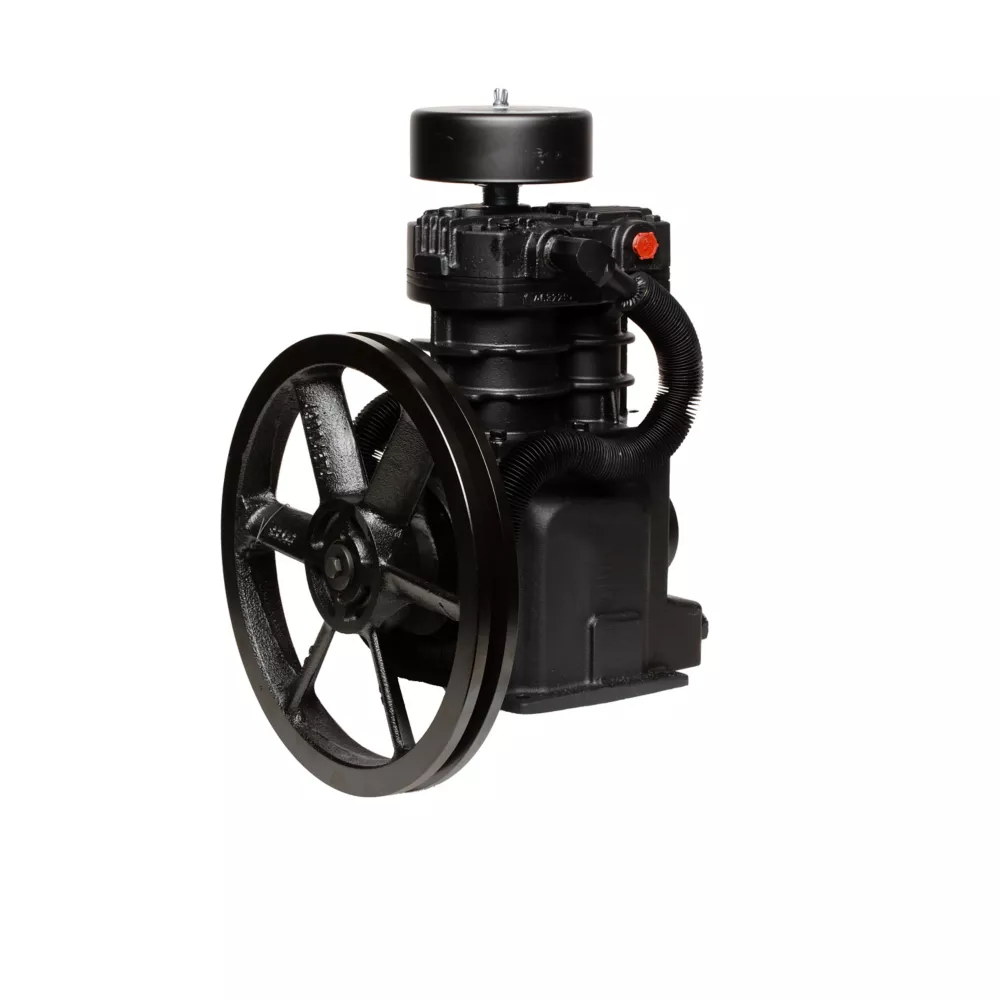

- Cast-iron construction of the air compressor extends the life of the pump over 15,000 hours
- Maximum operating pressure of reciprocating air compressor : 175 psig
- Individually cast cylinders, overhung crankshaft and one pc. connecting rod makes maintenance of the air compressor simple
- All Season Select synthetic lubricant increases efficiency with 2,000 hours of service between changeouts
- Extended Pump warranty with the purchase of an All-Season Select lubricant start-up kit. If used from the start the warranty on the pump goes from the standard 1 year to a 2 year warranty.
- 21.5 Full Load Amps, Recomended Breaker Amp Size 40, Recomended Wire Gauge<50 ft. 8 Gauge
- You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775
- IR80 , IR 80 , #IR80 , Ingersoll Rand IR80 , IR-80
- 28Lx30Wx72H 435lbs
Ingersoll Rand 5 HP 80 gal TS4N5 reciprocating air compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors
| Specification | Description |
|---|---|
| Brand | Ingersoll Rand |
| Country of Origin | Made in USA |
| Air Delivery SCFM At 90 PSI | 15.8 CFM |
| Airflow Volume | 15.5 CFM |
| Air Outlet Size | 1/2 in. NPT |
| Compressor Horsepower | 5 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Type | Oil lubricated |
| Compressor Voltage | 230V |
| Drain System | Manual |
| Drive Type | Reciprocating |
| Features | N/A |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | Electric |
| Primary Color | Brown |
| Primary Material | Cast Iron |
| Product Height | 72 in. |
| Product Length | 28 in. |
| Product Weight | 435 lb. |
| Product Width | 30 in. |
| Pump Material | Cast iron |
| Tank Fill Time | 8.21 minutes from 0, 1.64 minutes from 135 |
| Tank Orientation | Vertical |
| Warranty | 1 Year Limited |
| Manufacturer PartNumber | TS4N5 |
