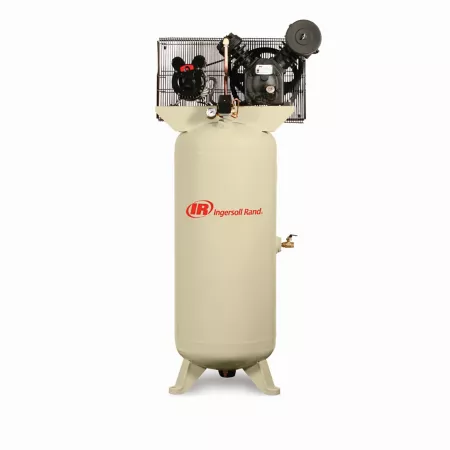

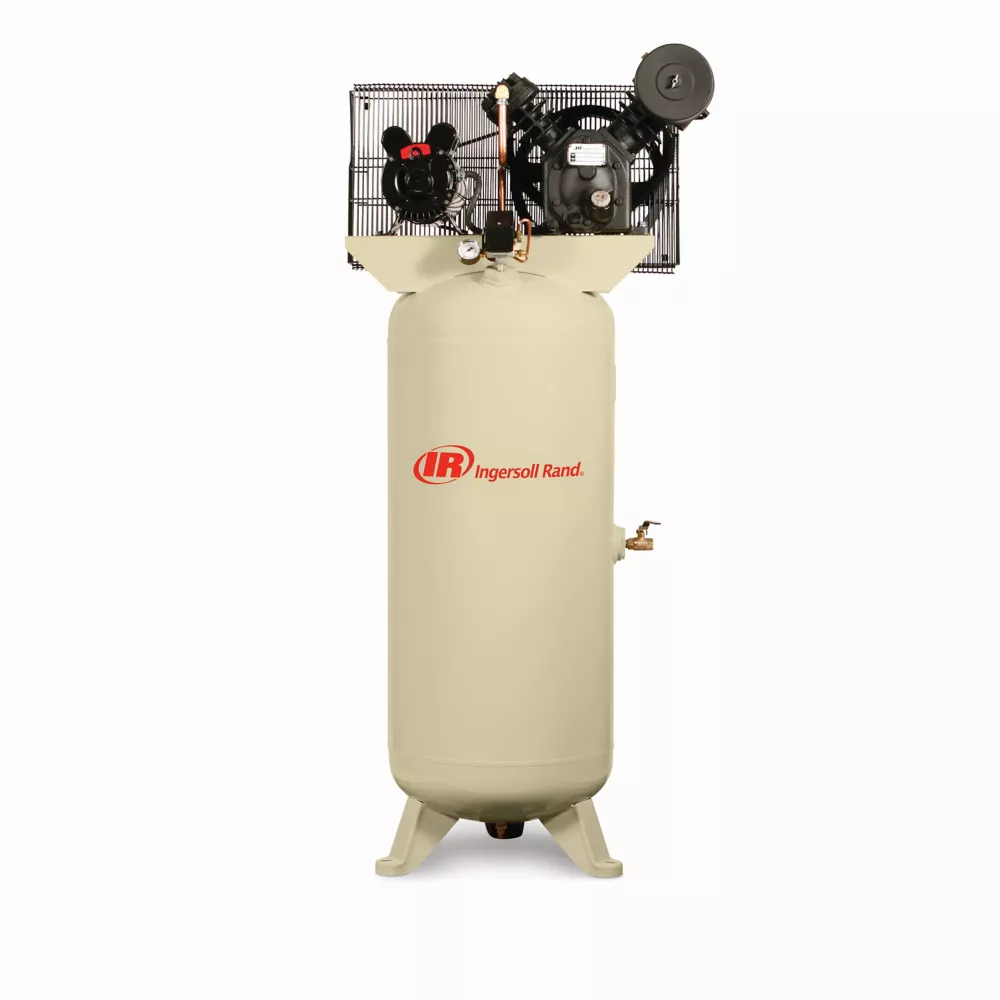

Ingersoll Rand 60 gal 2340L5-V 200V 2 Stage Three Phase Air Compressor Stationary Air Compressors Air Compressors

Power air tools with the Ingersoll Rand 2340L5-V 200V-3Ph 2-stage Air Compressor. This air compressor is designed for use in commercial, automotive and light industrial applications. The pump in the 2-stage air compressor is made from cast-iron for durability and is oil-lubricated. The air compressor has an automatic stop control with a NEMA 1 pressure switch for safe use.

1 year limited warranty/2 year limited pump warranty with use of IR synthetic lubricant
ASME coated 60 gal. vertical tank in the air compressor
14 CFM @ 175 PSI
Oil-lubricated cast-iron pump in the air compressor is designed for heavy-duty applications
Designed to run at high volumes and high pressure without interruption
For use with commercial, automotive and light industrial applications with intermittent load demands
ODP electric motor powers the 2-stage air compressor
Automatic stop control on the 2-stage air compressor with a NEMA 1 pressure switch
Designed for heavy shop or industrial use, Ingersoll Rand electric-driven, two-stage air compressors provide the reliability and performance that are ideal for most applications including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.
Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use

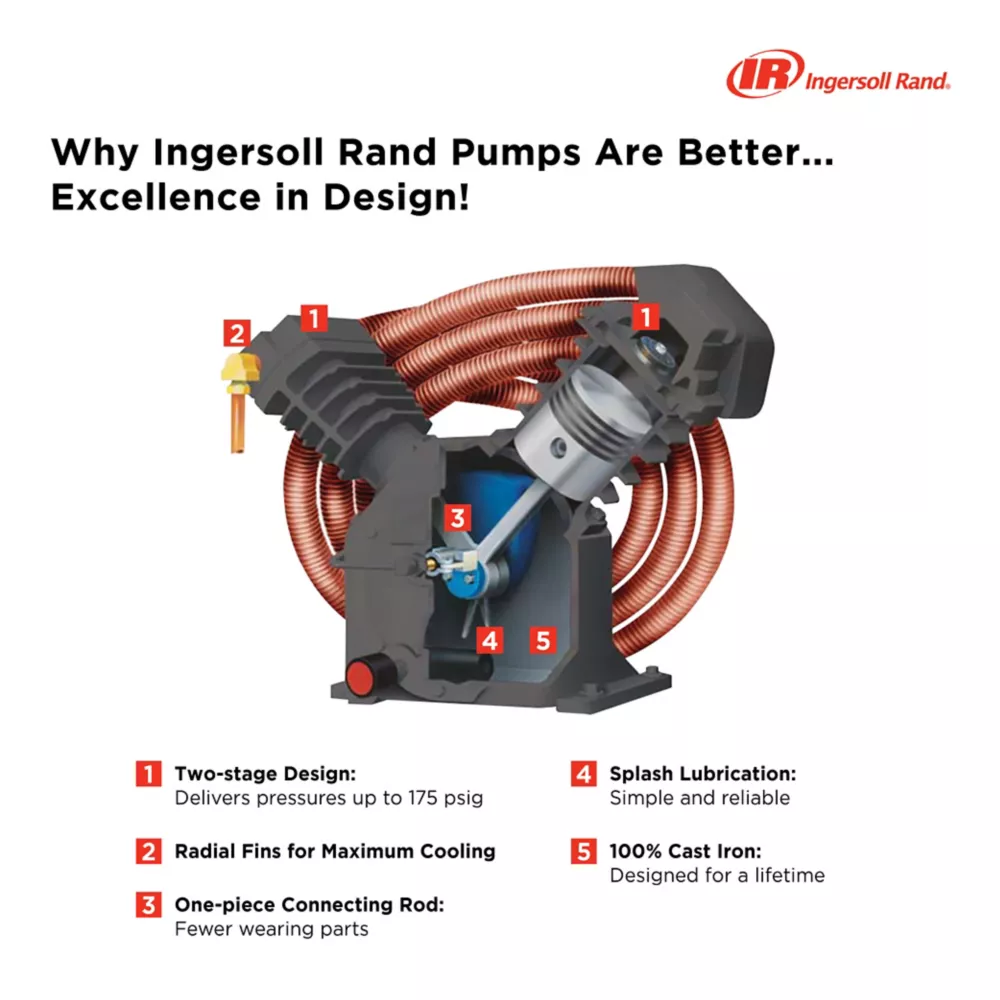

Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775

1 Year

Ingersoll Rand 60 gal 2340L5-V 200V 2 Stage Three Phase Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Ingersoll Rand
Country of Origin	Made in USA
Air Delivery SCFM At 40 PSI	15 CFM
Air Delivery SCFM At 90 PSI	14.8 CFM
Airflow Volume	14 CFM
Air Outlet Size	1/2 in.
Compressor Horsepower	5 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	60 gal
Compressor Type	Vertical
Compressor Voltage	200V
Drain System	Manual
Drive Type	Electric
Features	Magnetic Starter
Phase	Triple
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Brown
Primary Material	Cast Iron
Product Height	76 in.
Product Length	48 in.
Product Weight	435 lb.
Product Width	40 in.
Pump Material	Cast iron
Tank Fill Time	0 minutes
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	45464930

Ingersoll Rand 60 gal. 2-Stage 2340L5-V 200V 3 Ph Air Compressor Specifications Expand/Collapse Specification Description Brand Ingersoll Rand Country of Origin Made in USA Air Flow SCFM at 40 PSI 15 CFM Air Flow SCFM at 90 PSI 14.8 CFM Air Flow Volume 14 CFM Size 1/2 in. air outlet. Compressor Power 5 HP Compressor Maximum PSI Compressor Tank Capacity 175 PSI 60 gal Compressor Type Vertical Compressor Voltage 200 V Drain System Manual Drive Type Electrical Characteristics Magnetic Start Phase Triple Number of Power Speeds Single Number of Impellers 0 Power Type Electric Main Color Brown Main Material Cast Iron Product Height 76 in. Product Length 48 in. Product weight 435 lbs. Product width 40 in. Pump Material Cast Iron Tank Fill Time 0 minutes Tank Orientation Vertical Warranty 1 Year Manufacturer Part Number 45464930
