Sale!

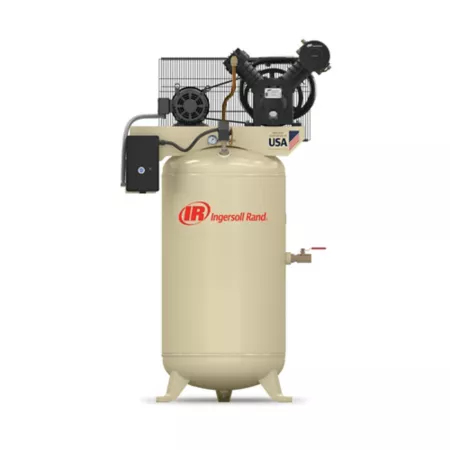

Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors

Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors

$296

SKU: Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors
Category:

Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors Air Compressors

Power air tools with the Ingersoll Rand 2475N5-V 230V-3Ph 2-stage Air Compressor. The air compressor has an oil-lubricated cast-iron pump that is designed for rugged applications. The 2-stage air compressor has a 16.8 CFM air consumption when operating at 175 PSI. The 5 horsepower engine powers the air compressor with an 80 gal. tank.
  • 2-stage T30 air compressor 230V-3ph
  • 80 gal. tank
  • 16.8 CFM @ 175 PSI

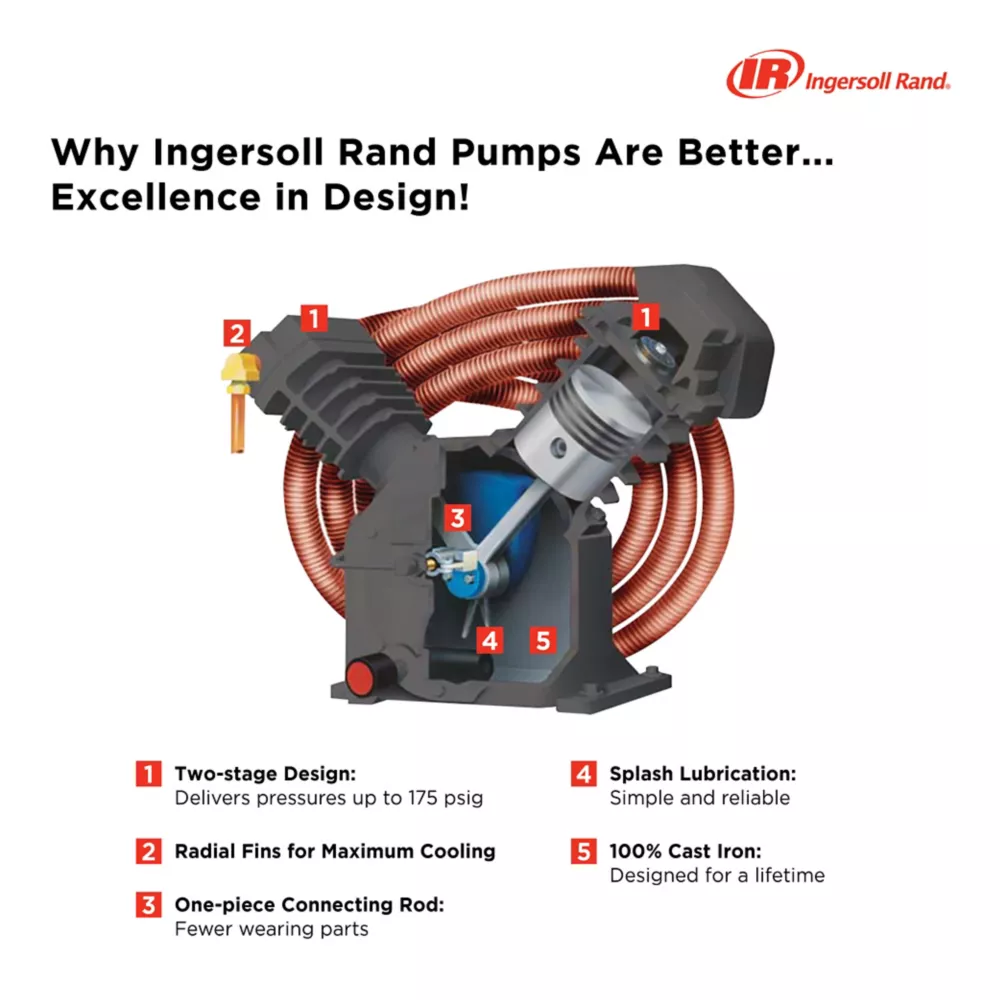

  • Oil-lubricated cast-iron pump in the air compressor is designed for heavy-duty applications
  • 1 year limited warranty/2 year limited pump warranty with use of IR synthetic lubricant
  • Air compressor is used for powering air tools
  • Power of air compressor: 5 HP
  • You can also purchase the 2 Year Warranty Startup Kit for this model which is TSC SKU# 2445775

Ingersoll Rand 80 gal 2475N5-V 230V 2 Stage Three Phase Air Compressor Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification Description
Brand Ingersoll Rand
Country of Origin Made in USA
Air Delivery SCFM At 40 PSI 17.3 CFM
Air Delivery SCFM At 90 PSI 17.1 CFM
Airflow Volume 16.8 CFM @ 175 PSI
Air Outlet Size 1/2 in.
Compressor Horsepower 5 HP
Compressor Maximum PSI 175 PSI
Compressor Tank Capacity 80 gal
Compressor Type Vertical
Compressor Voltage 230V

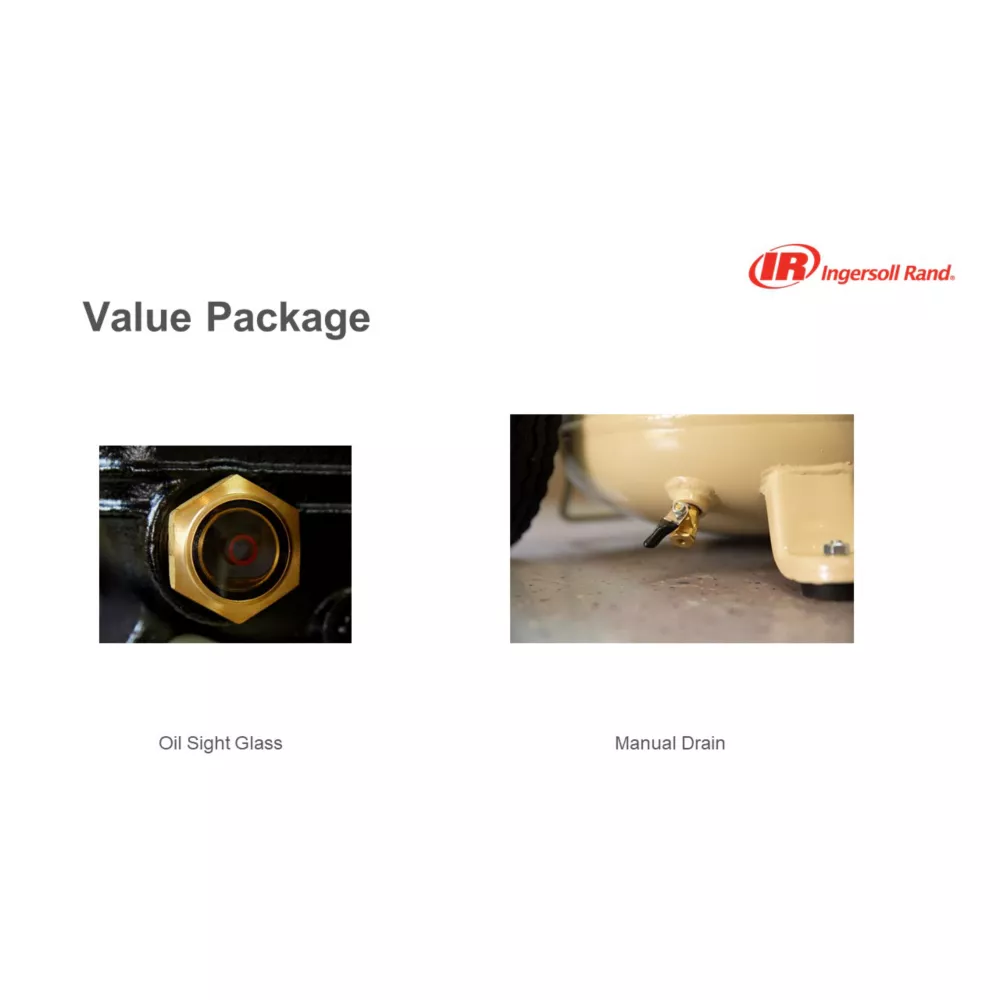

Drain System Manual
Drive Type Recip
Features Magnetic Starter
Phase Triple
Number Of Power Speeds Single
Number Of Wheels 0
Power Type Electric
Primary Color Brown
Primary Material Cast Iron
Product Height 69 in.
Product Length 38 in.
Product Weight 597 lb.
Product Width 24 in.
Pump Material Cast iron
Stage Type Two-Stage
Tank Orientation Vertical
Warranty 1 Year
Manufacturer PartNumber 45465135
Ingersoll Rand 80 gal. 2-Stage 2475N5-V 230V 3 Ph Air Compressor Specifications expand/collapse Specification Description Brand Ingersoll Rand Country of Origin Made in USA Air Flow SCFM at 40 PSI 17.3 CFM Air Flow SCFM at 90 PSI 17.1 CFM Air Flow Volume 16. 8 CFM at 175 PSI Air outlet size 1/2 in. Compressor Power 5 HP Compressor Maximum PSI 175 PSI Compressor Tank Capacity 80 gal Compressor Type Vertical Compressor Voltage 230 V Drain System Manual Drive Type Recipe Features Magnetic Start Phase Triple Number of Power Speeds Single Number of wheels 0 Power Type Electric Main Color Brown Main Material Cast Iron Product Height 69 in. Product Length 38 in. Product weight 597 lbs. Product width 24 in. Pump Material Cast Iron Stage Type Two Stage Tank Orientation Vertical Warranty 1 Year Manufacturer Part Number 45465135.
