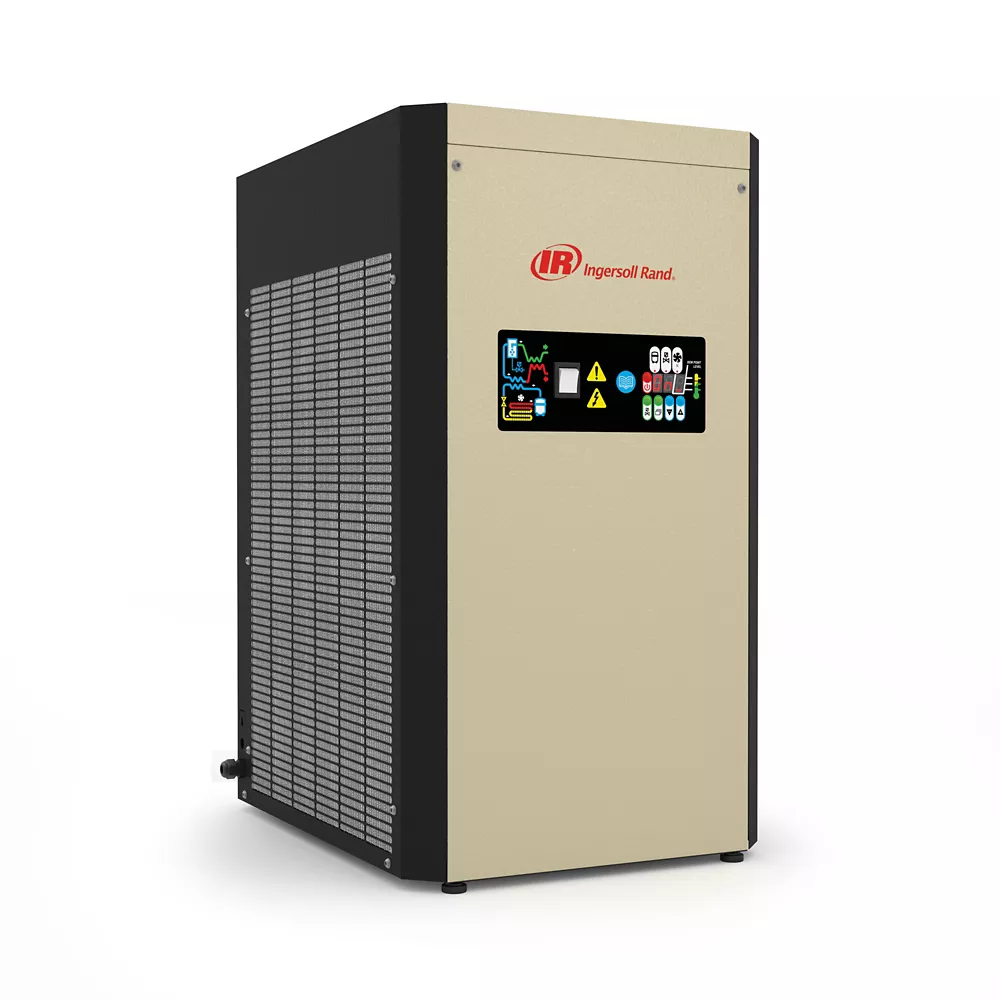

Ingersoll Rand D140IT High Temperature Refrigerated Dryer Stationary Air Compressors Air Compressors

The Ingersoll Rand D140IT High Temperature Refrigerated Dryer ensures a constant dew point at all load levels and will deliver continuous dry air performance that satisfies industry standards. These units provide affordable solutions for a variety of applications that require high air inlet temperatures, including dry cleaning, light processing, petrochemical, automotive, manufacturing a well as oil and gas. The refrigerated dryer provides continuous dry air easily by piping the Ingersoll Rand self-contained refrigerated air compressor dryer unit into your compressed air supply line. This high-temperature dryer features a precooler to dramatically reduce the heat from compressors without after coolers. The Ingersoll Rand non-cycling refrigerated dryer delivers reliability with virtually no maintenance. It features a refrigeration system and heat exchanger that combines cool compressed air as it passes through it. Microprocessor control with an easy-to-use graphic interface lets you adjust and manage system parameters easily and efficiently. This dryer integrates a unique combination of components and features that ensure maximum productivity and the longest service life at an affordable cost.

Accommodates inlet air temperatures up to 200 degrees F (94 degrees C) and are ideal for use with compressors that do not include built-in aftercoolers
Offers efficient heat exchangers with a built-in stainless steel demister that removes all moisture and a fully adjustable programmable electronic drain valve reduce energy use and minimize air loss
Corrosion-resistant heat exchangers control-system and high-efficiency moisture-separation ensure a steady long-term supply of dry air
Refrigerated dryer is easy to use with its advanced microprocessor control that lets you easily adjust and manage system parameters
Variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity, while ensuring a consistent dew point
Self-contained refrigerated air compressor dryer has a temperature type of D140IT SCFM 82
Provide continuous dry air by piping this non-cycling refrigerated air dryer unit into your compressed air supply line

Ingersoll Rand D140IT High Temperature Refrigerated Dryer Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Ingersoll Rand
Country of Origin	Imported
Air Delivery SCFM At 90 PSI	203 PSI MAX
Airflow Volume	82 CFM
Air Outlet Size	3/4 in.
Compressor Horsepower	N/A
Compressor Maximum PSI	203 PSI
Compressor Tank Capacity	No Tank
Compressor Type	Horizontal/vertical
Compressor Voltage	115V
Drain System	None
Drive Type	Recip
Features	High inlet temperature non-cycling refrigerated dryers ensure a constant dew point at all load levels and will deliver continuous dry air performance that satisfies industry standards.
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Electric
Primary Color	Brown
Primary Material	Steel
Product Height	35 in.
Product Length	27 in.
Product Weight	137 lb.
Product Width	21 in.
Pump Material	N/A
Tank Orientation	Vertical
Warranty	1 Year
Manufacturer PartNumber	23231657
