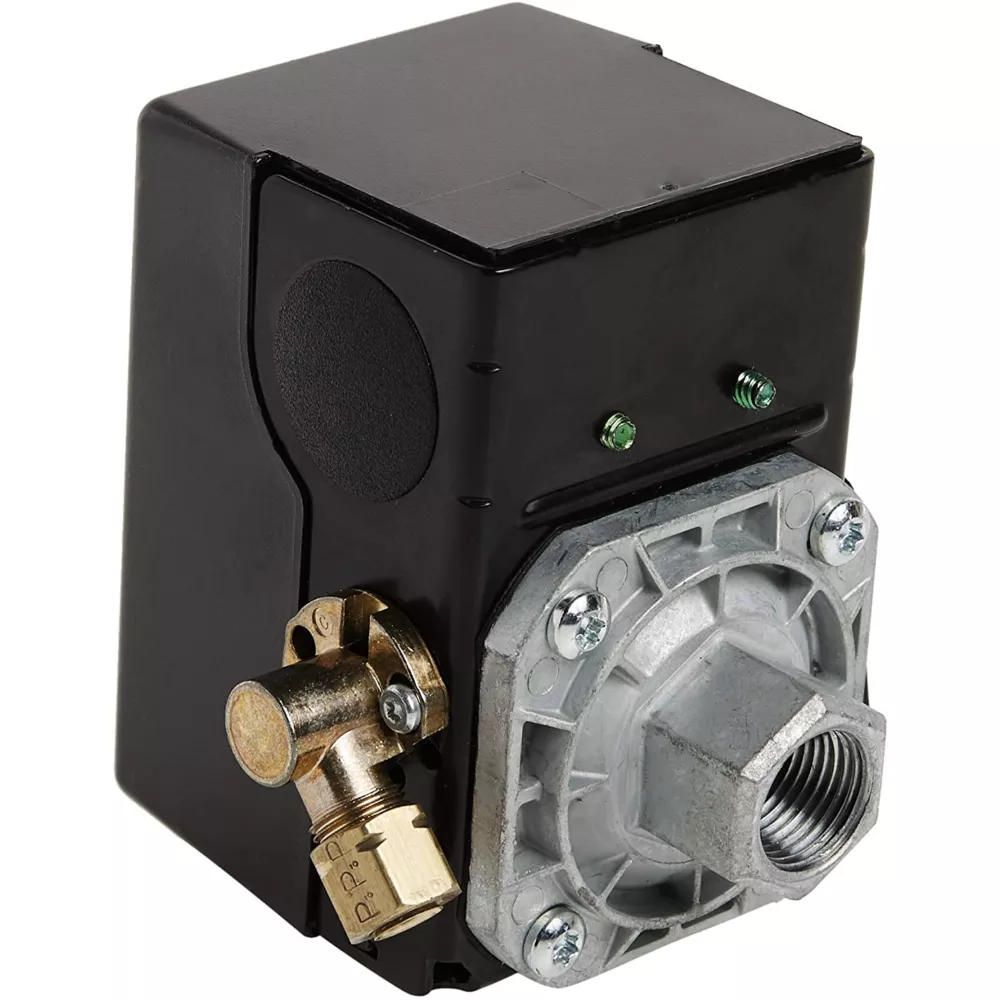

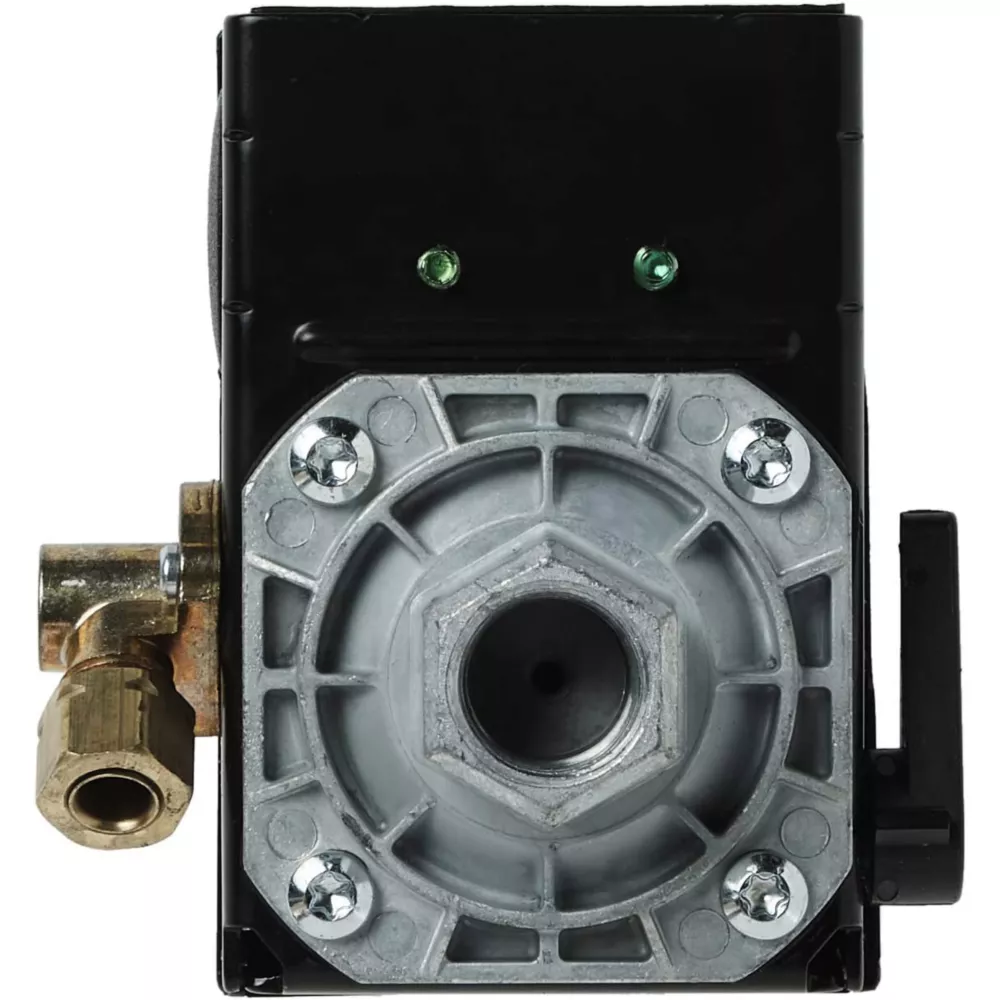

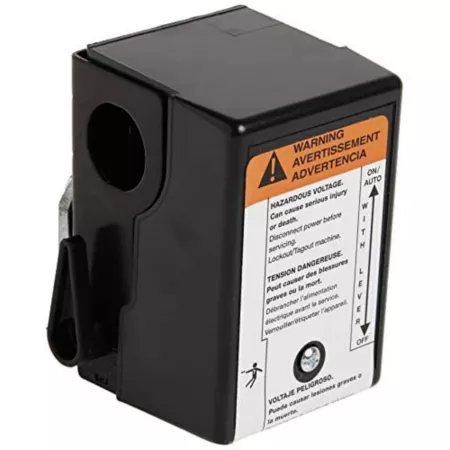

Ingersoll Rand Single Stage Pressure Switch 100-135 PSI Pressure Switches Air Compressor Accessories & Parts

The Ingersoll Rand Single-Stage Pressure Switch is designed for use with single-phase Ingersoll Rand reciprocating compressors. This pressure switch controls start and stop function for compressor models SS3L3, SS5L5, SS5N5, and SS4L5. The single-stage pressure switch has a NEMA type 1 enclosure. The pressure switch is backed by a one year warranty.

Single-stage pressure switch is compatible with compressor models SS3L3, SS5L5, SS5N5, and SS4L5
Made in the USA
Pressure switch has a 1 year limited warranty
NEMA type 1 enclosure on the single-stage pressure switch
Pressure switch is for use with single-phase Ingersoll Rand reciprocating compressors
100 psig cut-in, 135 psig cut-out

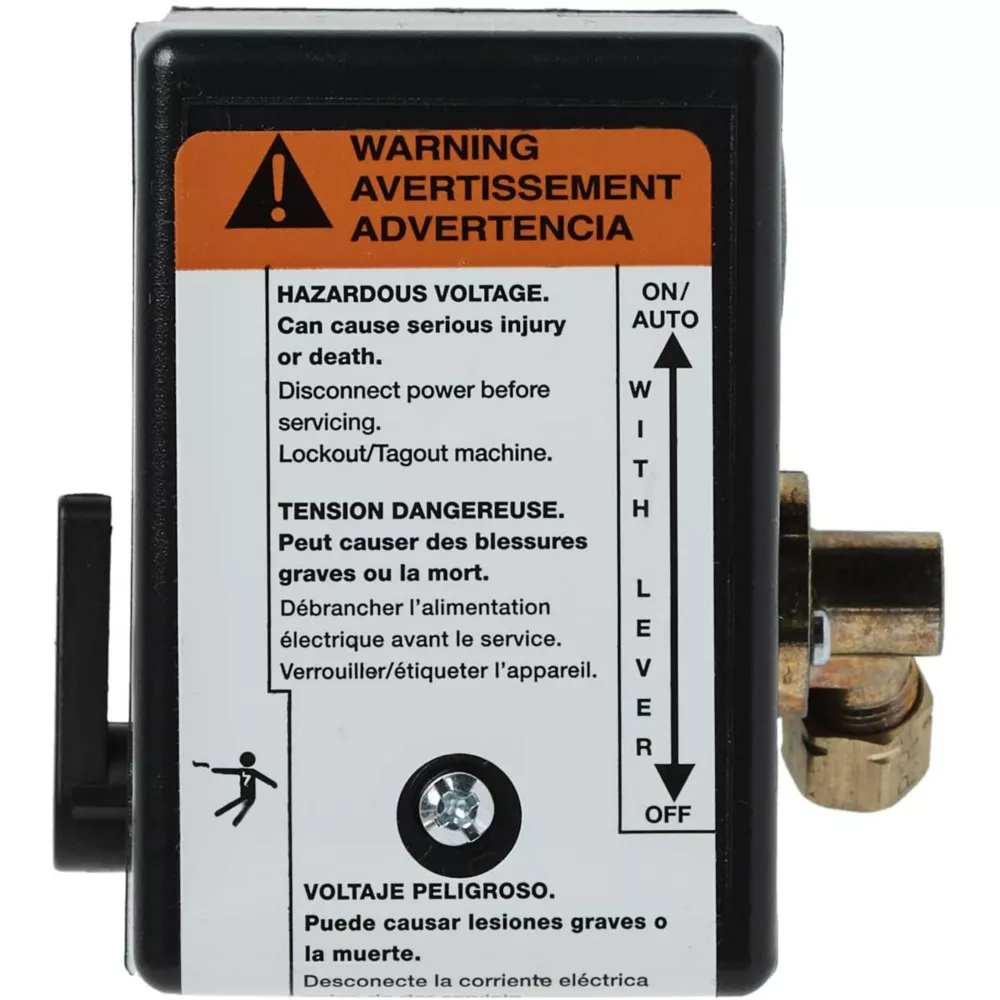

Includes Shut Off Switch on Side of Pressure Switch

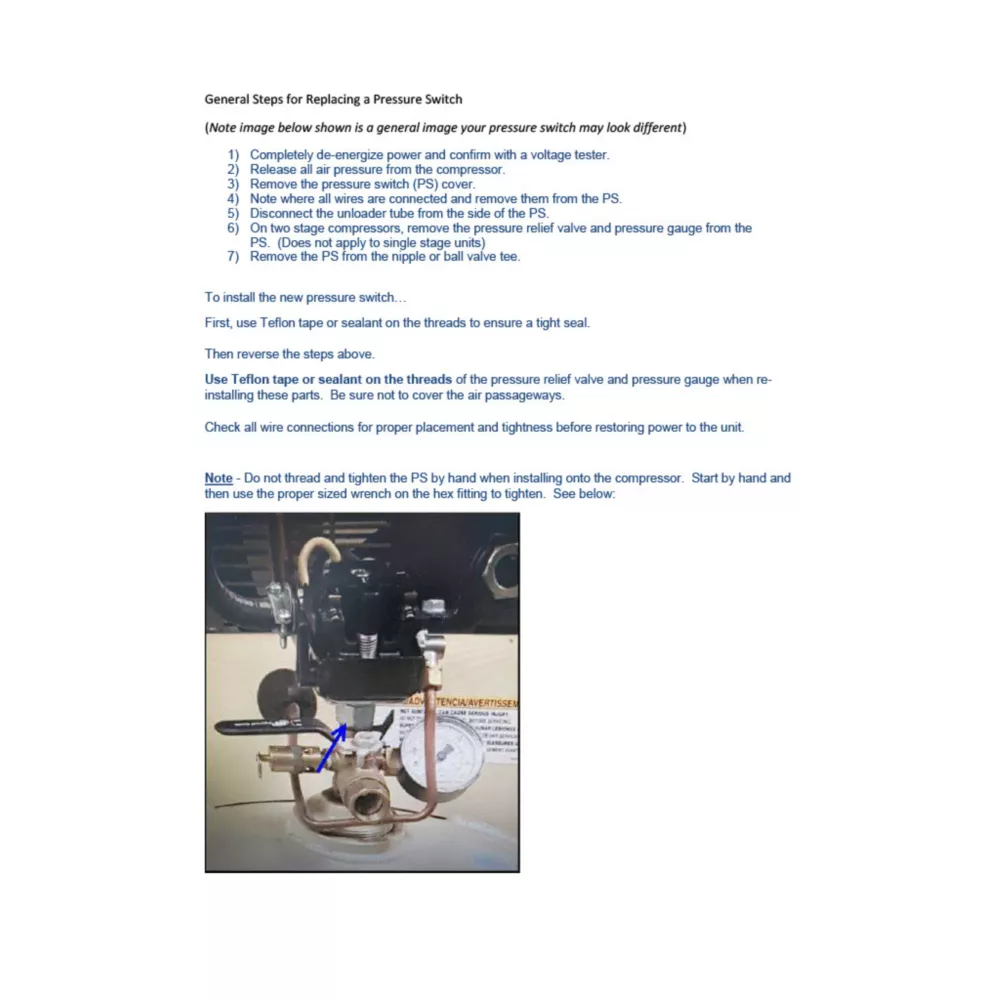

Extremely important to use Teflon Tape when installing on compressor. Please review video or contact our Air Tech team at 800-247-7378 for assistance

Ingersoll Rand Single Stage Pressure Switch 100-135 PSI Pressure Switches Tools> Air Compressors & Air Tools> Air Compressor Accessories & Parts> Pressure Switches

Specification	Description
Brand	Ingersoll Rand
Country of Origin	Made in USA
Inlet Diameter	0 in.
Inlet Type	Compression
Maximum On/Off Factory Pressure Setting	100 psig cut - in. , 135 psig cut -out
Maximum Operating Pressure	100 psig cut - in. , 135 psig cut -out
Minimum On/Off Factory Pressure Setting	100 psig cut - in. , 135 psig cut -out
Minimum Operating Pressure	100 psig cut - in. , 135 psig cut -out
On/Off Factory Pressure Setting	100 psig cut - in. , 135 psig cut -out
Operating Pressure Range	100 psig cut - in. , 135 psig cut -out
Outlet Diameter	0 in.
Outlet Type	N/A
Primary Material	Other
Product Height	5 in.
Product Length	6 in.
Product Weight	2 lb.
Product Width	6 in.
Warranty	6 Month
Manufacturer PartNumber	23474661-R

Ingersoll Rand 100-135 PSI Single-Stage Pressure Switch Specifications expand/collapse Specification Description Brand Ingersoll Rand Country of Origin Made in USA Inlet Diameter 0 in. Inlet Type Compression Maximum On/Off Factory Pressure Setting 100 psig inlet, 135 psig cut-off Maximum operating pressure 100 psig inlet, 135 psig cut-off, minimum on/off factory pressure setting 100 psig cut-off. , 135 psig cut-off, minimum operating pressure 100 psig cut-off. , 135 psig cut-off, factory on/off pressure setting of 100 psig. - in., 135 psig cut-off Operating Pressure Range 100 psig cut-off, 135 psig cut-off Outlet Diameter 0 in. Output Type N/A Main Material Other Product Height 5 in. Product length 6 in. Product weight 2 lbs. Product width 6 in. 6 Month Warranty Manufacturer Part Number 23474661-R
