Innova 3340 Pro automotive digital multimeter: specific automatic measurements protections accessories included Code Readers & Scan Tools Automotive Tools & Shop Equipment

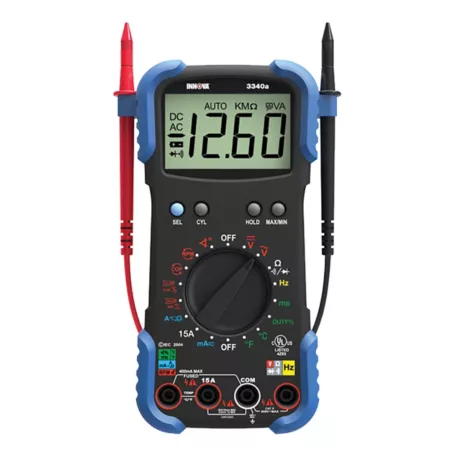

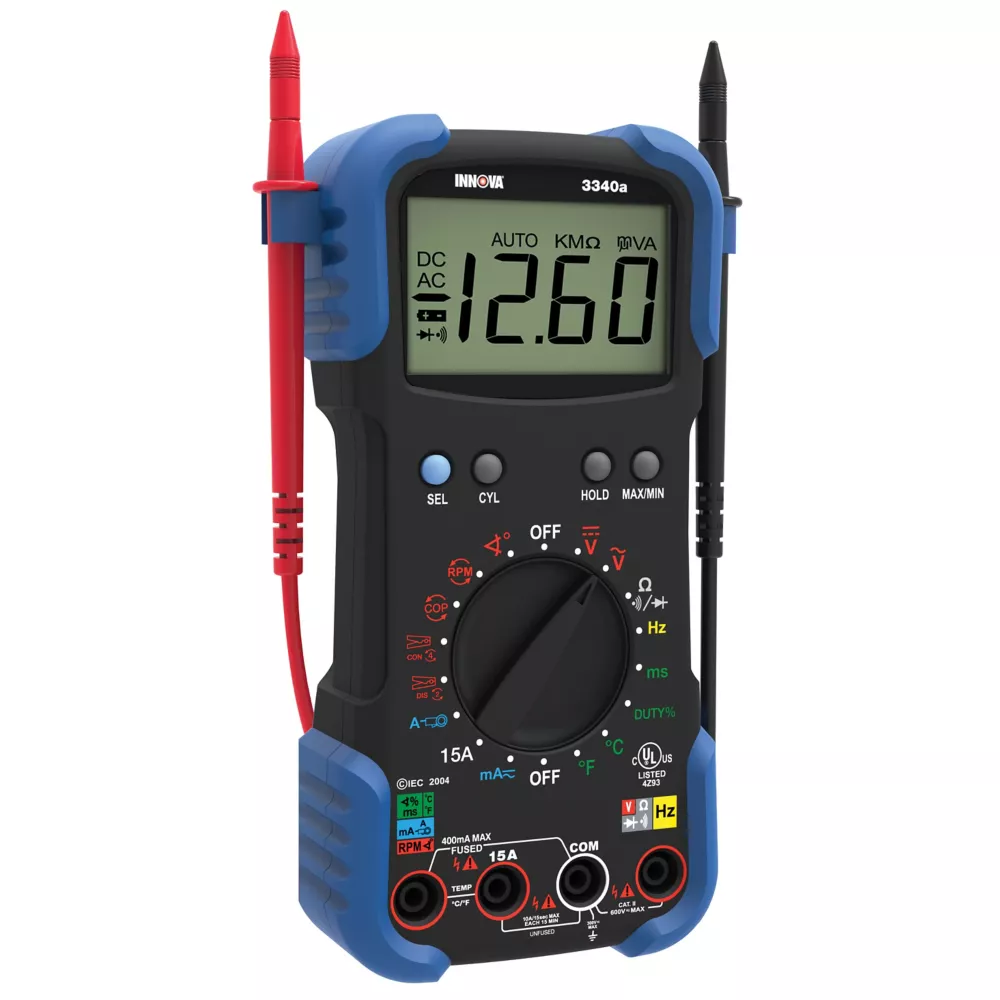

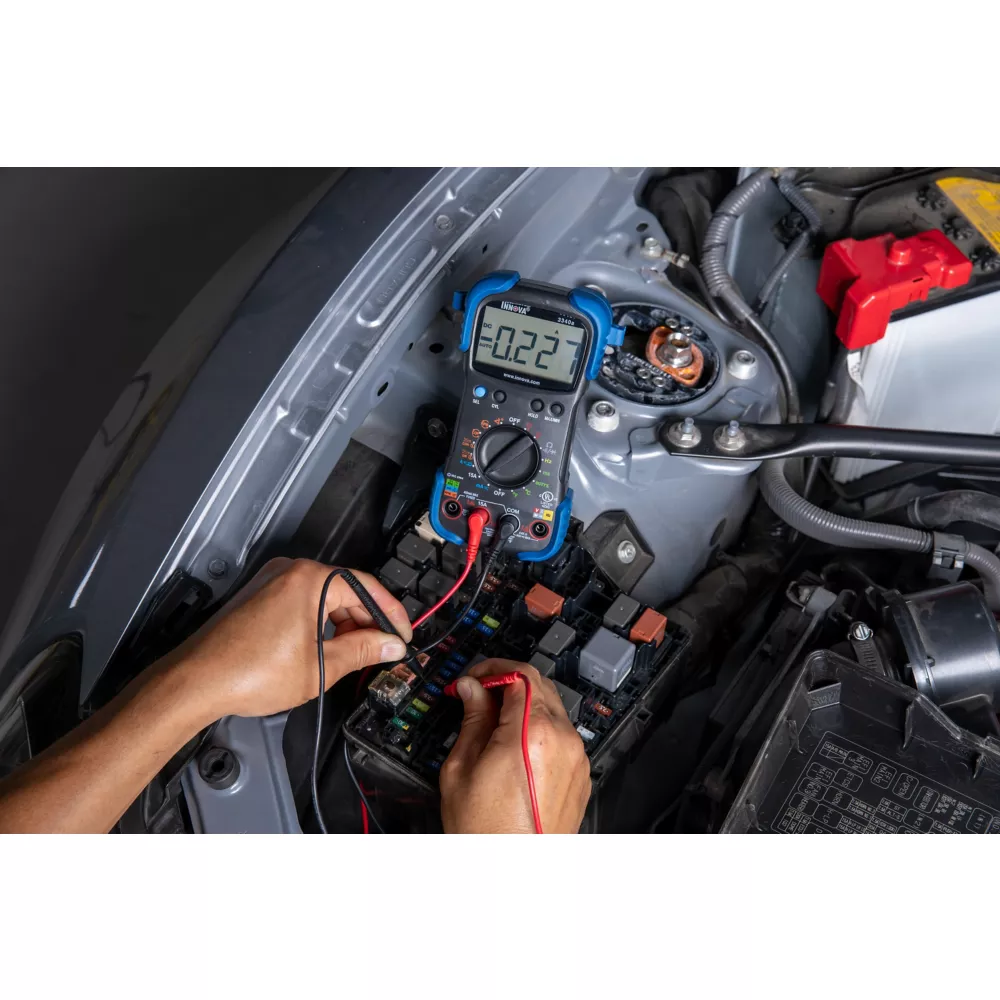

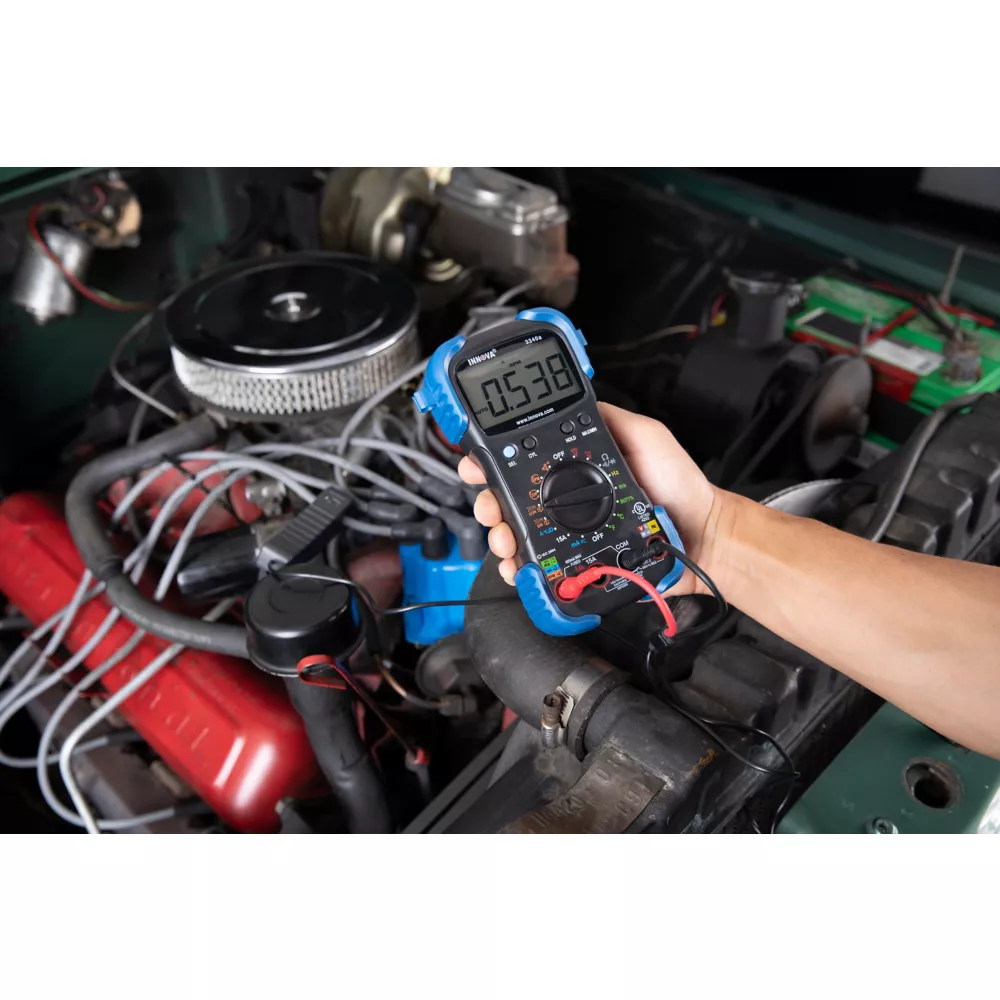

The Innova 3340 Pro Automotive Digital Multimeter features high-end functions and automotive-specific measurements, making it the pro's choice for a high-quality multimeter to troubleshoot most automotive and household electrical problems. The included temperature probe and inductive pickup accessories provide temperature and RPM measurements. Thick protective rubber corner guards and built-in lead holders provide rugged drop protection for harsh work environments and easy storage. The built-in wrist strap and kickstand make operation convenient and simple. This multi-function DMM features many different functions for measuring AC/DC current, amperage, AC/DC voltage, resistance, RPM, temperature, frequency, pulse width, duty cycle, and dwell angle, as well as continuity and diode testing.- Auto-Ranging, Auto Shut-Off & Over-Load Protection: Easy and safe operation for users of all skill levels.
- 10 MegOhm Input Impedance: Safe for electrical and automotive use. Prevent damage to the vehicles ECU.
- Protective Rubber Corner Guards: Drop protection for any work environment.
- UL Listed: Certified for safety and quality.
- High Amp Rating: Measure up to 15 amps (DC - unfused) for device testing.
- Automotive Specific Measurements: RPM, Dwell Angle, Frequency, Temperature, Pulse Width, Duty Cycle
- Min/Max and Hold Buttons: Easily save and reference retrieved data.

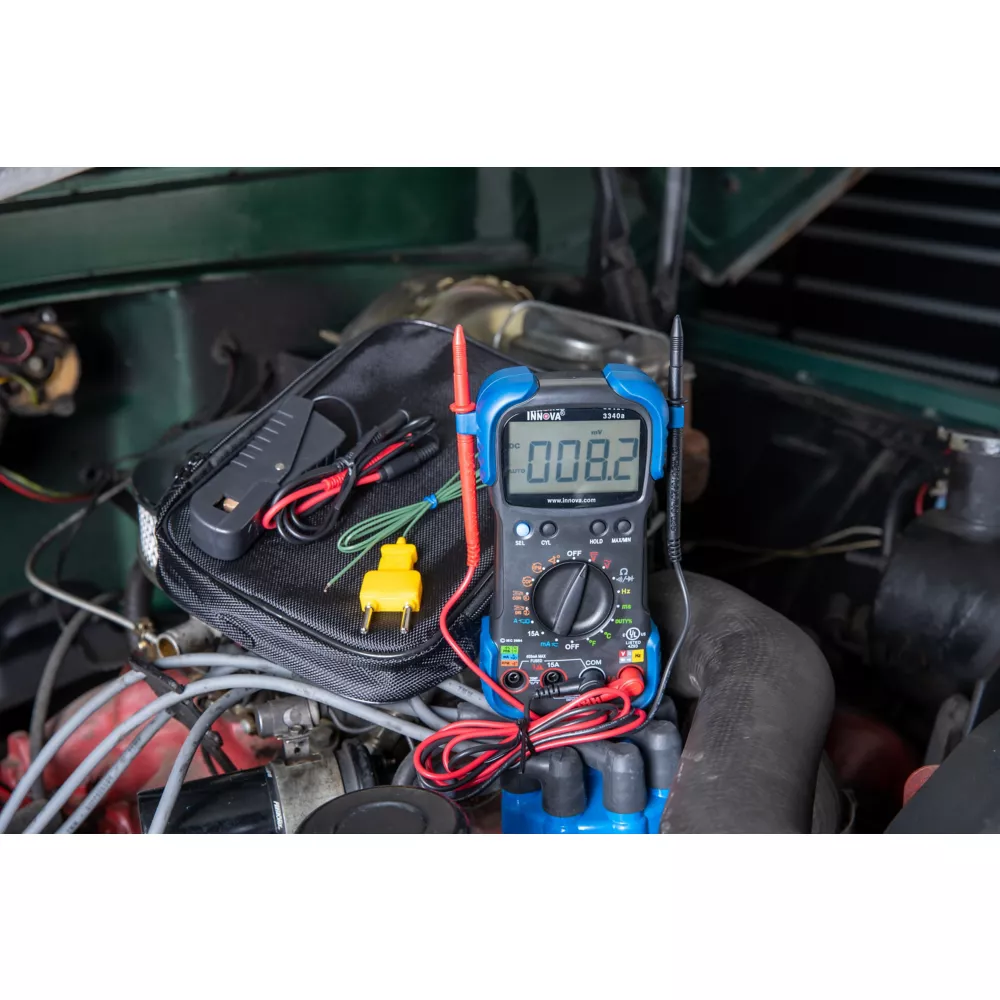

- Accessories Included: Temperature probe, inductive RPM clamp and carrying case.
- Measurement Types & Ranges: AC/DC Volts (0-600V) / Resistance (OHMS) (0-40M) / DC Amps (0-15A) / AC Amps (0-400mA) / Diode Test (0-2V) / Continuity Test (0-200) / Temperature (-58F/-50C - 752F/200C)
- Automotive Measurement Types & Ranges: Frequency (0-2MHz) / Duty Cycle (0.1-99.9%) / Pulse Width (1-999 ms positive) / Dwell Angle (1-12 cylinders) / RPM (0-10,000 RPM)
Innova 3340 Pro automotive digital multimeter: specific automatic measurements protections accessories included Code Readers & Scan Tools Truck & Automotive> Garage & Shop Equipment> Automotive Tools & Shop Equipment> Automotive Diagnostic Tools> Code Readers & Scan Tools
| Specification | Description |
|---|---|
| Brand | Innova |
| Country of Origin | Imported |
| Battery Size | AA |
| Compatibility | Variety of automotive, electrical, and household components |
| Features | AC/DC Volts, Resistance (OHMS), AC/DC Amps, Diode Test, Continuity Test, Temperature, Frequency, Duty Cycle, Pulse Width, Dwell Angle, RPM |
| Number of Batteries Required | 2 |
| Package Quantity | 1 |
| Primary Material | ABS Plastic |
| Product Height | 10.25 in. |
| Product Length | 7.5 in. |
| Product Weight | 1.95 lb. |
| Product Width | 2.5 in. |
| Scan Tool Type | Multimeters |
| Warranty | 1 Year |
| Manufacturer PartNumber | 3340 |
