Iron horse 12 HP 30 gal 2 Stage Truck Mounted Air Compressor 175 PSI Stationary Air Compressors Air Compressors

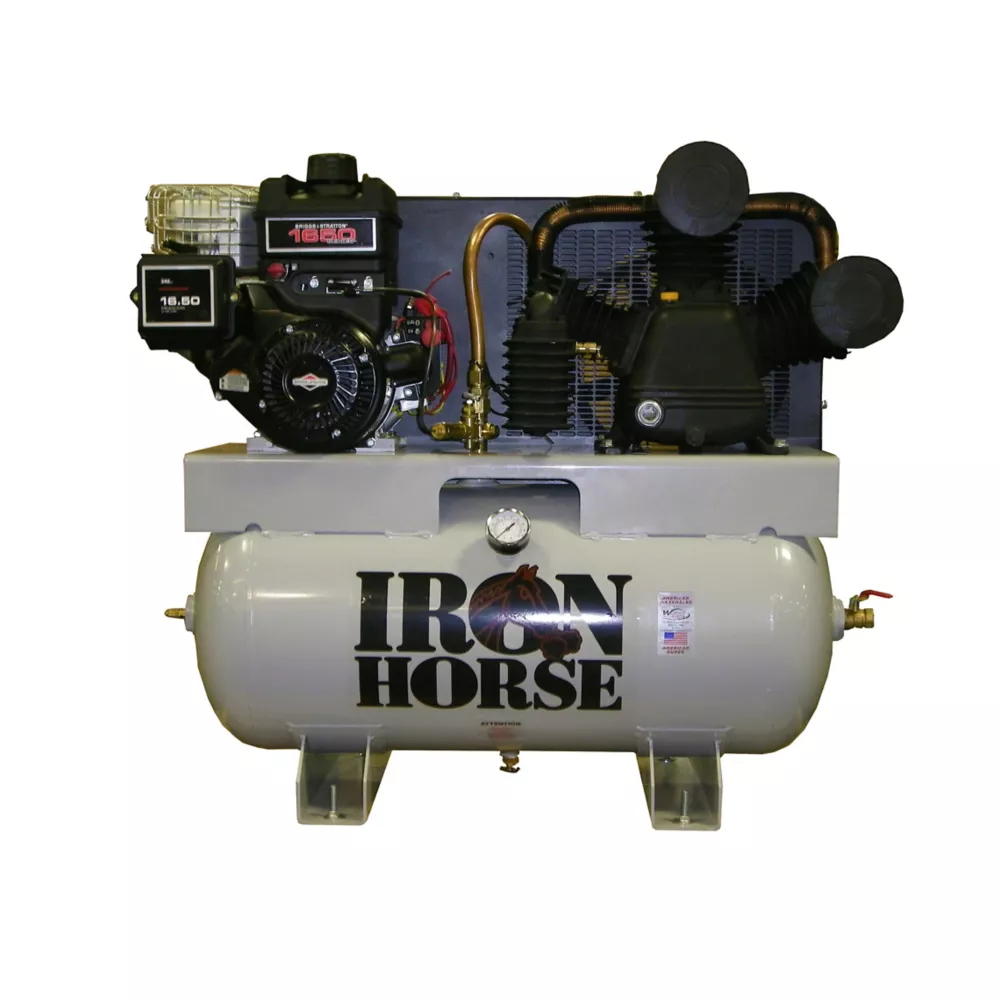

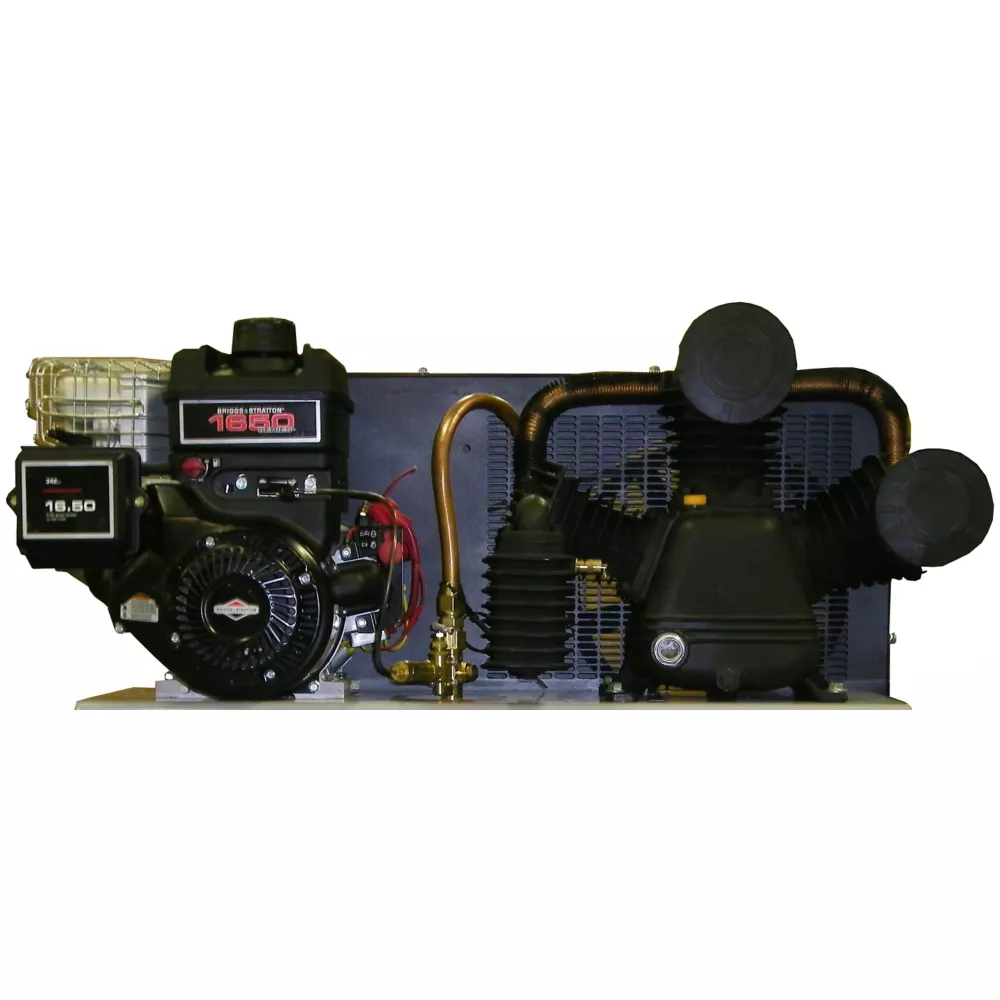

The Iron Horse 2-Stage Truck Mount Air Compressor has a 30 gal. ASME registered tank and a 12 HP Briggs & Stratton electric start motor. The engine idle control allows the air compressor to reduce operating cost and wear to extend its life. The V-style design of the truck mount air compressor helps limit vibration and improve cooling.

V-style design of the truck mount air compressor minimizes vibration and improves cooling
Efficient heat removal from the fly wheel for cooler running and longer life of the air compressor
Sturdy metal belt guard
Engine idle control feature reduces operating cost and unnecessary wear
30 gal. ASME registered tank
1 year warranty

Iron horse 12 HP 30 gal 2 Stage Truck Mounted Air Compressor 175 PSI Stationary Air Compressors Tools> Air Compressors & Air Tools> Air Compressors> Stationary Air Compressors

Specification	Description
Brand	Iron Horse
Country of Origin	Made in USA
Air Delivery SCFM At 90 PSI	22 CFM
Airflow Volume	22 CFM @ 90 PSI
Air Outlet Size	3/4 in.
Compressor Horsepower	12 HP
Compressor Maximum PSI	175 PSI
Compressor Tank Capacity	30 gal
Compressor Type	Horizontal
Compressor Voltage	12V
Drain System	Manual
Drive Type	Belt
Features	14HP B&S Electric Start Motor, ASME Registered tank, Easy view oil sight gauge, Sturdy metal belt guard, Heavy duty 3/4 in. ball valve included
Number Of Power Speeds	Single
Number Of Wheels	0
Power Type	Gas
Primary Color	Gray
Primary Material	Steel
Product Height	38.5 in.
Product Length	45 in.
Product Weight	331 lb.
Product Width	19 in.
Pump Material	Cast iron
Tank Fill Time	108 seconds 90 PSI
Tank Orientation	Horizontal
Warranty	1 Year
Manufacturer PartNumber	IH12G30TRKE-BS

Iron Horse 12 HP 30 gal. 2-Stage Truck-Mounted Air Compressor, 175 PSI Specifications expand/collapse Specification Description Brand Iron Horse Country of Origin Made in USA Air Flow SCFM at 90 PSI 22 CFM Air Flow Volume 22 CFM at 90 PSI Air Outlet Size 3/4 in. Compressor Power 12 HP Compressor Maximum PSI 175 PSI Compressor Tank Capacity 30 Gallon Compressor Type Horizontal Compressor Voltage 12V Drain System Manual Drive Type Belt Features B&S 14 HP Electric Start Motor, ASME Registered Tank, Gauge Easy-to-see oil gauge, heavy-duty metal belt guard, heavy-duty 3/4" ball valve included Number of Power Speeds Single Number of Wheels 0 Power Type Gas Primary Color Gray Primary Material Steel Product Height 38 .5 in. Product length 45 in. Product weight 331 lbs. Product width 19 in. Pump Material Cast Iron Tank Fill Time 108 seconds 90 PSI Tank OrientationHorizontal Warranty 1 Year Manufacturer Part Number IH12G30TRKE-BS
