JET 2 ton shaft press 333620 Shop Presses Automotive Tools & Shop Equipment

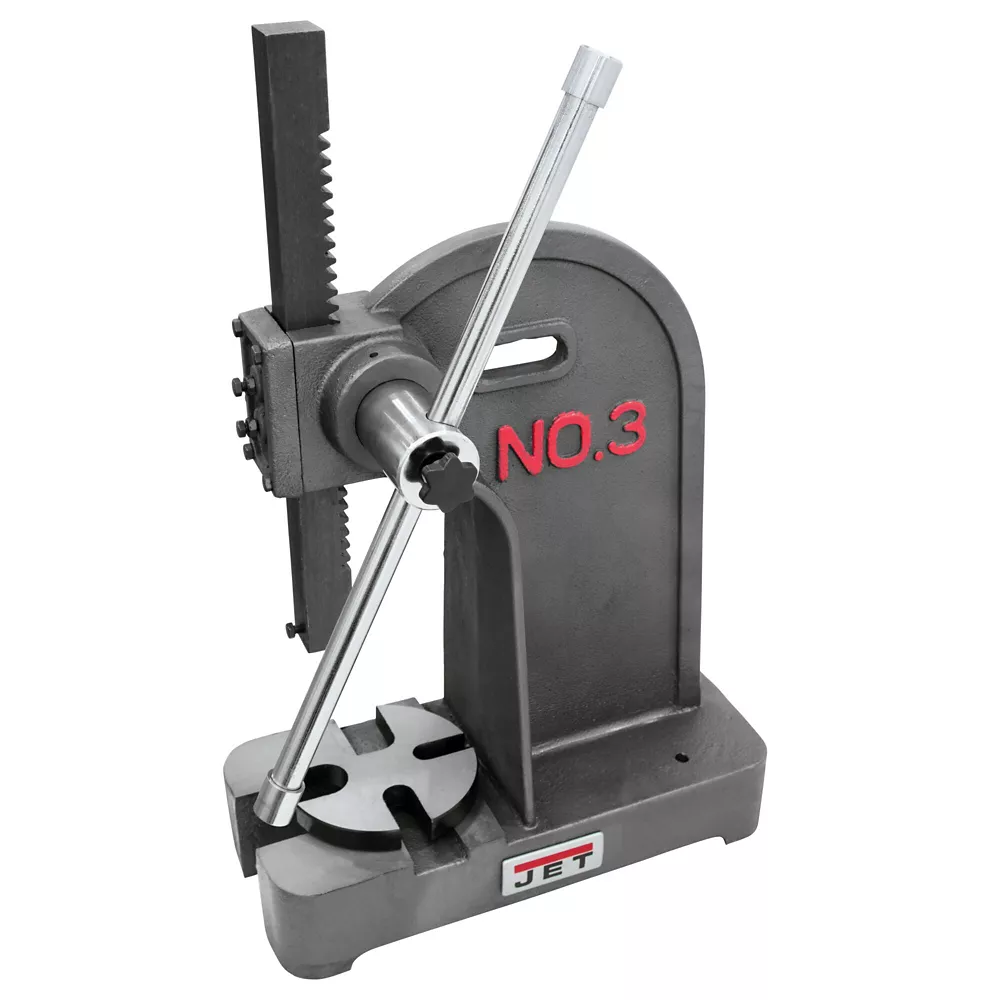

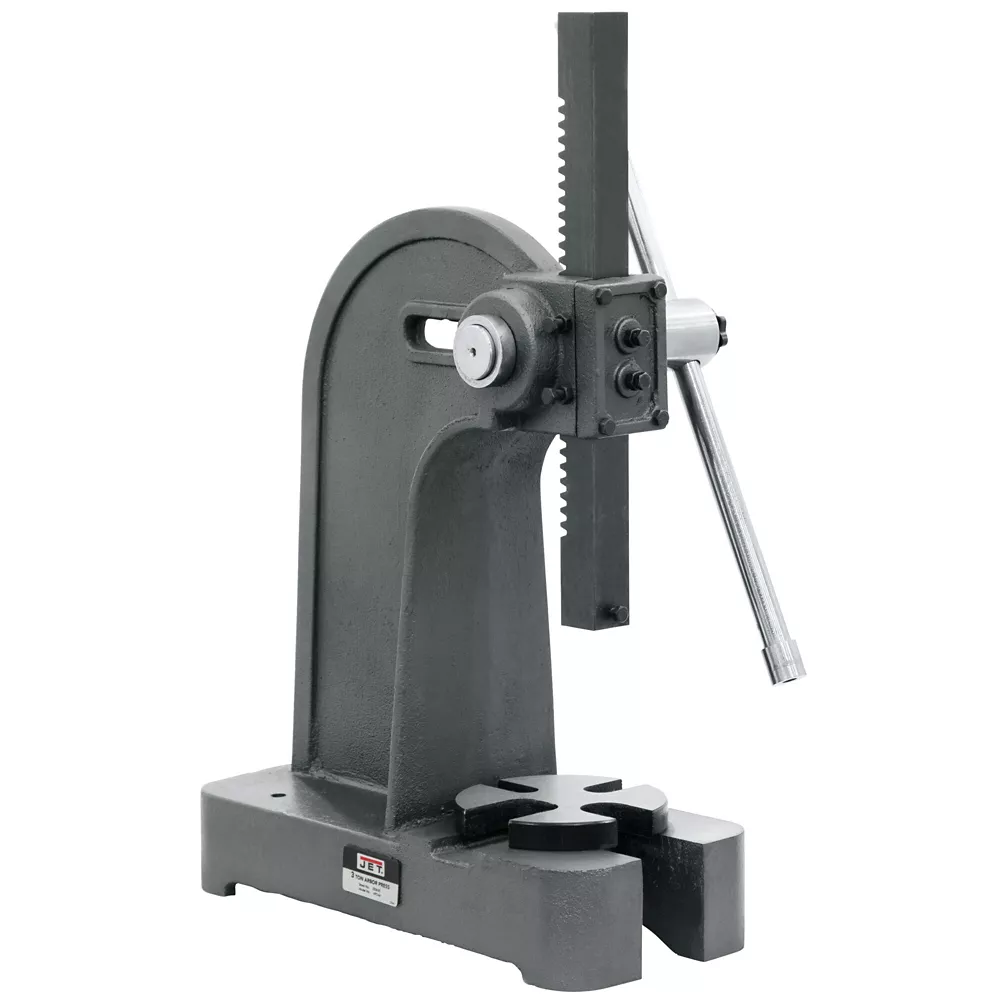

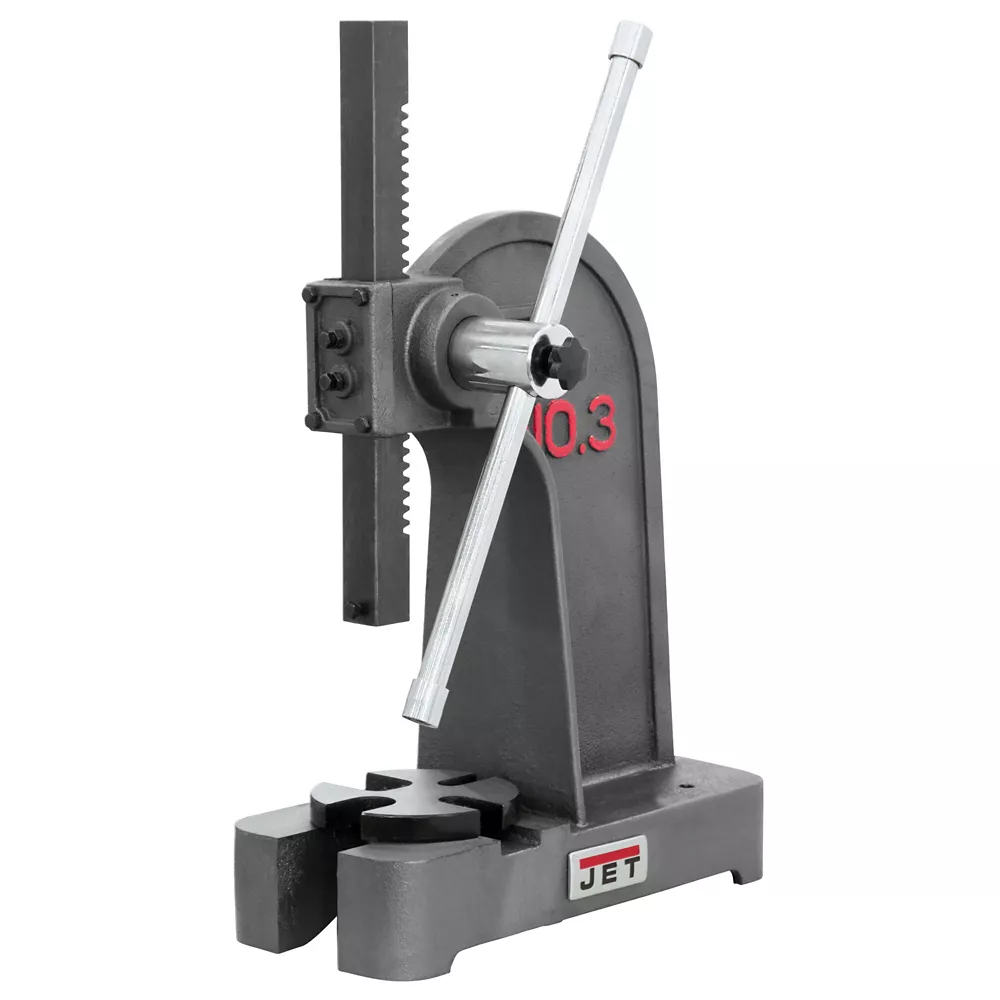

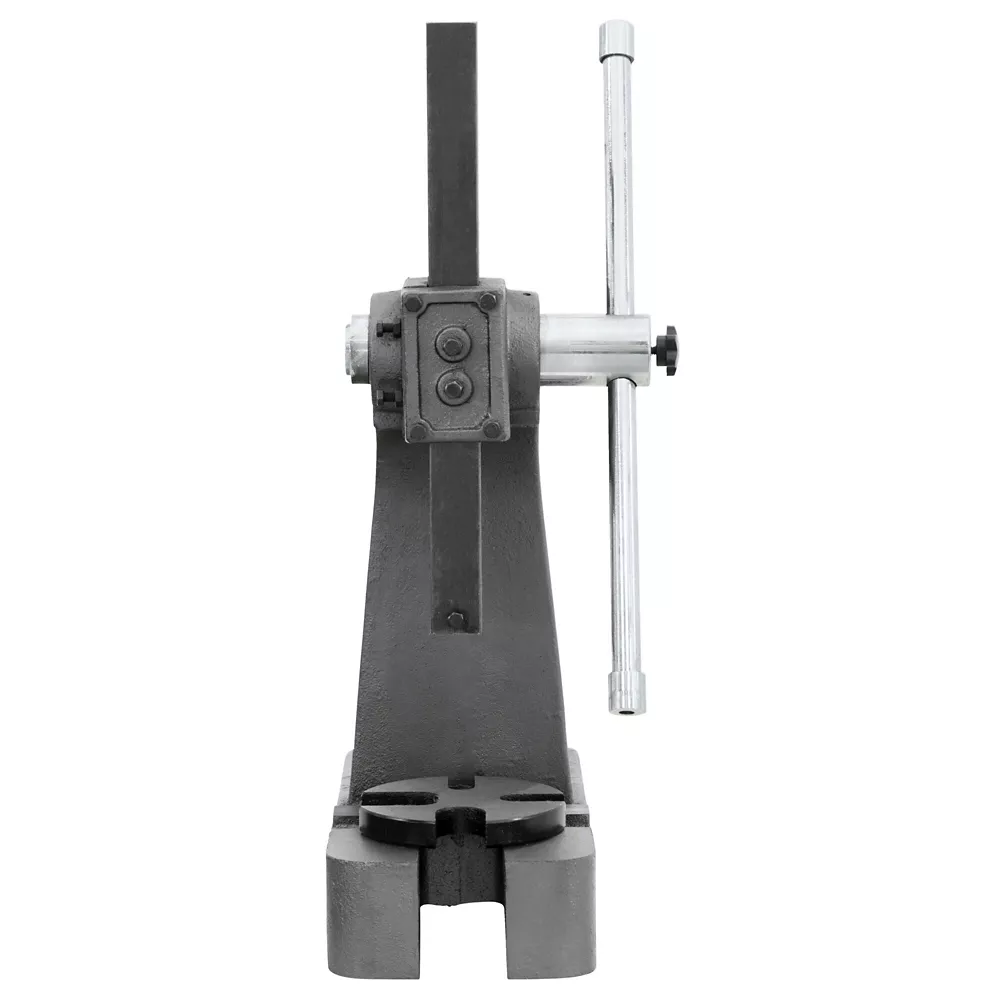

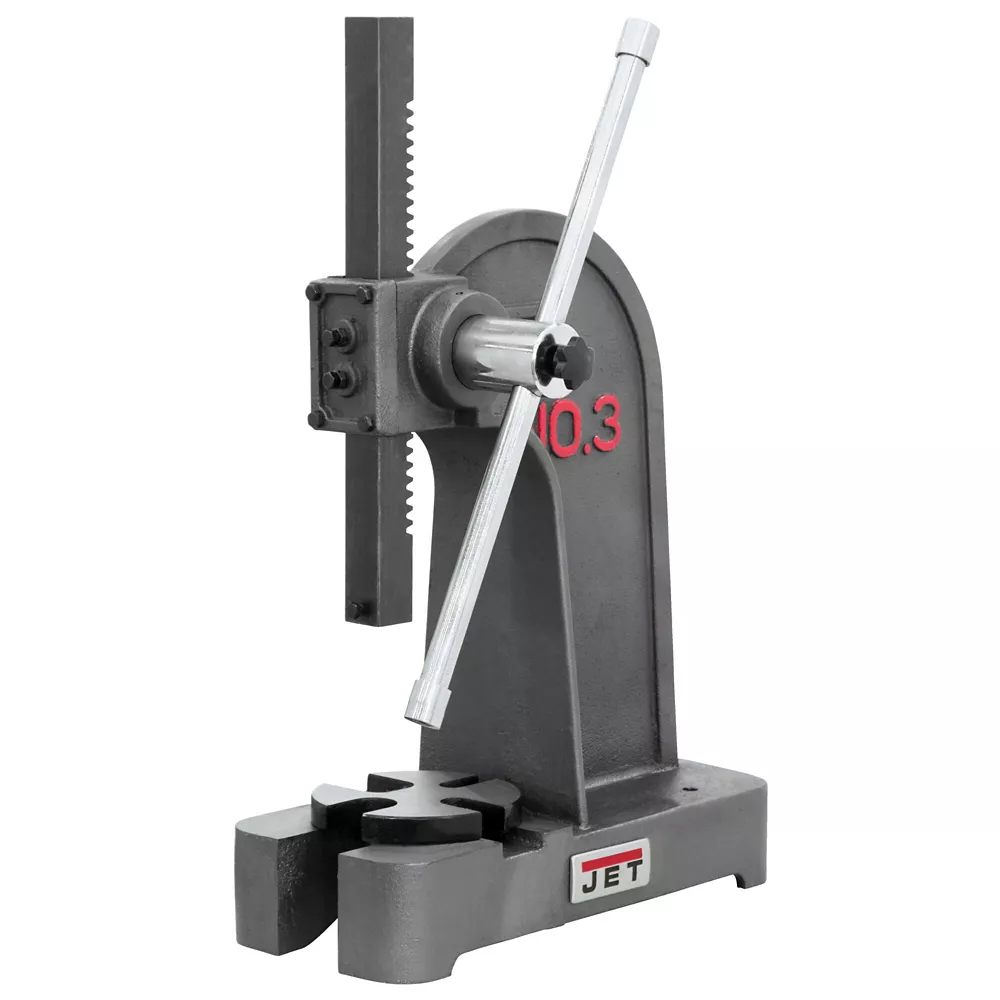

The JET 2-Ton Arbor Press is made of a heavy ductile iron casting that offers incredible strength and rigidity to the overall framework. The base, ram housing, framework and 4 position bottom plate of the arbor press are precision machined for unquestioned accuracy. This version of the JET arbor press can apply up to 2 tons of pressure. The arbor press has been tested to tight tolerance standards to insure consistent quality and precision operations. Get the job done right with this 2-ton arbor press!

Overall arbor press dimensions (L x W x H): 15-3/4 x 10 x 17-1/2 in.
Arbor press is for all production and assembly applications
Precision cut steel rams and pinions for accurate operation
Tables and slotted table-plates are flat and parallel to provide accurate support
Capacity over table: 7-1/2 in.
Anvil diameter: 6-11/16 in.
Size of ram: 1-1/4 x 13 in.
Diameter of work: 10-3/4 in.
Arbor press height: 16-1/4 in.
Base size: 6-3/8 x 15-3/4 in.
Ram bore: 1/2 in.
Travel of ram: 9 in.
Approx. pressure: 2 tons
Arbor press weighs 68 lb.

2 year

JET 2 ton shaft press 333620 Shop Presses Truck & Automotive> Garage & Shop Equipment> Automotive Tools & Shop Equipment> Shop Presses

Specification	Description
Brand	JET
Country of Origin	Imported
Primary Material	Cast Iron
Product Height	10 in.
Product Length	18 in.
Product Weight	60.5 lb.
Product Width	22 in.
Warranty	2 Year
Manufacturer PartNumber	333620

JET 2-Ton Arbor Press, 333620 Specifications expand/collapse Specification Description Brand JET Country of Origin Main Material Imported Cast Iron Product Height 10" Product Length 18" Product Weight 60.5 lbs Product Width 22" Warranty 2 Years Manufacturer Part Number 333620
