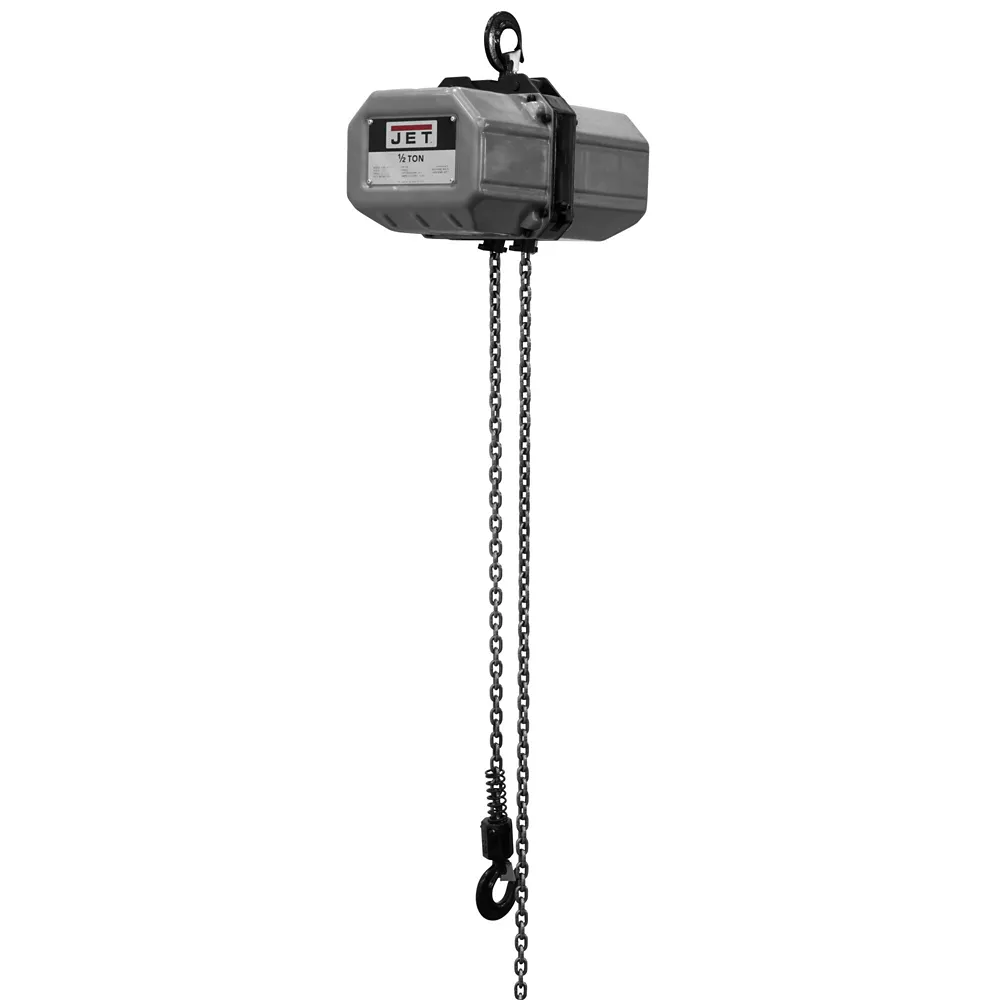

JET Electric Chain Hoist 1/2 Ton 115/230V Single Phase 15' Lift Electric Hoists Ceiling Hoists

The JET 1/2 Ton, 1Ph, 15ft. Lift, 115/230V Electric Chain Hoist combines safety and durability to operate in commercial and industrial applications. All models incorporate a slip clutch overload protection mechanism that prevents the hoist from lifting damaging loads above its rated capacity. They are available in single or three phase configurations to suit your electrical needs. Single phase models have a thermal overload protection design that keeps the hoist from overheating, while the three phase models feature a reverse phase relay that protects the hoist from incorrect wiring. The industry proven DC electro-magnetic brake increases safety by holding the load even when power is interrupted. The maintenance-free gear train incorporates a sealed oil bath, for reliability and durability. The JET SSC series electric hoist is available in 1/2 ton to 5 ton capacities with standard lifts of 10, 15, and 20 feet (custom lifts available).

Overload Protection- Slip Clutch design prevents the hoist from lifting damaging loads above its rated capacity
Thermal Overload Protection- Protects the hoist from overheating in low voltage situations
DC Electro-Magnetic Brake- An industry-proven safety feature that secures the load even if power is interrupted to the hoist
Limit Switches- Upper and lower limiting switches increase safety by preventing the load chain from over traveling
Sealed Gear Train- Maintenance-free gear train incorporates a sealed oil bath that eliminates upkeep
Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
Control Pendant- 24 volt push button controller with cable strain relief system for durability and reliability in industrial and commercial settings

JET Electric Chain Hoist 1/2 Ton 115/230V Single Phase 15' Lift Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	6.3 mm
Features	Black oxide coated load chain
Lift Assist Ratio	0
Lift Height	15 ft.
Maximum Pull Length	20 ft.
Maximum Weight Capacity	1/2 Ton
Phase	Single
Primary Material	Steel
Product Height	15 in.
Product Length	21 in.
Product Weight	125 lb.
Product Width	16 in.
Voltage	115V/230V
Warranty	2 Year
Manufacturer PartNumber	121150

JET 1/2 Ton 115/230V Electric Chain Hoist, 1 Ph, 15 ft. Lift Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Chain Length 6.3mm Features Black Oxide Coated Lift Chain Lift Assist Ratio 0 Lifting Height 15ft Maximum Pull Length 20ft Capacity maximum weight 1/2 ton Phase Single main material Steel product Height 15 in. Product length 21 in. Product weight 125 lb. Product width 16 in. Voltage 115V/230V Warranty 2 years Manufacturer part number 121150
