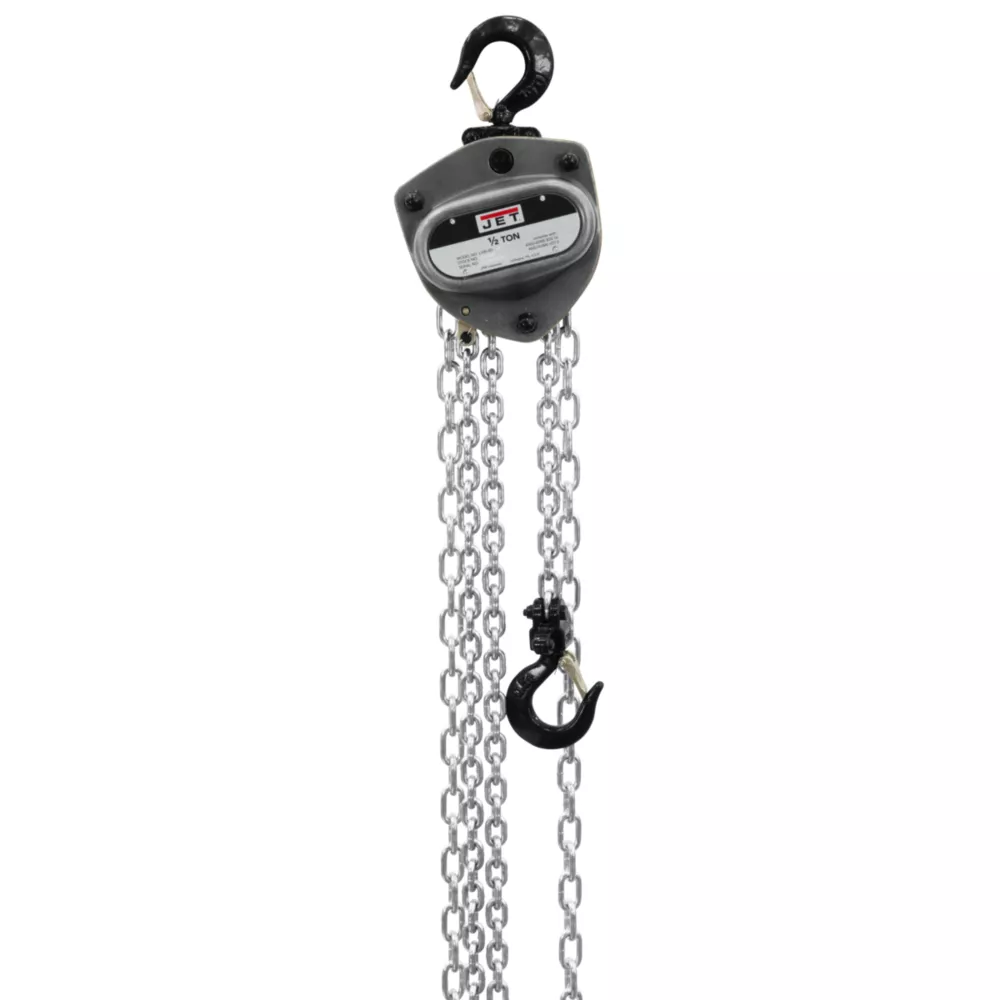

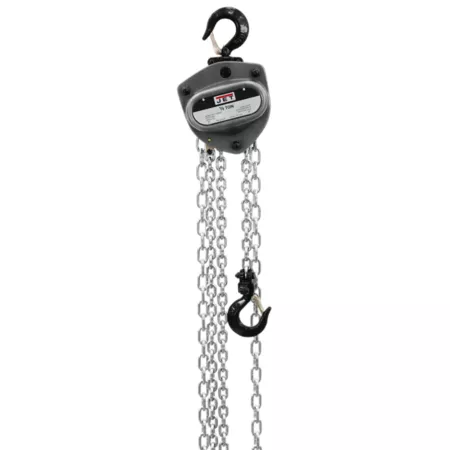

JET L100 Series Manual Chain Hoist 1/2 Ton Capacity 15 Feet Lift with Overload Protection Chain Hoists Ceiling Hoists

The JET L100 Series 1/2-Ton Hand Chain Hoist with 15 ft. Lift and Overload Protection is designed with all steel construction and integrates safety, durability and innovation, enabling it to operate in the most demanding industrial environments. The hand chain hoist has safety features such as the slip clutch style overload protection that prevents the hoist from lifting damaging loads beyond its rated capacity. The chain hoist's exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime.

Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
Chain hoist has heat treated load plates for durability
Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Intended for the harshest environments, the heat treated load plates and case hardened corrosive-resistant internal parts extend the life of the hoist
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
Lightweight design and smaller body are ideal for confined areas and low headroom applications
Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Available in 1/4 ton to 20 ton capacities and standard lifts of 10, 15, 20 and 30 feet (custom lifts available)
Chain hoist is backed by an industry leading lifetime replacement warranty

JET L100 Series Manual Chain Hoist 1/2 Ton Capacity 15 Feet Lift with Overload Protection Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	15 ft.
Chain Pull To Lift Rated Load	53 lb.
Chain Width	0.585 in.
Features	Overload protection, Plated load chain
Hoist Mount Type	Hook mount
Lift Assist Ratio	21:01:00
Lift Height	15 ft.
Lift Mechanism	Hand crank
Maximum Pull Length	15 ft.
Maximum Weight Capacity	1,100 lb.
Power Type	Manual
Primary Material	Steel
Product Height	7.35 in.
Product Length	11.22 in.
Product Weight	27.0 lb.
Product Width	7.55 in.
Warranty	Lifetime
Manufacturer PartNumber	205115

JET 1/2 Ton Capacity 15 ft. Lift L100 Series Hand Chain Hoist with Overload Protection Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Chain Length 15 feet. Chain pull to lift rated load 53 lbs. 00 Lift height 15 ft. Lifting mechanism Crank Maximum pull length 15 ft. Maximum weight capacity 1,100 lbs. Power Type Manual Main Material Steel Product Height 7.35 in. Product length 11.22 in. Product weight 27.0 lbs. Product width 7.55 in. Lifetime Warranty Manufacturer Part Number 205115
