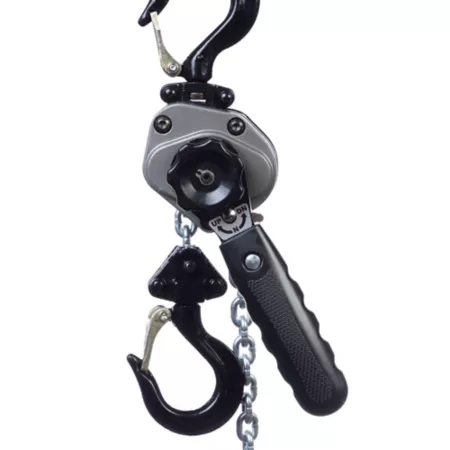

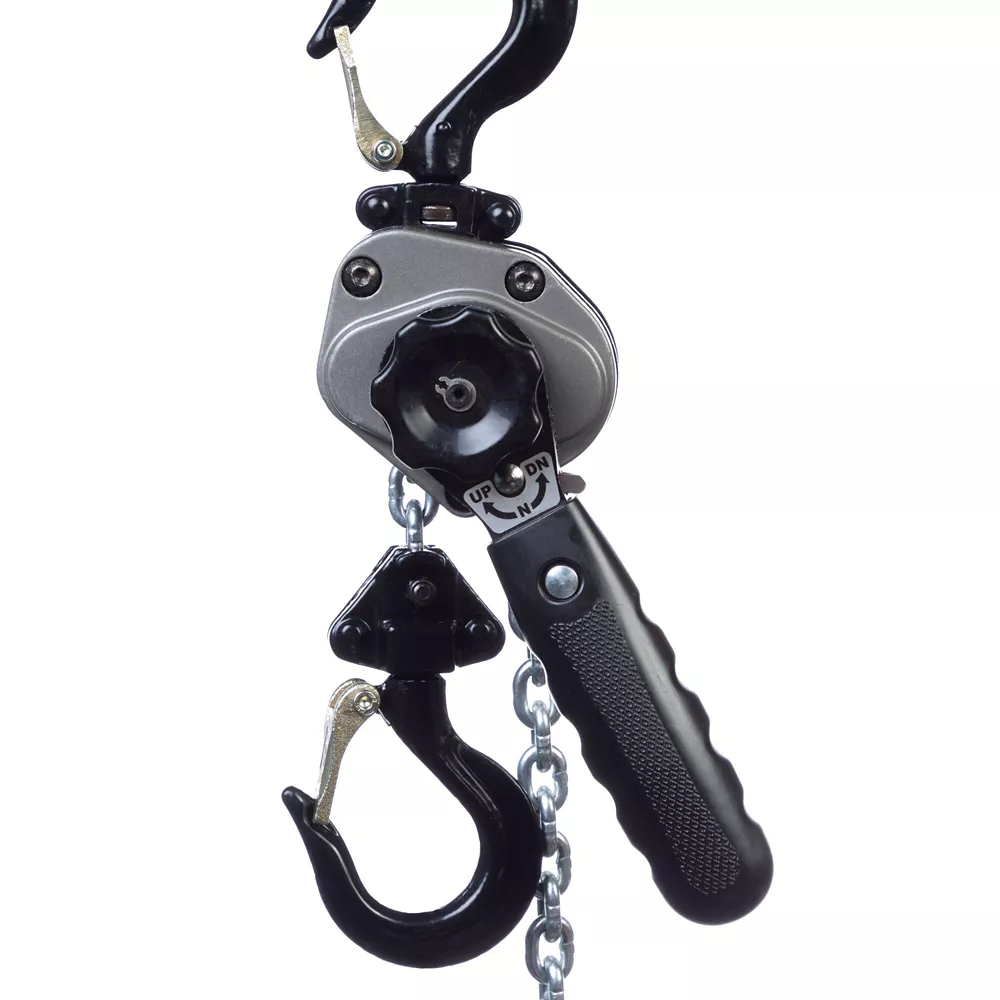

JET Lever Hoist 1/2 Ton Capacity 5 Feet Lift JLH Series Chain Hoists Ceiling Hoists

The JET JLH Series 1/2-Ton Lever Hoist with 5 ft. Lift integrates safety, durability and innovation, enabling it to operate in the most demanding industrial environments. The lightweight design of this durable lever hoist is achieved with a durable aluminum alloy housing that reduces weight for ease of transport. The dual pawl Weston-style brake system of this lever hoist splits the load to opposite sides of the ratchet gear for greater load security.

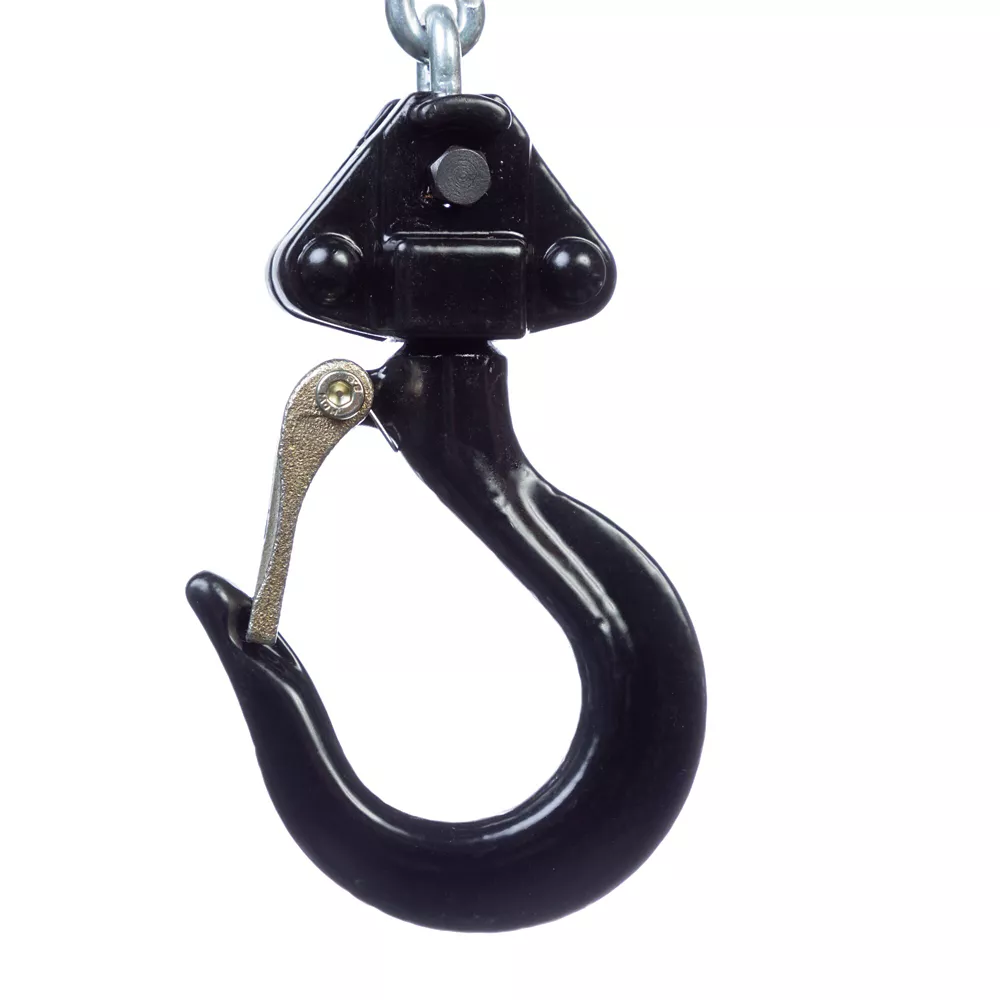

Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging
Lever hoist has cast steel safety latches for durability
Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
Corrosive-resistant grade 100 load chain is stronger than grade 80 load chain, extending the life of the hoist
Lever hoist has heat treated load plates for long-lasting use
Hooks slowly stretch to indicate an overload situation increasing jobsite safety
Complies with OSHA Regulations, ANSI / ASME B30.21 and HST-3 standards
Available in 1/4 ton and 1/2 ton capacities with standard lifts of 5, 10 and 15 feet (custom lifts available)
Includes a nylon carrying case for convenience

JET Lever Hoist 1/2 Ton Capacity 5 Feet Lift JLH Series Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	5 ft.
Chain Pull To Lift Rated Load	54 lb.
Chain Width	1.092 in.
Features	Zinc-plated chain
Hoist Mount Type	Hook mount
Lift Assist Ratio	19:01:00
Lift Height	5 ft.
Lift Mechanism	Hand crank
Maximum Pull Length	5 ft.
Maximum Weight Capacity	1,000 lb.
Power Type	Manual
Primary Material	Steel
Product Height	3.94 in.
Product Length	9.25 in.
Product Weight	5.5 lb.
Product Width	4.33 in.
Warranty	Lifetime
Manufacturer PartNumber	181505

JET 1/2 Ton Capacity 5 ft. Lift JLH Series Lever Hoist Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Chain Length 5 feet. Chain pull to lift rated load 54 lbs. Chain width 1.092 in. Features Zinc Plated Chain Hoist Mounting Type Hook Bracket Lifting Assist Ratio 19:01:00 Lifting Height 5 feet Lifting Mechanism Crank Maximum Pull Length 5 feet Maximum Weight Capacity 1,000 lbs Power Type Manual Main Material Steel Product Height 3.94 in. Product Length 9.25 in. Product Weight 5.5 lb. Product Width 4.33 in. Lifetime Warranty Manufacturer Part Number 181505
