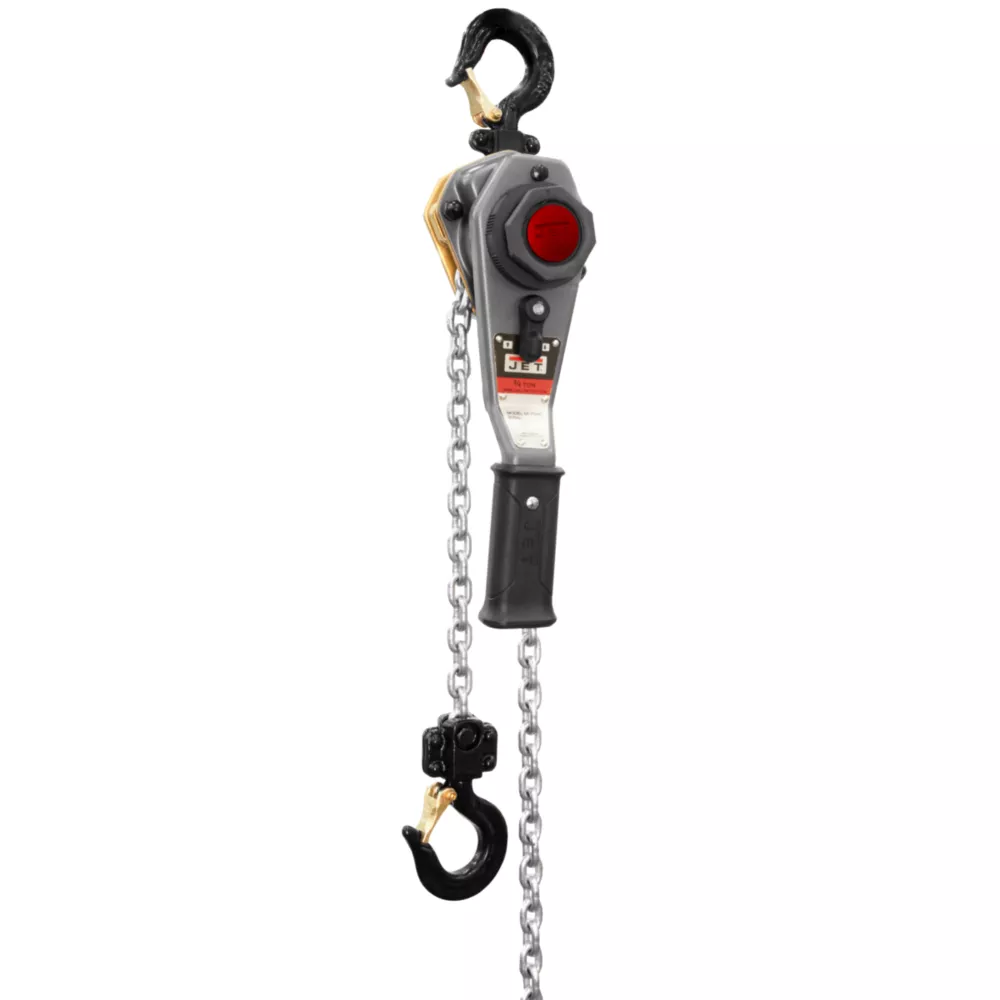

JET Lever Hoist 3/4 Ton Capacity 5 Feet Lift JLH Series with Overload Protection Chain Hoists Ceiling Hoists

The JET JLH Series 3/4-Ton Lever Hoist with 5 ft. Lift and Overload Protection incorporates safety, durability and heavy-duty construction for operation in severe industrial environments. Safety comes standard with features such as slip clutch-style overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. Our lightweight design, shorter handle and smaller body of this durable lever hoist are ideal for confined areas and low headroom applications.

Lever hoist has all steel construction for durability
Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
Enhanced ergonomic grip allows for greater operator control and increased comfort
Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
Heat treated load plates for long-lasting use

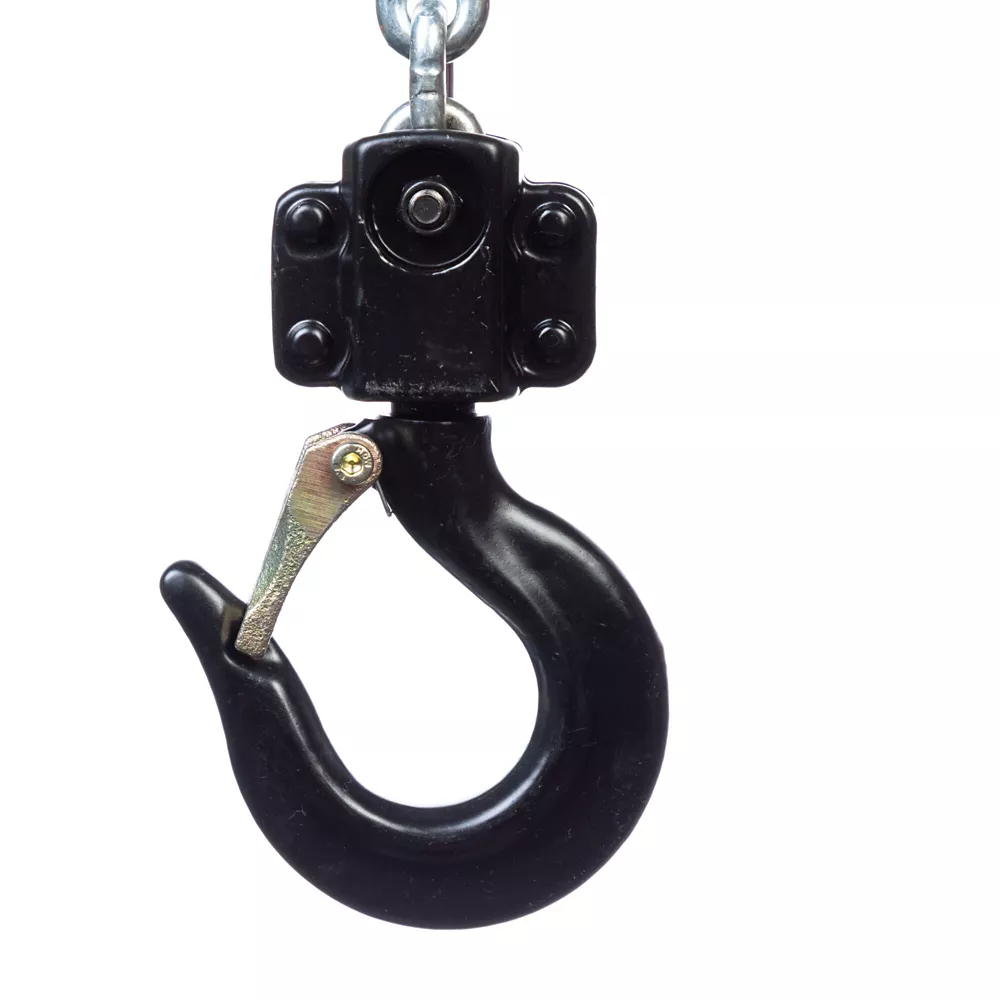

Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging
Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
Available in 1/4 ton to 9 ton capacities with standard lifts of 5, 10, 15 and 20 feet (custom lifts available)
Lever hoist is backed by a lifetime replacement warranty

JET Lever Hoist 3/4 Ton Capacity 5 Feet Lift JLH Series with Overload Protection Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	5 ft.
Chain Pull To Lift Rated Load	64 lb.
Chain Width	0.6123 in.
Features	Overload protection, Plated load chain
Hoist Mount Type	Hook mount
Lift Assist Ratio	28:1
Lift Height	5 ft.
Lift Mechanism	Hand crank
Maximum Pull Length	5 ft.
Maximum Weight Capacity	1,760 lb.
Power Type	Manual
Primary Material	Steel
Product Height	4.69 in.
Product Length	14.65 in.
Product Weight	12.55 lb.
Product Width	5.67 in.
Warranty	Lifetime
Manufacturer PartNumber	376100
