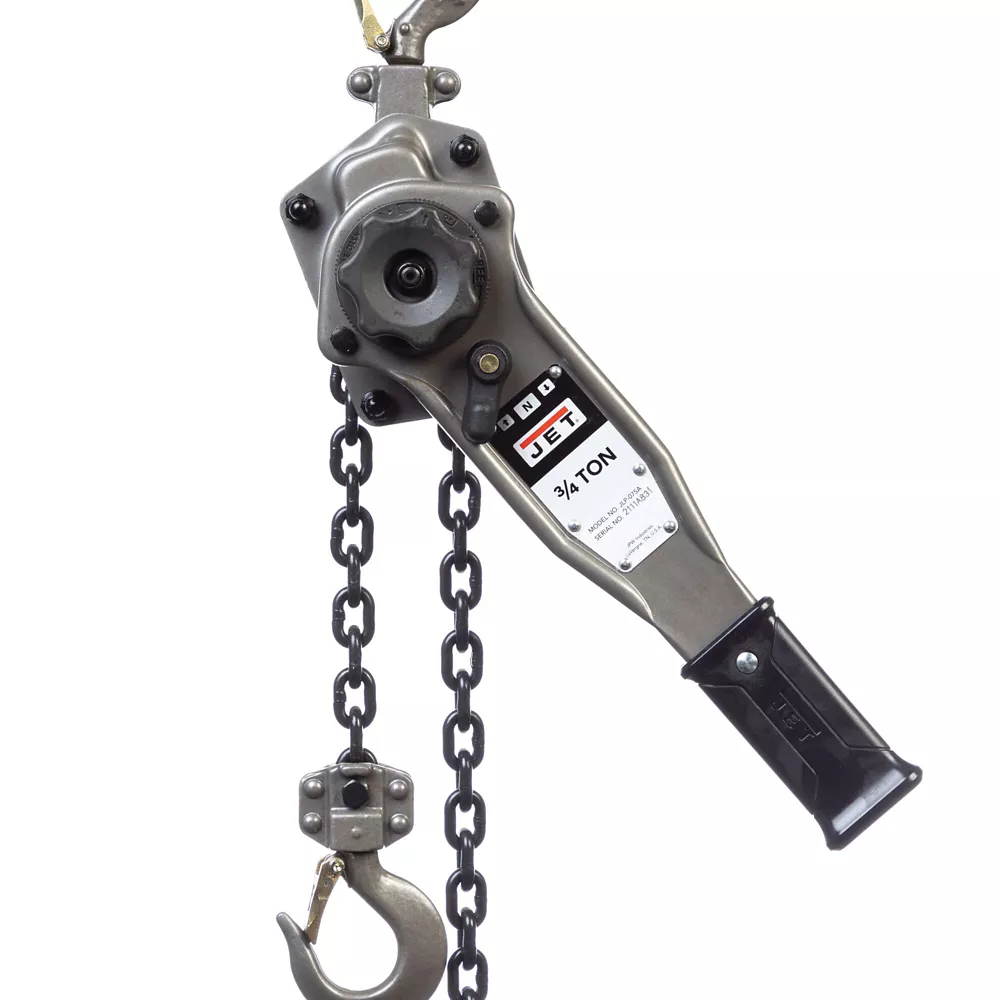

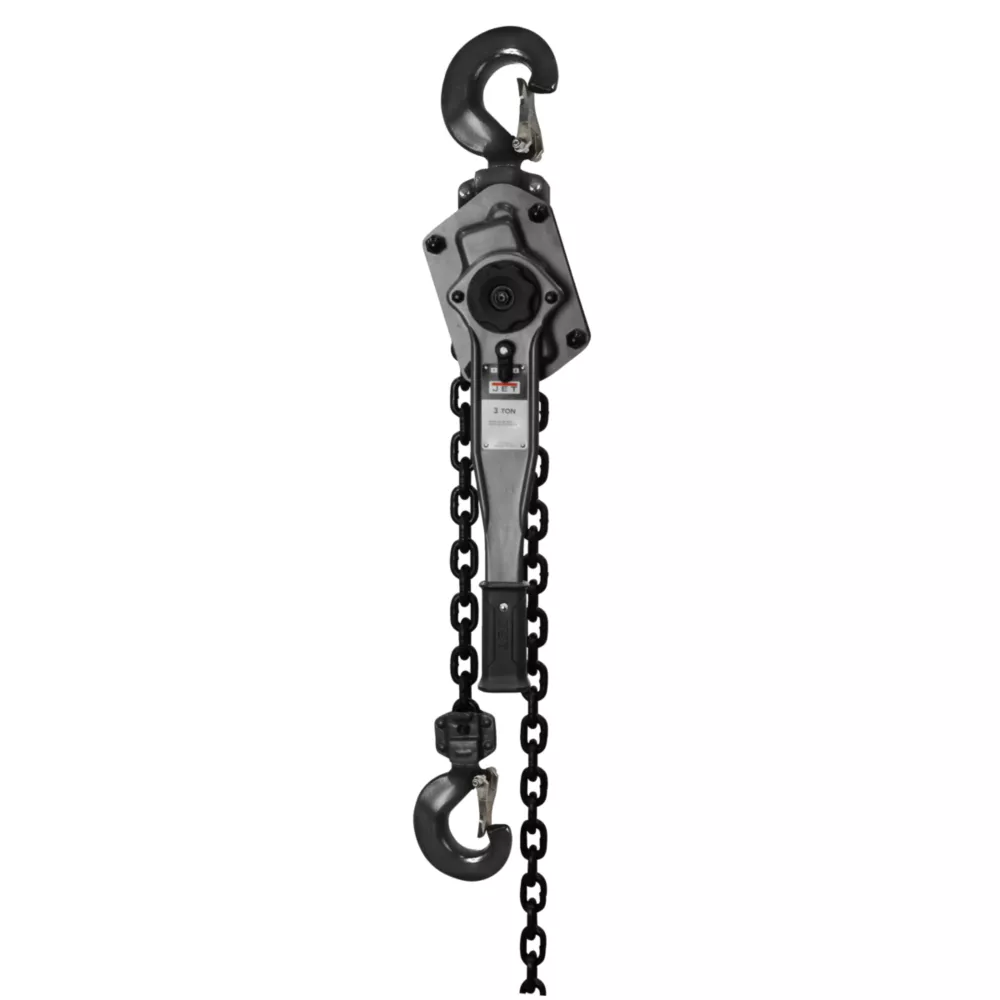

JET Lever Hoist 3/4 Ton Capacity 5 Feet Lift JLP-A Series Chain Hoists Ceiling Hoists

The JET JLP-A Series 3/4-Ton Lever Hoist with 5 ft. Lift combines safety, reliability and durability that are designed to perform in light to medium-duty industrial applications. The durable lever hoist's patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. This lever hoist also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading.

Lever hoist has a grade 80 black oxide coated load chain for added durability
Impact-resistant all steel construction for added durability and protection
Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Needle bearings support the load sheave to increase efficiency and promote smooth operation
JET's improved easy free chain design is a two-step, no load and free chaining system
Lever hoist has re-designed ergonomic grip that allows for greater operator control and increased comfort
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
System permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
Available in 1/4 ton to 6 ton capacities with standard lifts of 5, 10, 15 and 20 feet (custom lifts available)

JET Lever Hoist 3/4 Ton Capacity 5 Feet Lift JLP-A Series Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	5 ft.
Chain Pull To Lift Rated Load	31 lb.
Chain Width	0.702 in.
Features	Black oxide coated load chain
Hoist Mount Type	Hook mount
Lift Assist Ratio	53:1
Lift Height	5 ft.
Lift Mechanism	Hand crank
Maximum Pull Length	5 ft.
Maximum Weight Capacity	1,650 lb.
Power Type	Manual
Primary Material	Steel
Product Height	5.31 in.
Product Length	17.42 in.
Product Weight	14.015 lb.
Product Width	6.1 in.
Warranty	Lifetime
Manufacturer PartNumber	287300
