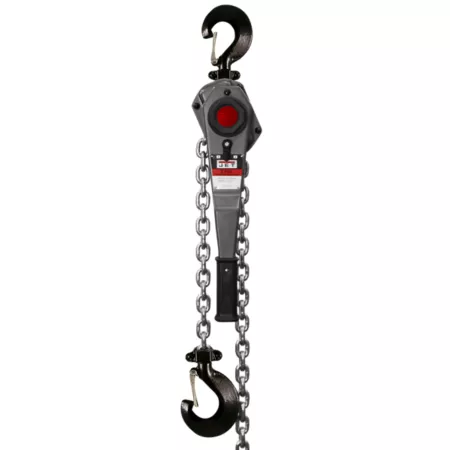

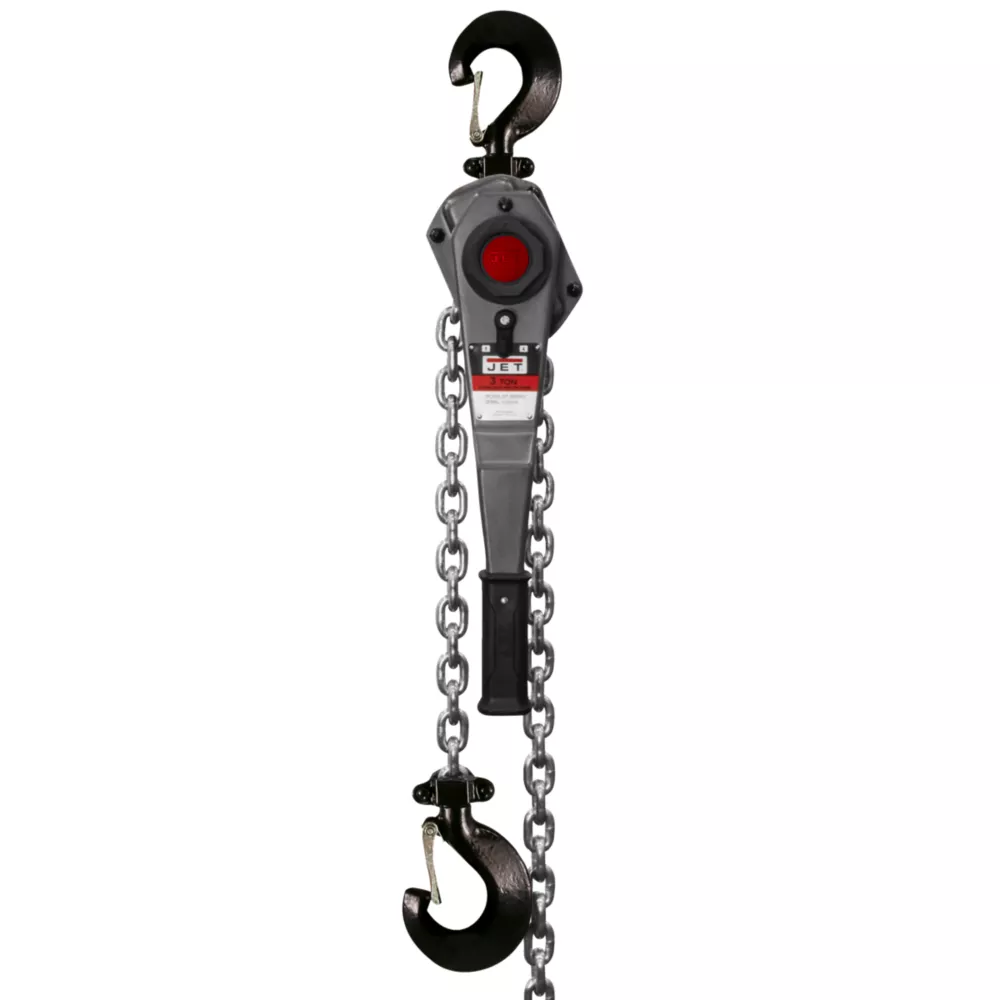

JET Lever Hoist 3 Ton 20 Feet Lift JLH Series Overload Protection and Shipyard Hooks Chain Hoists Ceiling Hoists
The JET JLH Series 3-Ton Lever Hoist with 20 ft. Lift, Overload Protection and Shipyard Hooks incorporates safety, durability and heavy-duty construction for operation in severe industrial environments. Safety comes standard with features such as slip clutch-style overload protection, which prevents the lever hoist from lifting or pulling damaging loads beyond its rated capacity. Our lightweight design, shorter handle and smaller body of this durable lever hoist are ideal for confined areas and low headroom applications.- Lever hoist has all steel construction for durability
- Caged needle bearings support the load sheave to increase efficiency and promote smooth operation
- Enhanced ergonomic grip allows for greater operator control and increased comfort
- Grade 100, corrosive-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
- Heat treated load plates for long-lasting use
- Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging
- Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Available in 1/4 ton to 9 ton capacities with standard lifts of 5, 10, 15 and 20 feet (custom lifts available)
- Lever hoist is backed by a lifetime replacement warranty
JET Lever Hoist 3 Ton 20 Feet Lift JLH Series Overload Protection and Shipyard Hooks Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists
| Specification | Description |
|---|---|
| Brand | JET |
| Country of Origin | Imported |
| Features | Plated load chain |
| Lift Assist Ratio | 4 |
| Lift Height | 20 ft. |
| Lift Mechanism | Hand crank |
| Maximum Pull Length | 20 ft. |
| Maximum Weight Capacity | 7,040 lb. |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 6.26 in. |
| Product Length | 22.56 in. |
| Product Weight | 68.0 lb. |
| Product Width | 7.52 in. |
| Warranty | Lifetime |
| Manufacturer PartNumber | 376903 |
