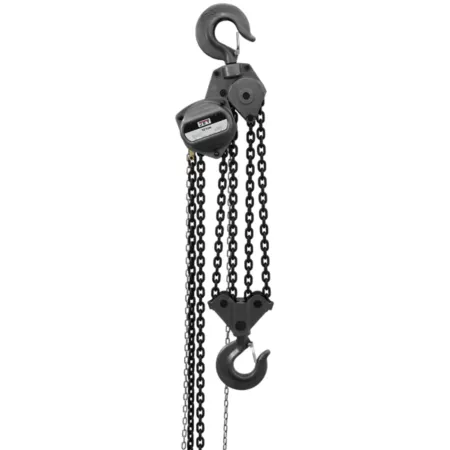

JET Manual Chain Hoist 10 Ton Capacity 10 Feet Lift S90 Series Chain Hoists Ceiling Hoists

The JET S90 Series 10-Ton Hand Chain Hoist with 10 ft. Lift is designed with all steel construction and ensures reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, this hand chain hoist is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20 and 30 feet (custom lifts available). The chain hoist is the ideal contractor grade hoist.

Grade 80 black oxide coated load chain for added durability
Chain hoist has heat treated load plates for long-lasting use
Industrial-rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
Intended for the harshest environments, the heat treated load plates and case hardened corrosive-resistant internal parts extend the life of the hoist
Needle bearings support the load sheave to increase efficiency and promote smooth operation
Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
Smaller body and lightweight design are ideal for confined areas and low headroom applications
Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety
Chain hoist is available in capacities from 1/2 ton to 10 ton and standard lifts of 10, 15, 20 and 30 feet (custom lifts available)

JET Manual Chain Hoist 10 Ton Capacity 10 Feet Lift S90 Series Chain Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Chain Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Chain Length	10 ft.
Chain Pull To Lift Rated Load	96 lb.
Chain Width	1.17 in.
Features	Black oxide coated load chain
Hoist Mount Type	Hook mount
Lift Assist Ratio	229:1
Lift Height	10 ft.
Lift Mechanism	Hand crank
Maximum Pull Length	10 ft.
Maximum Weight Capacity	22,000 lb.
Power Type	Manual
Primary Material	Steel
Product Height	16.3 in.
Product Length	22.0 in.
Product Weight	198.0 lb.
Product Width	19.2 in.
Warranty	Lifetime
Manufacturer PartNumber	101960

JET 10 Ton Capacity 10 ft. Lift S90 Series Hand Chain Hoist Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Chain Length 10 feet. Chain pull to lift rated load 96 lbs. 10' Lift Mechanism Crank Maximum Pull Length 10' Maximum Weight Capacity 22,000 lbs Power Type Manual Main Material Steel Product Height 16.3" Product Length 22.0" Product Weight 198.0 lbs Width 19.2" product Lifetime warranty Manufacturer part number 101960
