JET TS Series 3 Ton Electric Hoist with 15ft Lift and 2 Speed 3 Phase Trolley Electric Hoists Ceiling Hoists

The JET TS Series 3-Ton Electric Hoist with 15 ft. Lift and 2-Speed Trolley is designed and built for safety, durability and efficient operation in the toughest industrial applications. Designed with two speeds, this durable electric hoist can move materials quickly and safely. The electric hoist allows your material to then slow down to be placed exactly where you need it without the excessive bump firing.

2-in-1 design of the mechanical brake and overload protection ensure operator safety and extended product life
DC motor brake actuates instantly in the event of a power failure to ensure operator safety
Two speed motor ensures the correct speed for the job with a click of a button
Electric hoist has an IP55 TEFC motor with Class F insulation for working in harsh environments

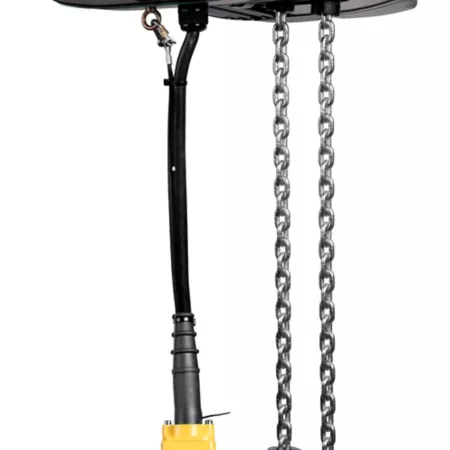

5-pocket chain sprocket provides reduced vibration, smoother operation and reduced chain wear during long lifting or lowering of loads
Pendant control is IP65 rated and is fully water-proof, insulated and impact-resistant for years of service
Built-in heat protection will not allow lifting if internal temperatures exceed 285 degrees F (+/-40 degrees); load will be allowed to be lowered until unit cools; this saves internal components and extends the life of the product
Electric hoist comes with a 10 ft. power supply cord
Available from 1/2 ton to 5 ton capacities
Safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load

JET TS Series 3 Ton Electric Hoist with 15ft Lift and 2 Speed 3 Phase Trolley Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Amperage	8.4A
Chain Length	15 ft.
Chain Width	0 in.
Features	Comes with 10ft power supply cord
Full Load Lifting Speed	33 FPM
Full Load Lowering Speed	5FPM
Hoist Mount Type	Hook mount
Number Of Speeds	2
Horsepower	5 HP
Lift Assist Ratio	0
Lift Height	15 ft.
Lift Mechanism	Other
Maximum Pull Length	15 ft.
Maximum Weight Capacity	6,600 lb.
Phase	Triple
Primary Material	Steel
Product Height	23.622 in.
Product Length	37.008 in.
Product Weight	366.0 lb.
Product Width	27.165 in.
Voltage	460V
Warranty	2 Year
Manufacturer PartNumber	144011K

JET 3 Ton TS Series Electric Hoist with 15 ft. Lift and 2-Speed Trolley, 3 Ph Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Amperage 8.4A Chain Length 15' Chain Width 0" Features Comes with 10' power cord Full Load Lift Speed 33 FPM Speed descent at full load 5 FPM Hoist mounting type Hook mounting Number of Speeds 2 horsepower 5 HP Lift assist ratio 0 Lift height 15 feet Lifting mechanism Other Maximum pull length 15 feet Maximum weight capacity 6,600 lb Phase Triple Primary Material Steel Product Height 23.622 in. Product Length 37.008 in. Product Weight 366.0 lb. Product Width 27.165 in. Voltage 460 V Warranty 2 years Manufacturer part number 144011K
