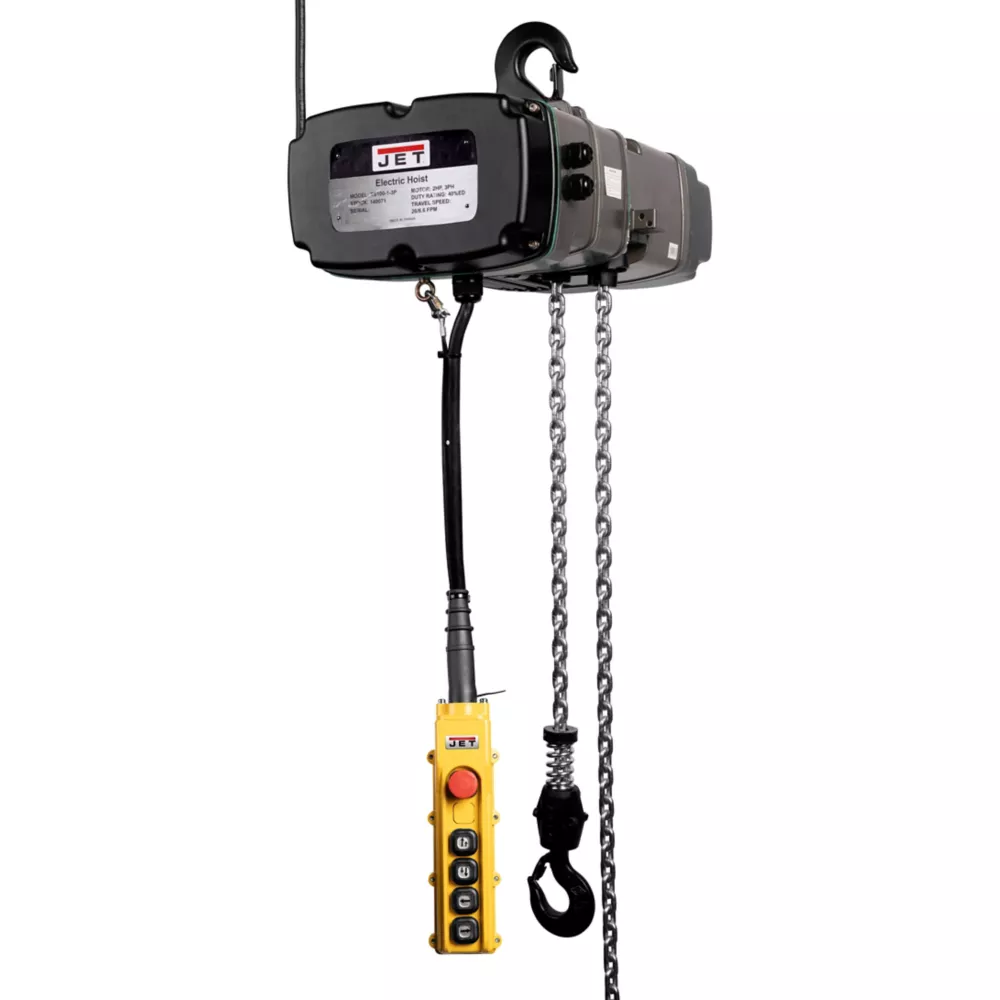

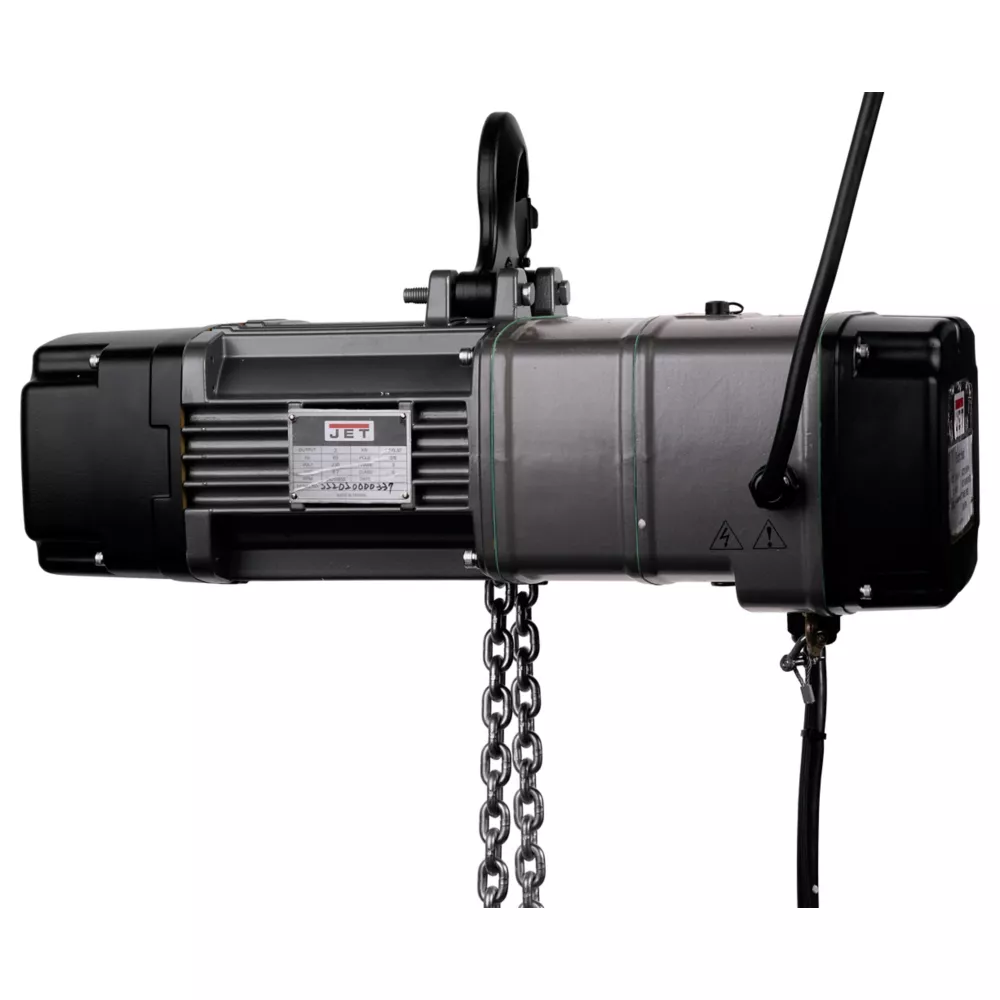

JET TS300-230-020 3-Phase Electric Chain Hoist 3 Ton Capacity 20 Feet Lift 230V Electric Hoists Ceiling Hoists
JET TS Series electric hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load.The TS series is available from 1/2 Ton to 5 Ton capacities. Let's Get to Work- IP55 TEFC Motor with Class F insulation for working in harsh environments
- The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
- DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
- Patented gear limit switch ensures the switches off power instantly in the case of over lifting or lowering position.

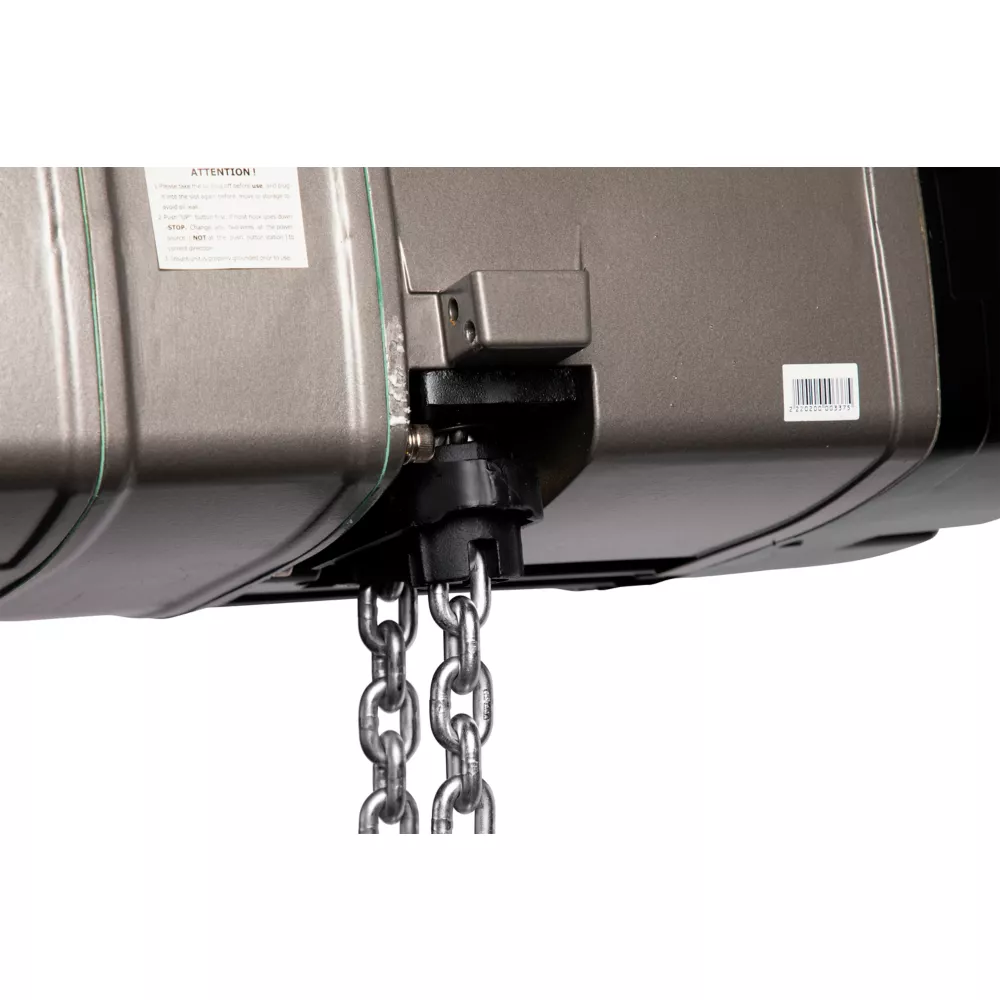

- 5 Pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
- Load chain is Grade 80 hardened and galvanized alloy steel chain built to withstand harsh conditions such as rain, saltwater, and chemicals with minimal wear.
- Pendant control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
- Built in heat protection will not allow lifting if internal temperatures exceed 285 F (+/-40). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
- Comes with 10ft power supply cord
JET TS300-230-020 3-Phase Electric Chain Hoist 3 Ton Capacity 20 Feet Lift 230V Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists
| Specification | Description |
|---|---|
| Brand | JET |
| Country of Origin | Imported |
| Features | Galvanized Chain |
| Full Load Lifting Speed | 33 FPM |
| Horsepower | 5 HP |
| Lift Assist Ratio | 0 |
| Lift Height | 20 ft. |
| Maximum Pull Length | 20 ft. |
| Maximum Weight Capacity | 3 Ton |
| Phase | Triple |
| Primary Material | Steel |
| Product Height | 23.622 in. |
| Product Length | 37.008 in. |
| Product Weight | 382 lb. |
| Product Width | 27.165 in. |
| Voltage | 230V |
| Warranty | 2 Year |
| Manufacturer PartNumber | 140118 |
