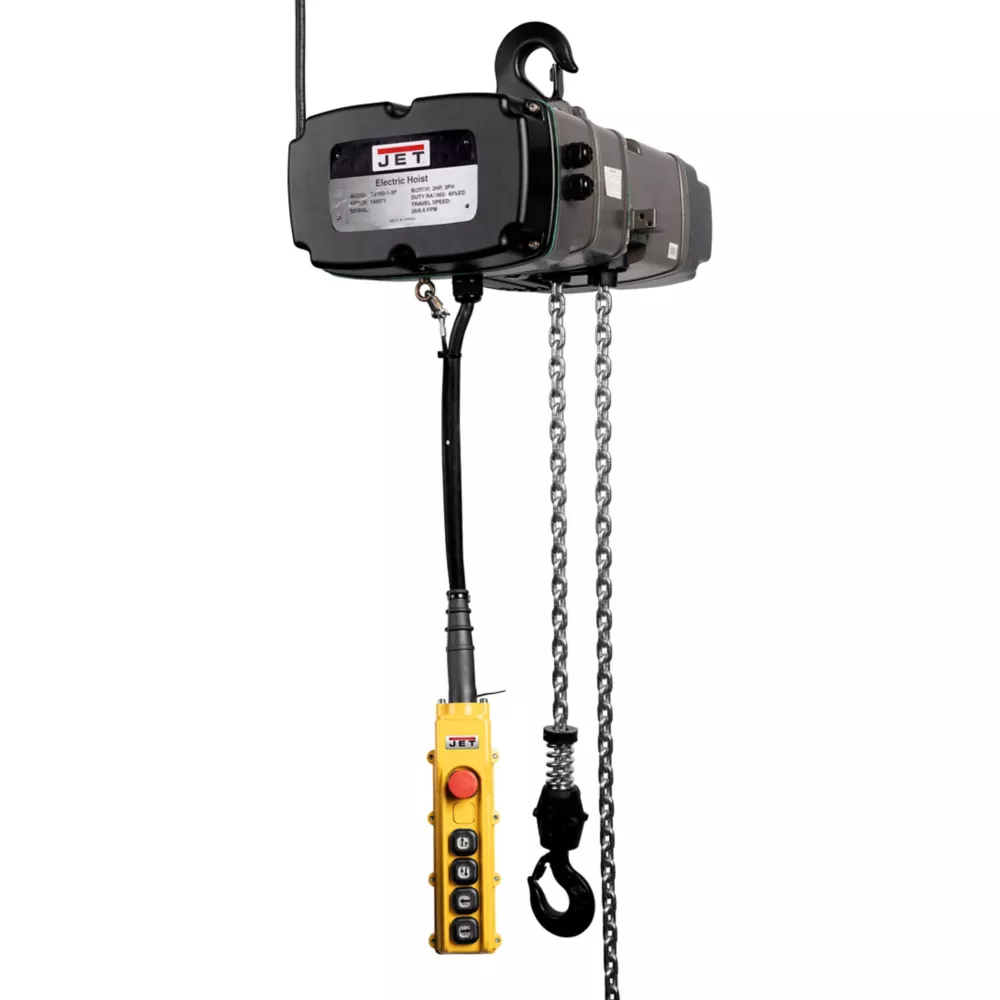

JET TS500-230-020 3-Phase Electric Chain Hoist 3 Ton Capacity 20 Feet Lift 230V Electric Hoists Ceiling Hoists

JET TS Series electric hoist is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. Additionally, a two in one mechanical brake and overload protection assures you of safety first on the jobsite. This new system will brake quickly while providing protection from overloading the hoist. We engineered this hoist to keep the operator safe and prolong the life of your tool. Lastly a patented gear limit switch will allow precise control of the stopping point in both directions. This feature will prolong the life of the hoist and help avoid possible damage to the unit. All of this with safe lifting speeds up to 33 feet per minute and as low as 3 feet per minute to give you the ability to be more efficient with every load.The TS series is available from 1/2 Ton to 5 Ton capacities. Let's Get to Work

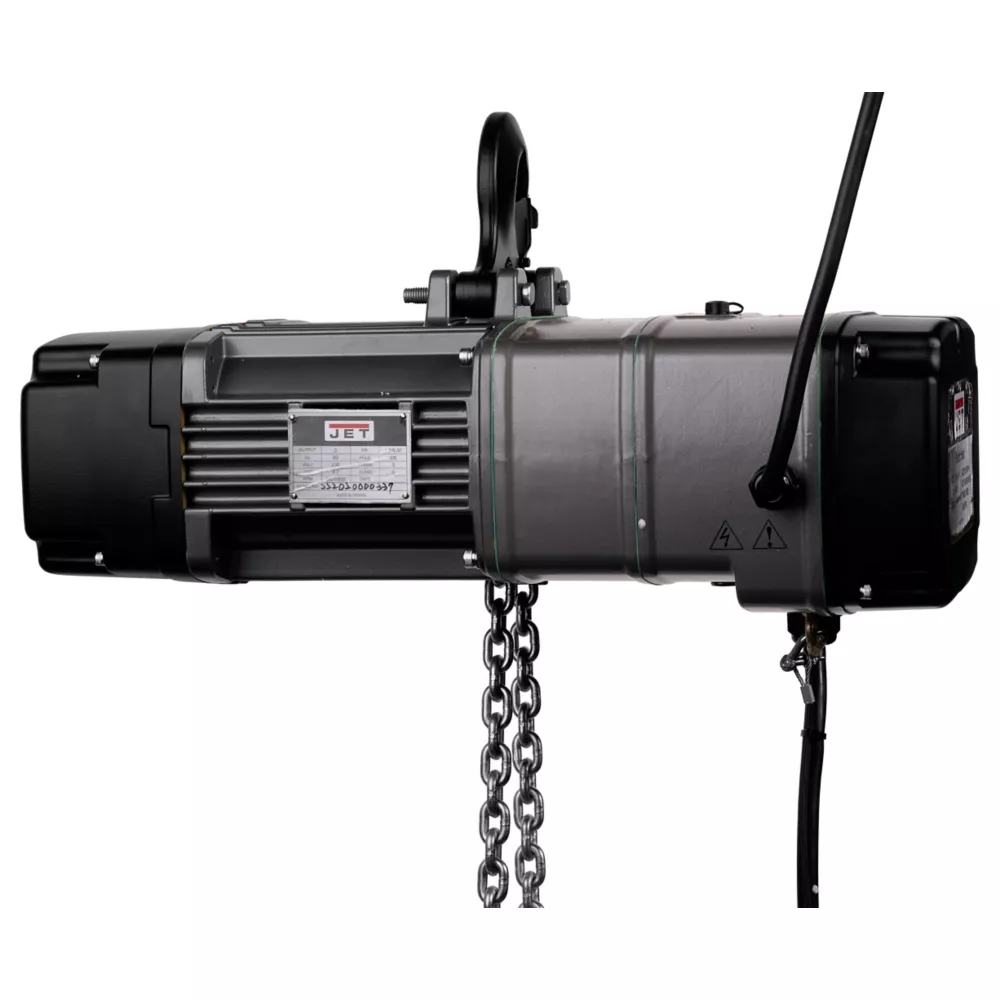

IP55 TEFC Motor with Class F insulation for working in harsh environments
The 2 in 1 design of the Mechanical Brake and Overload Protection ensure operator safety and extended product life.
DC Motor Brake actuates instantly in the event of a power failure to ensure operator safety.
Patented gear limit switch ensures the switches off power instantly in the case of over lifting or lowering position.

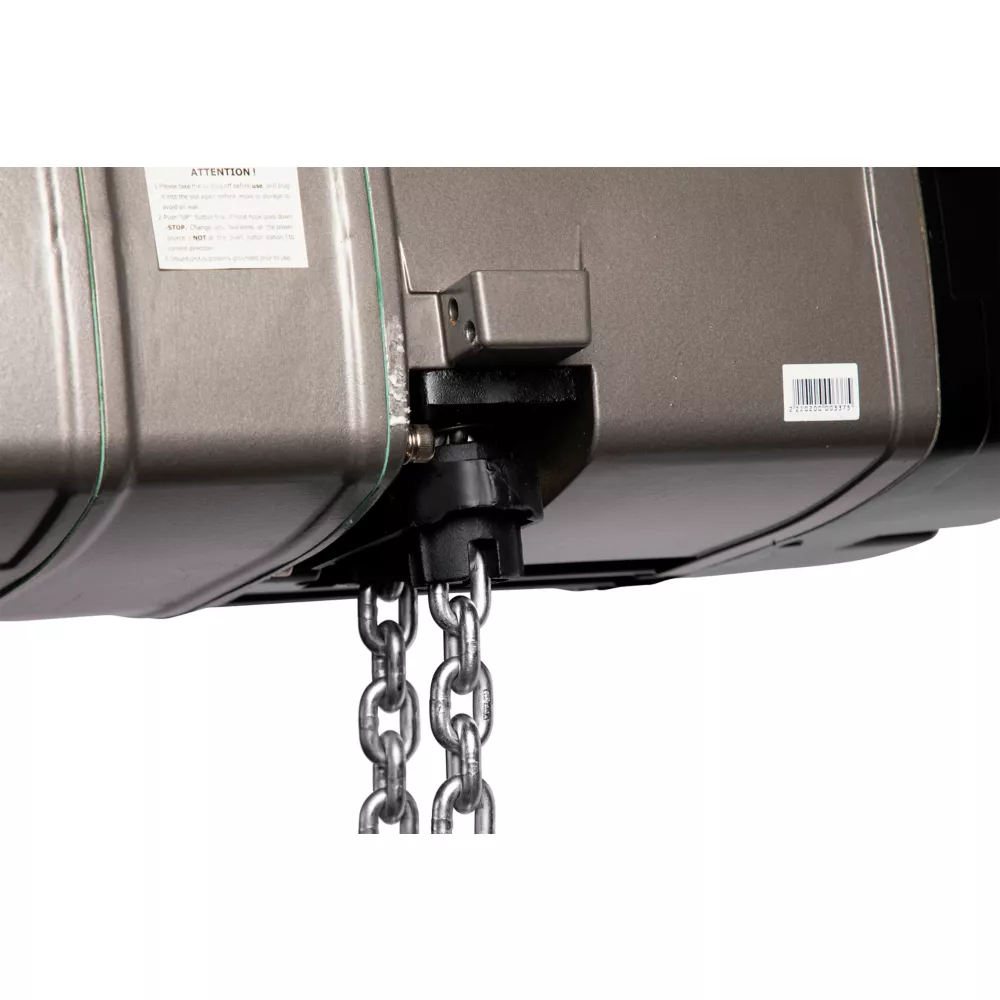

5 Pocket chain sprocket provides reduced vibration, smoother operation, and reduced chain wear during long lifting or lowering of loads.
Load chain is Grade 80 hardened and galvanized alloy steel chain built to withstand harsh conditions such as rain, saltwater, and chemicals with minimal wear.
Pendant control is IP65 rated and is fully water-proof, insulated and impact resistant for years of service.
Built in heat protection will not allow lifting if internal temperatures exceed 285 F (+/-40). Load will be allowed to be lowered until unit cools. This saves internal components and extends the life of the product.
Comes with 10ft power supply cord

2 year

JET TS500-230-020 3-Phase Electric Chain Hoist 3 Ton Capacity 20 Feet Lift 230V Electric Hoists Home Improvement> Moving & Lifting> Ceiling Hoists> Electric Hoists

Specification	Description
Brand	JET
Country of Origin	Imported
Features	Galvanized Chain
Full Load Lifting Speed	33 FPM
Lift Assist Ratio	0
Lift Height	20 ft.
Maximum Pull Length	20 ft.
Maximum Weight Capacity	5 Ton
Phase	Triple
Primary Material	Steel
Product Height	23.622 in.
Product Length	37.008 in.
Product Weight	410 lb.
Product Width	27.165 in.
Voltage	230V
Warranty	2 Year
Manufacturer PartNumber	140129

JET 3 Ton Capacity 20 ft. Lift TS500-230-020 3-Phase Electric Chain Hoist, 230V Specifications expand/collapse Specification Description Brand JET Country of Origin Imported Features Galvanized Chain Full Load Lift Speed 33 FPM Lift Assist Ratio 0 Lift Height 20 ft. Maximum pull length 20 ft. Maximum Weight Capacity 5 Tons Phase Triple Main Material Steel Product Height 23.622 in. Product Length 37.008 in. Product weight 410 lbs. Product width 27.165 in. Voltage 230 V 2 year warranty Manufacturer part number 140129.
