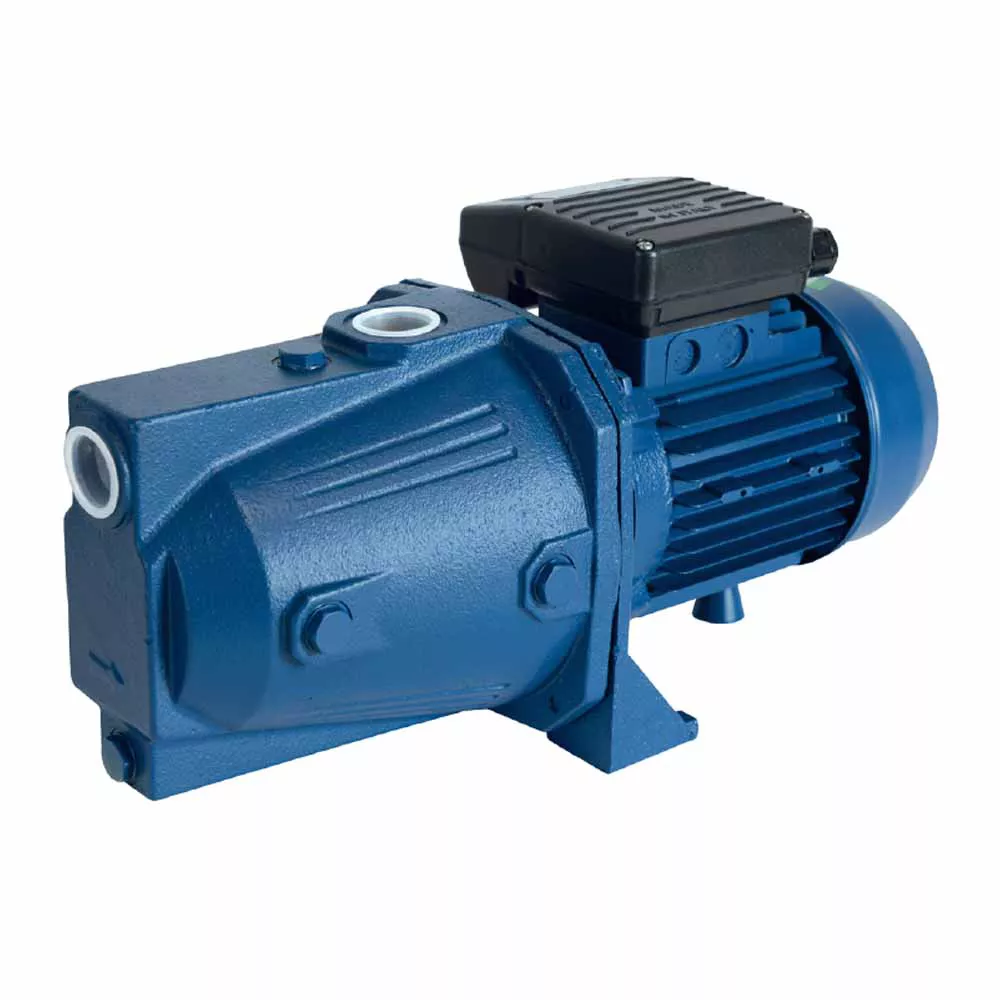

JMS Cast Iron Shallow Well Electric Jet Pump 1 HP 115/220 V 1 in 154 ft 16 GPM Well Pumps Home Improvement

The JMS 1 HP 1 in. Electric-Powered 115/220V 16 GPM 154 ft. Shallow Well Cast-Iron Jet Pump comes with a very high hydraulic performance and a considerable pressure capacity. It's able to pump up to 20 ft. depth and works perfectly even for clean water, water lifting and distribution in domestic fittings by small and medium size tanks. The pump body cast iron construction offers enhanced durability. This jet pump also comes with universal pipe material compatibility for convenience.

Pump body cast iron offers enhanced durability
Equipped with a Noryl impeller
Single-phase 110/230V-60Hz
Total suction lift up to 26 ft.
Universal pipe material compatibility for convenience
Backed by a 1 year limited warranty

JMS Cast Iron Shallow Well Electric Jet Pump 1 HP 115/220 V 1 in 154 ft 16 GPM Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	JMS
Country of Origin	Imported
Amperage	11.6 - 5.8
Body Material	Cast iron
Compatible Pipe Material	Universal
Compatible Well Diameter	1 in. NPT
Discharge Connection	Threaded Female
Discharge Diameter	1 in. NPT
Discharge Rate at 0 ft.	16 GPM
Discharge Rate at 25 ft.	16.5 GPM
Discharge Rate at 50 ft.	16 GPM
Features	Self Priming
Horsepower	1 HP
Inlet Connection	Threaded Female
Inlet Diameter	1 in.
Maximum Flow Rate	16 GPM
Maximum Head Lift	17 ft.
Maximum Operating Depth	20 ft.
Maximum Operating Temperature	95 deg. F
Minimum Operating Temperature	32 deg. F
Power Type	Electric
Product Height	9.4 in.
Product Length	18 in.
Product Weight	32 lb.
Product Width	8 in.
Motor Type	ELECTRIC
Voltage	115V/220V
Warranty	1 YEAR LIMITED WARRANTY
Manufacturer PartNumber	1111100

JMS 1 HP 115/220V Electric 1 in. 154 ft. Shallow Well Cast Iron Jet Pump, 16 GPM Specifications expand/collapse Specification Description Brand JMS Country of Origin Imported Amperage 11.6 - 5.8 Body Material Cast Iron Compatible Pipe Material Universal Compatible Well Diameter 1 in. NPT discharge fitting 1 in. threaded female discharge diameter. NPT discharge rate at 0 ft. 16 GPM Discharge Flow at 25 ft. 16.5 GPM Discharge Rate at 50 ft. 16 GPM Features Self-Priming Power 1 HP Inlet Connection Female Threaded Inlet Diameter 1 in. Maximum flow 16 GPM Maximum head lift 17 ft. Maximum operating depth 20 ft. Maximum operating temperature 95 degrees. F Minimum operating temperature 32 degrees. F Power Type Electric Product Height 9.4 in. Product Length 18 in. Product Weight 32 lb. Product Width 8 in. Motor Type ELECTRIC Voltage 115V/220V Warranty 1 YEAR LIMITED WARRANTY Manufacturer Part Number 1111100
