K2 Pumps 3/4 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 12.7 GPM Lead Free Well Pumps Home Improvement

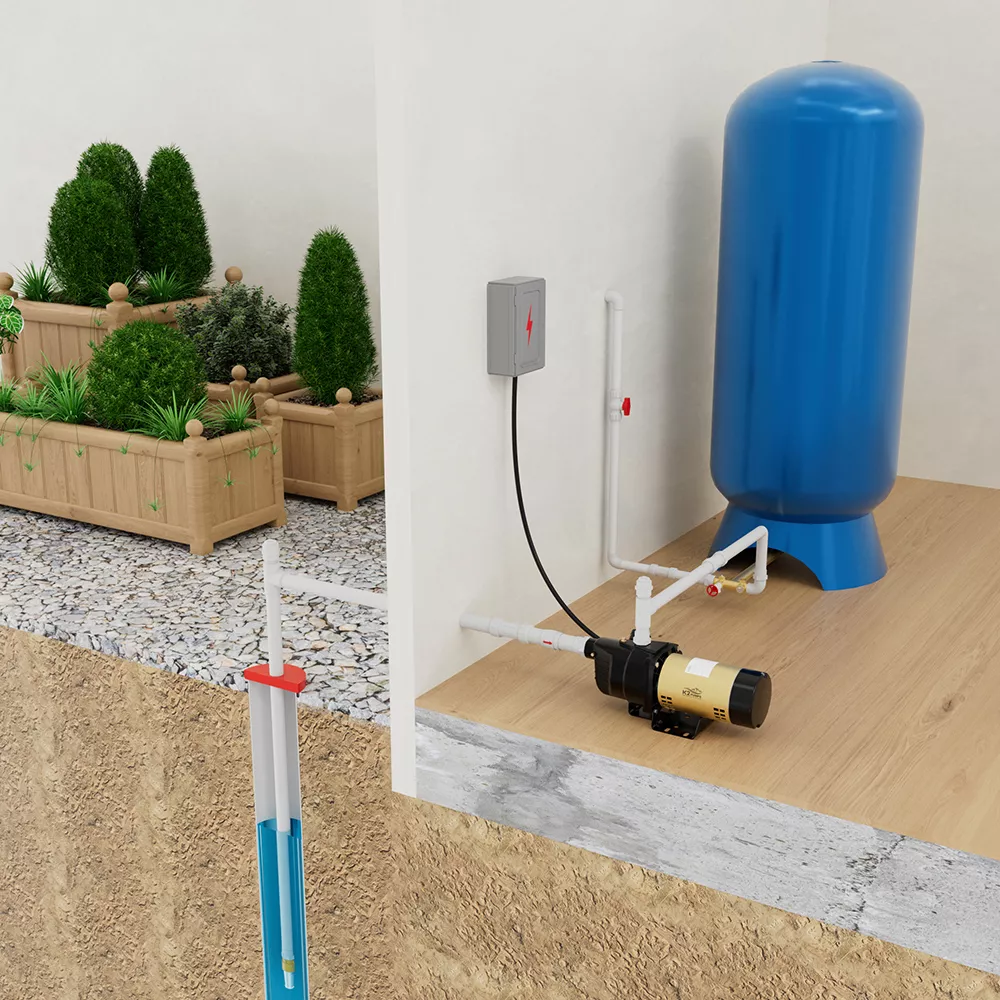

The K2 Pumps 3/4 HP Lead-free shallow well jet pump is constructed of heavy-duty cast iron. The pump is installed above ground for shallow wells with depth to water from 0 to 25 ft. Self-priming after pump housing is initially filled. Pre-wired pressure switch: preset for 30/50 pressure switch. Maximum pressure shut off at 76 PSI.

Constructed of heavy-duty cast iron
Installed above ground for shallow wells with depth to water up to 25 ft. deep
Dual voltage motor, preset at 230V
Flow rate of 12.7 GPM at 0 ft of lift
Certified Lead-Free to NSF/ANSI/CAN 61, and NSF/ANSI 372
30/50 Pressure switch
1-1/4 in. NPT Suction and 1 in. NPT Discharge
3 Year Warranty

K2 Pumps 3/4 HP 115/230 Volt Cast Iron Electric Shallow Well Jet Pump 12.7 GPM Lead Free Well Pumps Home Improvement> Plumbing> Well Parts & Repair> Well Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	12.2 A/6.1 A
Body Material	Cast iron
Compatible Pipe Material	PVC
Compatible Well Diameter	0 N/A
Discharge Connection	Threaded Female
Discharge Diameter	1 in.
Discharge Rate at 0 ft.	12.7 GPM
Discharge Rate at 25 ft.	5.2 GPM
Discharge Rate at 50 ft.	0 N/A
Features	115/230 Dual voltage motor, preset at 230V
Horsepower	3/4 HP
Impeller Material	Thermoplastic
Inlet Connection	Threaded Female
Inlet Diameter	1-1/4 in.
Maximum Flow Rate	12.7 GPM
Maximum Head Lift	25 ft.
Maximum Operating Depth	25 ft.
Maximum Operating Temperature	104 deg.
Minimum Operating Temperature	32 deg.
Power Type	Electric
Product Height	19.2 in.
Product Length	8.03 in.
Product Weight	37.5 lb.
Product Width	9.3 in.
Motor Type	CSIR
Voltage	115v/230v
Warranty	3 Year
Manufacturer PartNumber	WPS07501K
