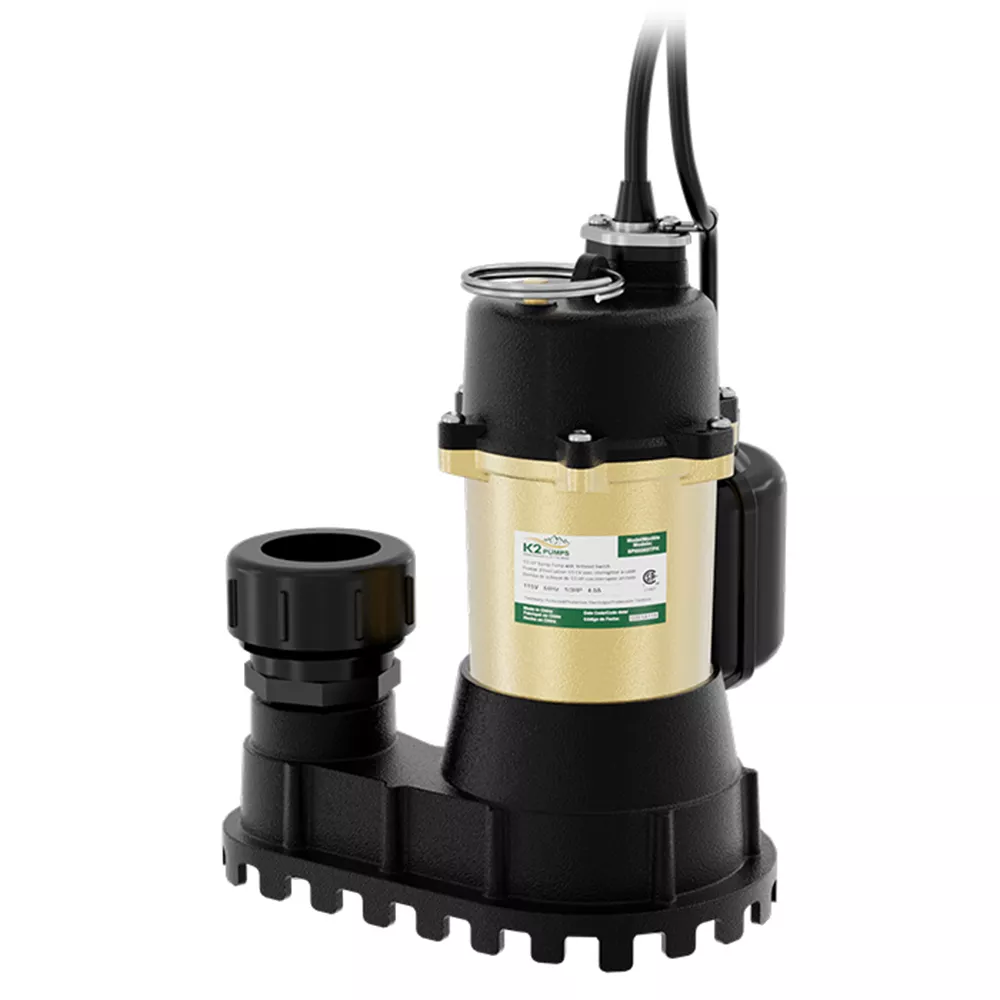

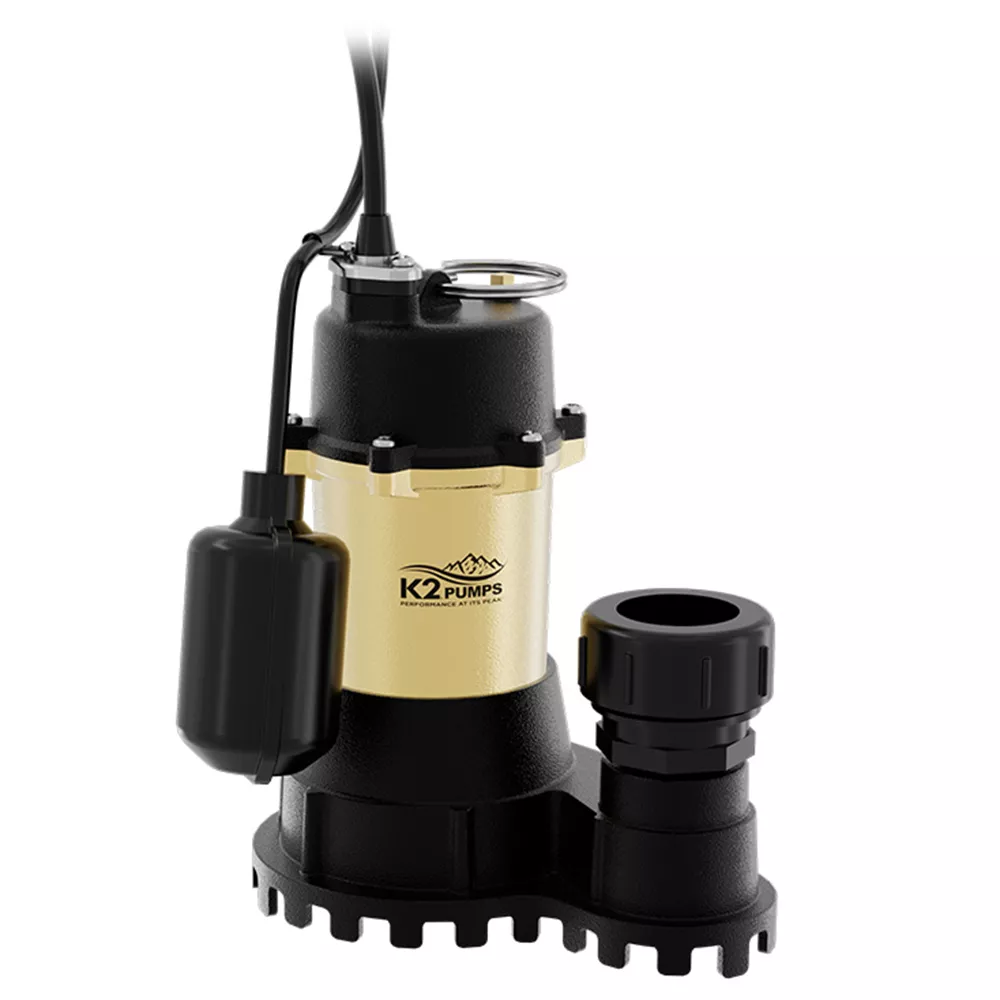

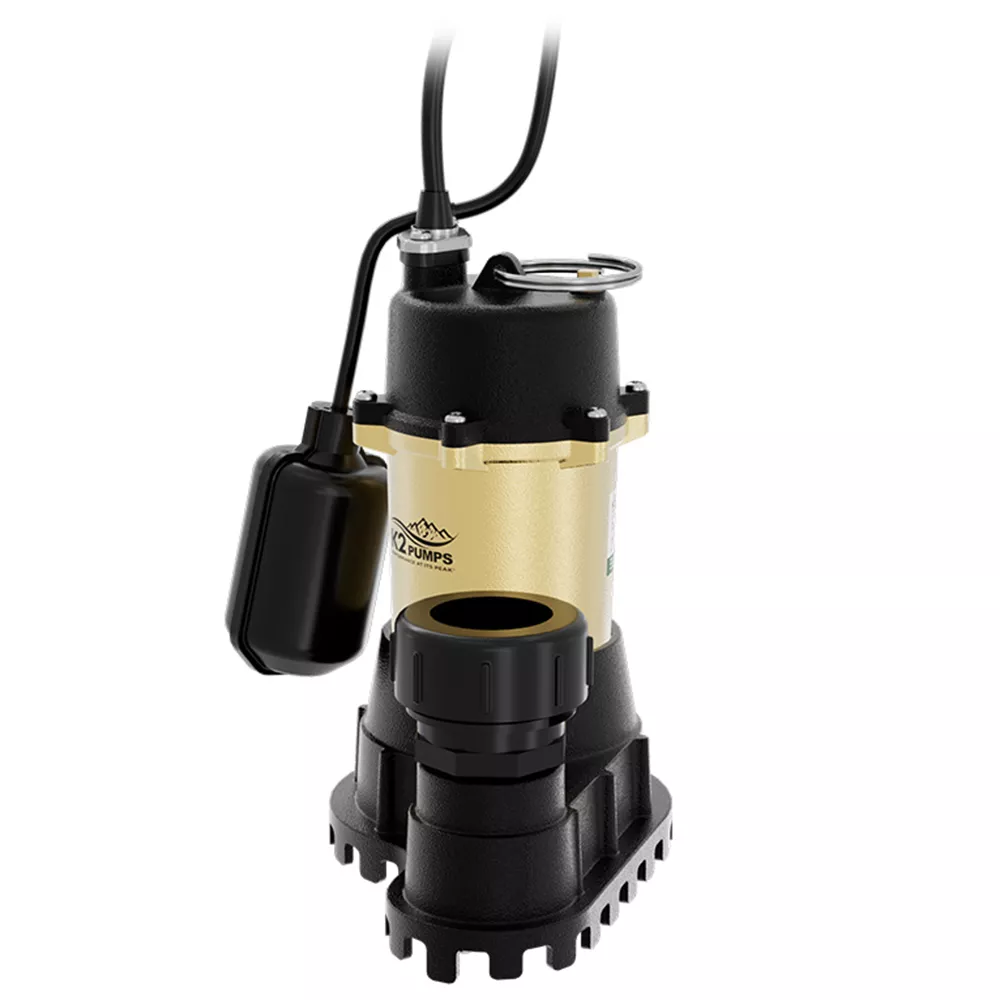

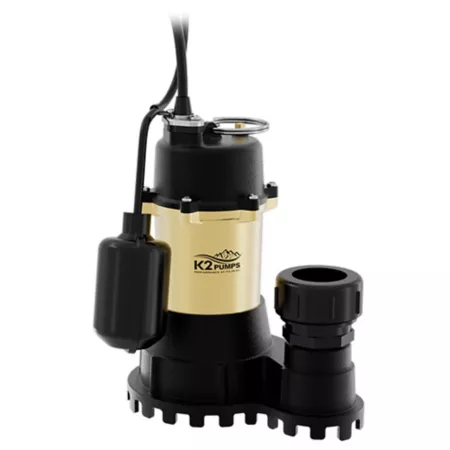

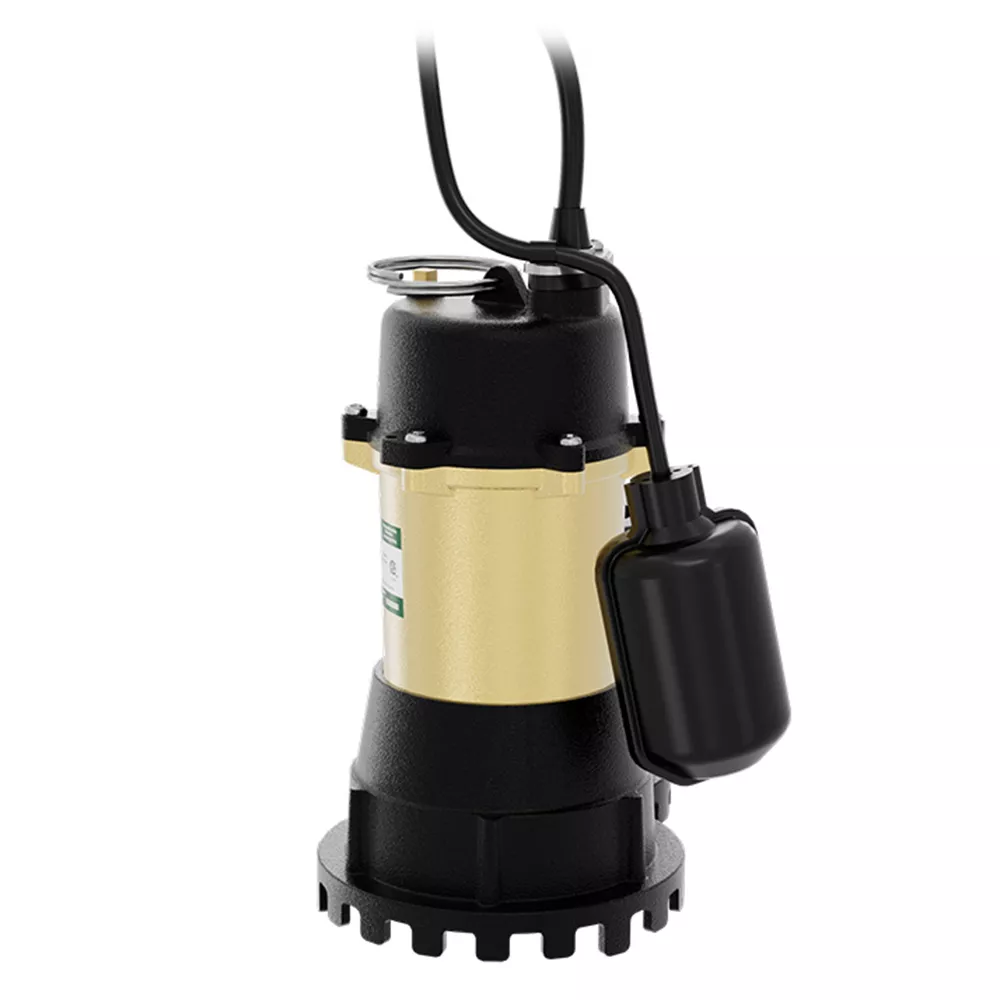

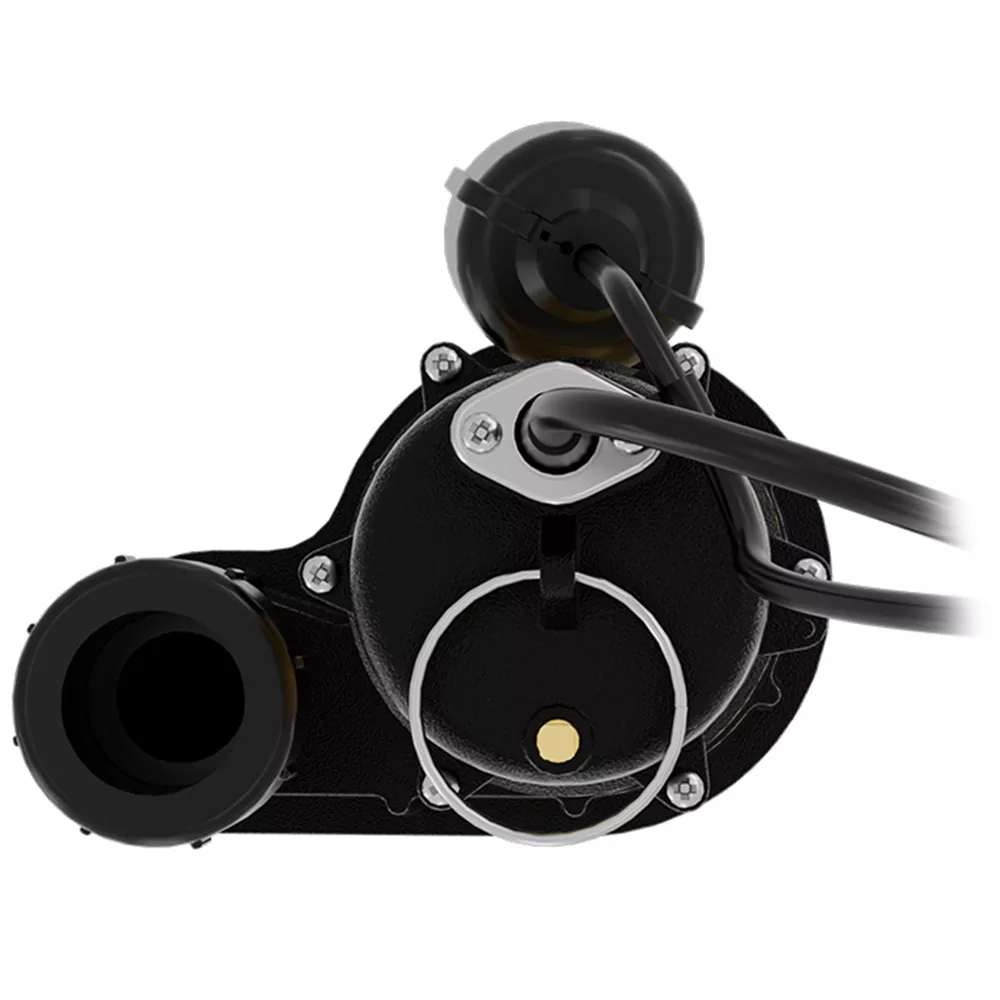

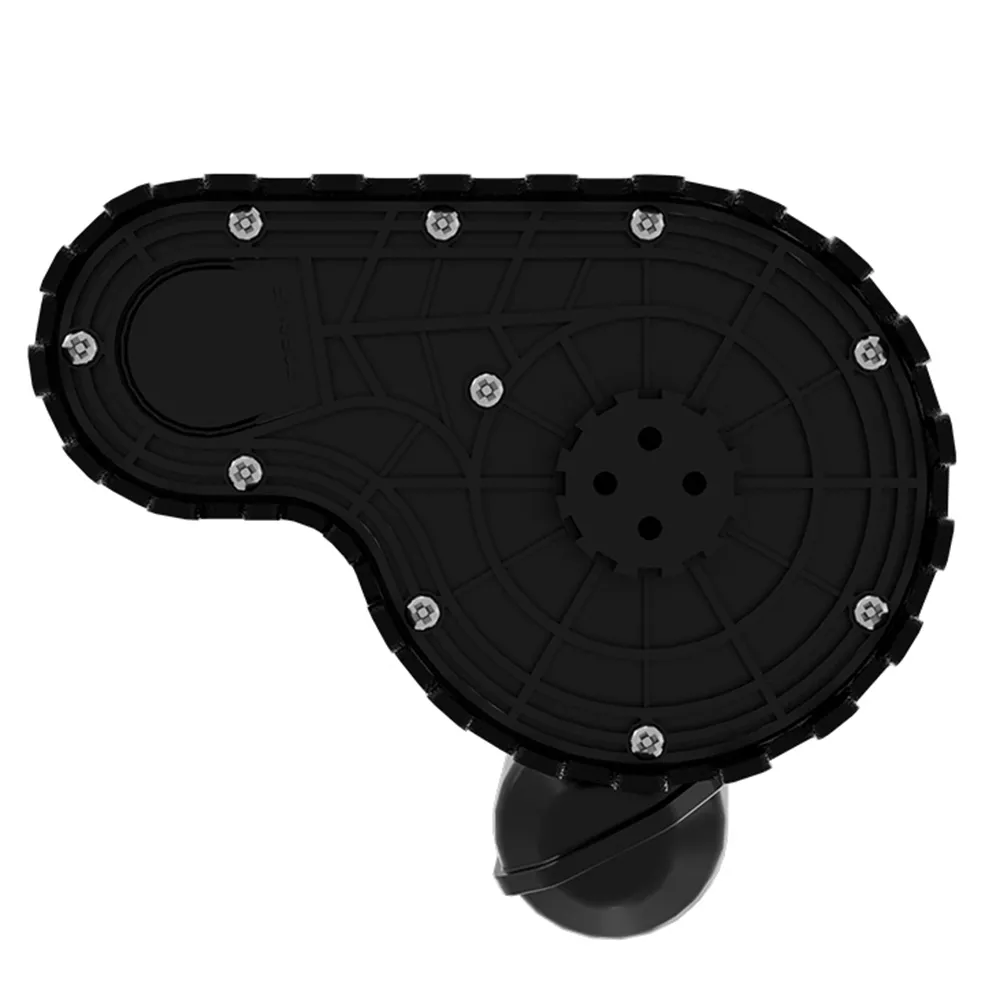

K2 Pumps SPI03303TPK 1/3 HP Cast Iron Sump Pump with Attached Piggyback Switch Sump Pumps Farm & Ranch

The K2 Pumps 1/2 HP Sump Pump, with piggyback tethered float switch, discharges 3800 GPH at 0 ft, with a maximum lift of 25 ft. The pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative quick-connect fitting features a metal ring with teeth that firmly grip PVC pipes. The pump is operated by an energy-efficient, oil-free PSC motor with thermal overload protection.

Durable, heavy-duty Cast Iron construction
Removes water up to 3800 GPH at 0 ft. of lift, maximum lift of 25 ft.
Piggyback Tethered Float Switch tested to over One Million Cycles
Includes a 1-1/2 in. Quick-Connect Fitting which eliminates the need for PVC primer, glue or plumber's tape
Non-clog Vortex Impeller handles up to 1/4 in. spherical solids
Comes with a 10 ft. power cord
3 Year Warranty

K2 Pumps SPI03303TPK 1/3 HP Cast Iron Sump Pump with Attached Piggyback Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	4 Amp
Basin Diameter	14 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1-1/2 in.
Discharge Rate at 0 ft.	63 GPM
Discharge Rate at 10 ft.	50 GPM
Engine Displacement	0 N/A
Features	Quick Connect Fitting eliminates the need for PVC primer, glue or plumber's tape
Horsepower	1/3 HP
Hose Diameter	1-1/2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	4.85 in.
Maximum Flow Rate	63 GPM
Maximum Head Lift	25 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	95 deg.
Maximum Solids Diameter	1/4 in.
Maximum Suction Lift	25 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	10 ft.
Power Type	Corded/Plug-in
Product Height	12.38 in.
Product Length	6.5 in.
Product Weight	19.5 lb.
Product Width	9.13 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	6.3 in.
Switch-On Height	14.6 in.
Voltage	115 V
Warranty	3 Years
Manufacturer PartNumber	SPI03303TPK
