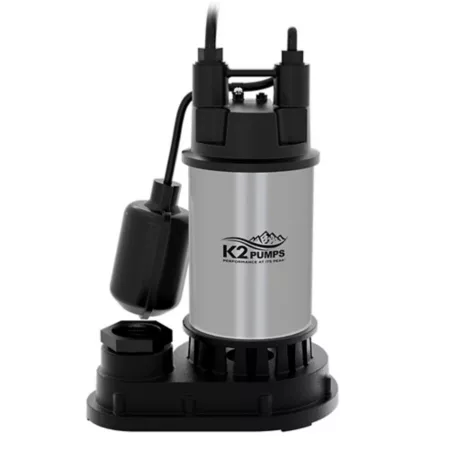

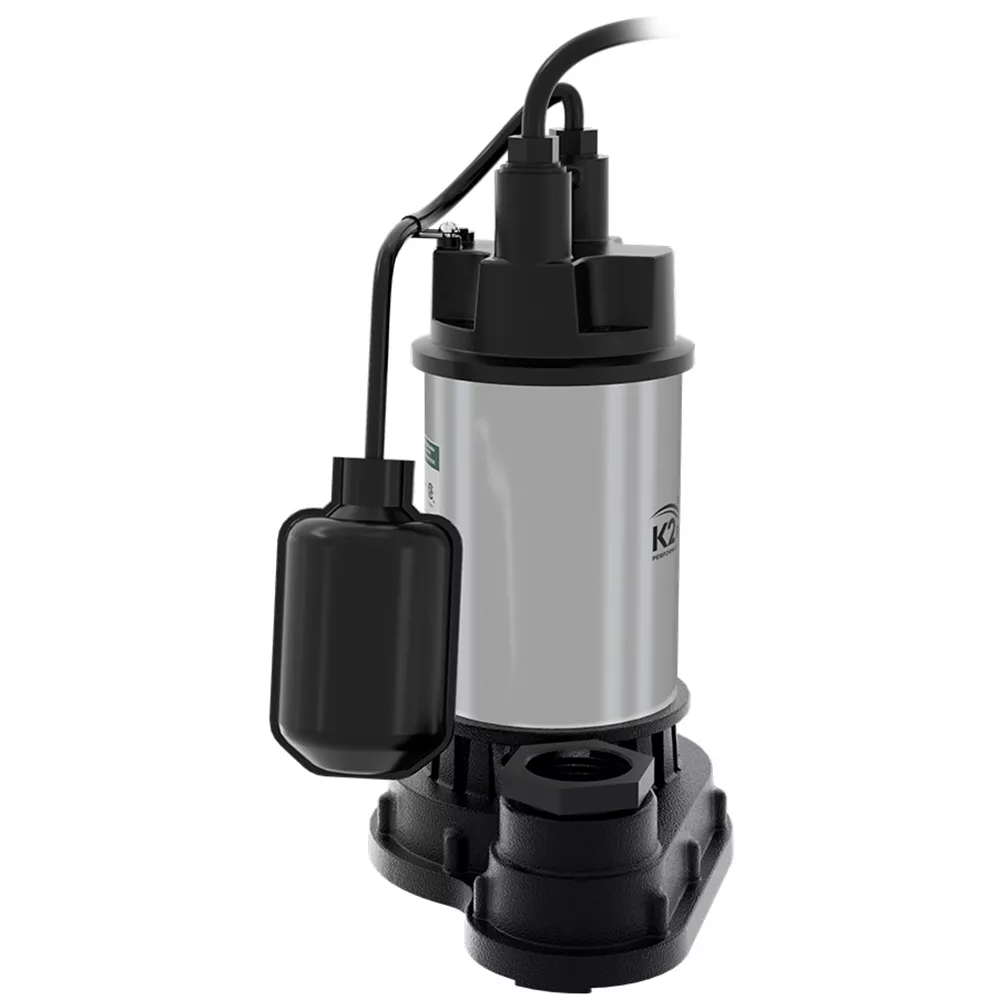

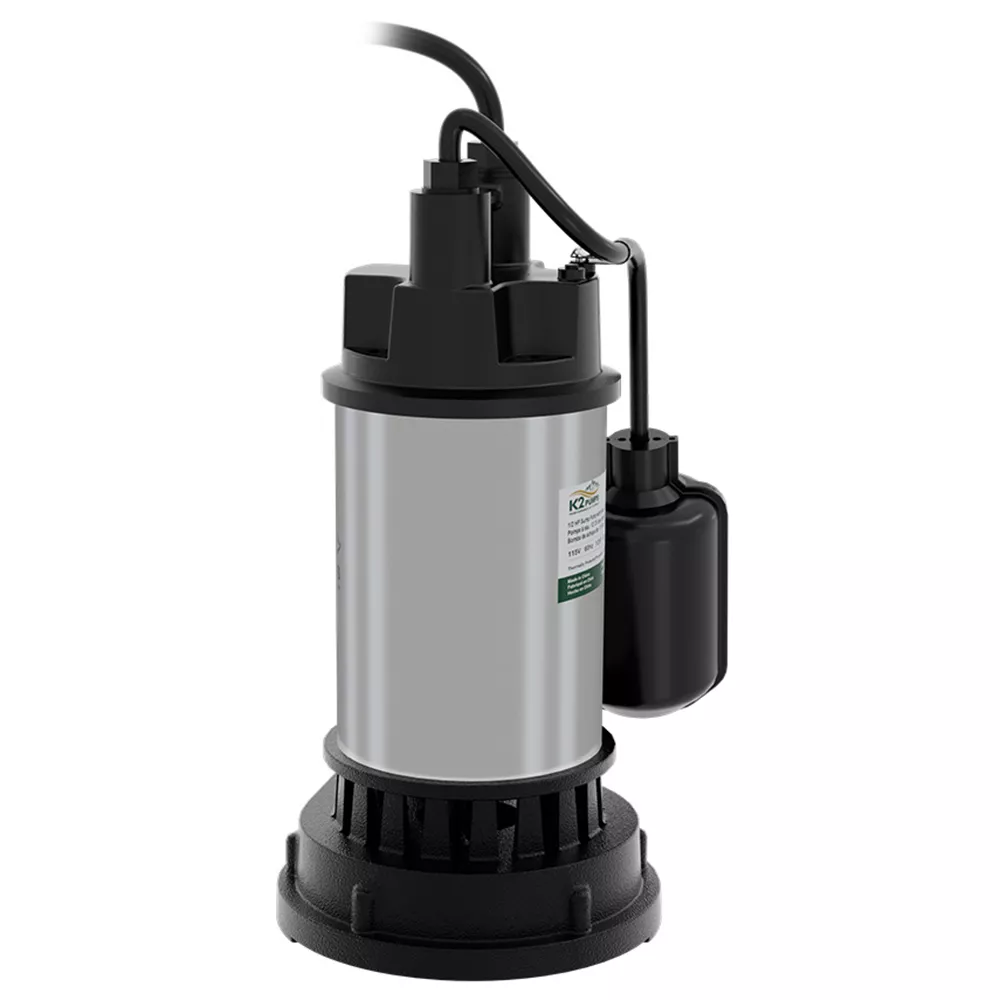

K2 Pumps SPS05001TDK 1/2 HP Stainless Steel Sump Pump with Direct Connected Switch Sump Pumps Farm & Ranch

The K2 Pumps 1/2 HP Sump pump with direct-in tethered float switch discharges 4200 GPH at 0 ft. of lift, with a maximum lift of 29 ft. The motor housing is constructed of stainless steel with cast iron volute and seal plate. The top suction design minimizes clogging, filters debris and handles up to 1/4 in. solids. Lubricated upper and lower ball bearings. The energy-efficient, oil-filled PSC motor provides continuous lubrication and extends the life of the pump.

Stainless steel motor housing and durable, cast iron base
Removes water at 4200 GPH at 0 ft. of lift
Direct-in tethered float switch for automatic operation
Energy-efficient PSC oil-filled motor

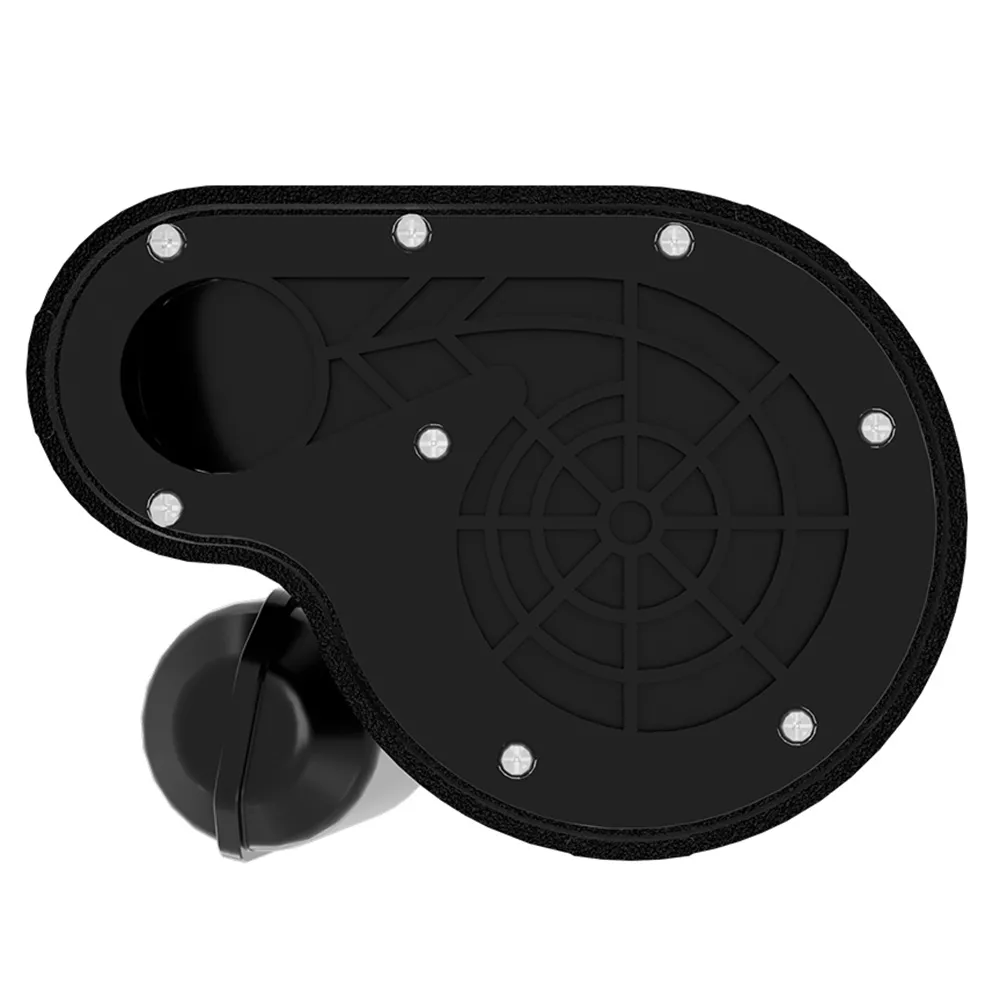

Top suctions design filters debris and handles up to 1/4 in. solids
Discharge size is 1-1/2 in. or 1-1/4 in. FNPT adapter included.
Comes with a 10 ft. power cord.
2 Year Warranty

K2 Pumps SPS05001TDK 1/2 HP Stainless Steel Sump Pump with Direct Connected Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	6.5 Amp
Basin Diameter	10 in.
Body Material	Stainless steel
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	1-1/2 in.
Discharge Rate at 0 ft.	70 GPM
Discharge Rate at 10 ft.	60 GPM
Engine Displacement	0 N/A
Features	Includes 1-1/4 in. adapter, Top suction minimizes clogging & filters debris
Horsepower	1/2 HP
Hose Diameter	1-1/2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	7.52 in.
Maximum Flow Rate	70 GPM
Maximum Head Lift	29 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	95 deg.
Maximum Solids Diameter	1/4 in.
Maximum Suction Lift	29 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	10 ft.
Power Type	Corded/Plug-in
Product Height	12.64 in.
Product Length	7.52 in.
Product Weight	17.22 lb.
Product Width	8.62 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	6.3 in.
Switch-On Height	14.6 in.
Voltage	115 V
Warranty	2 Years
Manufacturer PartNumber	SPS05001TDK
