K2 Pumps SWF07501TPK 3/4 HP Cast Iron Effluent Pump with Piggback Attached Float Switch Sump Pumps Farm & Ranch

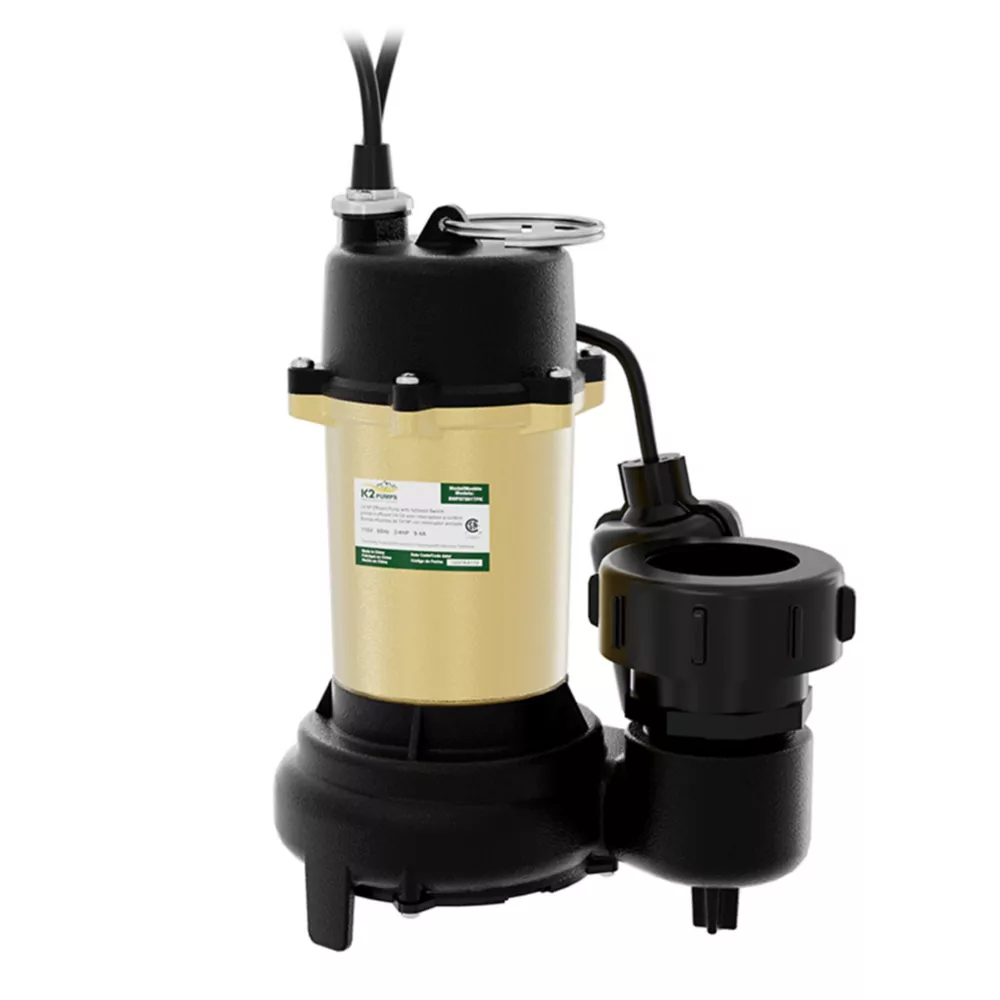

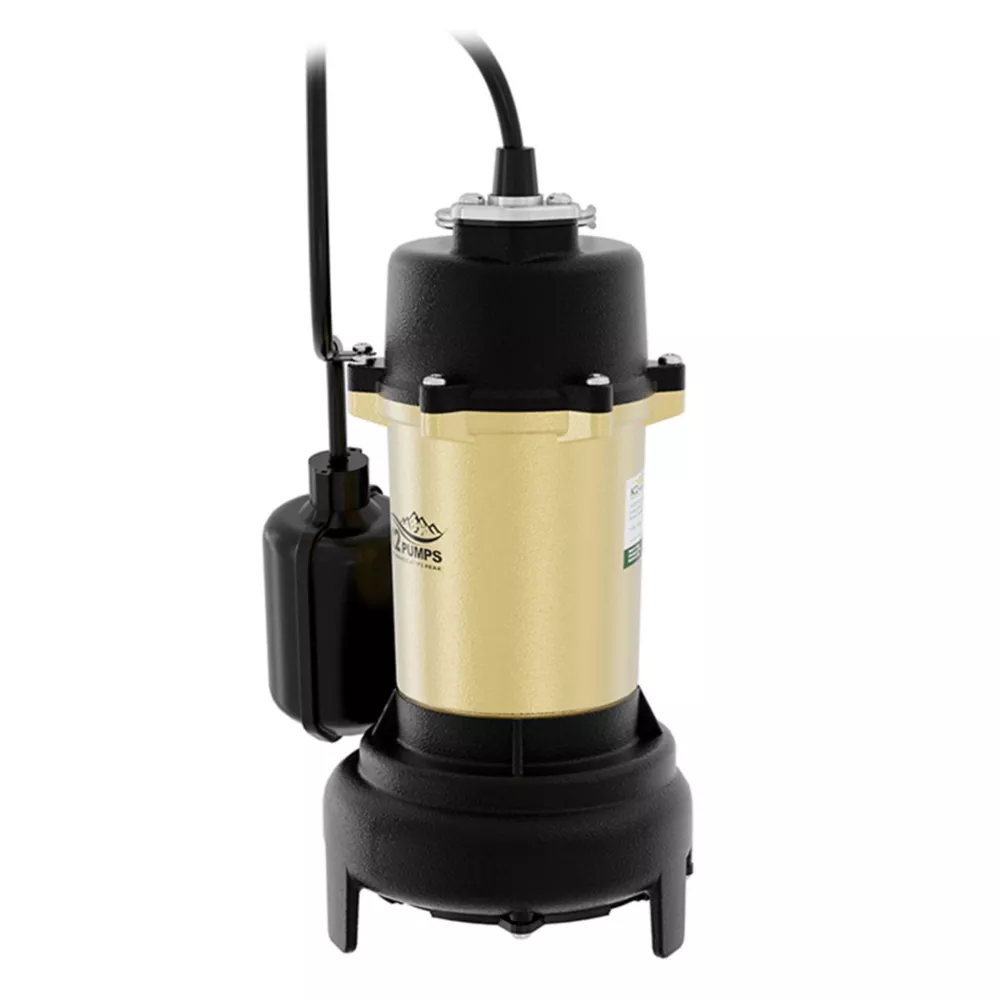

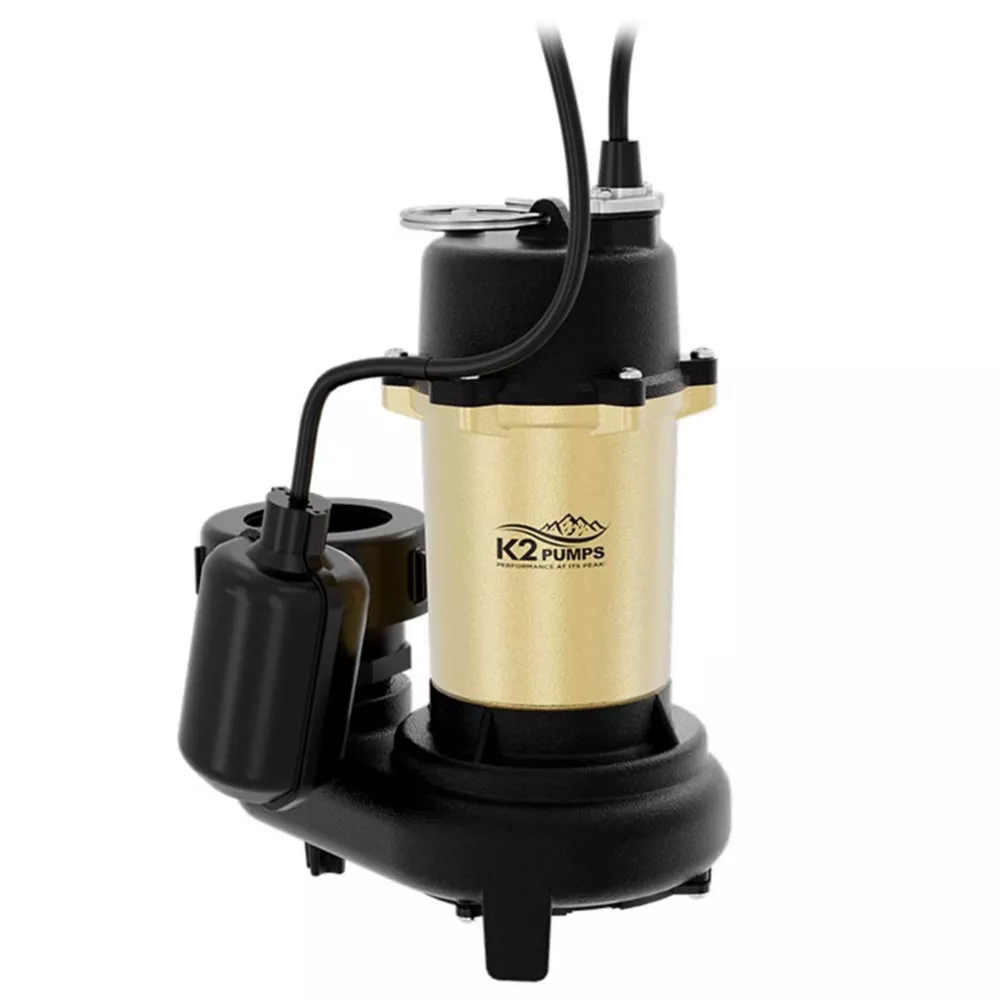

The K2 Pumps 3/4 HP effluent Pump is constructed of heavy-duty cast iron which is ideal for applications requiring a rugged submersible pump. The innovative quick-connect fitting features a metal ring with teeth that firmly grip PVC pipes The pump discharges up to 4,500 GPH at 0 ft. of lift, with a maximum lift of 40 ft. The energy-efficient, oil-filled PSC motor extends the life of the pump.

Constructed of heavy-duty cast iron
Discharges up to 4,500 GPH at 0 ft. of lift, with a maximum lift of 40 feet

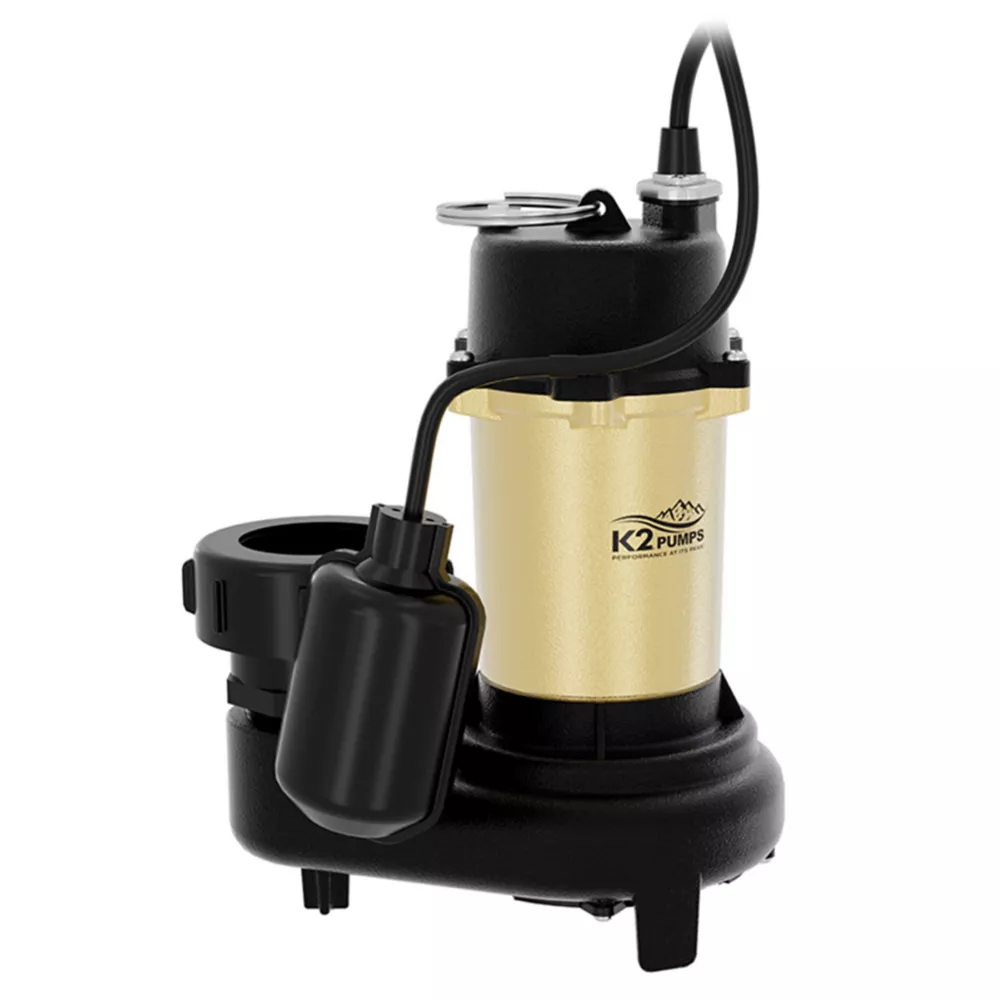

Piggyback tethered float switch for automatic or manual operation.

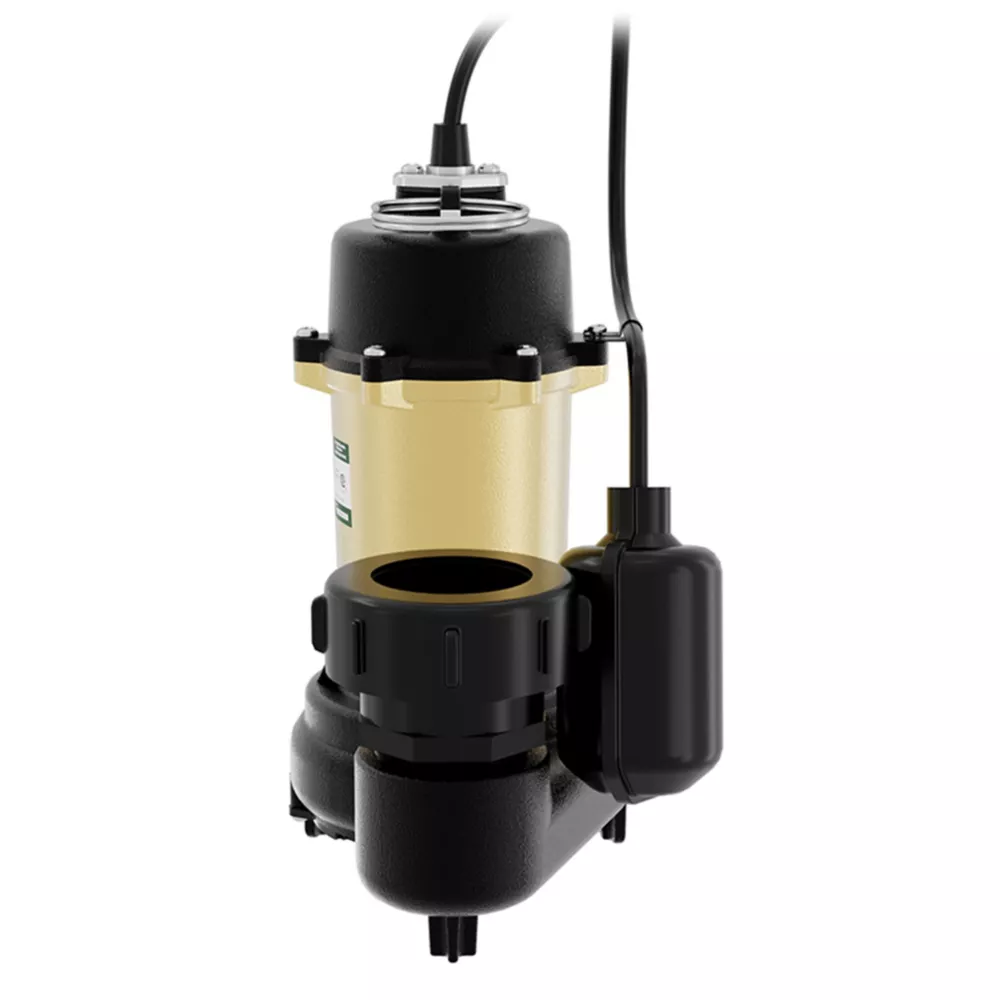

Includes a Quick Connect fitting which eliminates the need for PVC primer, glue or plumber's tape

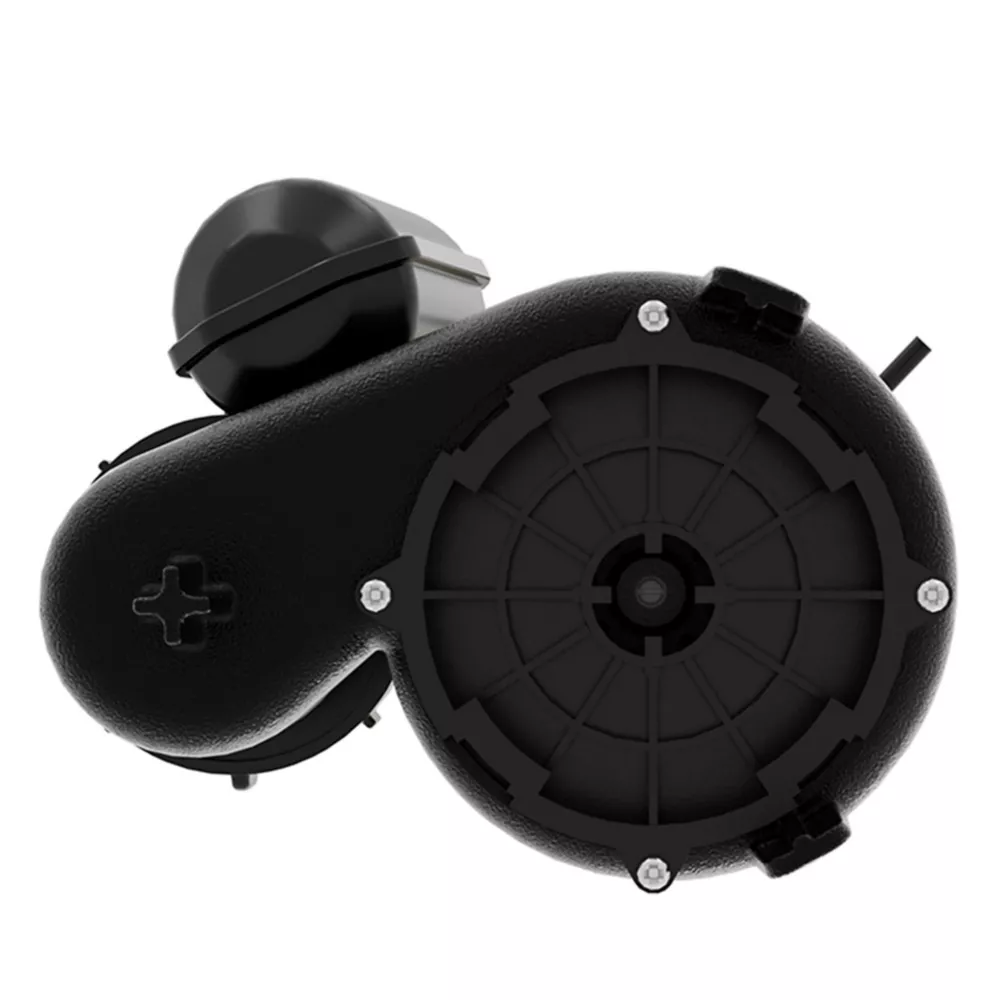

Non clog vortex impeller handles up to 3/4 in. solids
2 in. FNPT Discharge and 25 ft. power cord
2 Year Warranty

K2 Pumps SWF07501TPK 3/4 HP Cast Iron Effluent Pump with Piggback Attached Float Switch Sump Pumps Farm & Ranch> Tanks & Pumps> Water Pumps> Sump Pumps

Specification	Description
Brand	K2 Pumps
Country of Origin	Imported
Amperage	9.4 Amp
Basin Diameter	18 in.
Body Material	Cast iron
Compatible Pipe Material	PVC
Discharge Connection	Threaded Female
Discharge Port Diameter	2 in.
Discharge Rate at 0 ft.	75 GPM
Discharge Rate at 10 ft.	56 GPM
Engine Displacement	0 N/A
Features	2 in. Quick Connect Fitting eliminates the need for PVC primer, glue or plumber's tape
Horsepower	3/4 HP
Hose Diameter	2 in.
Impeller Material	Thermoplastic
Inlet Connection	None
Inlet Diameter	5.47 in.
Maximum Flow Rate	75 GPM
Maximum Head Lift	40 ft.
Maximum Operating Pressure	0 N/A
Maximum Operating Temperature	131 deg.
Maximum Solids Diameter	3/4 in.
Maximum Suction Lift	40 ft.
Minimum Operating Pressure	0 N/A
Minimum Operating Temperature	32 deg.
Power Cord Length	25 ft.
Power Type	Corded/Plug-in
Product Height	12.24 in.
Product Length	6.57 in.
Product Weight	22.05 lb.
Product Width	9.54 in.
Pump Mechanism	Centrifugal
Motor Type	Permanent Split Capacitor (PSC)
Switch-Off Height	7.5 in.
Switch-On Height	16.5 in.
Voltage	115 V
Warranty	2 Years
Manufacturer PartNumber	SWF07501TPK

K2 Pumps 3/4 HP Cast Iron Effluent Pump with Piggback Tethered Float Switch, SWF07501TPK Specifications expand/collapse Specification Description Brand K2 Pumps Country of Origin Imported Amperage 9.4 A Basin Diameter 18 in. Body Material Cast Iron Compatible Pipe Material PVC Discharge Connection Female Threaded Discharge Port Diameter 2 in. Discharge rate at 0 ft. 75 GPM Discharge Rate at 10 ft. 56 GPM Motor Displacement 0 N/A Specifications 2 in. Quick-connect fitting eliminates the need for PVC primer, glue or plumber's tape Power 3/4 HP Pipe diameter 2 in. Impeller Material Inlet Fitting Thermoplastic None Inlet Diameter 5.47 in. Maximum flow 75 GPM Maximum head lift 40 feet Maximum operating pressure 0 N/A Maximum operating temperature 131 degrees. Maximum diameter of solids 3/4 in. Maximum suction height 40 feet. Minimum operating pressure 0 N/A Minimum operating temperature 32 deg. Power cord length 25 ft. Wired/wired power typeichable Product Height 12.24 in. Product length 6.57 in. Product weight 22.05 lbs. Product width 9.54 in. Pump Mechanism Centrifugal Motor Type Permanent Split Capacitor (PSC) Cutoff Height 7.5 in. Start-up height 16.5 in. Voltage 115 V Warranty 2 years Manufacturer part number SWF07501TPK
